Graco LineLazer 25A493 User manual

3A4240B

Repair

LineLazer™Kit for Replacing the Main

Control Board

Kit Number 25A493 Mainboard, Standard Series

Kit Number 25A494 Mainboard, HP Auto Series

Kit Number 25N788 Mainboard, Standard Series

Kit Number 25N789 Mainboard, HP Auto Series

For repair of LineLazers.

For professional use only.

Not for use in explosive atmospheres.

Important Safety Instructions

Read all warnings and instructions in LineLazer manuals.

Be familiar with the controls and the proper usage of the equipment.

25N848 Standard

Control Board

25N849 HP Auto

Control Board

Disconnect Battery before Service

2 3A4240

Disconnect Battery before Service

ES2000

Removal

3A4240 3

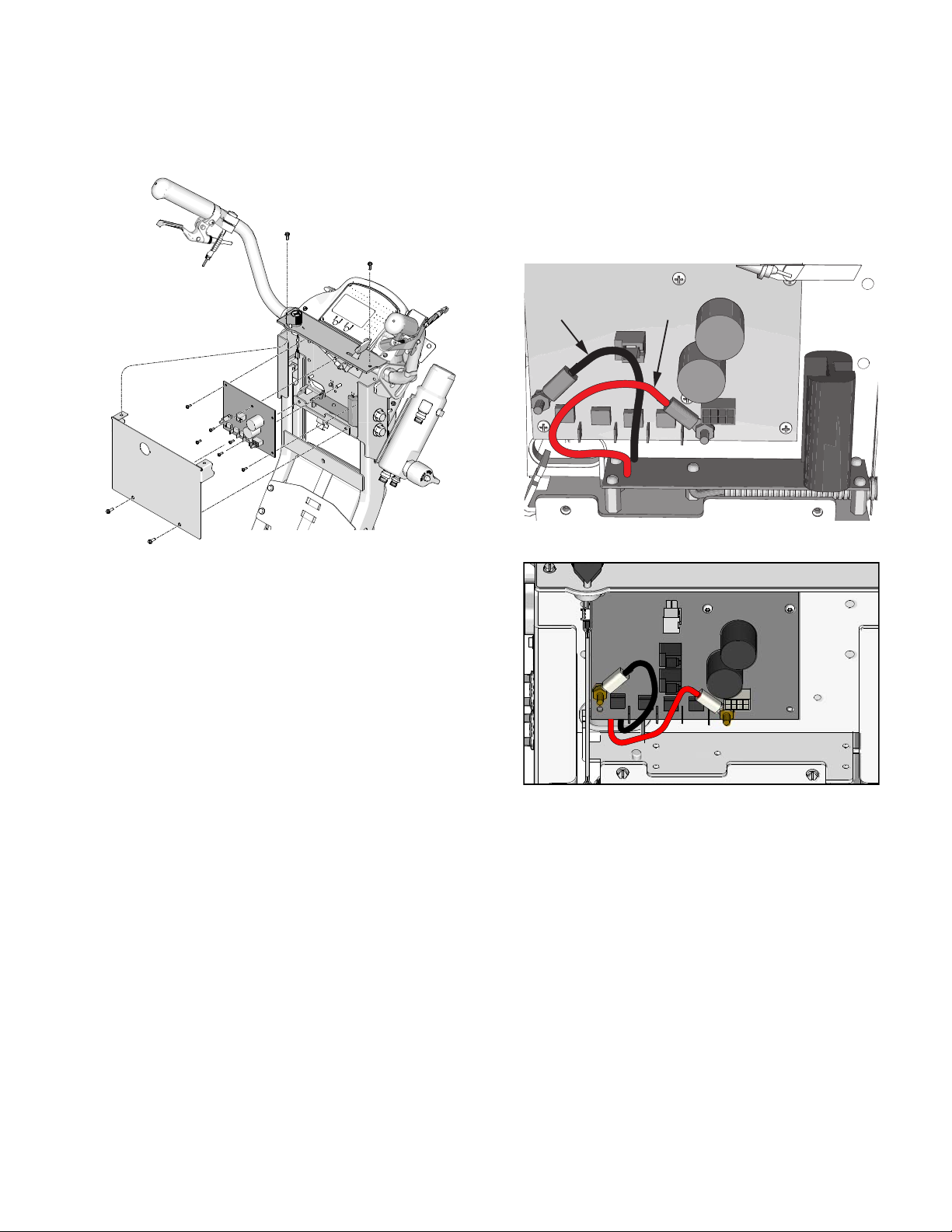

Removal

1. Remove bottom cover.

2. Disconnect all wires from main control board.

3. Remove 6 screws and main control board.

Installation

1. Install new main control board with 6 screws.

2. On HP Auto LineLazers, connect short red or

orange, and black wires on charging board to main

board. Loop wires as shown.

ti29198a

ti28483a

Black Red

ti36248a

ES2000 HP Auto Series

Installation

4 3A4240

3. For LineLazer V 3900 or 5900, connect the other

wires to the main board in the order shown.

HP Auto Only

Installation

3A4240 5

ES2000

Installation

6 3A4240

4. For LineLazer V 200HS, connect the other wires to

the main board in the order shown.

HP Auto Only

Installation

3A4240 7

200DC/200MMA

Installation

8 3A4240

5. Bundle and cable-tie the two gray wires on the right

side of the main board as shown.

6. On HP Auto units only, do not cable-tie the white

solenoid wires.

7. Bundle and cable-tie the wires on the left side of the

main board as shown.

8. Install bottom cover with 4 screws (do not pinch

wires).

9. Connect battery after service.

10. Open prime valve to relieve pressure. Start engine

or turn ON striper and calibrate distance sensor per

the operation manual.

11. After calibration, use the arrows to select the set-

tings screen.

Installation

3A4240 9

12. Select 3900, 5900, 200HS, 200HS2P, or ES2000 to

match your LineLazer (200DC and 200MMA use

200HS2P).

13. Set time, date, and units to complete the installation.

14. With prime valve still open (no pressure), turn

engine or striper OFF, then start engine or turn

striper ON to complete pressure transducer calibra-

tion.

Use to select Setup/Information. Press to

open Settings Menu.

Chooses the machine type. Necessary for accurate

gallon counting.

Use to set time and date.

Use

Set units with

Use to adjust screen contrast to the desired

value.

ti27839b

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

2ULJLQDOLQVWUXFWLRQV This manual contains English. MM 3A4240

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

www.graco.com

Revision B, April 2019
