Goldstar WG8005R User manual

www.goldstarappliances.com

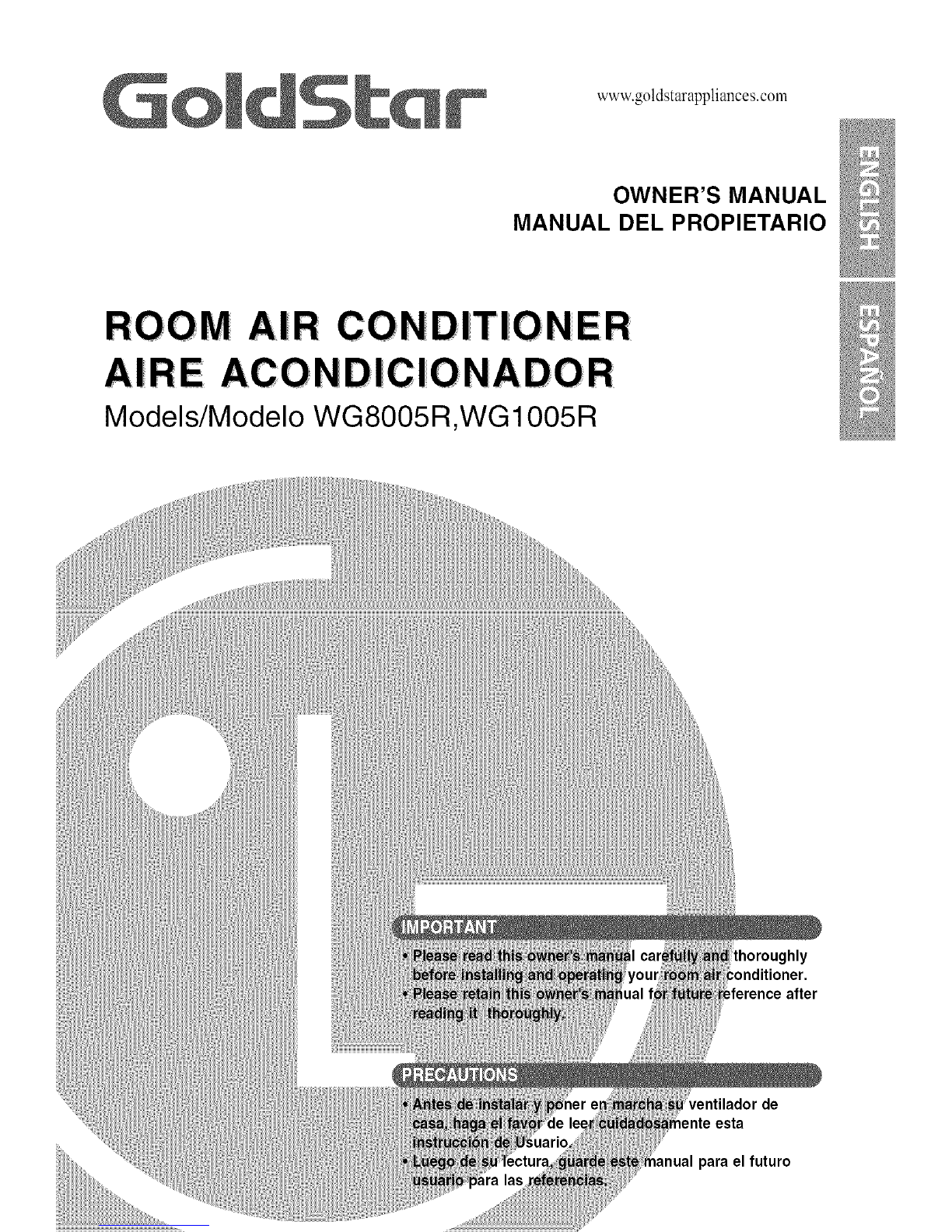

OWNER'S MANUAL

MANUAL DEL PROPIETARIO

ROO M AI R CONDITIONER

AIRE ACONDICIONADOR

Models/Modelo WG8005R,WG1005R @

after

rentilador de

para el futuro

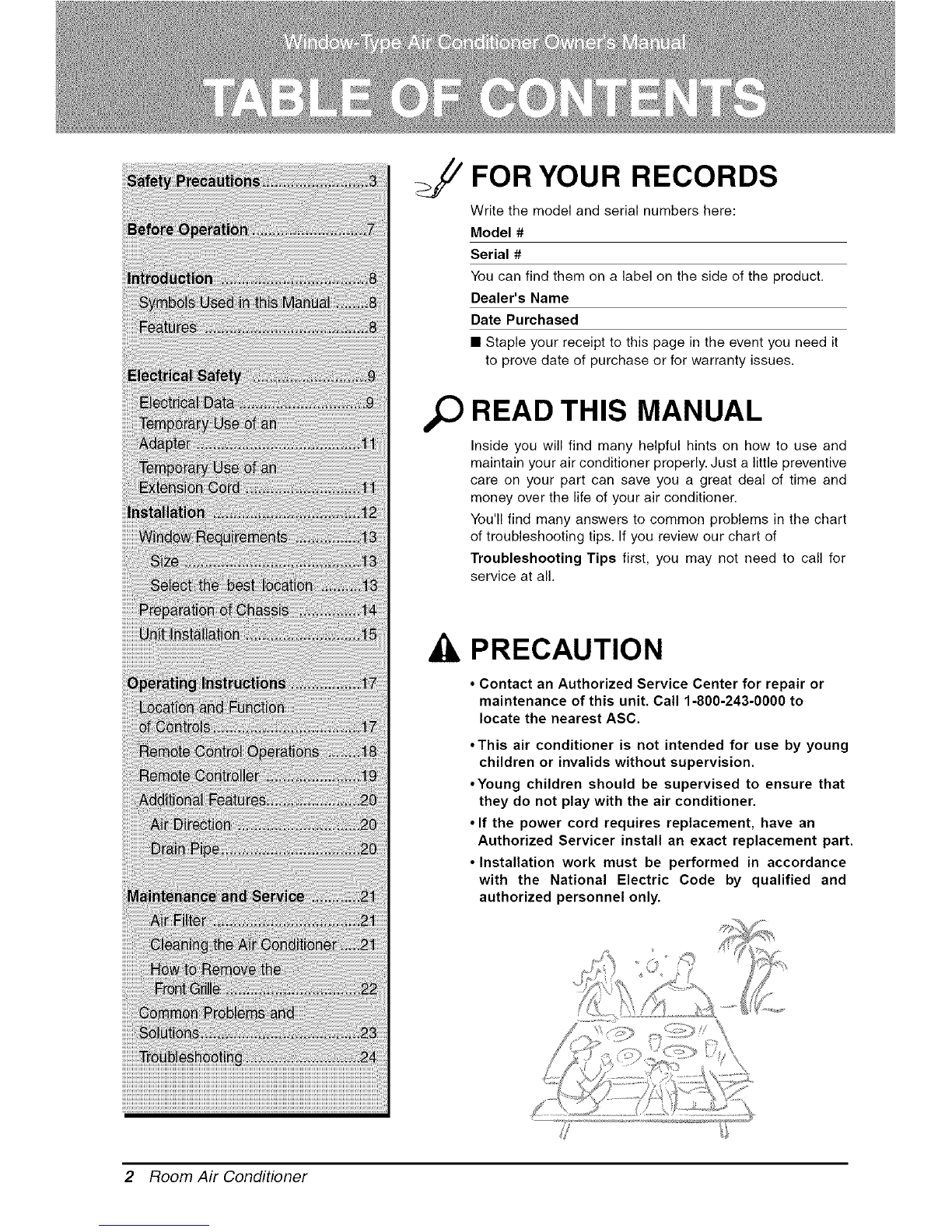

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of the product.

Dealer's Name

Date Purchased

• Staple your receipt to this page in the event you need it

to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

PRECAUTION

• Contact an Authorized Service Center for repair or

maintenance of this unit. Call 1-800-243-0000 to

locate the nearest ASC.

•This air conditioner is not intended for use by young

children or invalids without supervision.

•Young children should be supervised to ensure that

they do not play with the air conditioner.

•If the power cord requires replacement, have an

Authorized Servicer install an exact replacement part.

•Installation work must be performed in accordance

with the National Electric Code by qualified and

authorized personnel only.

2 Room Air Conditioner

SafetyPrecautions

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

• Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness

is classified by the following indications.

• Because of the weight of the product, it is recommended that you have a helper to assist in

the installation.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicatesthe possibilityof injury or damage to property only.

• Meanings of symbols used in this manual are as shown below.

QBe not to do.

sure

Be sure to follow the instruction.

•Installation WARNING

• Improper assembly or installation may cause

incorrect operation, including injury,fire, and

poor performance electric shock hazards.

• It may cause explosion or fire.

• It may cause fire and electric shock.

• It may cause failure and electric shock.

Owner's Manual 3

Safety Precautions

• Operation

• Otherwise, it will cause

electric shock or fire. • It will cause electric shock or

fire.

• It will cause electric shock or

fire.

• Otherwise it may cause fire

and electric shock accident.

• It will cause electric shock or

fire.

• It will cause electric shock or

fire.

• No grounding may cause

electric shock.

• It may cause fire and electric

shock. • It will cause electric shock.

4 Room Air Conditioner

• The air conditioner must be operated in a

enclosed area to be most effective.

• It will cause electric shock or failure of

machine.

Safety Precautions

• It may cause explosion, fire, and burn.

Installation

• They are sharp and may

cause injury.

•Water may enter the unit and degrade the

insulation. It may cause an electric shock.

•It may cause failure of

appliance or performance

deteriorate.

• If the outer case is damaged,

it must be repaired or

replaced immediately.

Leaving it damaged could

result in the air conditioner

falling out of the window,

creating a safety hazard.

Owner's Manual 5

Safety Precautions

. It may cause injury.

Operation

. It may causeelectricshock

anddamage. • It will waste power

consumption in vain and it

may cause accident.

•Since the fan rotates at high

speed during operation, it may

cause injury.

"Operation without filters will

cause failure.

•This could injure the pet or

plant.

- It is an air conditioner, not a

precision refrigeration system.

• The appearance of the air

conditioner may deteriorate

change color, or develop

surface flaws.

• It is not sanitary and could

cause illness or personal

injury hazard.

6 Room Air Conditioner

Before Operation

1. Plug in the power cord properly.

2. Use a dedicated circuit. Overloading the line could create a fire hazard.

3. Do not use an extension cord. See page 11 for more details.

4. Do not start/stop operation by plugging/unplugging the power cord.

5. If the power cord is damaged and requires replacement, have an Authorized

Servicer install an exact replacement part.

1. Being exposed to direct airflow for an extended period of time could be

hazardous to your health. Do not expose occupants, pets, or plants to direct

airflow for extended periods of time.

2. Due to the possibility of oxygen deficiency, ventilate the room when used

together with stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purposes (e.g.

preserving precision devices, food, pets, plants, and art objects). Such usage

could damage the items.

4. The air conditioner is a consumer comfort appliance, not a precision climate

control system.

1. Do not touch the metal parts of the unit when removing the filter. Injuries can

occur when handling sharp metal edges.

2. Do not use water to clean inside the air conditioner. Exposure to water can

destroy the insulation, leading to possible electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned

off. The fan rotates at a very high speed during operation. There is a

possibility of injury if the unit's power is accidentally triggered on while

cleaning inner parts of the unit.

For repair and maintenance, contact an Authorized Service Center. See the

warranty page for details or call (800) 243-0000. Have your model number and

serial number available. They should be written on page 2 of this manual.

Owner's Manual 7

Introduction

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to the

air conditioner.

This symbol indicates special notes.

_lb ARNING: This appliance should be installed in accordance with

national Electric Code.

CABINET

FRONT

GRILLE

AIR FILTER

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

--AIR DISCHARGE

AIR INTAKE

(INLET GRILLE)

EVAPORATOR

CONTROL BOARD

REMOTE

CONTROLLER

BRACE

_-COMPRESSOR

CONDENSER

BASE PAN

POWER CORD

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

HORIZONTAL AIR DEFLECTOR

FRONT GRILLE-

AIR FILTER AIR INTAKE

(INLET GRILLE)

BRACE

COMPRESSOR

8 Room Air Conditioner

EVAPORATOR

CONTROL BOARD POWER CORD

E/ectrical Safety

115V~ 230V~ Power cord may include a current

interrupter device. A test and reset button is

provided on the plug case. The device

should be tested on a periodic basis by first

pressing the TEST button and then the

RESET button. If the TEST button does not

trip or if the RESET button will not stay

engaged, discontinue use of the air

conditioner and contact a qualified service

technician.

Use Wall Receptacle Power Supply

Standard 125V,3-wiregrounding

receptaclerated 15A, 125VAC

Standard 250V, 3-wire grounding

receptacle rated 15A, 250V AC

Standard 250V, 3-wire grounding

receptacle rated 20A, 250V AC

Use 15 AMP. time

delay fuse or 15 AMP.

circuit breaker.

Use 20 AMP. time

delay fuse or 20 AMP.

circuit breaker.

Use of extension cords

Because of potential safety hazards, we

strongly discourage the use of an extension

cord. However, if you wish to use an

extension cord, use a CSA certified/UL-listed

3-wire (grounding) extension cord, rated 15A,

125V.

All wiring should be made in accordance with

local electrical codes and regulations.

Aluminum house wiring may pose special

problems. Consult a qualified electrician.

ELECTRICAL SAFETY

IMPORTANT GROUNDING INSTRUCTIONS

Air conditioner has a three-prong grounding plug on

its power supply cord, which must be plugged into

properly grounded three-prong wall receptacle for

your protection against possible shock hazard.

230, 208, and 2301208 VOLT UNITS

These units are equipped with a three-prong

grounding plug on the power supply cord, which

must be plugged into a matching properly grounded

three-prong wall receptacle for your protection

against possible shock hazard. If such an outlet is

not present, one must be installed by a qualified

electrician in accordance with the National Electrical

Code and local codes and ordinances.

DO NOT USE AN EXTENSION CORD on 230,

208, and 230/208 Volt units.

Owner's Manual 9

Electrical Safety

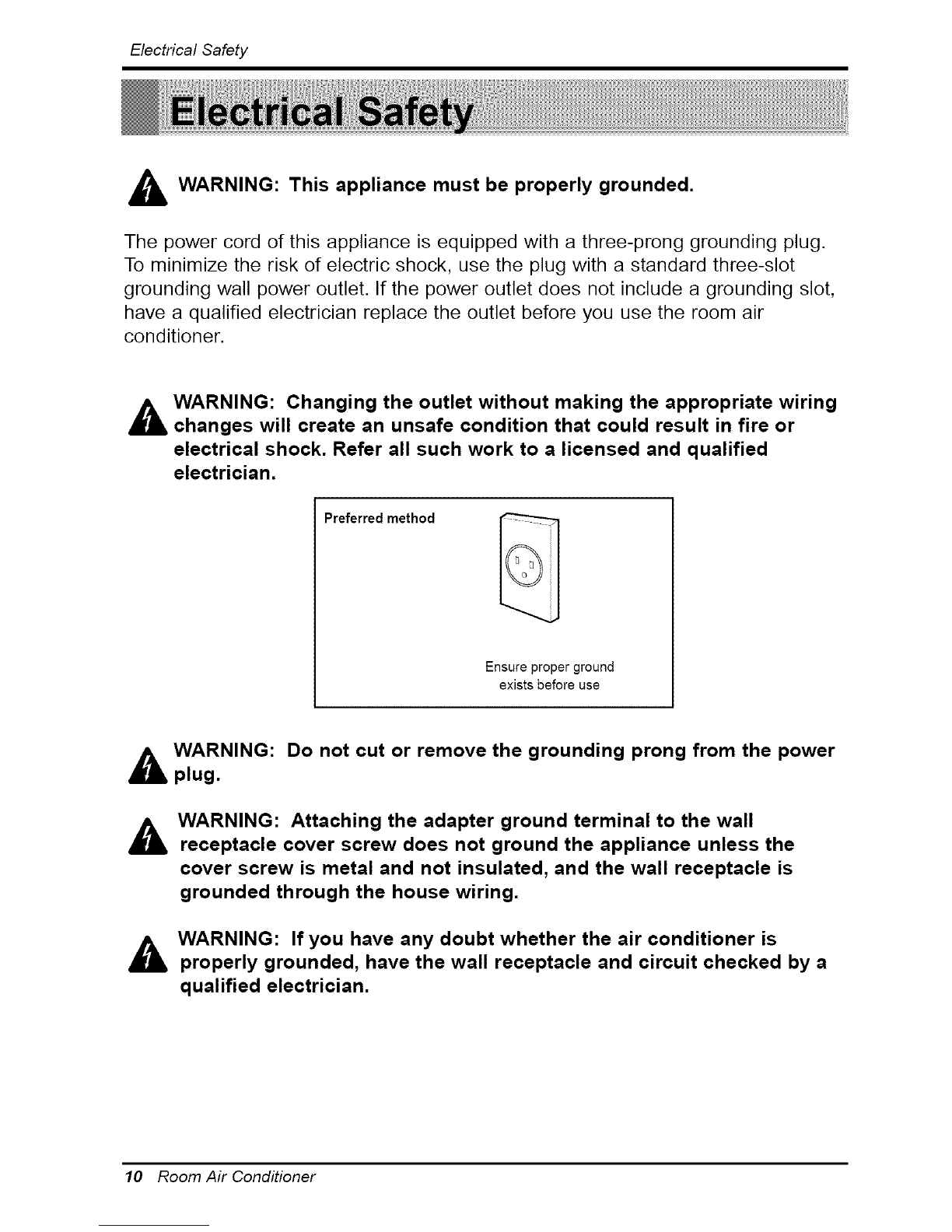

WARNING: This appliance must be properly grounded.

The power cord of this appliance is equipped with a three-prong grounding plug.

To minimize the risk of electric shock, use the plug with a standard three-slot

grounding wall power outlet. If the power outlet does not include a grounding slot,

have a qualified electrician replace the outlet before you use the room air

conditioner.

WARNING: Changing the outlet without making the appropriate wiring

changes will create an unsafe condition that could result in fire or

electrical shock. Refer all such work to alicensed and qualified

electrician.

Preferred method

Ensure proper ground

exists before use

WARNING: Do not cut or remove the grounding prong from the power

plug.

WARNING: Attaching the adapter ground terminal to the wall

receptacle cover screw does not ground the appliance unless the

cover screw is metal and not insulated, and the wall receptacle is

grounded through the house wiring.

WARNING: If you have any doubt whether the air conditioner is

properly grounded, have the wall receptacle and circuit checked by a

qualified electrician.

10 Room Air Conditioner
