Goldstar R1203H User manual

website http://www.lgservice.com

e-mail http:flwwwJgeservice.com/techsup.htmt

Please

read the operating

TIONE

instructions and safety precautions carefully

and thoroughly before installing and operating your room air conditioner,

MANUEL

T'UTILI

E E FE A

Veuillez lire a_entivement et en entier ce guide d'utilisation et les mesures de

s6curite ci-incluses avant de proceder & Finstallation et au fonctionnement de

votre ciimatiseur.

IACONDICIO

UL P P[ET

Por favor lea las instrucciones de operaciOn y las precauciones de seguridad

cuidadosa y totalmente antes de instalar y operar su acondicionador de aire

de ventana.

MODEL, MODE, MODELO: R1203H

FEATURES 2

SAFE_¢ PRECAUTIONS 3

OPERATING ...................................................................................................................................... 5

FUNCTI,ON ........................................................................................................................................ 5

VENTILATION .................................................................................................................................. 6

TO CONTROL AIR DIRECTION ................................................................................................... 6

HOW TO SECURE THE DRAIN PiPE .......................................................................................... 6

AIR FILTER CLEANING ............................................................................................................... 7

HOW TO USE THE REVERSIBLE INLET GRILLE ...................................................................... 7

ELECTRICAL DATA ........................................................................................................................... 8

BEFORE CALLING FOR SERVICE ................................................................................................... 8

INSTALLATION INSTRUCTIONS ......................................................................................................... 9

ELECTR ICAL SAFETY. ..................................................................................................................... 13

1, CABINET

2, HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

3, VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

4. AiR DISCHARGE

5, FRONT GRILLE

6, AIR INTAKE

(INLET GRILLE)

7, AIR FILTER

8, CONTROL BOARD

9, POWER CORD

10. EVAPORATOR

11. CONDENSER

12. COMPRESSOR

13. BASE PAN

14. BRACE

15, ELECTRIC HEATER

To prevent injury to the user or other people and property damage, the,foliowing instructions must be fol-

lowed.

m incorrect operation due to ignoring of instruction wilJcause harm or damage The seriousness is classified

by the following indications,

I Z_ WARNING " This symbol indicates the possibility of death or serious injury:

_ CAUTION , This symbol indicates the possibility of injury or damage to prop-

" erties only.

[] Meanings of symbols used in this manual are as shown below,

Be sure not to do.

_Be sure to follow the instruction.

• Otherwise, it will cause electric

shock or fire due to heat genera-

tion.

._twill cause electric shock or fire

due to heat generation. • _twill cause e_ectric shock or fire,

•If the _er _rd is damaged, it must

be r_laced bythe manufacturer or

an authorized service center or a

similarly qualified personJnorder to

avoid a hazard.

. _twill cau_ ellectdc shock or fire

due to heat generation. • it will cause el_tric: shoals,. • This could damage your health.

°3-

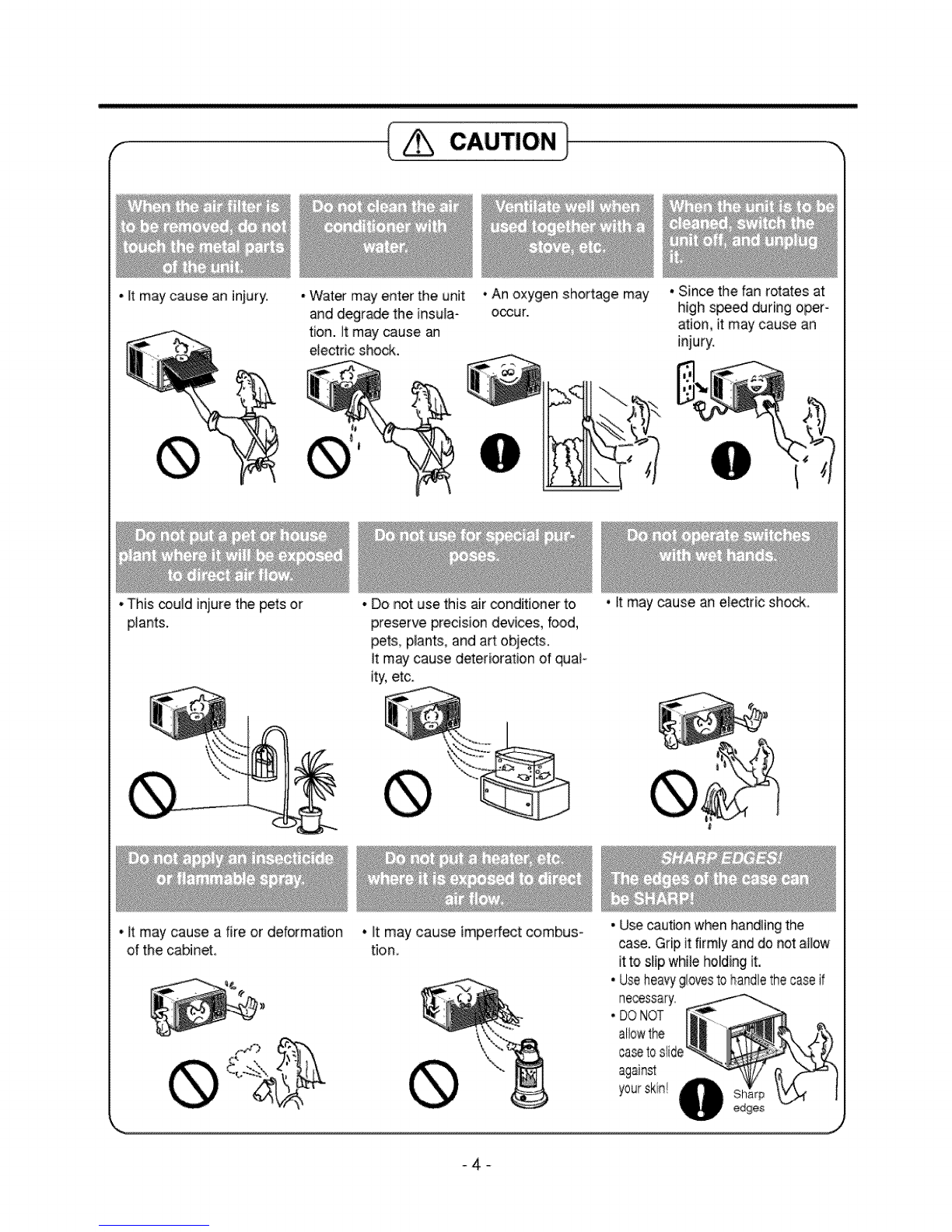

- It may cause an iniury. • 'Water may enter the unit

•This could injure the pets or

plants.

and degrade the insula-

tion. It may cause an

electric shock.

•It may cause a fire or deformation

of the cabinet

•An oxygen shortage may

o_ur.

• Since the fan rotates at

high speed during oper-

ation, it may cause an

injury.

•Do not usethis air conditioner to

preserve precision devices, food,

pets, p_ant&and art:obje_s.

It may cause deterioration of quaF

ity,etc.

• It may cause imperfect combus-

tion,

• It may cause an ele_ric shock,

• Usecautionwhen handlingthe

case. Gripit firmlyand do not allow

it to slipwhite holdingit,

• Useheavy#lovestohandlethecaseif

necessary.

• DONOT

allowthe

casetoslide

-4-

OPERATING

• WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance.

•CAUTION

When the air conditioner has been performing its cooling operation and is turned off or set to the fan

position, wait at least 3 minutes before resetting to the cooling operation again.

FUNCTION

Warmer Cooler _ _

BEFORE RESTARTING

Thermostat WAIT THREE MINUTES Operation

• THERMOSTAT

Turn the thermostat control to the desired setting.

The centrol position is a normal setting for average

conditions. You can change this setting, if neces-

sary, in accordance with your temperature prefer-

ence.

The thermostat automatically controls cooling or

heating, but the fan runs continuously whenever

the air conditioner is in operation. If the room is too

warm, turn the thermostat control clockwise. If the

room is too cool, turn the themostat control anti-

clockwise.

• OPERATION

O(OFF) :Turns

LOW FAN ( e ):

LOW COOL ( _ ) :

HIGHCOOL(_):

LOW HEAT ( -_ ):

HIGHHEAT (-}_):

the air conditioner off.

Permits the low fan speed opera-

tion without cooling (heating).

Permits cooling with the low fan

speed operation.

Permits cooling with the high fan

speed operation.

Permits heating with the low fan

speed operation.

Permits heating with the high fan

speed operation.

A slight heat odor may come from the unit when first switching to HEAT after the cooling season is

over. This odor, caused by fine dust particles on the heater, will disappear quickly.

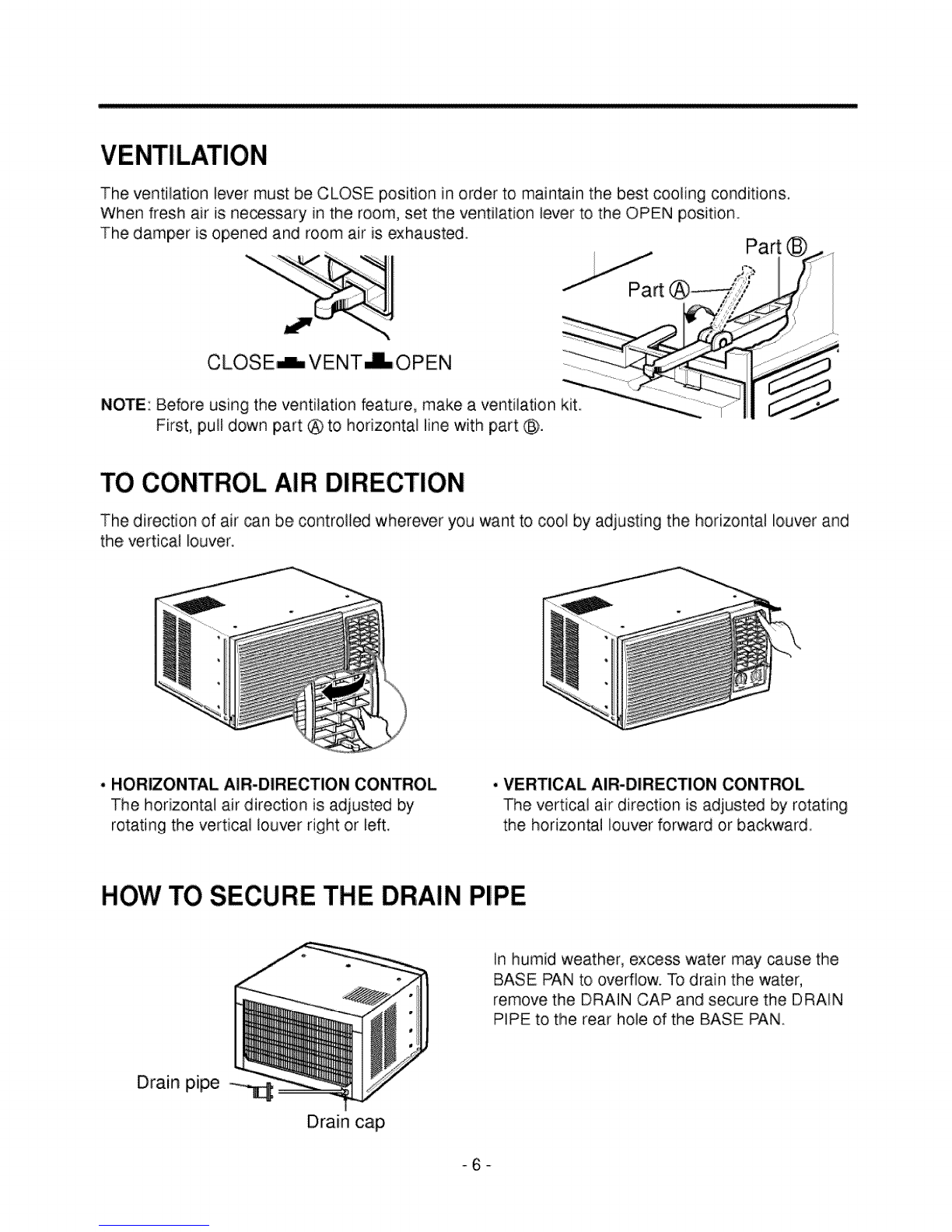

TheventilationlevermustbeCLOSEpositioninorderto maintainthebestcoolingconditions.

Whenfreshairisnecessaryintheroom,settheventilationlevertotheOPENposition.

Thedamperisopenedandroomairisexhausted. Part

NOTE: Before using the ventilation feature, make a ventilation kit.

First, pull down part @ to horizontal line with part @.

TO CONTROL AIR DIRECTION

The direction of air can be controlled wherever you want to cool by adjusting the horizontal louver and

the vertical louver.

• HORIZONTAL AIR-DIRECTION CONTROL

The horizontal air direction is adiusted by

rotating the vertical louver right or left.

.VERTICAL AIR-DIRECTION CONTROL

The vertical air direction is adjusted by rotating

the horizontal louver forward or backward,

HOW TO SECURE THE DRAIN PIPE

In humid weather, ex_ss water may cause the

BASE PAN to ovedlow. To drain the water,

remove the DRAIN CAP and secure the DRAIN

PIPE to the rear hole of the BASE PAN.

Drain pipe -_

Drain cap

°6-

AIR FILTER CLEANING

The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped

particles in the filter will build up and block the airflow. This reduces the cooling capacity and also

causes an accumulation of frost on the cooling coils.

1. Open the inlet grille upward by pulling out the bottom of the inlet grille.

2. Remove the air filter from the front grille assembly by pulling the air filter up slightly.

3. Wash the filter using lukewarm water below 40°C(104°F).

4. Gently shake the excess water from the filter completely. Replace the filter.

HOW TO USE THE REVERSIBLE INLET GRILLE

The grille is designed to clean the filter both upward and downward.

(a) (b) (c)

A. Before attaching the front grille to the cabinet, if you want to pull out the fil-

ter upward;

1. Open the inlet grille slightly (a).

2. Turn inside out the front grille (a).

3. Disassemble the inlet grille from the front grille with separating the hinged part by inserting a

straight type screw-driver tip (b).

4. Then, rotate the inlet grille 180 degrees and insert the hooks into bottom holes of the front grille.

5. Insert the filter and attach the front grille to the cabinet.

B. If you want to pull out the filter downward;

The grille is already designed that way.

ELECTRICAL DATA

Line Cord Plug

DirOcnOt,under any

umstances, cut or

remove the grounding prong

Lfrom the plug.

Power supply cord with

3-prong grounding plug

Use Wall Receptacle Power Supply

Standard 250V, 3-wire grounding

receptacle rated 20A, 250V AC

Use 20 AMP, time

delay fuse or circuit

breaker.

BEFORE CALLING FOR SERVICE

, Air Conditioner will not operate.

1. Is the air conditioner plugged into the outlet?

2. Is the fuse or breaker good?

3. Is the voltage unusually high or low?

• Air from the unit does not feel cold enough on the cooling setting.

1. Is the setting temperature correct?

2. Is the air filter clogged with dust?

3. Is the air flow from the outside(condensers) obstructed?

Leave a clearance of over 1 meter(3.28 feet) between the back of the air conditioner and the wall or

fence behind it.

4. Are the door or windows open, or is there any source of heat in the room?

NOTE: If it is difficult to find out the cause of the trouble, be sure to turn the air conditioner off and

contact the dealer.

° OFF-SEASON MAINTENANCE

1. Clean the air filter and re-install.

2. Turn the power off by operation knob, and disconnect the power plug from the wall receptacle.

INSTA I

SELECT THE BEST LOCATION

1. To prevent vibration and noise, make sure the

unit is installed securely and firmly

2. Install the unit where the sunlight does not

shine directly on the unit.

3. The outside of the cabinet must extend

outward for at least I2" and there should be

no obstacles, such as a fence or wall, within

20" from the back of the cabinet because it will

prevent heat radiation of the condenser.

Restriction of outside air will greatly reduce

the cooling efficiency of the air conditioner.

CAUTION: All side louvers of the cabinet must

remain exposed to the outside of the structure,

WINDOW REQUIREMENTS

1. This unit is designed for installation in

standard double hung windows with actual

opening widths from 27" to 39",

The top and bottom window sash must open

sufficiently to allow a clear vertical opening of

16" from the bosom of the upper sash to the

window stool_

INSTALLATION KITS CONTENTS

2 Install the unit a little slanted so the back is

slightly lower than the front(about !/2").

This will force condensed water to flow to the

outside_

3_ Install the unit with the bosom about 30"~60 ''

above the floor level.

_nterior wall I

235/8" rain

(Wffhout frame cumin)

Extedor

NAME OF PARTS

FRAME CURTAIN

SILL SUPPORT

BOLT

NUT

SCREW(TYPE A)

NO,

SCREW(_PE C)

FOAM-STRIP

FOAM-PE

UPPER GUIDE

FOAM-PE

FRAME GUIDE

WINDOW LOCKING BRACKET

SUGGESTED TOOL REQUIREMENTS

SCREWDRIVER(+,-), RULLER, KNIFE, HAMMER, PENCIL, LEVEL

PREPARATION OF CHASSIS

1, Remove the screws which fasten the cabinet

at: both sides and at the back.

2. Slide the unit from the cabinet by' gripping the

base pan handle and pulling forward while

bracing the cabinet.

3. Remove EPS Material.

4, Cut the window sash seal to the proper length.

Peel off the backing and attach the foam-pc @

to the underside of the window sash.

5, Remove the backing from the top upper guide

Foam PE @ and attach it to the bosom of the

upper guide Q,

6. A_ach the upper guide onto the top of the

cabinet with 3 type A screws.

7. insert the frame guides @ into the bottom of

the cabinet.

8. insert the Frame Curtain O) into the upper

guide @ and frame guides @.

9, Fasten the curtains to the unit with 4 Type A

screws. (Type A}_. i

Shipping screws

EPS Matedal

CABINET INSTALLATION

1. Open the window. Mark a line on center of the

window stool(or desired air conditioner

location).

Carefully place the, cabinet on the window

stool and align the center mark on the bottom

front with the _nter line marked in the

window stool.

2, Pull the bottom window sash down behind the

upper guide until it meets.

NOTE:

• Do not puli the window sash down so tightly

that the movement of Frame Curtain is

restricted.

(Type A)

Upper Guid_indow ;_gll

Window Upper guide

Foam-

Fig. 2

-10-

Table of contents

Languages:

Other Goldstar Air Conditioner manuals

Goldstar

Goldstar KG6000R User manual

Goldstar

Goldstar KG5000 User manual

Goldstar

Goldstar GP100CE Instruction Manual

Goldstar

Goldstar R1804H User manual

Goldstar

Goldstar HBLG5004 User manual

Goldstar

Goldstar R5050 User manual

Goldstar

Goldstar WG1805R User manual

Goldstar

Goldstar WG6007R User manual

Goldstar

Goldstar WG1000R User manual

Goldstar

Goldstar WG1800R User manual

Goldstar

Goldstar M8004R User manual

Goldstar

Goldstar GWHD6500R User manual

Goldstar

Goldstar BG8000ER User manual

Goldstar

Goldstar R-5100 User manual

Goldstar

Goldstar R7003 User manual

Goldstar

Goldstar LXA1210ACL User manual

Goldstar

Goldstar M1804R User manual

Goldstar

Goldstar R1801H User manual

Goldstar

Goldstar GP100CE Instruction Manual

Goldstar

Goldstar M8003R User manual

Goldstar

Goldstar BG5200ER User manual

Goldstar

Goldstar LWC061JGMK1 User manual

Goldstar

Goldstar WG8000R User manual

Goldstar

Goldstar WG5005R User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
