Gigabyte 6BXA User manual
6BXA
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE..........................................................................................................1-1
1.2. KEY FEATURES...............................................................................................1-1
1.3. PERFORMANCE LIST .....................................................................................1-2
1.4. BLOCK DIAGRAM............................................................................................1-3
1.5. INTRODUCE THE PentiumII Processor & AGP..........................................1-4
1.6. What is AGP?....................................................................................................1-5
2. SPECIFICATION
2.1. HARDWARE.....................................................................................................2-1
2.2. SOFTWARE......................................................................................................2-2
2.3. ENVIRONMENT................................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING.....................................................................................................3-1
3.2. MAINBOARD LAYOUT.....................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS.............................3-2
3.4. DRAM INSTALLATION.....................................................................................3-6
3.5. CPU SPEED SETUP........................................................................................3-7
3.6. CMOS RTC & ISA CFG CMOS SRAM............................................................3-8
3.7. SPEAKER CONNECTOR INSTALLATION.....................................................3-8
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION....................3-9
3.9. POWER LED CONNECTOR INSTALLATION ................................................3-9
3.10. IDE & ATAPI DEVICE INSTALLATION .........................................................3-9
Table of Contents
2
3.11. PERIPHERAL DEVICE INSTALLATION.......................................................3-9
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION..............................................3-9
4. BIOS CONFIGURATION
4.1. ENTERING SETUP ..........................................................................................4-1
4.2. CONTROL KEYS..............................................................................................4-1
4.3. GETTING HELP................................................................................................4-2
4.3.1. Main Menu ............................................................................................4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu.........................4-2
4.4. THE MAIN MENU .............................................................................................4-2
4.5. STANDARD CMOS SETUP MENU.................................................................4-4
4.6. BIOS FEATURES SETUP................................................................................4-8
4.7. CHIPSET FEATURES SETUP.........................................................................4-13
4.8. POWER MANAGEMENT SETUP....................................................................4-17
4.9. PNP/PCI CONFIGURATION............................................................................4-21
4.10. LOAD BIOS DEFAULTS.................................................................................4-23
4.11. LOAD PERFORMANCE DEFAULTS.............................................................4-24
4.12. INTEGRATED PERIPHERALS......................................................................4-25
4.13. SUPERVISOR/USER PASSWORD...............................................................4-30
4.14. IDE HDD AUTO DETECTION........................................................................4-31
4.15. SAVE & EXIT SETUP.....................................................................................4-32
4.16. EXIT WITHOUT SAVING ...............................................................................4-33
6BXA
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BXA motherboard. It is a PentiumII / Celeron
Processor based PC / AT compatible system with AGP/ PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / Celeron Processor based PC / AT compatible
mainboard.
qSlot 1 supports PentiumII / Celeron processor running at 233-633 MHz.
qIntel 440BX chipset, Supports SDRAM / Ultra DMA 33 IDE.
qBuilt-in PCI ESS SOLO 1 audio chip.
qSupports external Modem Ring-On on COM A&B and Internal.
qSupports Wake-up on LAN (JP10).
qSupports 3xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports 16 MB - 768 MB SDRAM .
q5xPCI Bus slots, 1xISA Bus slots, 1xAGP slot.
qSupports 2 channels Ultra DMA 33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH RAM.
q30.5 cm x 19 cm ATX form factor, 4 layers PCB.
Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM (128 x 1) MB SDRAM (TOSHIBA TC59S6408FTL-80H)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-630 voodoo banshee (16MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA 36481)
•O.S. Windows NT™4.0 SPK4
•DRIVER Display Driver at 1024 x 768 x 64K colors x 75Hz.
TRIONES Bus Master IDE Driver 3.70a
Intel PentiumII
Processor 500MHz(100x5) 400MHz(100x4)
Winbench99
CPU mark32 1270 1080
FPU Winmark 2560 2070
Business Disk 4200 4070
Hi-End Disk 8210 8300
Business Graphics 228 198
Hi-End Graphics 408 345
Winstone99 Business 34.2 31.3
Hi-End 30.2 26.7
6BXA
1-3
3.3V EDO/SDRAM
DIMM Sockets
Floppy Port

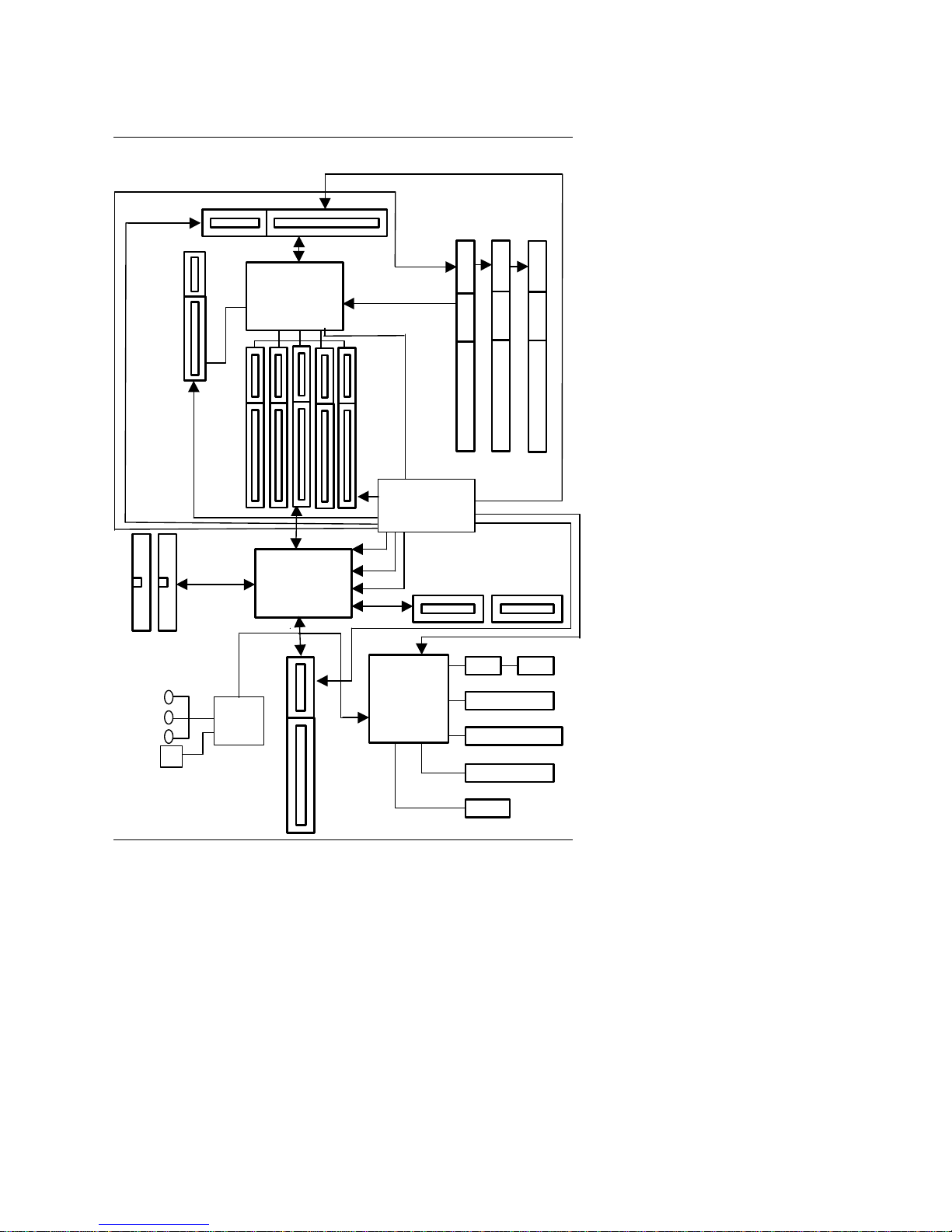

1.4. BLOCK DIAGRAM
Ultra DMA/33
IDE Ports
Game
Port PS/2 Keyboard
24MHz
33MHz
33MHz
33MHz
66MHz
66MHz
IDE Bus
PCI Bus
AGP
Bus
LPT Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
IT8671F
Host Bus
PIIX 4
CHIPSET
82443BX
CHIPSET
Clock
Generator
MIC
L-IN
L-OUT
ESS
SOLO-1
14.318MHz
66MHz
AGP
Slot
SLOT 1
Introduction
1-4
1.5. INTRODUCE THE Pentium
II Processor & AGP
Figure 1:Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor
6BXA
1-5
Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor
Figure 4:Boxed PentiumII Processor & Heat sink support
1.6 What is AGP
?
Introduction
1-6
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port is
to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-
bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used, the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.
6BXA
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII / Celeron processor 233 –633 MHz.
−242 pins 66 MHz slot1 on board.
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−H/W monitor power status (±5V, ±12V, VCOREA,
VGTL, VCC3, VBAT, 5VSB voltage & CMOS battery
voltage).(Optional)
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−16 ~ 768MB SDRAM.
−Supports 3.3V SDRAM / EDO type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−256KB/512 KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −5 33MHz Master / Slave PCI-BUS.
−1 33MHz AGP BUS.
−1 8MHz 16 bits ISA BUS.
•IDE PORTS −2 Ultra DMA 33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•Audio Ports −1x Line in
−1x Line out
−1x Micro in
−1x Game Port
−2x CD Line in
−1x TEL Port
Specification
2-2
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports 1 PS/2 Mouse.
−Supports 1 PS/2 Keyboard.
•GREEN FUNCTION −Suspend mode support.
−Green switch & Green LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −Bus Master IDE Driver.
−INTEL Patch_95 Driver.
−ESS SOLO-1 Sound Driver.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)
