Fujitsu ABU36RSLX User manual

CONTENTS

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . 1

OUTLINE AND DIMENSIONS . . . . . . . . . . . . . 2

REFRIGERANT SYSTEM DIAGRAM . . . . . . . 4

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . 5

INDOOR PCB CIRCUIT DIAGRAM . . . . . . . . 7

OUTDOOR PCB CIRCUIT DIAGRAM . . . . . . 8

ERROR DISPLAY . . . . . . . . . . . . . . . . . . . . . . 11

DISASSEMBLY ILLUSTRATION . . . . . . . . . . 13

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . 21

STANDARD ACCESSORIES . . . . . . . . . . . . . 23

SPLIT TYPE

ROOM AIR CONDITIONER

CEILING

type (60Hz)

Models

Indoor unit Outdoor unit

ABU36RSLX AOU36RLX

ADDITIONAL REFRIGERANT CHARGE (R410A)

Pipe Length 49 ft. (15 m) 4 lb 14 oz (2,200 g)

66 ft. (20 m) 5 lb 5 oz (2,400 g)

98 ft. (30 m) 6 lb 3 oz (2,800 g)

131 ft. (40 m) 7 lb 1 oz (3,200 g)

164 ft. (50 m) 7 lb 15 oz (3,600 g)

ADDITIONAL CHARGE

FULL CHARGE

AMOUNT

0.43 oz / ft. (40 g / m)

SPECIFICATIONS

TYPE

COOLING & HEATING

INDOOR UNIT

ABU36RSLX

OUTDOOR UNIT

AOU36RLX

COOLING CAPACITY

34,100 / 33,500 BTU / h

HEATING CAPACITY

38,200 / 37,600 BTU / h

POWER SOURCE

230 V / 208 V

FREQUENCY

RUNNING CURRENT

COOLING

18.3 A / 19.5 A

HEATING

15.6 A / 17.3 A

INPUT WATTS COOLING

4.22 kW / 4.08 kW

HEATING

3.60 kW / 3.60 kW

E.E.R. COOLING

2.37 / 2.40 kW/kW

HEATING

3.11 / 3.06 kW/kW

MOISTURE REMOVAL (/hr)

AIR CIRCULATION (m3/hr)

3.5 L/hr

1,850 m3/hr

ELECTRICAL DATA

FAN MOTOR

COMPRESSOR

Hermetic type, 4 poles, Inverter, Twin rotary

TNB220FPBM9

4 lb 14 oz (2,200g)

230 V

DISCRIMINATION

MFA-45DZM

INDOOR UNIT

HIGH-SPEED

MED-SPEED

LOW-SPEED

Cool 1,100 r.p.m. / Heat 1,100 r.p.m.

Cool 1,000 r.p.m. / Heat 900 r.p.m.

Cool 850 r.p.m. / Heat 750 r.p.m.

OUTDOOR UNIT DISCRIMINATION

MFE-45ROM

HIGH-SPEED Cool 850 r.p.m. / Heat 900 r.p.m.

WEIGHT

INDOOR UNIT

Net / Gross

48 kg / 61 kg

OUTDOOR UNIT

64 kg / 70 kg

1 60Hz

DIMENSIONS

INDOOR UNIT

H x W x D 9-1/2" x 65-1/2" x 27-5/8" inch

240 x 1,660 x 700 mm

OUTDOOR UNIT

H x W x D 32-3/4" x 35-1/2" x 13" inch

830 x 900 x 330 mm

TYPE

DISCRIMINATION

REFRIGERANT R410A

POWER SOURCE

2005.12.27 1

OUTLINE AND DIMENSIONS

65-1/2" (1,660)

9-1/2"

(240)

27-5/8" (700)

63" (1,600)

5-1/8" (130)

11-7/8"

(300)

Unit : inch (mm)

INDOOR UNIT

Model : ABU36RSLX

2005.12.27 2

Unit : inch (mm)

OUTDOOR UNIT

Models : AOU36RLX

3"(77)

35-1/2" (900)

32-3/4" (830)

17-3/8" (440)

7/8" (21)

3/8"

(9)

15-3/4" (400)

13" (330)

1-1/4"

(31)

1/2"

(12)

7-3/4" (196)

5-3/4" (147)

6-3/4" (170)

3-7/8"

(99)

14-5/8" (370)

25-5/8" (650)

Air Flow

2005.12.27 3

Evaporator

REFRIGERANT SYSTEM DIAGRAM

OUTDOOR UNIT

Pressure

Check Valve

Condenser

4-way

Valve

High Pressure

Switch

Accumulator

Muffler

Compressor

Expansion

Valve Refrigerant Pipe

9.52mm (3/8")

Charging Valve

Charging

Valve

Refrigerant Pipe

15.88mm (5/8")

INDOOR UNIT

Strainer

: COOL

: HEAT

Models : ABU36RSLX / AOU36RLX

2005.12.27 4

CIRCUIT DIAGRAM

Model : ABU36RSLX

2005.12.28 5

ORANGE

YELLOW

WHITE

RED

BROWN

ORANGE

YELLOW

WHITE

RED

BROWN

ORANGE

YELLOW

WHITE

RED

BROWN

BLUE

PURPLE

GRAY

PURPLE

BLUE

BLACK

WHITE

RED

WHITE

GREEN

WHITE

BLACK

RED

BLACK

GRAY

CN6 CN7 CN8

CN15

CN13

CN16CN5

CN11 CN10 CN4

CN17 CN1

CN201

23 1

1 2 1 2

1 2

FAN MOTOR

TERMINAL

Use T 3.15A-250V

Fuse on F101

STEP MOTOR

( LEFT / RIGHT )

STEP MOTOR

( UP / DOWN )

FAN MOTOR

CAPACITOR

ROOM TEMPERATURE THERMISTOR

PIPE TEMPERATURE THERMISTOR

3 2 1 3 2 1

POWER SUPPLY PCB

INDICATOR PCB

CONTROLLER PCB

F M

Model : AOU36RLX

ORANGE

YELLOW

WHITE

BLUE

BROWN

RED

BLUE

YELLOW

WHITE

BLACK

RED

BLACK

RED

BLUE

BROWN

BLACK

BROWN

RED

GREEN

BLACK

WHITE

BROWN

BLACK

RED

BLACK

WHITE

ORANGE

BLACK

RED

YELLOW

BLUE

ORANGE

RED

BROWN

WHITE

BLACK

REDRED

WHITE WHITE

1212121212

123 4 12

123

CN1 CN34

CN1 W9 W8

W200

TM102

TM101 W3 W6 W7 W1 W2

W11

W10

W17

W16

W22

W21

W13

W12

CN27

CN802

CN30

CN407

W303

W304

W305 CN37

CN21 CN22 CN23 CN26 CN25

G2(N)1 3 L N

EARTH EARTH

E V

POSISTOR

EMI FILTER

CHOKE COIL

TERMINAL

COMPRESSOR

EMI FILTER

CONNECTOR

PIPE TEMPERATURE

THERMISTOR

DISCHARGE TEMPERATURE

THERMISTOR

ACTIVE

FILTER

MODULE

FUSE

F4 T 5A-250V

FUSE

F2 T 3.15A-250V

CONTROLLER

PCB ASSY

POWER SUPPLY PCB ASSY

F M

4WV

EXPANSION VALVE COIL

FAN MOTOR

SOLENOID COIL

HIGH PRESSURE SWITCH

OUTDOOR TEMPERATURE

THERMISTOR

COMPRESSOR TEMPERATURE

THERMISTOR

HEAT SINK TEMPERATURE

THERMISTOR

2005.12.28 6

14V

R57 1.0K

<1/10W>

C39

0.1

<F>

CR5

1000P

<R>

R50 10K

<1/10W>

R77 - R79

10K <1/10W> x 3

BZ1

PKM13EPY-4000

R21 - R24

10K <1/10W> x 4

C22 - C25

0.01 <F> x 4

R25 - R28

1.0K <1/10W> x 4

I C6 (1/7)

uPA2003GR

R56

I C7 BR93LC46RF

D I

VCC

GND1

611

CN9-1

CN9-2

CN9-3

CN9-4

CN9-5

CN16-1

CN16-2

CN16-3

UL1430 AWG22 PURPLE

UL1430 AWG22 GRAY

UL1430 AWG22 BLUE

CN15-1

CN15-2

CN15-3

70 69

P10

P11

P57

P56

P50

P27

P26

P25

P22

P21

P20

P130

P51

P52

P53

P54

P55

P01

P70

P71

P72

P131

P36

P67

P30

P31

P32

P14

P13

P12

P47

P46

P45

P44

P43

P03

XT1

I C

P24

P23

RESET

X2X1

1P15

P16

P17

2005.12.28 7

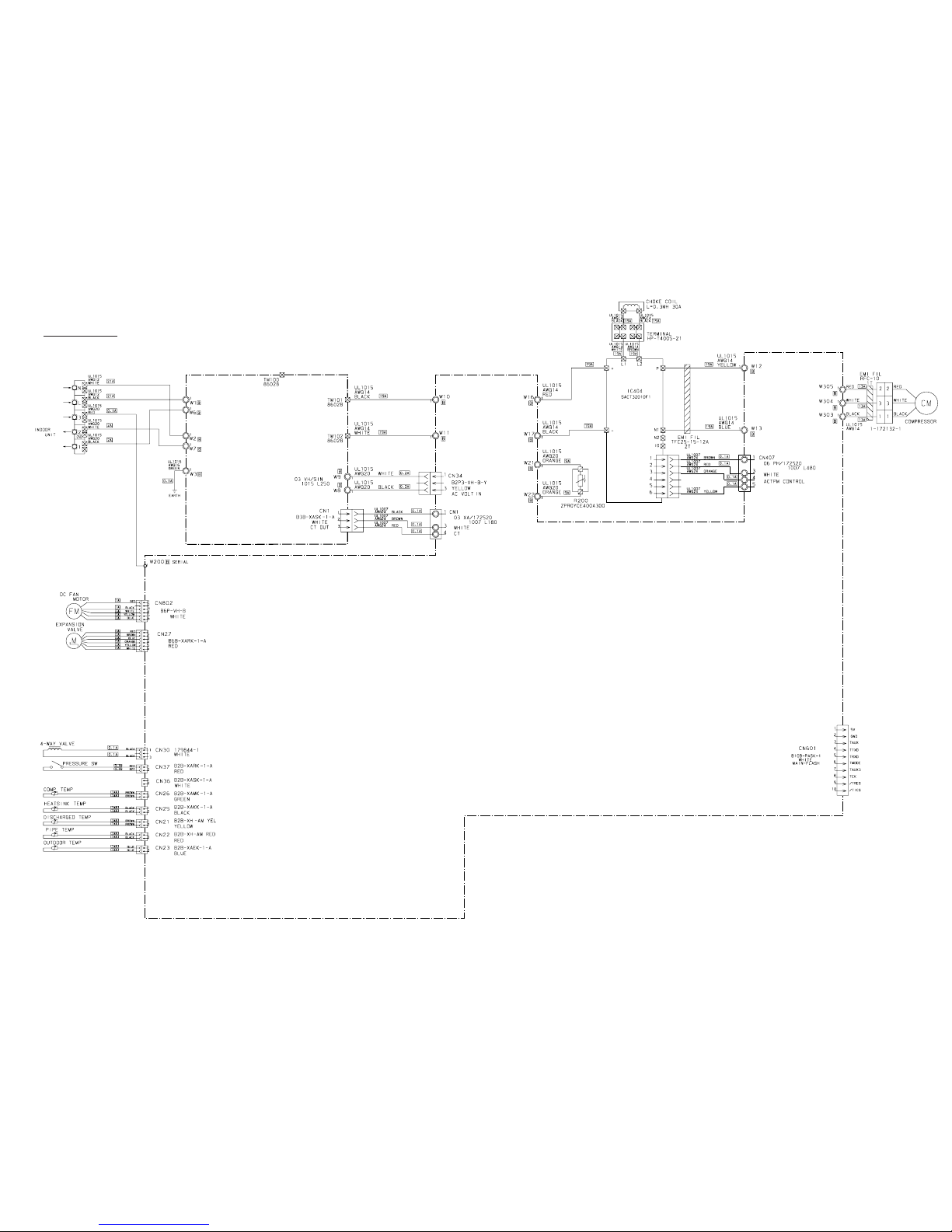

Model : ABU36RSLX

INDOOR PCB CIRCUIT DIAGRAM

CONTROLLER PCB ASSEMBLY ( MAIN PCB )

K01AL-050RHSE-C1

AC230V

60Hz

TERMINAL

HP-T3061-3

Model : AOU36RLX

POWER SUPPLY PCB

K04BA-0501HUE-P0

CONTROLLER PCB ASSY

K04AW-0504HUE-C1

INVERTER ASSY

EZ-005HHUE

2005.12.28 8

600/450V x 4

Model : AOU36RLX

CONTROLLER PCB ASSEMBLY ( MAIN PCB )

K04AW-0504HUE-C1

2005.12.28 9
