Fujitsu AKY7F User manual

KEEP THIS OPERATION MANUAL

FOR FUTURE REFERENCE

FUJITSU GENERAL LIMITED

Deutsch

Français

Español

Italiano

EλληvIkά

Português English

COOLING MODEL

AKY7F

AKY9F

REVERSE

CYCLE MODEL

AKY9U

OPERATING MANUAL

BEDIENUNGSANLEITUNG

MODE D’EMPLOI

MANUAL DE FUNCIONAMIENTO

MANUALE DI ISTRUZIONI

ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ

MANUAL DE INSTRUÇÕES

OPERATING MANUAL

ROOM AIR CONDITIONER

WINDOW TYPE

9385175068_cover_En.pm65 29/12/2003, 17:16PM1

Black

www.enindel.com

En-2

CONTENTS

Safety Symbols

The triangular symbol indicates WARNING and CAUTION items.

This symbol indicates prohibited operations. The prohibited action is indicated both within the symbol,

and in nearby explanations.

●This symbol indicates instructions regarding operations which are to be performed by the user.

DANGER

Do not attempt to install this air conditioner by yourself.

●Consult authorized service personnel for all installations.

Consult authorized service personnel for any repairs.

●Do not attempt to remove parts, or service the unit yourself, since you may be

exposed to dangerous electrical shock. This appliance contains no user-serviceable

parts.

When moving, consult authorized service personnel for

disconnection and installation of the unit.

PRECAUTIONS ......................................................... 2

NAME AND FUNCTION OF PARTS ......................... 6

AIR CONDITIONER OPERATION ............................. 7

AIR DIRECTION ADJUSTMENT ............................ 10

CARE AND MAINTENANCE................................... 11

TROUBLESHOOTING ............................................. 12

OPERATION DETAILS ............................................. 13

PRECAUTIONS

●Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.

●The instructions in this section all relate to safety; be sure to maintain save operating conditions.

●“CAUTION” and “WARNING” have the following meanings in these instructions:

WARNING!

CAUTION!

This mark indicates procedures which, if improperly performed, might lead to the death

or serious injury of the user.

This mark indicates procedures which, if improperly performed, might possibly result

in personal harm to the user, or damage to property.

9385175068_En.pm65 29/12/2003, 17:15PM2

Black

www.enindel.com

En-3

PRECAUTIONS

DANGER

Do not stay in direct cooling airflow for long periods.

●Excessive direct exposure to chilled air could be bad for your health.

●Be especially careful when going to bed, and in rooms where infants, aged, or sick

people are staying.

Do not insert fingers or objects into the outlet port or intake grilles.

●A fan operates at high speed inside the unit, and personal injury could result.

●Be particularly careful regarding small children.

Do not start and stop air conditioner operation by disconnecting

the power cord and so on.

Take care not to damage the power cord.

●Do not stand heavy items on the power cord, or allow it to be pulled. Such treatment

could damage the insulation, resulting in fire hazard and electrical shock.

WARNING

If the power supply cord of this air conditioner is damaged, it must be replaced

by the manufacturer or its authorized service personnel only in order to avoid

a safety hazard.

In the event of a malfunction (burning smell, etc.), immediately

stop operation, disconnect the power plug, and consult

authorized service personnel.

●Continuing to operate the unit under such conditions could lead to hazard of fire

or electrical shock.

If the power supply cord of this appliance is damaged, it should

only be replaced by the authorized service personnel, since

special purpose tools and specified cord are required.

9385175068_En.pm65 29/12/2003, 17:15PM3

Black

www.enindel.com

En-4

PRECAUTIONS

CAUTION

Provide occasional ventilation during use.

●Be careful to provide adequate ventilation particularly

when using the unit in combination with other heating

apparatus. (Heating)

●Insufficient ventilation could lead to oxygen starvation.

Do not drink the water drained from the

air conditioner.

Do not expose the air conditioner directly

to water.

●Electrical insulation could be damaged, resulting in

electrical shock.

Do not pull power cord.

●Pulling on the cord to disconnect the plug could damage

the wires inside the cord, resulting in heat or fire.

Turn off power source when not using the

unit for extended periods.

Do not use in applications involving the

storage of foods, plants or animals,

precision equipment, or art works.

●The quality of the stored items may deteriorate.

Do not direct air flow at fireplaces or

heating apparatuses.

●Direct air blowing on fires could result in improper

combustion or fire.

Do not set flower vases or water containers

on top of air conditioners.

●Water leaking inside the unit could damage electrical

insulation, leading to danger of electrical shock.

Do not operate the air conditioner with

wet hands.

●Electrical shock could result.

Always turn off power and disconnect the

power plug whenever cleaning the air con-

ditioner or changing the air filter.

●A fan operates at high speed inside the unit, and

personal injury could result.

Check the condition of the installation for

damage.

●After lengthy use, arrange for visit by authorized

service personnel to check installation condition.

Do not place animals or plants in the direct

path of the air flow.

●Lengthy exposure to direct Heating or Cooling airflow

could have adverse influence on plants or animals.

9385175068_En.pm65 29/12/2003, 17:15PM4

Black

www.enindel.com

En-5

CAUTION

Always operate with the air filter installed.

●Operating the unit without the air filter could cause

excessive dirt to collect on internal parts, leading to

malfunction.

Do not block or cover the intake grille and

outlet port.

●Obstructing the ports will reduce operating efficiency,

leading to improper operation and possible damage.

Do not use inflammable gases near the air

conditioner.

Do not touch the heat exchanger radiator

fins.

●Personal injury could result.

●Be particularly careful when cleaning.

●Bending or damage to the fins will affect the efficiency

of the unit.

When installing the air conditioner, take

precautions to prevent access by infants.

●Unexpected accidents could occur.

Avoid installing the air conditioner near a

fireplace or other heating apparatus.

●Exposure to excessive heat could result in deformation

of the outer case.

9385175068_En.pm65 29/12/2003, 17:15PM5

Black

www.enindel.com

En-6

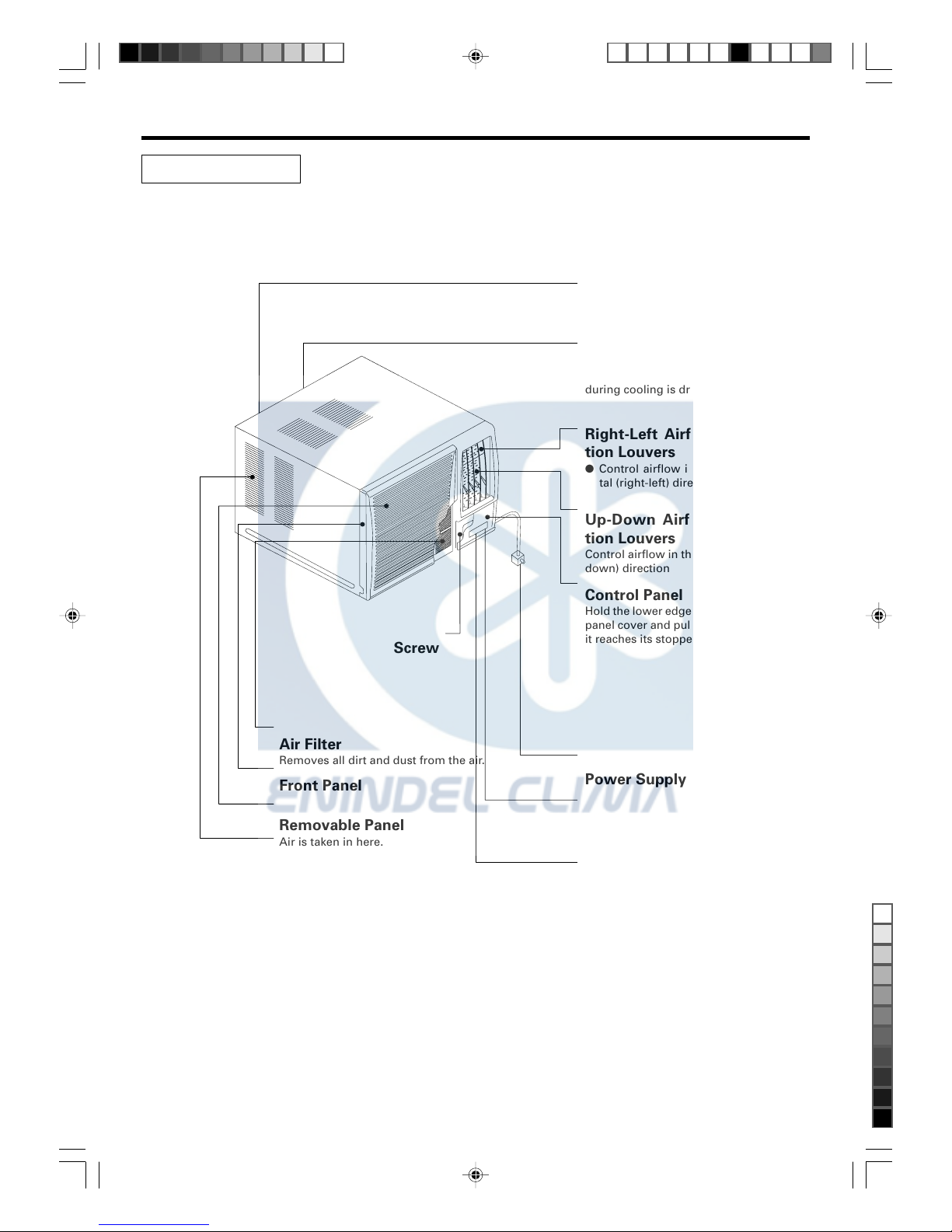

NAME AND FUNCTION OF PARTS

Air outlet

Warm air is blown out.

Drain Tube

(At the bottom of the backside)

Moisture condensed from the air

during cooling is drained here.

Right-Left Airflow-direc-

tion Louvers

●Control airflow in the horizon-

tal (right-left) direction.

Up-Down Airflow-direc-

tion Louvers

Control airflow in the vertical (up-

down) direction

Control Panel Cover

Hold the lower edge of the control

panel cover and pull upward until

it reaches its stopper.

Air Filter

Removes all dirt and dust from the air.

Front Panel

Removable Panel

Air is taken in here.

Air inlet

(Both sides)

Screw

Power Supply Plug

Air Conditioner Unit

9385175068_En.pm65 29/12/2003, 17:15PM6

Black

www.enindel.com

En-7

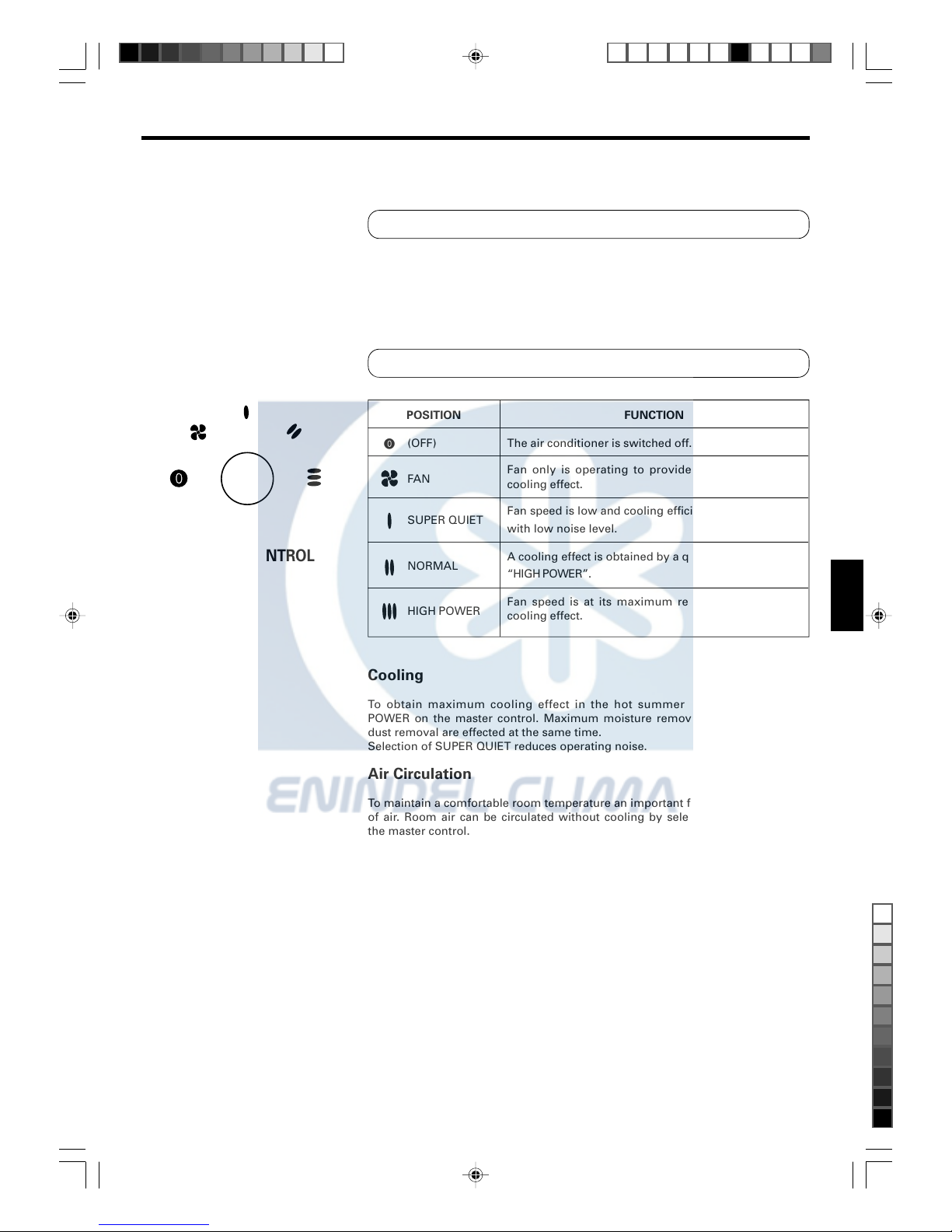

AIR CONDITIONER OPERATION

Power Supply

Connect the Power Supply Plug to an electrical point.

●Connect securely, without looseness.

●In the case of direct line connections, turn on the breaker.

MASTER CONTROL Switch

POSITION FUNCTION

)(OFF) The air conditioner is switched off.

FAN Fan only is operating to provide filtered air without

cooling effect.

SUPER QUIET Fan speed is low and cooling efficiency is intermediate

with low noise level.

NORMAL A cooling effect is obtained by a quieter operation than

“HIGH POWER”.

HIGH POWER Fan speed is at its maximum resulting in maximum

cooling effect.

Cooling

To obtain maximum cooling effect in the hot summer select position HIGH

POWER on the master control. Maximum moisture removal, air circulation and

dust removal are effected at the same time.

Selection of SUPER QUIET reduces operating noise.

Air Circulation

To maintain a comfortable room temperature an important factor is the circulation

of air. Room air can be circulated without cooling by selecting FAN position on

the master control.

Air circulation only without cooling effect may also be achieved with the thermostat

knob turned counterclockwise to “1” position and with the master control knob

at either “cool” position.

MASTER CONTROL

9385175068_En.pm65 29/12/2003, 17:15PM7

Black

www.enindel.com

En-8

LOW FAN

POSITION FUNCTION

Fan (High Speed) and compressor operate - Rapid

heating effect at top capacity.

Fan (Low Speed) and compressor operate - Intermediate

heating effect and reduced operating noise.

High fan speed without heating/cooling - Room air is

circulated and cleaned.

)(OFF) The air conditioner is switched off.

Low fan speed without heating/cooling - Room air is

circulated and cleaned.

Fan (Low Speed) and compressor operate - Intermediate

cooling effect and reduced operating noise.

Fan (High Speed) and compressor operate-Rapid

cooling effect at top capacity.

HIGH POWER

(RED)

SUPER QUIET

(RED)

HIGH FAN

SUPER QUIET

(BLUE)

HIGH POWER

(BLUE)

AIR CONDITIONER OPERATION

REVERSE CYCLE MODEL

Air Circulation

To maintain a comfortable room temperature, an important

factor is the circulation of air. Room air can be circulated

without cooling/heating by selecting either HIGH FAN or

LOW FAN position on the master control.

Circulation of air without cooling/heating can be also effected

as follows:

1. When operating with the MASTER CONTROL switched

to HIGH POWER (RED) or SUPER QUIET (RED), turn the

thermostat fully clockwise.

2. When operating with the MASTER CONTROL switched

to HIGH POWER (BLUE) or SUPER QUIET (BLUE), turn

the thermostat fully counterclockwise.

Power Supply

Cooling

To obtain maximum cooling effect in the hot summer

select position HIGH POWER (BLUE) on the MASTER

CONTROL. Maximum moisture removal, air circulation

and dust removal are effected at the same time.

Selection of SUPER QUIET (BLUE) reduces operating

noise.

Heating

To obtain maximum heating effect in severe winter select

position HIGH POWER (RED) on the MASTER CONTROL.

Maximum air circulation is obtained at the same time.

Selection of SUPER QUIET (RED) reduces heating effect

and operating noise. However you may feel a higher

temperature at the air outlet compared to the HIGH

POWER (RED) position, due to the reduced fan speed.

Connect the Power Supply Plug to an electrical point.

●Connect securely, without looseness.

●In the case of direct line connections, turn on the breaker.

MASTER CONTROL Switch

NOTE: After you start driving, it will take approximately

10 minutes for the air from this unit become

warm. This delay is normal.

MASTER CONTROL

9385175068_En.pm65 29/12/2003, 17:15PM8

Black

www.enindel.com

En-9

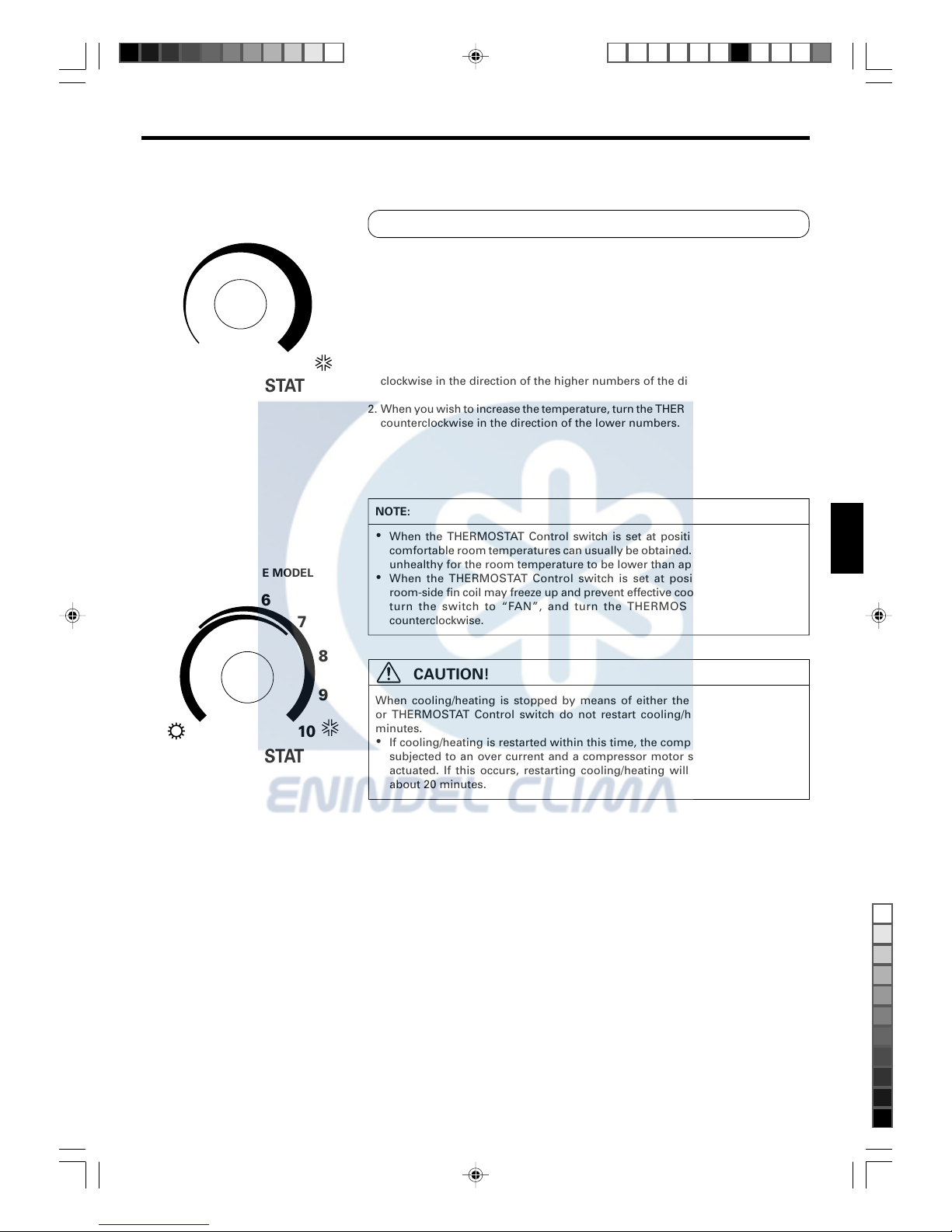

THERMOSTAT Control Switch

Once the THERMOSTAT is set to the desired temperature, the room temperature

will be automatically adjusted without excessive or insufficient cooling/heating

and thus a comfortable environment is always maintained.

The thermostat controls the compressor only, and accordingly the fan is constantly

circulating air even during the period when the compressor is off during cooling/

heating operation.

1. When you wish to lower the temperature, turn the THERMOSTAT Control switch

clockwise in the direction of the higher numbers of the dial.

2. When you wish to increase the temperature, turn the THERMOSTAT Control switch

counterclockwise in the direction of the lower numbers.

NOTE:

•When the THERMOSTAT Control switch is set at positions “5”, “6” or “7”

comfortable room temperatures can usually be obtained. Please note that it is

unhealthy for the room temperature to be lower than approximately 22°C.

•When the THERMOSTAT Control switch is set at positioned at “10”, the

room-side fin coil may freeze up and prevent effective cooling. If this happens,

turn the switch to “FAN”, and turn the THERMOSTAT Control switch

counterclockwise.

CAUTION!

When cooling/heating is stopped by means of either the MASTER CONTROL

or THERMOSTAT Control switch do not restart cooling/heating for at least 3

minutes.

•If cooling/heating is restarted within this time, the compressor motor will be

subjected to an over current and a compressor motor safety device will be

actuated. If this occurs, restarting cooling/heating will not be possible for

about 20 minutes.

COOLING MODEL

REVERSE CYCLE MODEL

THERMOSTAT

110

9385175068_En.pm65 29/12/2003, 17:15PM9

Black

www.enindel.com

En-10

AIR DIRECTION ADJUSMENT

WARNING!

●Do not put fingers or other objects into the air louvres; an internal fan operates at high

speed and could result in personal injury or damage.

●Do not operate the air conditioner with the airflow louvres blocked, since malfunction

could result.

Super Wave

When the SUPER WAVE switch is put on, the SUPER WAVE moves and blows air

to the left and right (See Fig. 1). On attaining the desirable direction of the air

blow and on putting off the SUPER WAVE switch, the air blow in that particular

direction can be achieved. Do not move the SUPER WAVE's louvers inside the

outlet with the hand as it might cause damage.

The SUPER WAVE's louvers do not move even if the SUPER WAVE switch is in

the MASTER CONTROL )(OFF) position

For horizontal air direction control, rotate the horizontal louvers upward, or down-

ward (See Fig. 2).

NOTE:

The THERMOSTAT positions “8”, “9” and “10” can be used when the room

temperature does not become sufficiently low. This condition may occur

when the THERMOSTAT Control switches off automatically because cooled

air, when it passes through the Up-Down Airflow-direction Louvres positioned

downwards, makes a short circuit and the recirculated air touches the sensor

of the THERMOSTAT.

Horizontal Louvers

Fig. 1

Super Wave

Fig. 2

Horizontal louvers

9385175068_En.pm65 29/12/2003, 17:15PM10

Black

www.enindel.com

This manual suits for next models

Table of contents

Other Fujitsu Air Conditioner manuals

Fujitsu

Fujitsu AU*A12LALN Original operating manual

Fujitsu

Fujitsu ARXK04GCLH User manual

Fujitsu

Fujitsu ASY9LSACW User manual

Fujitsu

Fujitsu AU G14LVLB Series Service manual

Fujitsu

Fujitsu AS A004GCGH Series User manual

Fujitsu

Fujitsu ASUH18LMAS User manual

Fujitsu

Fujitsu 9374318117 User manual

Fujitsu

Fujitsu General AK Series User manual

Fujitsu

Fujitsu ARU18RGLX Service manual

Fujitsu

Fujitsu ARXG45KMLA User manual

Fujitsu

Fujitsu Airstage VR-II ARUV12TLAV User manual

Fujitsu

Fujitsu Airstage ARUL7TLAV2 User manual

Fujitsu

Fujitsu AB Series A18LATN Original operating manual

Fujitsu

Fujitsu ARYG90LHTA User manual

Fujitsu

Fujitsu AirStage ARXC072GTEH User manual

Fujitsu

Fujitsu AIRSTAGE AJY126GALH User manual

Fujitsu

Fujitsu AOG30KATA Series Original operating manual

Fujitsu

Fujitsu ASBH27KMTA Service manual

Fujitsu

Fujitsu ARY24LUAN User manual

Fujitsu

Fujitsu AST20AGCW User manual

Fujitsu

Fujitsu AJ**A72LBTF User manual

Fujitsu

Fujitsu AIRSTAGE AJ 126LELDH Series Service manual

Fujitsu

Fujitsu AST7FSACW User manual

Fujitsu

Fujitsu Inverter Halcyon ASU24CL1 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
