Front Runner SSDS115 User manual
SSDS115_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
SSDS115
ENG
1
Drawer Deck Completion Set
Toyota Land Cruiser 70
IMPORTANT WARNING!
Thank you for purchasing a Front Runner Deck Completion Set.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL
THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN
AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS
TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU
MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU
DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please cal us if you have any questions about the installation of this product.
SSDS115_REV_A01
2
© COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
6
6
6
6
2RH
2LH
3
4
5
1RH
1LH
TOOLS NEEDED
13MM
10MM
10MM
8MM

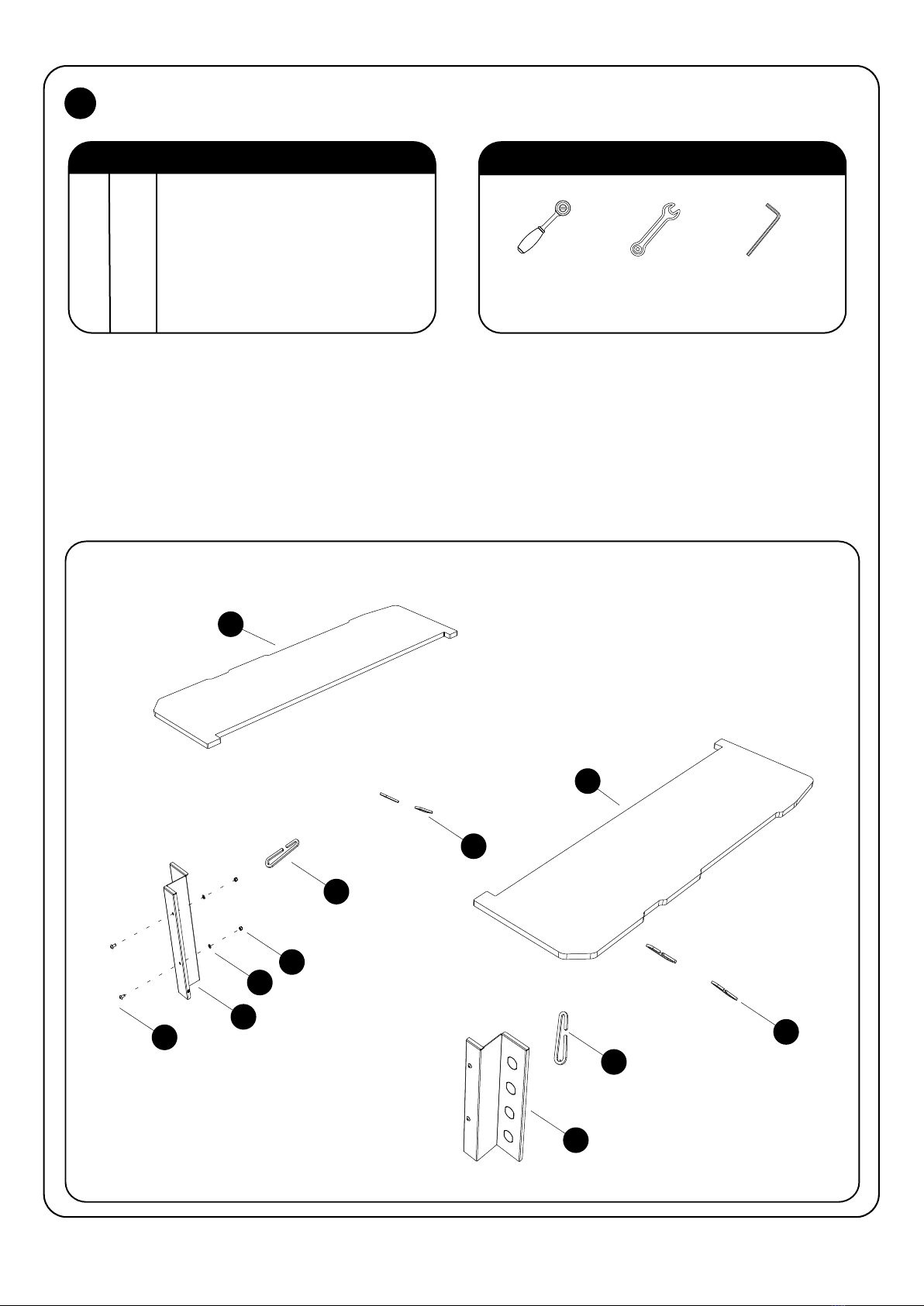

1 2 X Side Deck 1LH + 1RH
2 2 X Front Face 1LH + 1RH
3 4 X M5 x 10 Button Head
4 4 X M5 x 10 x 1SS Flat Washer
5 4 X M5 Nyloc Nut
6 6 X 115mm Carabiner
IN THE BOX
FIGURE 1.1
3mm
GET ORGANIZED
1
SSDS115_REV_A01
3
© COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
FIT AND SECURE
2
2.1
2.2
2.3

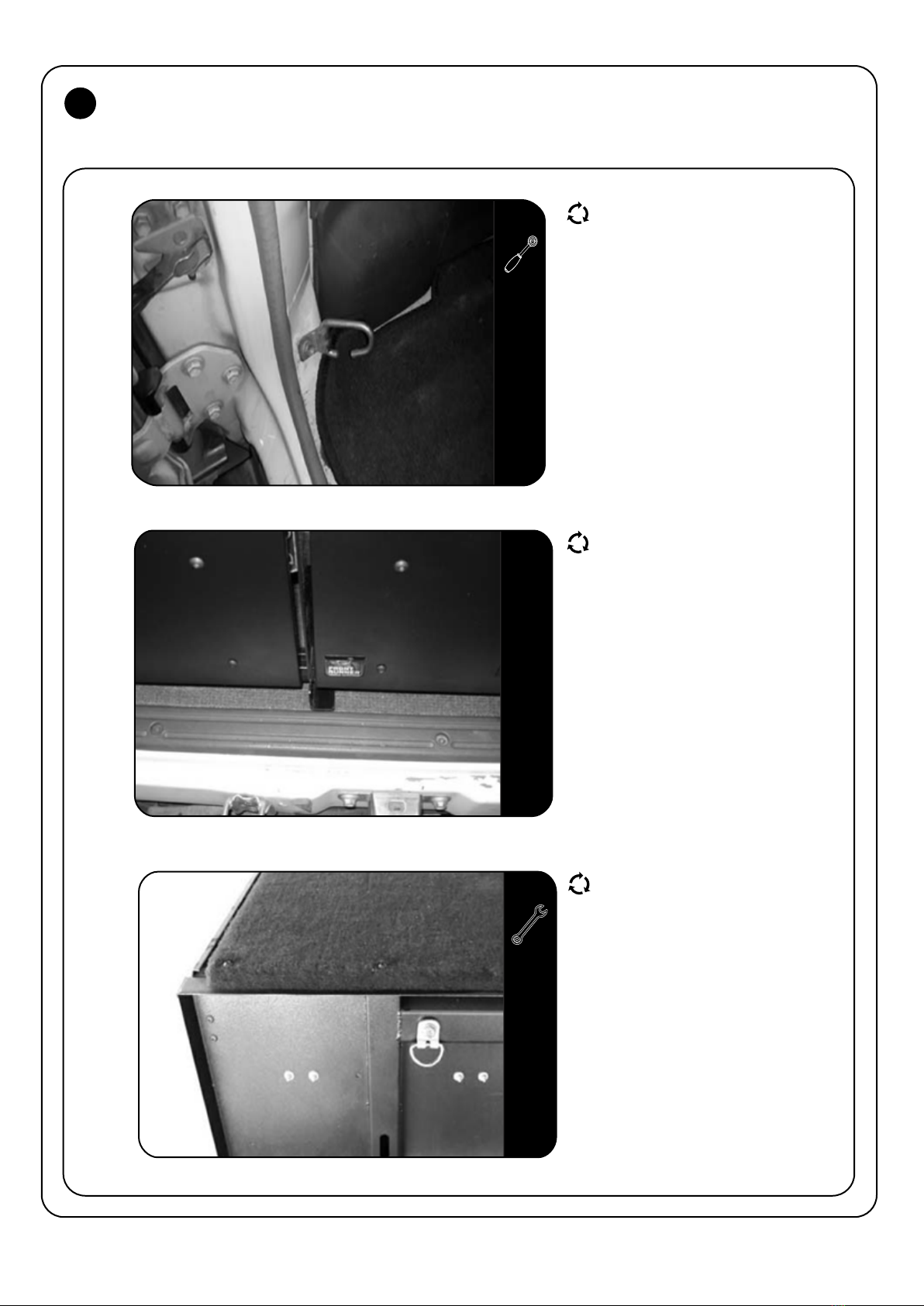

Place the Drawer System into the vehicle,
aligning the front of the Drawer to the edge of
the plactic trim as shown. Ensure that the
Drawer System is centered left to right.
Inside the rear door, loosen and rotate the
left and right tie-down ring as shown.
13MM
13MM
At the sides of the Drawer System, loosen
and remove the D-ring closest to the front
of the Drawer.
The D-ring will be refitted in Step 2.4.
SSDS115_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE
2
Secure the Front Faces (Item 2LH & 2RH) to
the Drawer using M5 x 10 Button Heads,
M5 x 10 x 1SS Flat Washers and M5 Nyloc
Nuts (Items 3, 4 & 5) as shown.
2.4
2.5
2.6
Fit the Adjustable Wing Set (SSWS003) to the
Drawer.
Please see SSWS003 Fitment Guide for
assembly details.
Secure the D-ring that you have removed in
Step 2.3 in the top hole of the Wings closest
to the front of the Drawer Sytem as shown.
Secure the Drawer System in position using
two Turn Buckles (supplied with SSDR005)
and two 115mm Carabiners (Item 6) at the
rear of the Drawer.
At the front of the Drawer use one Turn
Buckle, 60mm Carabiner (supplied with
SSDR005) and one 115mm Carabiner (Item 6)
as shown.
Tighten the wing nut on each Turn Buckle to
prevent it from coming loose.
6
6
6
5
4
3
2RH
10MM
3MM
8MM
60mm Carabiner
Wing Nut
D-ring
SSDS115_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
5
2RH
FIT AND SECURE
2
Place the Side Decks (Item 1LH & 1RH) onto
the Drawer making sure that you slide it into
the C-clip of the Front and Rear
Side Wings.
Push the Adjustable Wing up against the
Side Deck.
Carefully remove the Side Deck so that the
adjustable Wings do not move. Fully tighten
the Adjustable Wings and refit the
Side Decks.
2.7
10MM
10MM
1LH
FIT ECOM SOCKETS
3
3.1
Twist the pre cut knock outs to remove.
Socket Inserts (Sold Separately) can be put
into this front face.
ECOM117 - Amp Meter
ECOM118 - USB Socket
ECOM119 - 12/24V Socket
ECOM120 - Merit Socket
ECOM121 - Engel Socket
ECOM124 - Volt Meter
SSDS115_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
6
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
5
Now's the time to visit your favorite Front Runner Dealer in person or Online.
COMPLETION
4
9
4.1
10mm
Congratulations! You did it. Take a step back and admire your work!
