Front Runner SSAM008 User manual
4 Cub Box DrawER NARROW
SSAM008
ENG
1
45 min
IMPORTANT WARNING!
READ ME !
FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL
THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN
AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS
TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU
MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU
DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
© COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
SSAM008_REV_A00
Thank you for purchasing a Front Runner 4 Cub Box Drawer Narrow.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please cal us if you have any questions about the installation of this product.
SSAM008_REV_A00
2
In order for your Drawer to open freely over the vehicles plastic trim you may need a Drawer Mount Kit SSCA020 / SSCA021. (SOLD SEPARATELY)
Refer to these fitting instructions first should you be using a mount kit.
READ ME !
© COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
TOOLS NEEDED
10MM
1 1 X 4 Cub Box Drawer Narrow
2 4 X M6 x 30 Hex Bolt
3 4 X M6 Spring Washer
4 4 X M6 x 19 x 1SS Flat Washer
5 8 X M8 x 19 x 3 Flat Washer
6 4 X M6 Rivnut
7 4 X M6 x 25 Counter Sink Screw
8 4 X M6 Cage Nut
9 4 X M6 x 30 x 1 Fender Washer
10 4 X Side Bracket for Drawer System (2LH & 2RH)
11 1 X SSCA020
12 1 X SSCA021
FIGURE 1.1
13MM
4MM
6.5MM
GET ORGANIZED
1
IN THE BOX
17
1
4
3
7
SOLD SEPARATELY
Sealant
12
12
11
11
3
SSAM008_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
FIT AND SECURE
2
2.1
2.2
FITMENT WITHOUT MOUNTING KIT
Place the Drawer (Item 1) in the vehicle
and position it. Make sure the Drawer
opens & closes freely without touching
the plastic trim on the trunk floor.
Once the Drawer (Item 1) is in position,
mark the four mounting hole positions.
Remove the Drawer and check for
clearance on all marked holes, above &
below the mounting surface. Start with a
4mm drill bit and drill pilot holes. Finally
use the 6.5mm drill bit and redrill holes.
Use anti-rust on all holes drilled.
Secure the Drawer (Item 1) to the vehicle
using M6 x 30 Hex Bolts, M6 x19 x 1SS Flat
Washers, M6 Spring Washer and M6 rivnut
(Item 2,3,4 & 6) as shown. Use silicon to
create a water proof seal.
FITMENT USING A MOUNTING KIT
Use the hardware & fitting instructions
received with (SSCA020 / SSCA021)
After fitting the mounting kit slide three
M8 Channel Nuts into each of the
Aluminium Extrusions. Secure using the
M8 x 25 Hex Bolts, M8 Spring Washers and
M8 x 25 x 2 Flat Washers through the
Drawer base frame into the M8 Channel
nuts.
3
2
4
10MM
4MM
6.5MM
6
Once the Drawer (Item 1) is secure you can
now add the Side Brackets (Item 10) by
sloting them into postion as shown.
The Drawer system does not come with a
vehicle specific deck completion set or
face plates.
13MM
4
Congratulations. You did it. Take a step back and admire your work!
SSAM008_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or Online.
COMPLETION
3
3.1
Table of contents
Other Front Runner Automobile Accessories manuals
Front Runner
Front Runner SAFE010 User manual
Front Runner
Front Runner RRAC203 User manual
Front Runner
Front Runner FSLI022 User manual
Front Runner
Front Runner FAJK003 User manual
Front Runner
Front Runner SLIMLINE II User manual
Front Runner
Front Runner BPTH007 User manual
Front Runner
Front Runner FAJK009 User manual
Front Runner
Front Runner FAJL002 User manual
Front Runner
Front Runner SlimSport KSFR002 User manual
Front Runner
Front Runner JADA014 User manual
Front Runner
Front Runner PBTH001 User manual
Front Runner
Front Runner FAJK002 Instruction Manual
Front Runner

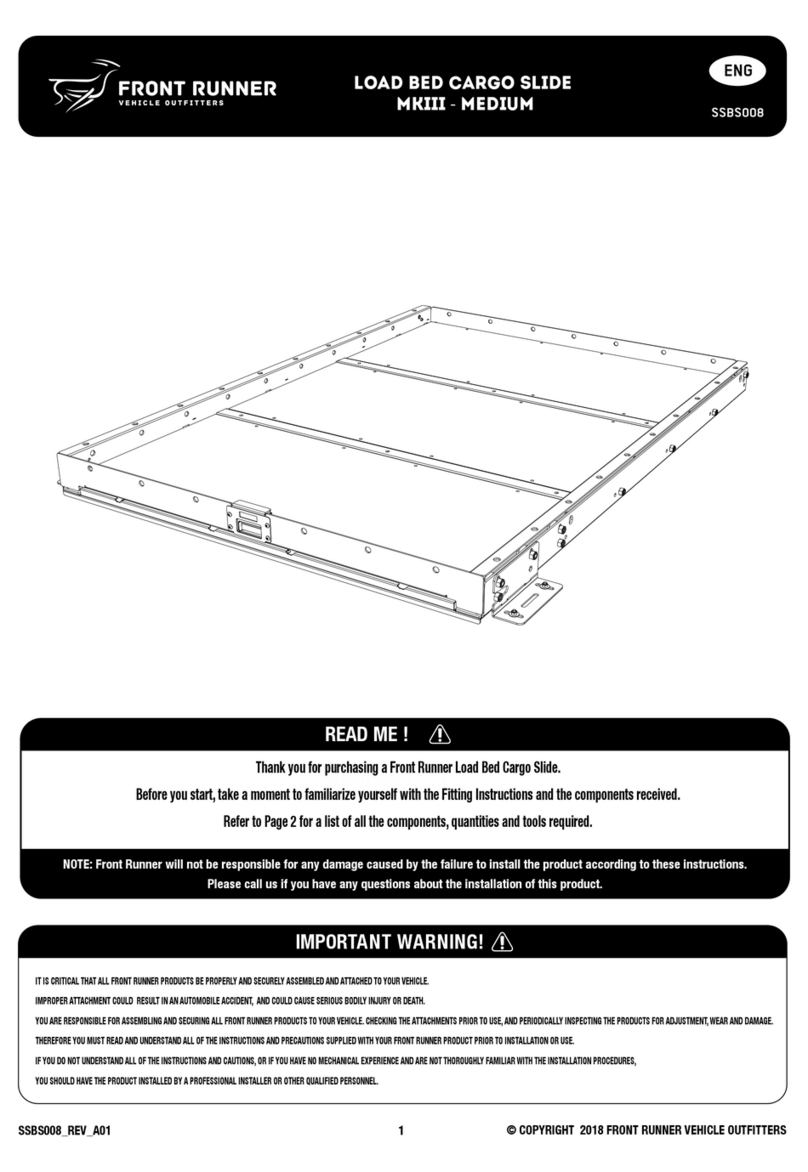

Front Runner SSBS008 User manual
