Front Runner SSBS008 User manual
SSBS008_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS
Load Bed Cargo Slide
MKIII -Medium
SSBS008
ENG
1
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE.
IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH.
YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE.
IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,
YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
READ ME !
Thank you for purchasing a Front Runner Load Bed Cargo Slide.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
SSBS008_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS
2
TOOLS NEEDED
17MM
10MM 10MM
17MM
FIGURE 1.1
4mm
9.5mm
1 1 X Load Bed Cargo Slide MKIII - Medium
2 1 X M6x25 Countersink Bolt
3 1 X M10 Flat Washer
4 9 X M6x40 Hex Bolt
5 2 X M8 Nyloc Nut
6 5 X M6x25 Hex Bolt
7 10 X M6 Rivnut
8 9 X M6 Spring Washer
9 6 X 19x12.58x12 Aluminium Spacer
10 9 X M6x30x1 Flat Washer
GET ORGANIZED
1
IN THE BOX

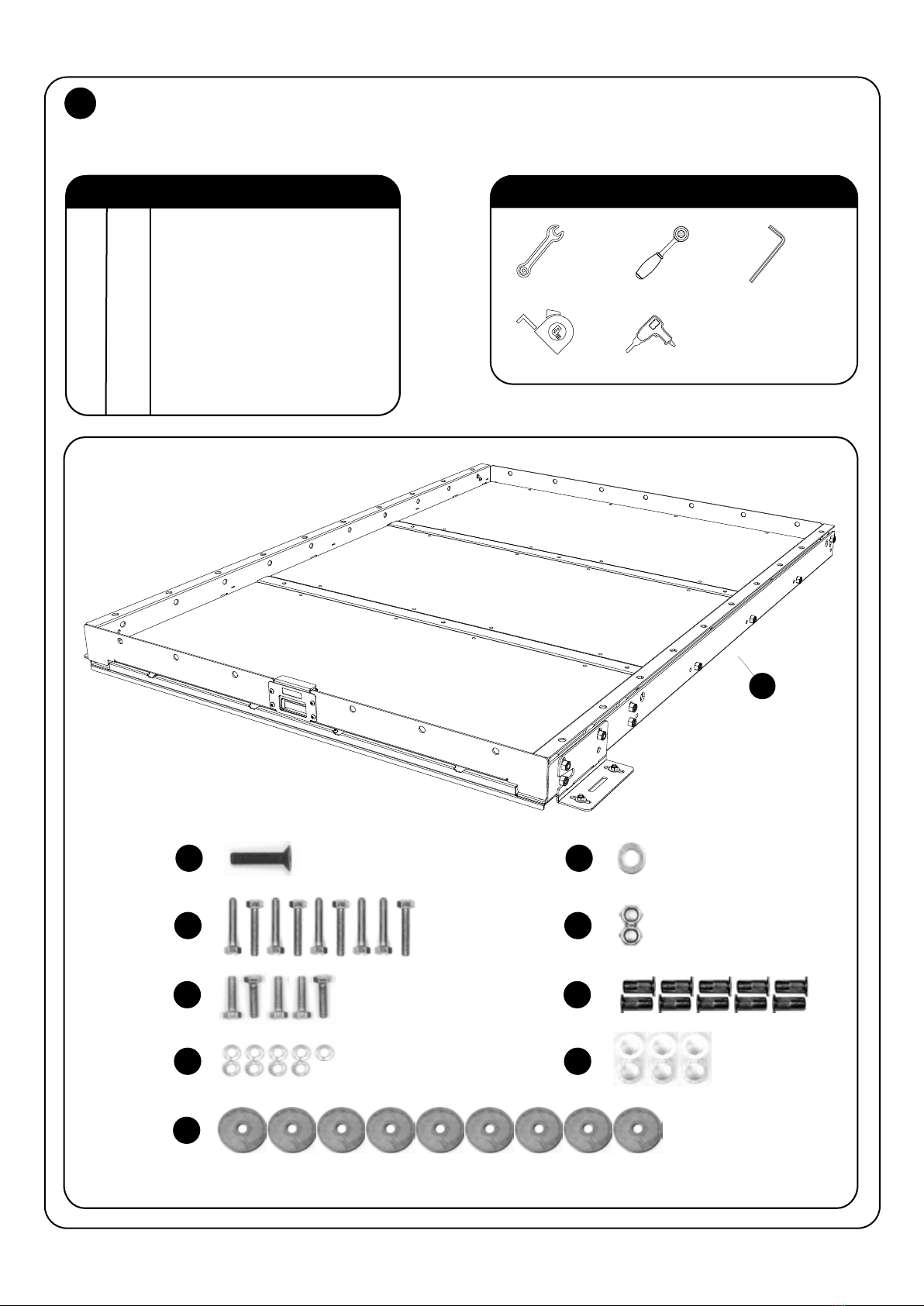

Here is what you are looking at for SSBS008
17
1
4mm
2 3
4 5
6 7
8 9
10
SSBS008_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE
2
2.1
2.2
2.3

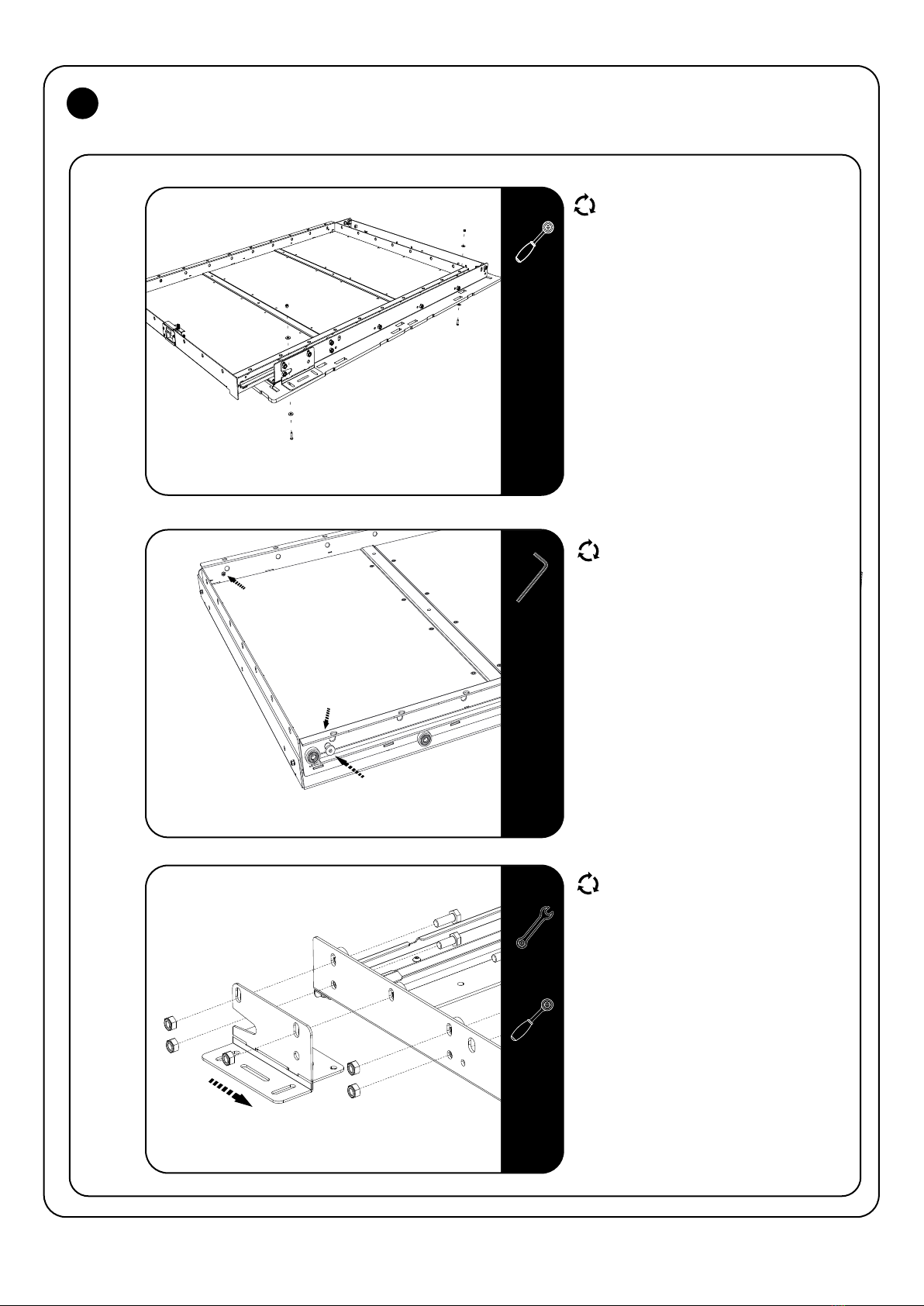

Before fitting the Cargo Slide in the vehicle,
remove the wood base by loosening the
four M6 Button Head Bolts.
To loosen the two rear bolts, open the Cargo
Slide.
10MM
The front mounting brackets may be
relocated backwards should it be required
to obtain a more suitable mounting position
as shown in diagram 2.3.
Looking at both the left and right rear
corners of the Cargo Slide (Item 1), loosen
and remove the rubber stopper. This is done
by gripping the stopper to prevent it from t
urning and removing the M6 button head
bolt as shown. Once removed keep in a safe
place as you will need to replace them at a
later stage.
Place the Cargo Slide into the vehicles load
bed. Carefully pull the "tray" free from the
frame and store in a safe place until later.
Position the frame, front to back and left to
right. Load beds vary with each
manufacturer, so the exact positioning of
the frame will vary from vehicle to vehicle. I
t is advisable to get all mounting points in
the center of the raised sections that run
the length of the load bed, however in the
event of mounting points not lining up with
raised sections,spacers have been
provided.
Stopper
4MM
17MM
17MM
SSBS008_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE
2
2.4
2.5
2.6

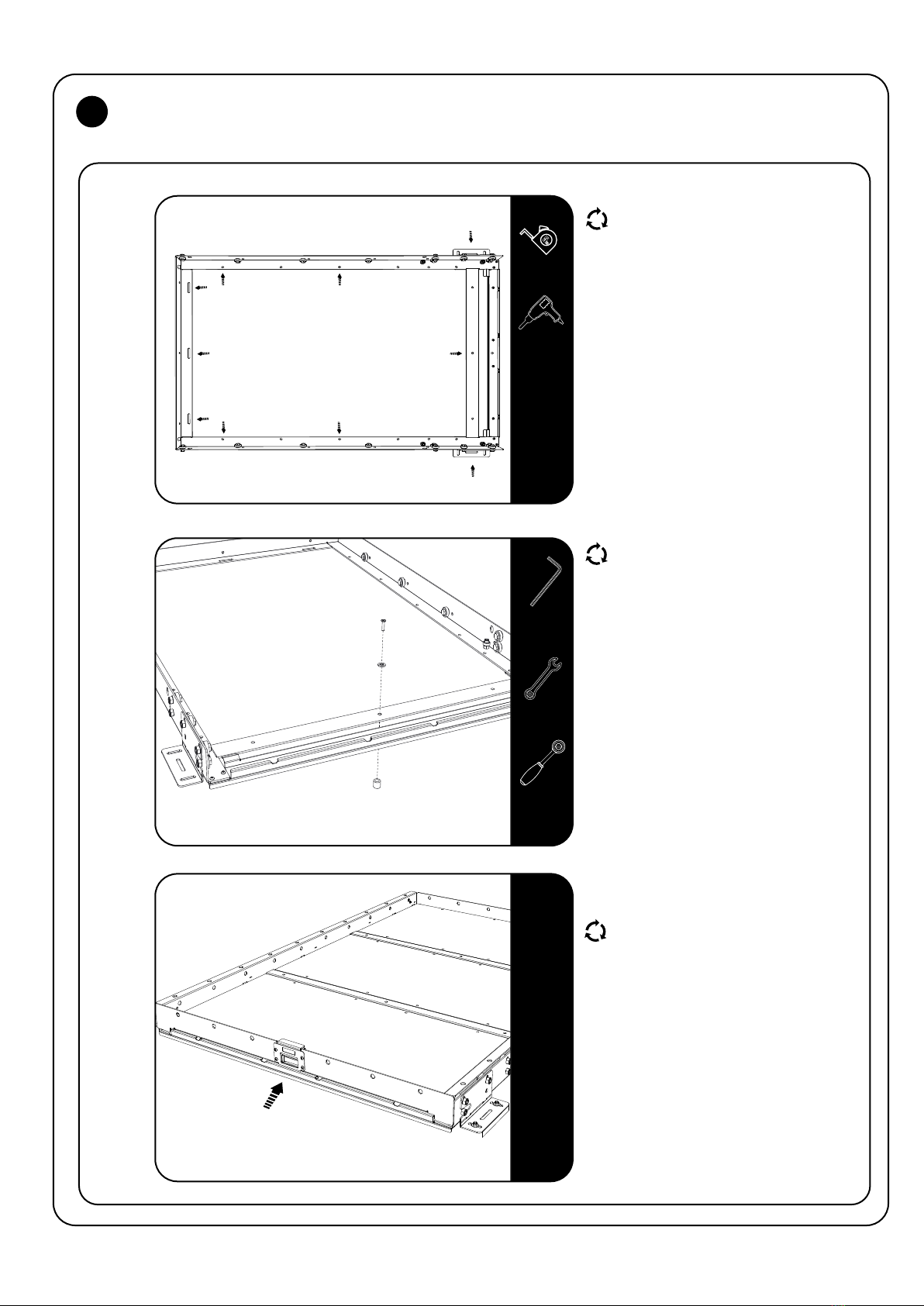

Place the frame back onto the load bed and
secure using the fasteners and spacers
supplied. The spacers (Item 5) are to be
used when the mounting points are in a
"dip" and not on a raised section by
placing it over the rivnut so that the frame
rests on the spacer.
When securing the front of the frame use
the M6x25 countersunk screw, M10 flat
washer and a spacer
Refer to Step 2.2, refit the tray and
stoppers. Once refitted check that the push
to close latch engages fully and that the
slide is secure.
4MM
9MM
Make sure you have closed the load bed tail
gate to ensure that it does not make
contact with the frame. Once you are
satisfied with the positioning of the frame,
mark the position of all the mounting points
as indicated by the arrows onto the load
body.
Remove the frame and drill a 4mm pilot
hole on each of your markings. Check the
underside of the load bed before drilling to
make sure that there is no piping or wiring
in the way. Re-drill all of the pilot holes to
9mm.
Insert and crimp a M6 rivnut (Item 6) into
each of the holes you have drilled.
4MM
10MM
10MM
SSBS008_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS
5

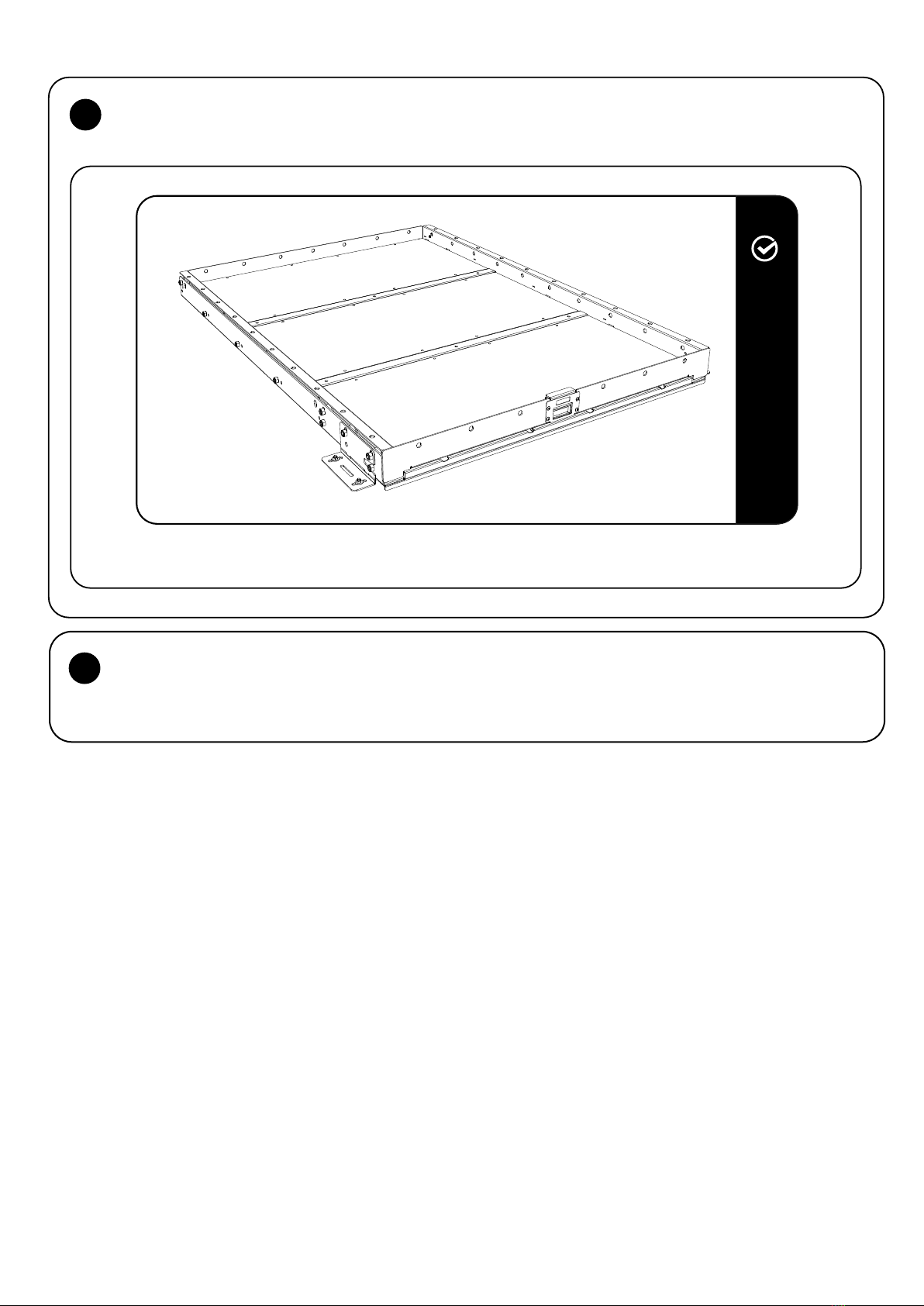

Congratulations! You did it. Take a step back and admire your work!
COMPLETION
3
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or online.
3.1
