Front Runner KRTL015L Instruction Manual

LAND CRUISER 70

SLIMLINE II RACK

(1345mm x 2368mm )

KRTL015L

INSTALL TIME: 1 Hour

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR

VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY

INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER

PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE

PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE

INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO

NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT

THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A

PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

Thank you for purchasing a Front Runner Slimline II Rack.

This Roof Rack consists of a kit that contains:

1. A Slimline II Tray

2. A mounting system specific to your vehicle

Before you start, take a moment and open all your boxes and gather the assembly instructions for the various

components.

This document will guide you through the assembly of the various mounting system components and assist you in fitting

the Slimline II Tray to your specific vehicle.

START HERE

READ ME FIRST

REV_A01

Assemble your Slimline II Rack

Refer to SLIMLINE (II TRAY UNIVERSAL ASSEMBLY INSTRUCTION Document RRSTUNI)

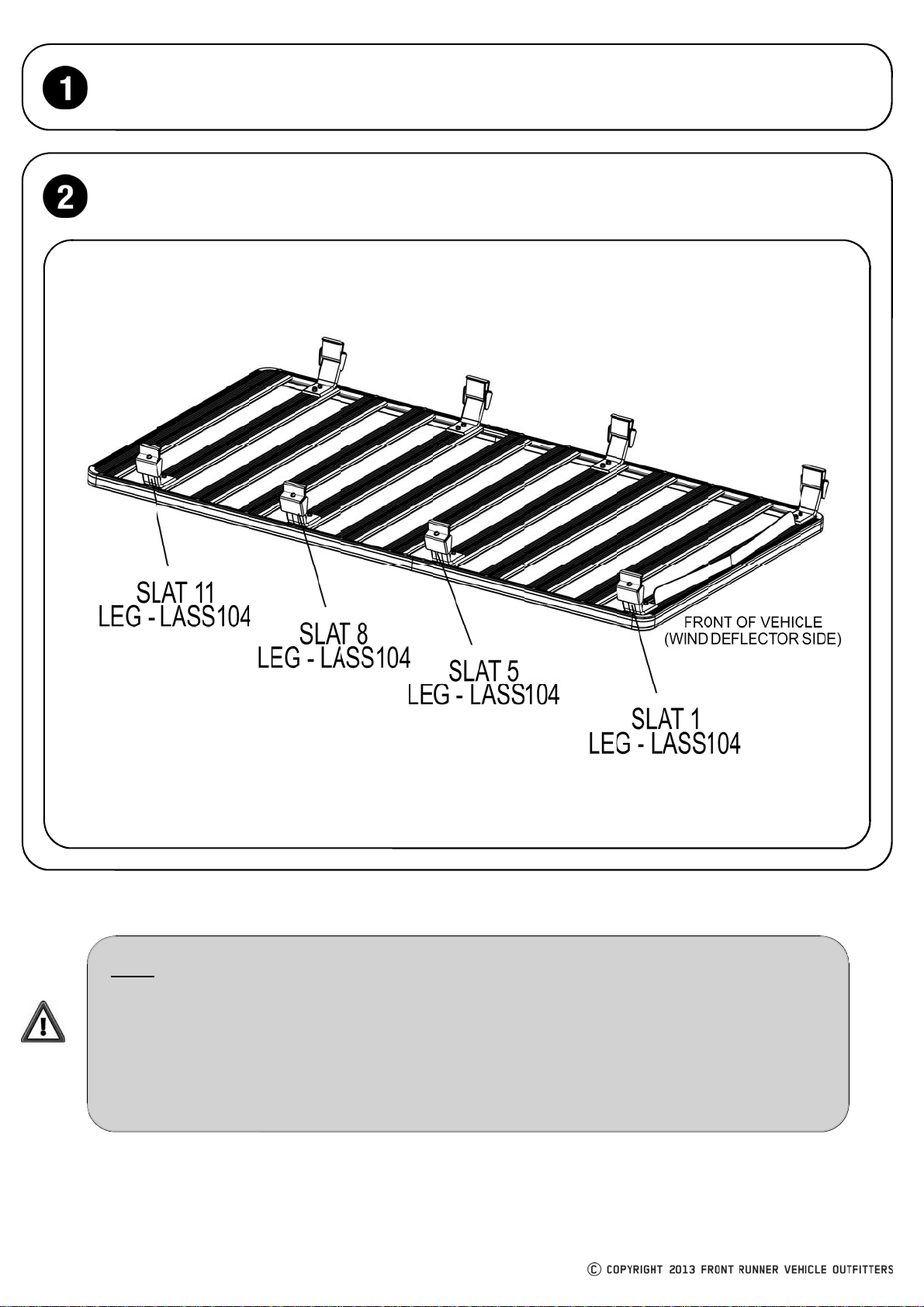

With your Rack in the upside down position (Product sticker should be upside down), fit the Legs to your

Slimline II Tray as illustrated below.

()

NOTE: DO NOT SLIDE THE RACK AND LEGS ACROSS THE ROOF! If there is a chance that you are going to

set the roof rack on to the roof, place some moving blankets and/or towels over the roof. If you must

lower the rack before it is in position, carefully set the Feet on the padded surface.

Once your Slimline II Roof Rack is fitted, ensure a 15mm clearance is maintained between the Wind

Deflector and the vehicles roof otherwise damage to the roof may occur. Bend the Wind Deflector by hand

if necessary.

REV_A01

Fit the LEGS

(Refer to LEG ASSEMBLY INSTRUCTION Document LASS1UNI)

Congratulations, you have completed your installation. Take a step back and admire your work. Good Job!

MOUNT THE RACK TO YOUR VEHICLE

()Refer to LEG ASSEMBLY INSTRUCTION Document LASS1UNI

()

A Grab your friend and with one of you on each side of the Rack, flip the rack end over end (Prevents the

Hex Bolts from falling out the machines slots) so that the Legs are facing down. With the Wind Deflectors

facing forward, approach the vehicle from the rear lifting the Rack up and over the roof.

Position the Rack as far back as possible without it overhanging the rear of the vehicle. Bring the rack

down slowly making sure that the Legs go directly into the gutters of the vehicle.

Center the Rack left to right. Ensure that the Rack is level - front to back and left to right - before

fastening.

REV_A01

TAKE A TRIP

After your first adventure, check that all nuts, bolts, screws and fittings are tight. Re-tighten where

needed. You'll find a small amount of settling has happened.

Go on many more adventures, periodically checking all nuts, bolts, screws and fittings.

()

Front Runner can not recommend a maximum load carrying capacity. Please refer to your vehicle

manufacturer's recommendations.
