Front Runner GOFR001 User manual
ENG
30 min
GRAB-ON
FLUSH RAIL FEET
GOFR001_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
1
IMPORTANT WARNING!
Thank you for purchasing Front Runner Grab-On Flush Rail Feet.
Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
GOFR001
READ ME !
FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL
THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN
AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS
TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU
MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU
DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
GOFR001_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
2

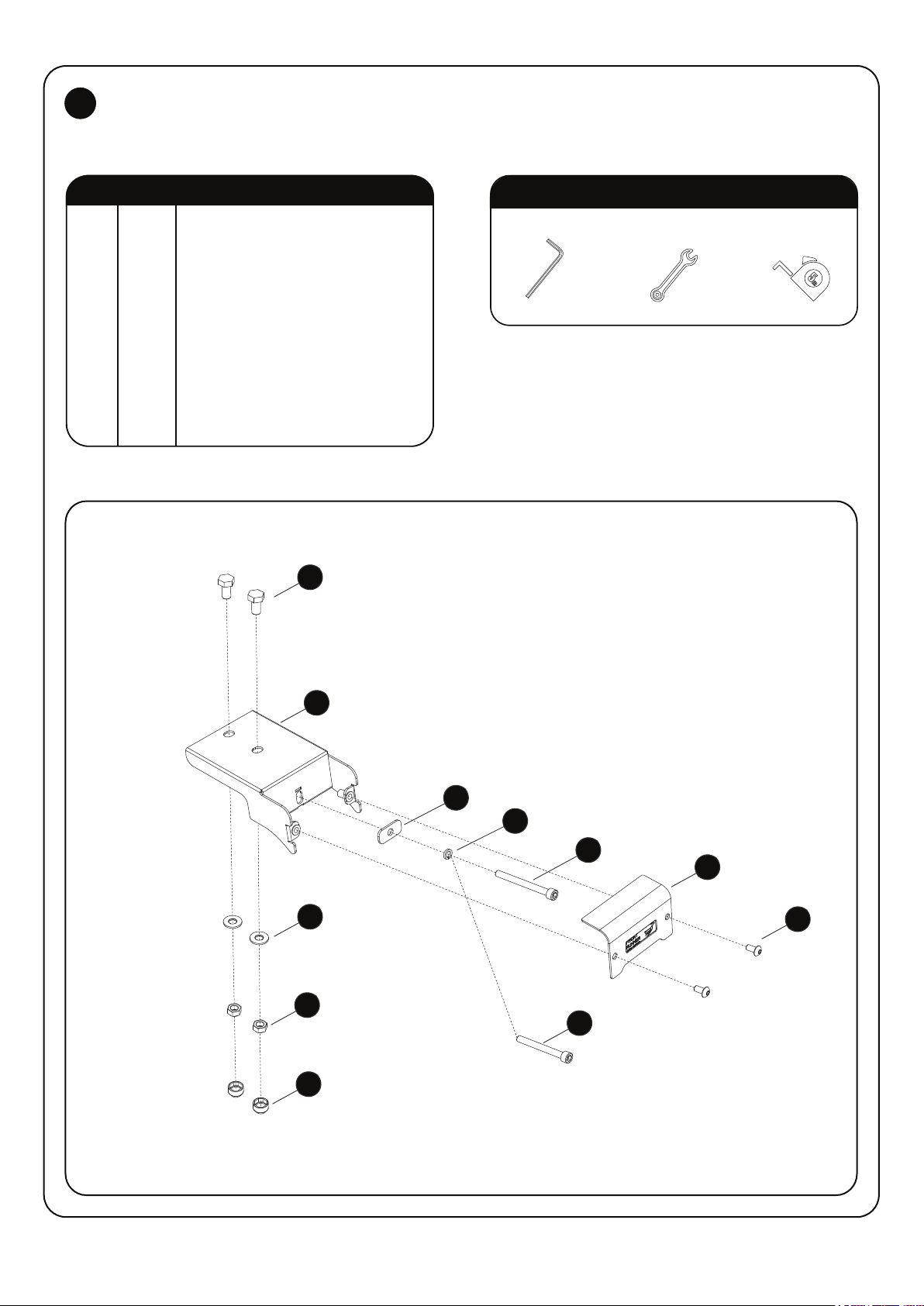

IN THE BOX
FIGURE 1.1
1 4 X M8 x 16 Hex Bolt
2 2 X Grab-On Foot
3 4 X M8x19x2ss Flat Washer
4 4 X M8 Nyloc Nut
5 4 X M8 Nut Cap
6 2 X Cap Screw Washer
7 2 X M6 Spring Washer
8 2 X M6 x 60 Cap Screw
9 2 X Front Cover Plate
10 4 X M5 x 10 Button Head
11 2 X M6 x 50 Cap Screw
IN THE BOX TOOLS NEEDED
IN THE BOX
3mm
5mm 13MM
1
2
7
10
11
8
9
3
4
5
6
1GET ORGANIZED
Here is what you are looking at for
GOFR001
GOFR001_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
3

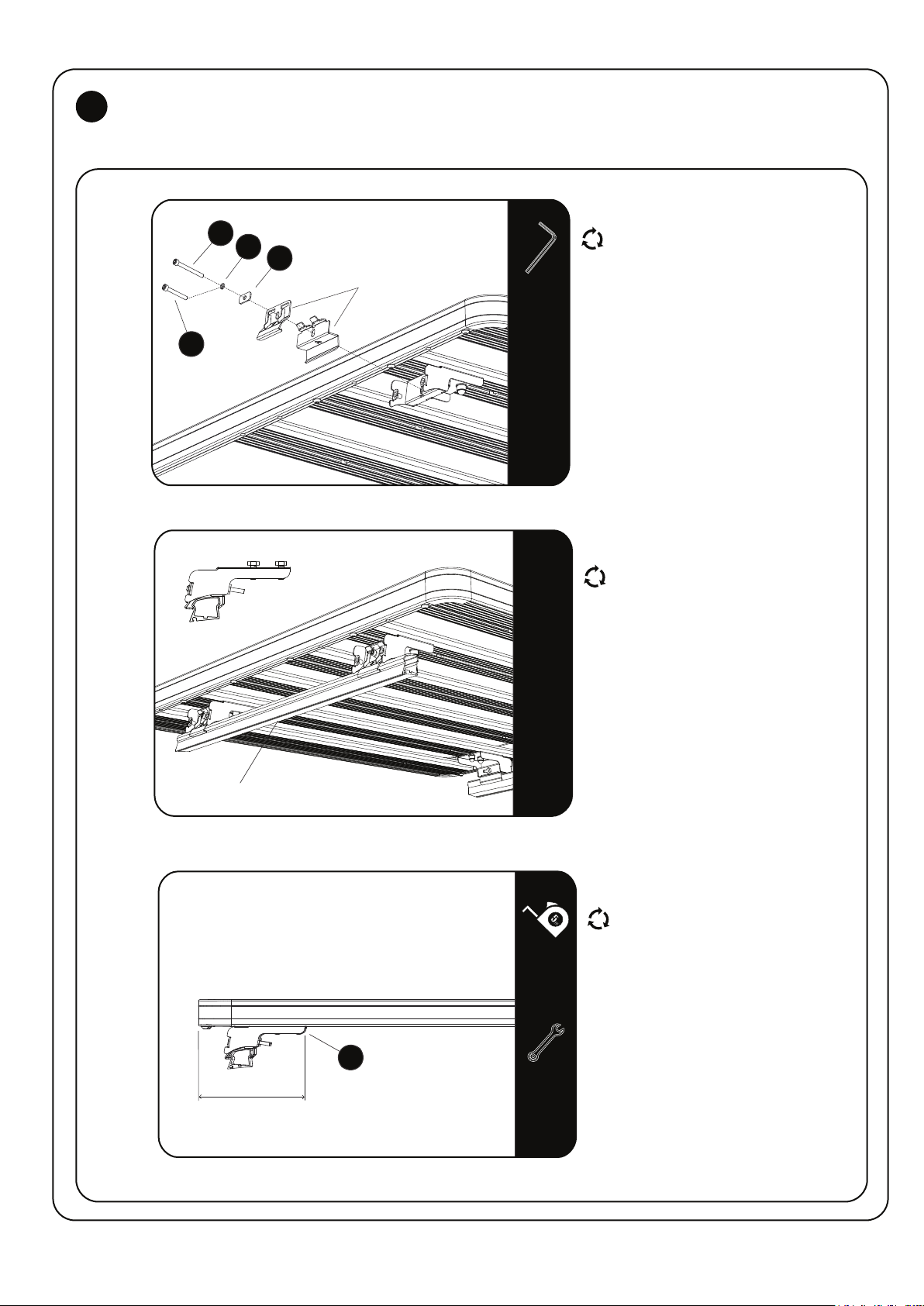

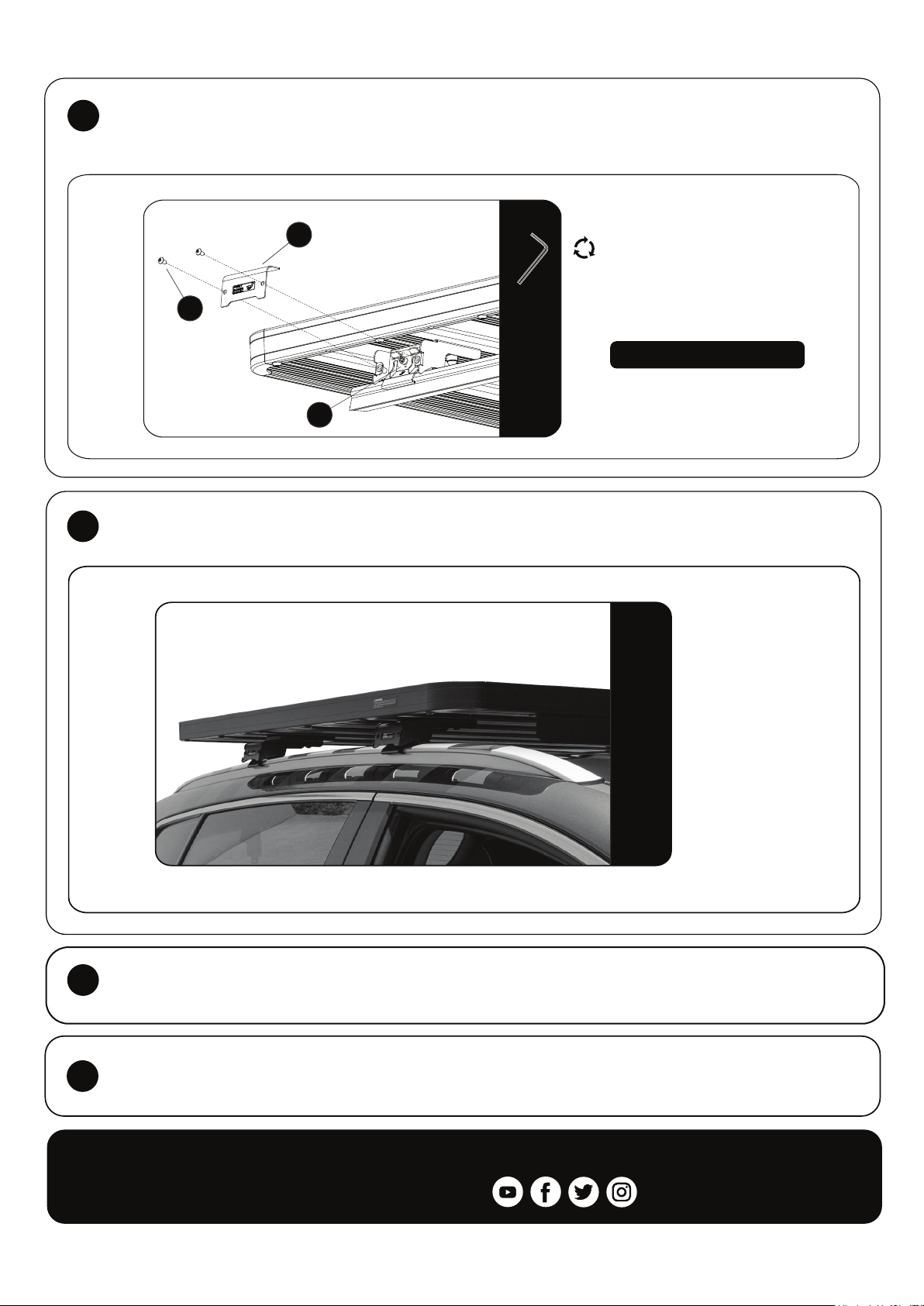

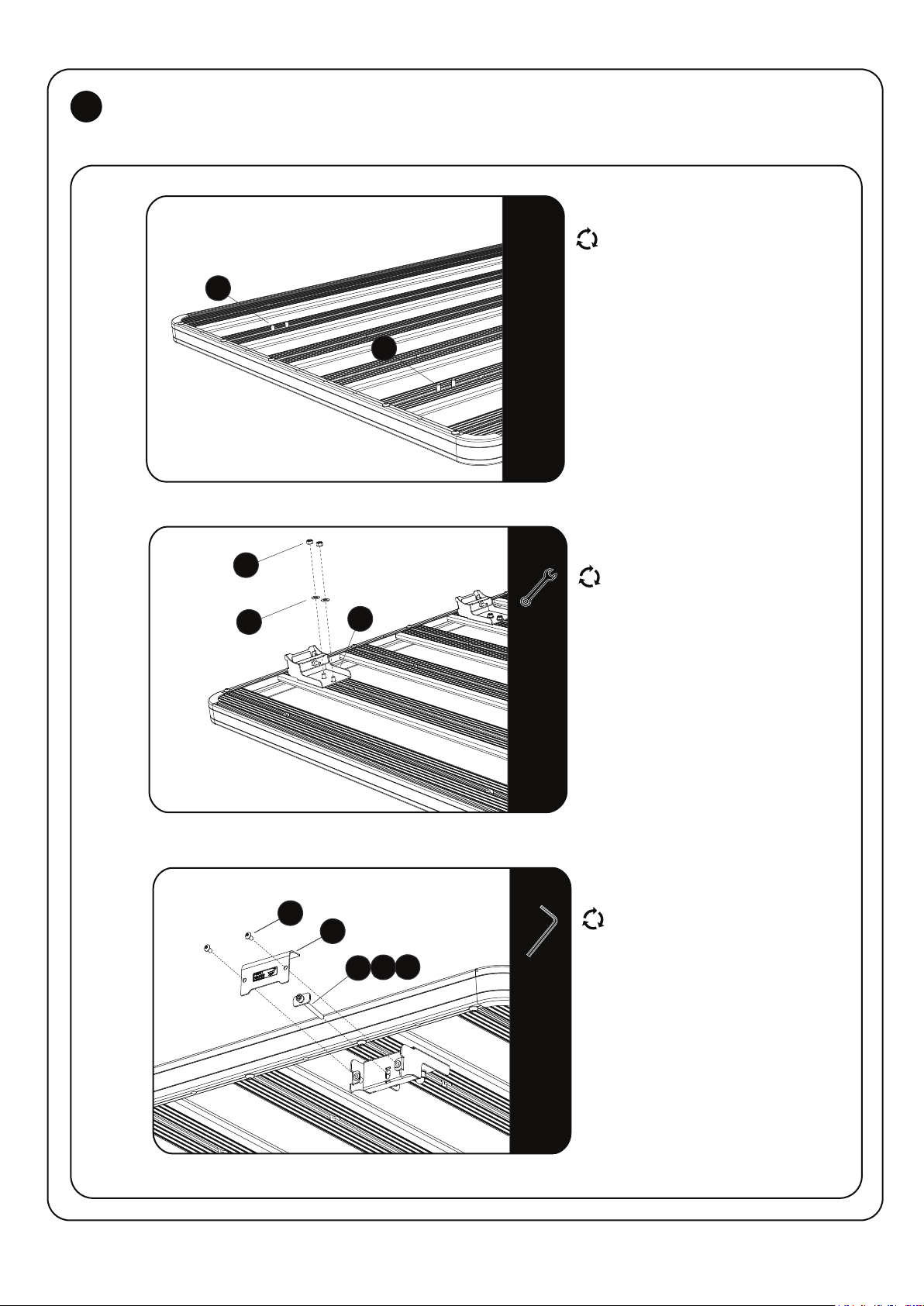

FIT AND SECURE
2
2.2
2.3
2.4
2.1
2.1
2.2
2.3
Place your Front Runner Roof Rack onto
your vehicles Flush Rails and find the best
position. The Rack should sit level to the
ground, not the vehicles roof line.
Or slanting slightly down toward the front.
Find the best position for the Feet, using the
first or second Slat.
Flip the Rack so that the bottom of the
Rack faces up. Insert two M8 x 16 Hex Bolts
(Item 1) into the Slats mashined slots that
you have identified.
13MM
Fit the Grab-on Foot assembly (Item 2) to
the slat by loosley fastening it with two
M8 Flat Washers (Item 3) and two
M8 Nyloc Nuts (Item 4).
Repeat this step for the other Feet.
Remove the Front Covers (Item 9) from all
the Grab-On Feet (Item 2) by loosening the
two M5 x 10 Button Head Screw (Item 10).
Loosen and remove (Item 8, 7 & 6) and
keep in a safe place as this will be used
in the next step to fit the Flush Rail Gripss.
1
1
4
3
3MM
5MM
8
7
5
9
10
2
GOFR001_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE
2
2.2
2.3
2.4
2.1
2.4
2.5
2.6
Depending on the width of the Flush Rail,
Use an M6 x 60 or M6 x 50 Allen Cap Screw
(Item 8 or 11), M6 Spring Washers and Cap
Screw Washer (Items 7 & 6) and loosely fit
the Flush Rail Grips (GOFR Grips)
to the Grab-On Flush Rail Foot (Item 2).
Repeat this step on the other Grab-On Flush
Rail Feet.
13MM
Place your Rack back onto the vehicle.
Position all the feet so that they rest on top
of the Flush Rails as shown.
With a Measuring tape, center your
Roof Rack.
Fully Tighten all the M8 Nyloc Nuts (Item 4)
and cover each of them with M8 Nut Caps
(Item 5).
8
11
7
6
5MM
L = R
Flush Rail
GOFR (GRIPS)
4
COMPLETION
3
9
3.1
Congratulations. You did it. Take a step back and admire your work!
4MM
GOFR001_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
5
FIT AND SECURE
2
2.4
2.1
2.7
Fully tighten all the M6 x 50 / M6 x 60 Cap
Srews (Item 8) to clamp the rack securely
ontothe flush rails. Take care not to
over tighten.
Refit the Front Cover Plate (Item 9)
with two M5 x 10 Butten Heads (Item 10).
9
10
8
5MM
3MM
Tightening Torque 6Nm
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
5
Now's the time to visit your favorite Front Runner Dealer in person or online.
Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
4
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
