Frigidaire FAS226T2A10 Owner's manual

FRIGIDAIRE

_;!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_7i!_i_i_i_i_i_i_iiiiiiiii_i_i_ii_i_i_i_i_1i7_7_7__'_i_7i_71_7_7_i_71117_)_i!, _!i!{:i!i

Normal Sounds ,i;i;ii

Air(

www,frigidaire.com

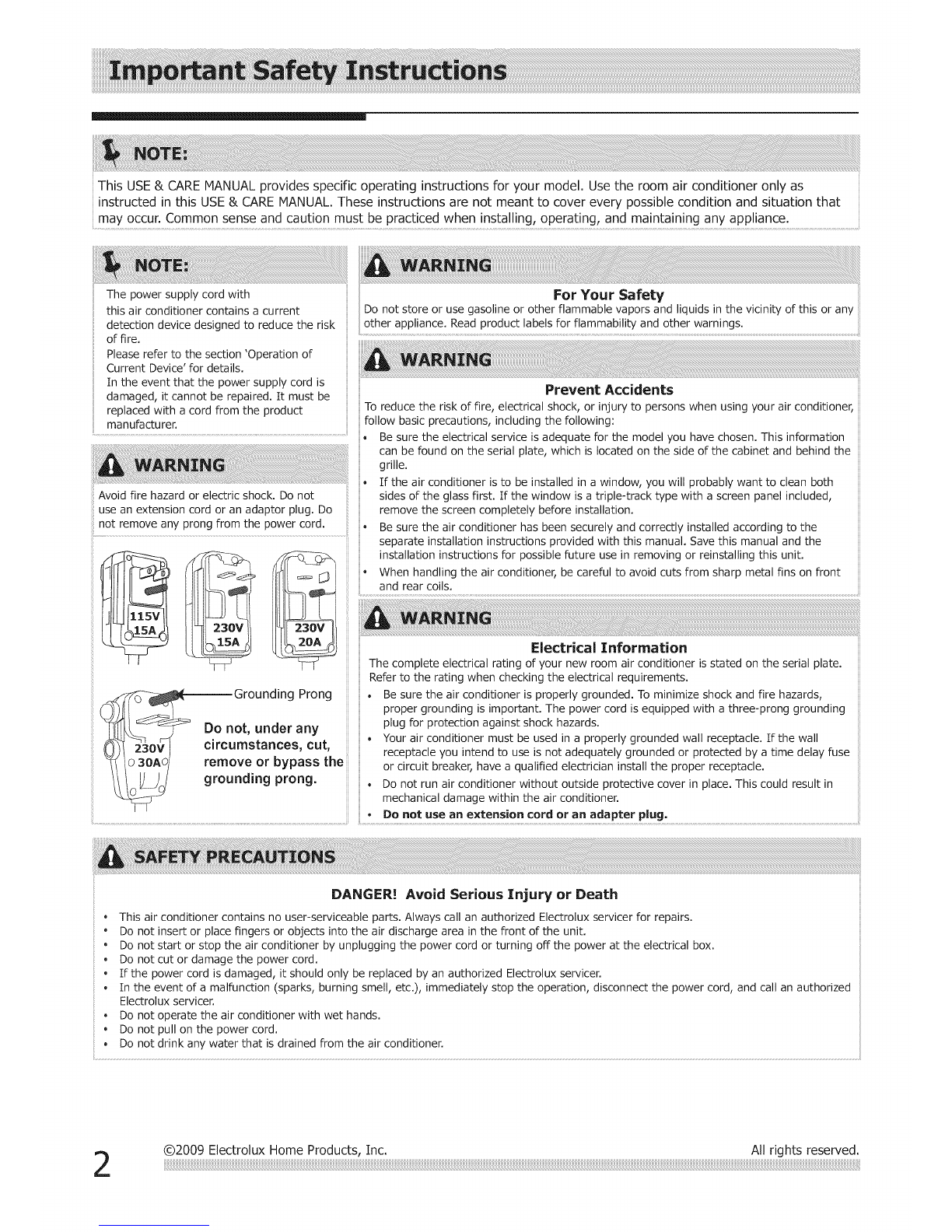

This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as

instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that

may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

The power supply cord with

this air conditioner contains a current

detection device designed to reduce the risk

of fire.

Please refer to the section 'Operation of

Current Device' for details.

[n the event that the power supply cord is

damaged, it cannot be repaired. £t must be

replaced with a cord from the product

manufacturer.

Avoid fire hazard or electric shock. Do not

use an extension cord or an adaptor plug. Do iii ii

Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner,

follow basic precautions, including the following:

• Be sure the electrical service is adequate for the model you have chosen. This information

can be found on the serial plate, which is located on the side of the cabinet and behind the

grille.

• :Ifthe air conditioner is to be installed in a window, you will probably want to clean both

sides of the glass first. [f the window is a triple-track type with a screen panel included,

remove the screen completely before installation.

• Be sure the air conditioner has been securely and correctly installed according to the

not remove any prong from the power cord. ii separate installation instructions provided with this manual. Save this manual and the

o_ , When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front

and rear coils.

E ectricanformation

;The complete electrical rating of your new room air conditioner is stated on the serial plate.

Grounding Prong

ot, under any

_ov_ circumstances, cut, "

30AO/ remove or bypass the

L_ grounding prong..

Refer to the rating when checking the electrical requirements.

• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards,

proper grounding is important. The power cord is equipped with a three-prong grounding

plug for protection against shock hazards.

Your air conditioner must be used in a properly grounded wall receptacle. [f the wall

receptacle you intend to use is not adequately grounded or protected by a time delay fuse

or circuit breaker, have a qualified electrician install the proper receptacle.

Do not run air conditioner without outside protective cover in place. This could result in

mechanical damage within the air conditioner.

Do not use an extension cord or an adapter plug,

DANGER! Avoid Serious Tnjury or Death

This air conditioner contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.

Do not insert or place fingers or objects into the air discharge area in the front of the unit.

Do not start or stop the air conditioner by unplugging the power cord or turning off the power at the electrical box.

Do not cut or damage the power cord.

[f the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.

[n the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized

Electrolux servicer.

• Do not operate the air conditioner with wet hands.

, Do not pull on the power cord.

• Do not drink any water that is drained from the air conditioner.

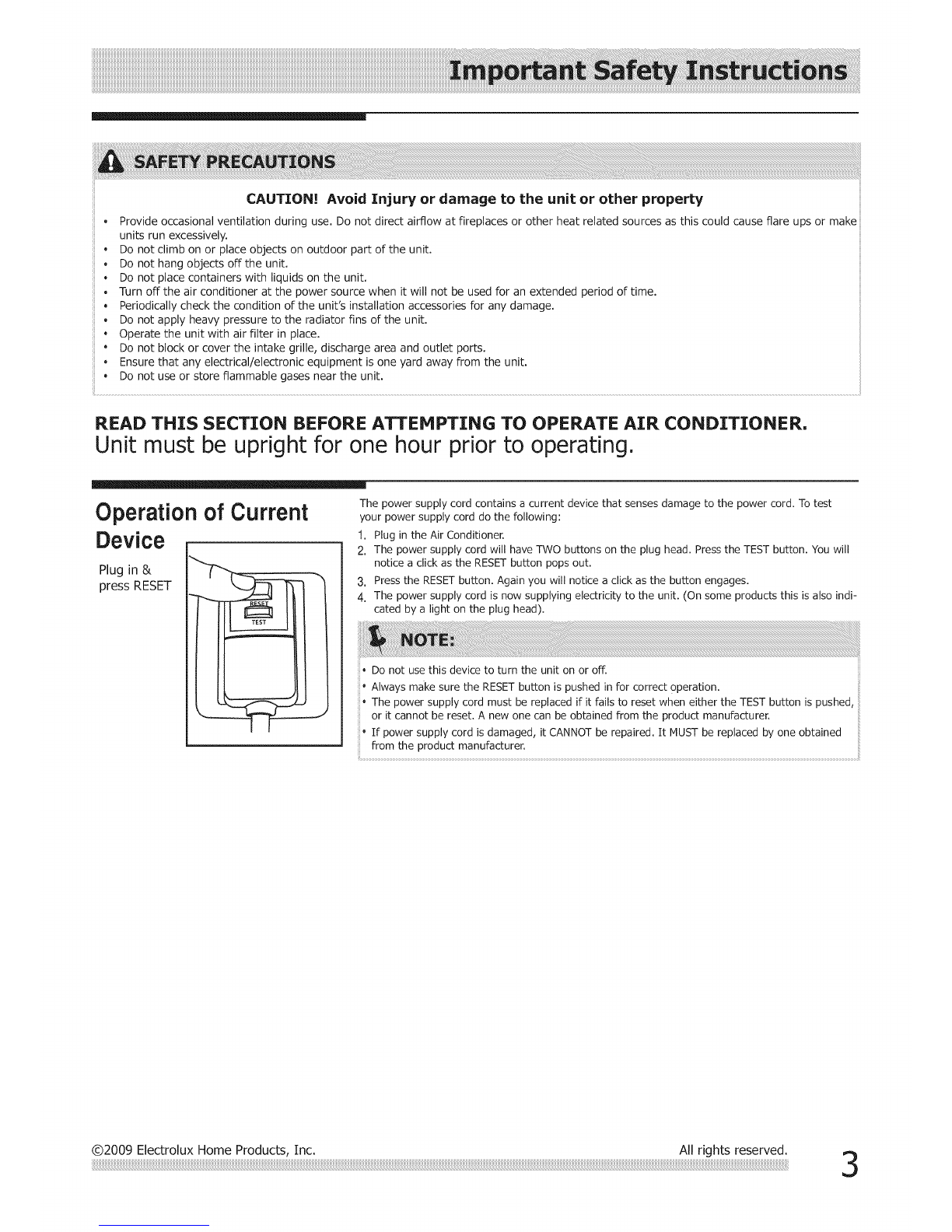

CAUTION. IAvoid Injury or damage to the unit or other property

Provide occasional ventilation during use. Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make

units run excessively.

Do not climb on or place objects on outdoor part of the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn off the air conditioner at the power source when it will not be used for an extended period of time.

Periodically check the condition of the unit's installation accessories for any damage.

Do not apply heavy pressure to the radiator fins of the unit.

Operate the unit with air filter in place.

Do not block or cover the intake grille, discharge area and outlet ports.

Ensure that any electrical/electronic equipment is one yard away from the unit.

Do not use or store flammable gases near the unit.

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.

Unit must be upright for one hour prior to operating.

Operation of Current

Device

Plugin &

press RESET

The power supply cord contains a current device that senses damage to the power cord. To test

your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will

notice a click as the RESET button pops out.

3. Press the RESET button, Again you will notice a click as the button engages.

4. The power supply cord is now supplying electricity to the unit. (On some products this is also indi-

cated by a light on the plug head).

;;, Do not use this device to turn the unit on or off.

• Always make sure the RESET button is pushed in for correct operation.

• The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,

or it cannot be reset. A new one can be obtained from the product manufacturer,

• If power supply cord is damaged, it CANNOT be repaired, It MUST be replaced by one obtained

from the product manufacturer,

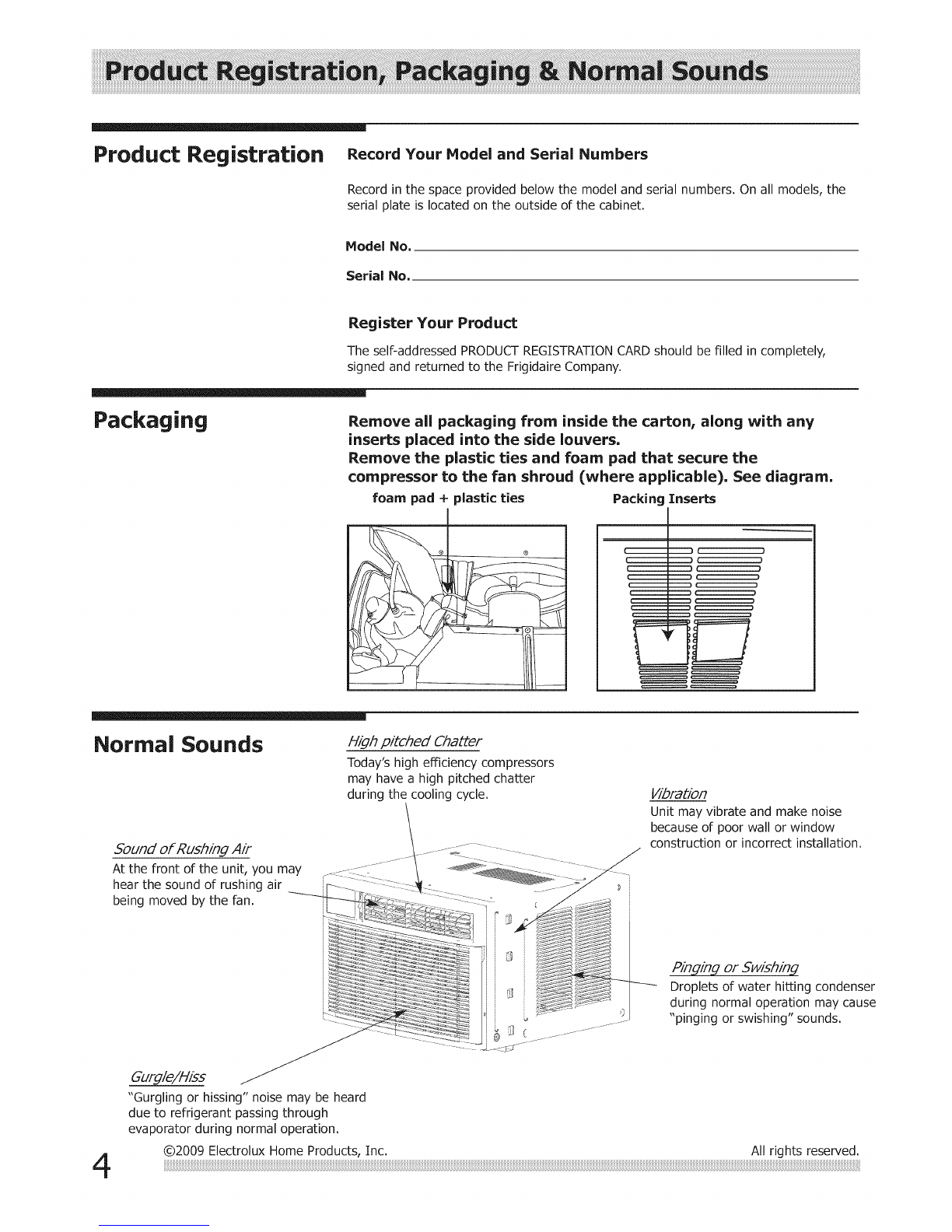

Product Registration Record Your Hodel and Serial Numbers

Record in the space provided below the model and serial numbers. On all models, the

serial plate is located on the outside of the cabinet.

The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,

signed and returned to the Frigidaire Company.

Packaging Remove all packaging from inside the carton, along with any

inserts placed into the side louvers.

Remove the plastic ties and foam pad that secure the

compressor to the fan shroud (where applicable). See diagram.

foam pad + plastic ties Packing Inserts

Normal Sounds

Sound of Rus/7/ng Air

At the front of the unit, you may

hear the sound of rushing air

being moved by the fan.

_______ ___J ()

_ • .....

H/gt7 p/[ctTed Chatter

Today's high efficiency compressors

may have a high pitched chatter

during the cooling cycle. Vibration

Unit may vibrate and make noise

because of poor wall or window

construction or incorrect installation.

P/ng/nq or Swish/nq

Droplets of water hitting condenser

during normal operation may cause

"pinging or swishing" sounds.

Gurgle/Hiss

"Gurgling or hissing" noise may be heard

due to refrigerant passing through

evaporator during normal operation.

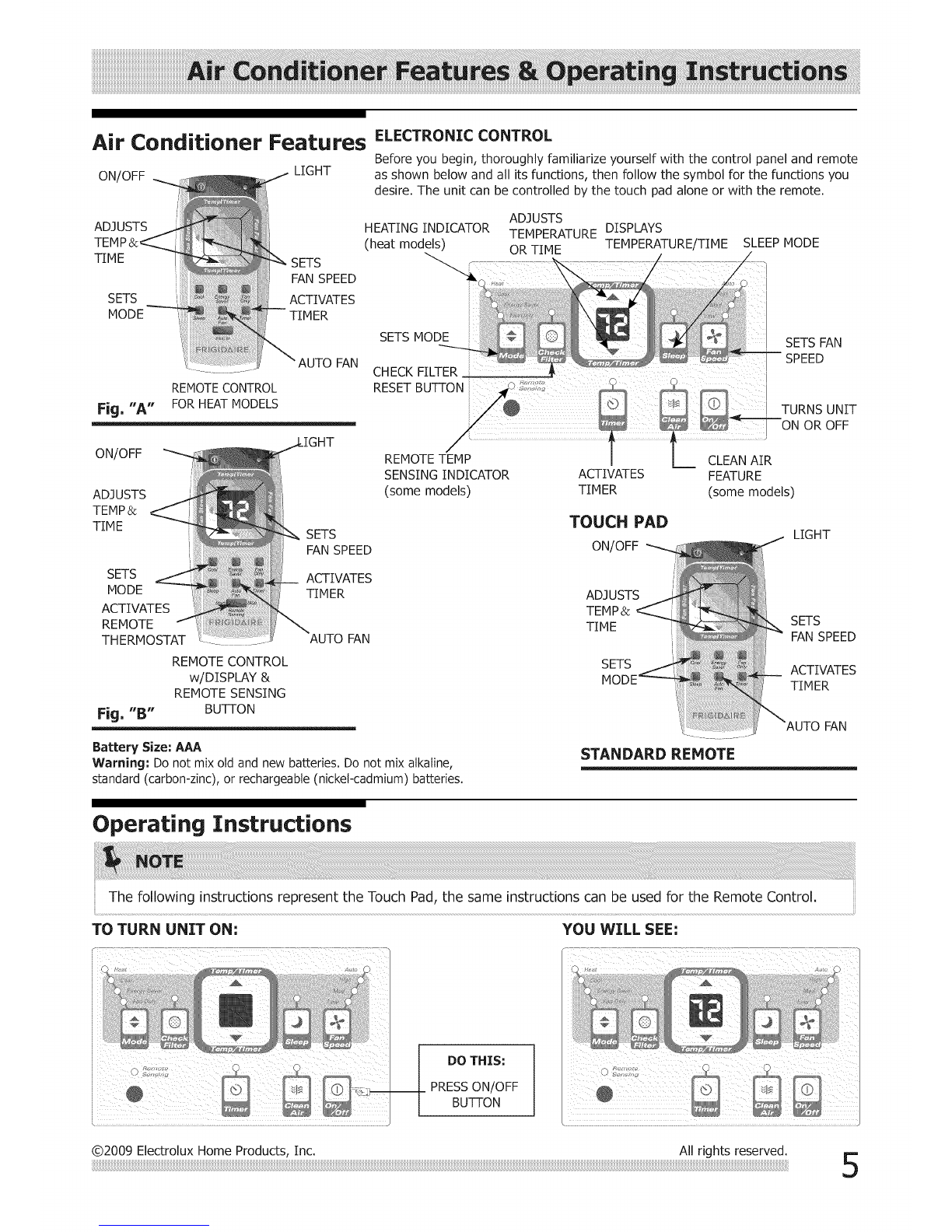

Air Conditioner Features

ON/OFF

ADJUSTS

TEMP&_

TIME

SETS

MODE

I LIGHT

SETS

FAN SPEED

__ ACTIVATES

TIMER

_AUTO FAN

REMOTECONTROL

Fia. "A" FORHEATMODELS

ON/OFF

AD] USTS

TEMP&

TIME SETS

FAN SPEED

ELECTRONIC CONTROL

Before you begin, thoroughly familiarize yourself with the control panel and remote

as shown below and all its functions, then follow the symbol for the functions you

desire. The unit can be controlled by the touch pad alone or with the remote.

AD]USTS

HEATING INDICATOR TEMPERATURE DISPLAYS

(heat models) OR TIME TEMPERATURE/TIME SLEEP MODE

SETS MODE

CHECK FILTER O ........ () (

RESETBUTTON i /:,_,:J )

REMOTE TEMP CLEANAIR

SENSING INDICATOR ACTIVATES FEATURE

(some models) TIMER

SETS ACTIVATES

MODE TIMER

ACTIVATES

REMOTE

THERMOSTAT FAN

REMOTE CONTROL

w/DISPLAY &

REMOTE SENSING

Fig. "B" BUTTON

Battery Size: AAA

Warning: Do not mix old and new batteries. Do not mix alkaline,

standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

SETS FAN

SPEED

TURNS UNIT

OR OFF

(some models)

TOUCH PAD LIGHT

SETS

FAN SPEED

ACTIVATES

TIMER

FAN

STANDARD REMOTE

Operating Instructions

The following instructions represent the Touch Pad, the same instructions can be used for the Remote Control.

TO TURN UNIT ON:

(

DO THIS:

PRESSON/OFF

BUTTON

YOU WILL SEE:

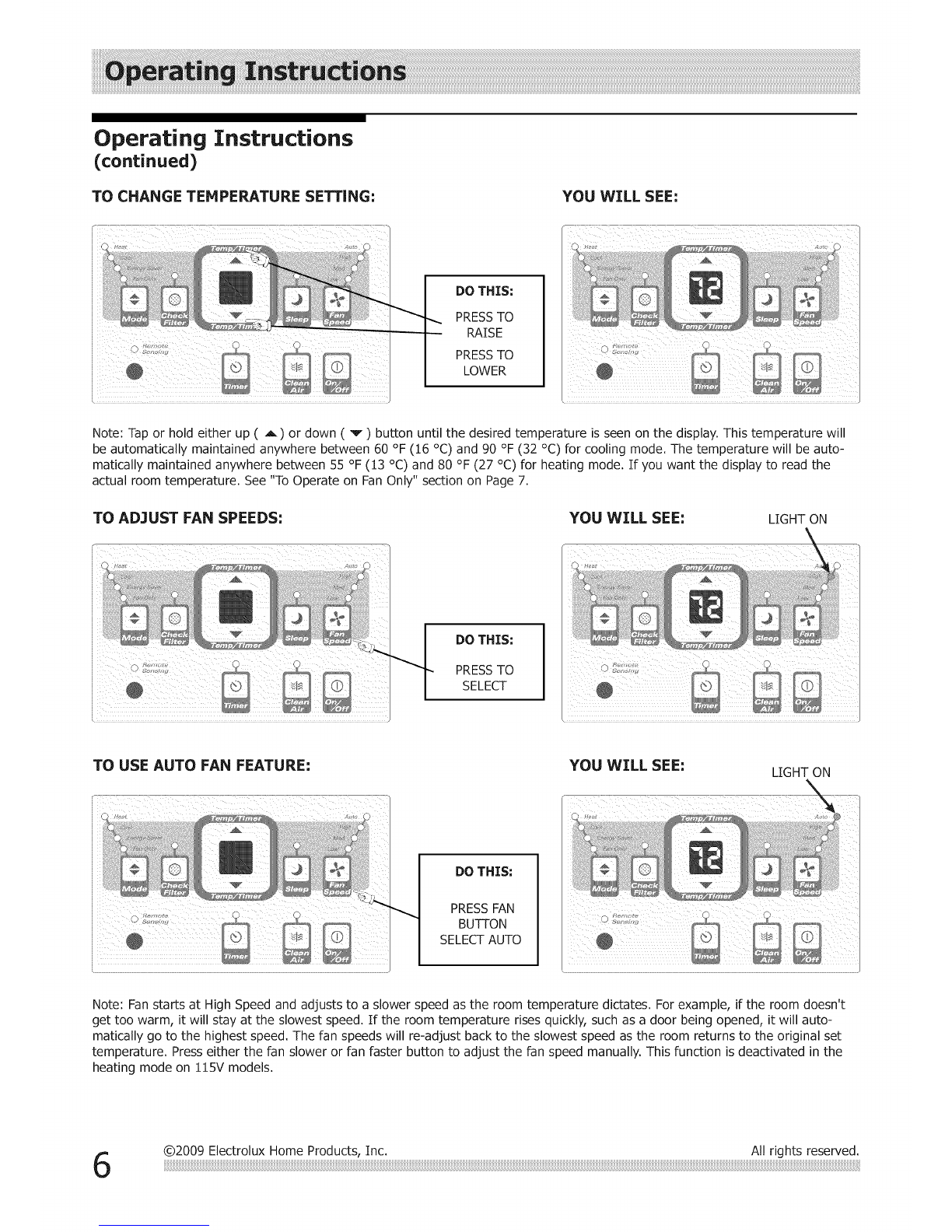

Operating Instructions

(continued)

TO CHANGE TEMPERATURE SETTING, YOU WILL SEE:

DO THIS;

PRESSTO

RAISE

PRESSTO

LOWER @

Note: Tap or hold either up (A) or down ( v ) button until the desired temperature is seen on the display. This temperature will

be automatically maintained anywhere between 60 °F (16 °C) and 90 °F (32 °C) for cooling mode. The temperature will be auto-

matically maintained anywhere between 55 °F (13 °C) and 80 °F (27 °C) for heating mode. If you want the display to read the

actual room temperature. See "To Operate on Fan Only" section on Page 7.

TO ADJUST FAN SPEEDS" YOU WILL SEE" LIGHT ON

DO THIS:

PRESSTO

SELECT

TO USE AUTO FAN FEATURE, =YOU WILL SEE: LIGHT ON

DO THIS:

PRESS FAN

BUTTON

SELECT AUTO @

Note: Fan starts at High Speed and adjusts to a slower speed as the room temperature dictates. For example, if the room doesn't

get too warm, it will stay at the slowest speed. If the room temperature rises quickly, such as a door being opened, it will auto-

matically go to the highest speed. The fan speeds will re-adjust back to the slowest speed as the room returns to the original set

temperature. Press either the fan slower or fan faster button to adjust the fan speed manually. This function is deactivated in the

heating mode on 115V models.

Operating Instructions

(continued)

TO OPERATE ON FAN ONLY: LIGHT ON

DO THIS:

PRESS

MODE BUTTON

CHOOSE

FAN ONLY

YOU WILL SEE:

Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air on some models.

(Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can

choose any fan speed you prefer. (Except "Auto Fan").

During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode. Fan Only

cannot be selected when the unit is in the "Remote Sensing" mode. (on those units with that feature).

TO USE THE ENERGY SAVER FEATURE: YOU WILL SEE:

LIGHT ON

DO THIS:

PRESS

MODE BUTTON

CHOOSE

ENERGYSAVER

Note: In this mode, the fan will continue to run for 1 minute after the compressor shuts off. The fan then cycles on for 20 seconds

at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on.

LIGHT ON

FIRST

DO THIS:

PRESS

TIMER BUTTON

THEN

DO THIS:

PRESS

TEMP/TIMER

SET BUTTON

YOU WILL SEE HOW MUCH TIME IS

CHOSEN:

Note: For Delay Stop, the unit must be in the On position.

Note: For Delay Start, the unit must be in the Off position.

First, press TIMER button, then adjust timer setting, tap or hold the UP arrow ( A ) or the DOWN arrow ( v ) to change delay

timer at 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time

remaining until start (8, 7.5, 7, etc.). The Delay Start Operation automatically selects cooling with maximum Fan speed (if Cool,

Energy Saver, or Fan Only was the last mode selected) or heating with maximum Fan speed (if Heat was the last mode selected.

Note: On 115V models only low speed can be selected.) The temperature maintained will be the same as previously set. To change

the set temperature, press "COOL" then Up or Down arrows until the desired temperature is indicated on the display. After 5

seconds, the control will automatically change the display back to the hours remaining until the unit will start/stop. Pressing the

unit On/Off button at any time will cancel the Delay Start/Stop function. The Delay Start/Stop Feature will work until the unit either

starts or stops. Once that happens the above steps have to be repeated again.

Operating Instructions

(continued)

CHECK FILTER FEATURE: LIGHT ON LIGHT OFF YOU WILL SEE:

o < (>

DO THIS:

PRESSCHECK

FILTER

BUTTON

Note: This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation. The LED (light) will

illuminate after 250 hours of operation. To reset after cleaning the filter, press the "Check Filter" button and the light will go off.

CLEAN AIR FEATURE(on some models): YOU WILL SEE: LIGHT ON

DO THIS:

PRESS

CLEAN AIR

BUTTON

Note: When this feature is "ON", the electronic air purifier is energized to remove pollen and impurities from the air. To cancel this

feature, press the Clean Air button (the LIGHT will turn off).

Note: This feature can be activated on the unit touch pad ONLY.

SLEEP FEATURE: YOU WILL SEE: LIGHT ON

DO THIS:

PRESS

SLEEPBUTTON

Note: In this mode the selected temperature will increase by 2 °F 30 minutes after the mode is selected. The temperature will then

increase by another 2 °F after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to

the originally selected temperature. This ends the "Sleep" mode and the unit will continue to operate as originally programmed.

The "Sleep" mode program can be cancelled at any time during operation by again pressing the "Sleep" button.

Operating Instructions

(continued)

REMOTE SENSING FEATURE

(on some models):

IDO THIS:

PRESS REMOTE

SENSING

START BUTTON

LIGHT pulsi ( On & Off intermittently ).

NOTE: Remote display

NOTE: Unit display shows the set temperature is actual temperature

Note: This feature can be activated from the remote control ONLY, the unit must be in a cooling mode. at remote control only

To activate the remote sensing feature, point the remote control towards the unit and press the remote sensing Start button. Next, use

the" A_lV" buttons to set the desired temperature at the remote. (Note that the set temperature will only be displayed on the unit

itself ). The LIGHT on the unit control will pulse to indicate it received the signal. The LIGHT on the remote control will pulse each time it

sends a signal. It will periodically send this signal until the feature is deactivated by pressing the remote sensing Stop button. If the unit

does not receive the remote sensing signal during any 3 minute interval, the unit will beep to indicate the remote sensing mode has

ended. The display on the remote control indicates the temperature at the remote ONLY.

NOTE: The Remote Sensing function is terminated either by using the Remote Sensing Stop button or the main ON/OFF button on the

unit.

HEATING FEATURE(on some models): LIGHTONYOU WILL SEE:

DO THIS:

PRESS

MODE BUTTON

SELECT HEAT

Note: This feature can be used with any combination of FAN Speeds (Low speed only on 115V models), Timer, or Sleep Modes. When in

the "Heat" mode, the fan will run continuously while heat is needed. The temperature will automatically be maintained anywhere between

55 °F(13 °C) and 80 °F(27 °C). When the room set temperature is satisfied, the fan will cycle off and on to circulate and sample the room

air.

TO TURN UNIT OFF: YOU WILL SEE:

Note: When unit is shut off in the Heat Mode, the fan will continue to run for a few seconds to dissipate residual heat within the unit.

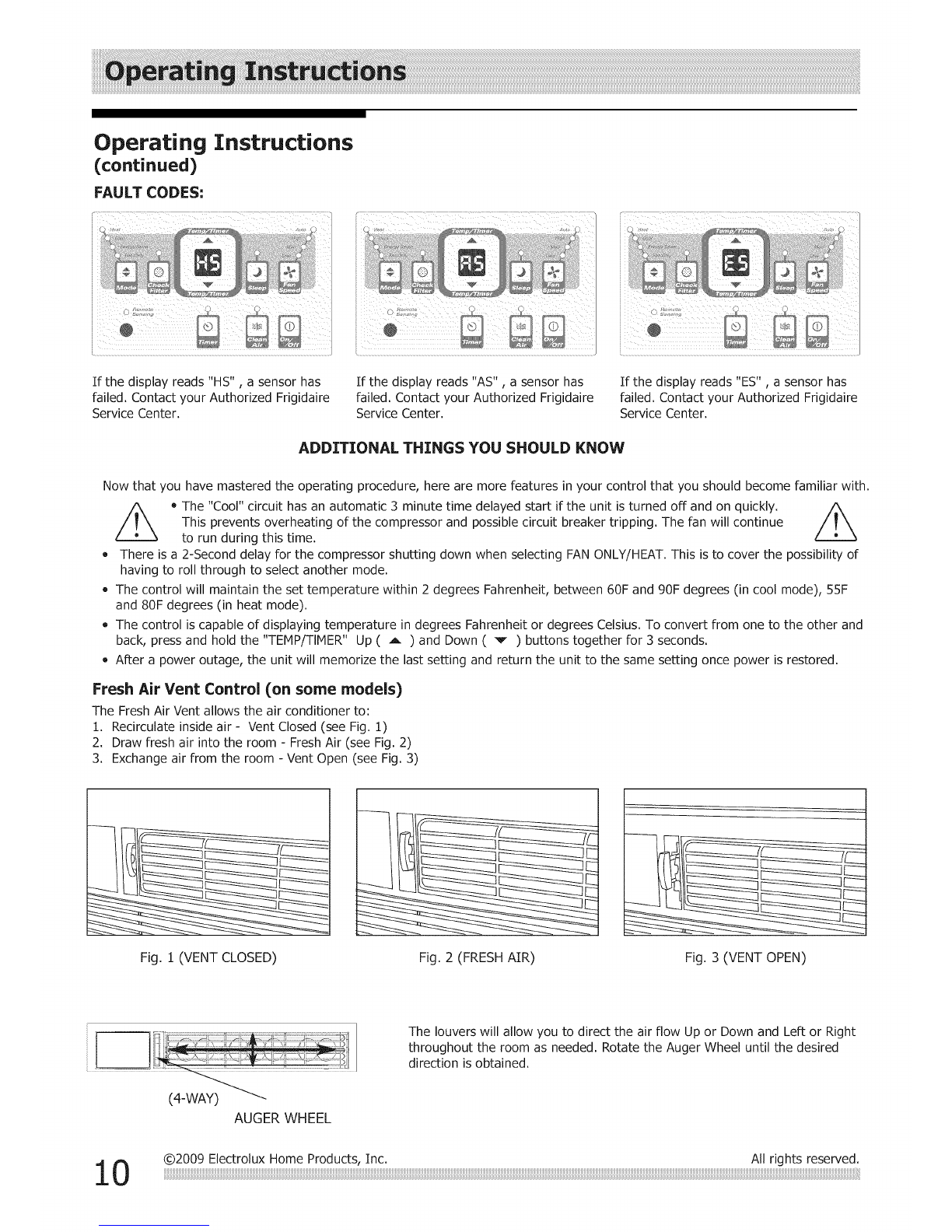

Operating

(continued)

FAULT CODES;

Instructions

If the display reads "HS", a sensor has

failed. Contact your Authorized Frigidaire

Service Center.

If the display reads "AS", a sensor has

failed. Contact your Authorized Frigidaire

Service Center.

If the display reads "ES", a sensor has

failed. Contact your Authorized Frigidaire

Service Center.

ADDITIONAL THINGS YOU SHOULD KNOW

Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.

o The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.

This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue

to run during this time.

• There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY/HEAT. This is to cover the possibility of

having to roll through to select another mode.

• The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees (in cool mode), 55F

and 80F degrees (in heat mode).

• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and

back, press and hold the "TEMP/TIMER" Up ( A ) and Down ( v ) buttons together for 3 seconds.

• After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.

Fresh Air Vent Control (on some models)

The Fresh Air Vent allows the air conditioner to:

1. Redrculate inside air - Vent Closed (see Fig. 1)

2. Draw fresh air into the room - Fresh Air (see Fig. 2)

3. Exchange air from the room - Vent Open (see Fig. 3)

Fig. 1 (VENT CLOSED) Fig. 2 (FRESH AIR) Fig. 3 (VENT OPEN)

The louvers will allow you to direct the air flow Up or Down and Left or Right

throughout the room as needed. Rotate the Auger Wheel until the desired

direction is obtained.

AUGER WHEEL

This manual suits for next models

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire 220213A196 User manual

Frigidaire

Frigidaire FAM156R1A2 User manual

Frigidaire

Frigidaire FRA156MT1 Quick start guide

Frigidaire

Frigidaire FAH146R2T1 User manual

Frigidaire

Frigidaire FAC064J7A5 User manual

Frigidaire

Frigidaire FAH10ES2T - 10 000 BTU Through-the-Wall Room Air... User manual

Frigidaire

Frigidaire FRA12EHT2 Installation instructions

Frigidaire

Frigidaire FRA106HT10 Owner's manual

Frigidaire

Frigidaire FRA12EZU213 User manual

Frigidaire

Frigidaire 66121330 User manual

Frigidaire

Frigidaire LRA050XT75 User manual

Frigidaire

Frigidaire FFPA1222R11 Owner's manual

Frigidaire

Frigidaire FRA113PT110 User manual

Frigidaire

Frigidaire FAS256N2A User manual

Frigidaire

Frigidaire FFRE08B3Q10 Owner's manual

Frigidaire

Frigidaire LRA107BU113 Owner's manual

Frigidaire

Frigidaire LRA127CT10 User manual

Frigidaire

Frigidaire LRA107CV114 Instruction Manual

Frigidaire

Frigidaire FRA053XT7 Installation instructions

Frigidaire

Frigidaire FAA053M7A1 Quick start guide

Frigidaire

Frigidaire FRA064VU1 Owner's manual

Frigidaire

Frigidaire FAH10EN2 User manual

Frigidaire

Frigidaire FAH10EP2T User manual

Frigidaire

Frigidaire FAS255J2A1 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
