Frigidaire FRA12EZU213 User manual

FRIGIDAIRE

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii__

Producl

www,frigJ

This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as

instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that

may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

Avoid fire hazard or electric shock. Do not

use an extension cord or an adaptor plug. Do

not remove any prong from the power cord.

Grounding type wall

receptacle

For Your Safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance. Read product labels for flammability and other warnings.

Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditionel

follow basic precautions, including the following:

Be sure the electrical service is adequate for the model you have chosen. This information

can be found on the serial plate, which is located on the side of the cabinet and behind the

grille.

• If the air conditioner is to be installed in a window, you will probably want to clean both

sides of the glass first. If the window is a triple-track type with a screen panel included,

remove the screen completely before installation.

• Be sure the air conditioner has been securely and correctly installed according to the

separate installation instructions provided with this manual. Save this manual and the

installation instructions for possible future use in removing or reinstalling this unit.

When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front

and rear coils.

DANGER.IAvoid Serious Injury or Death

This air conditioner contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.

Do not insert or place fingers or objects into the air discharge area in the front of the unit.

Do not start or stop the air conditioner by unplugging the power cord or turning off the power at the electrical box.

Do not cut or damage the power cord.

If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.

In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized

Electrolux servicer.

• Do not operate the air conditioner with wet hands.

• Do not pull on the power cord.

• Do not drink any water that is drained from the air conditioner.

CAUTION. IAvoid Injury or damage to the unit or other property

Provide occasional ventilation during use. Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make

units run excessively.

Do not climb on or place objects on outdoor part of the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn off the air conditioner at the power source when it will not be used for an extended period of time.

Periodically check the condition of the unit's installation accessories for any damage.

Do not apply heavy pressure to the radiator fins of the unit.

Operate the unit with air filter in place.

Do not block or cover the intake grille, discharge area and outlet ports.

Ensure that any electrical/electronic equipment is one yard away from the unit.

Do not use or store flammable gases near the unit.

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.

Unit must be upright for one hour prior to operating.

Operation of Current

Device

Plug in & _,

press RESET

The power supply cord contains a current device that senses damage to the power cord. To test

your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will

notice a click as the RESETbutton pops out.

3. Press the RESET button, Again you will notice a click as the button engages,

4. The power supply cord is now supplying electricity to the unit,

•Do not use this device to turn the unit on or off.

•Always make sure the RESET button is pushed in for correct operation.

•The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,

or it cannot be reset. A new one can be obtained from the product manufacturer.

If power supply cord is damaged, it CANNOT be repaired. It MUST be replaced by one obtained

from the product manufacturer.

Product Registration Record Your Model and Serial Numbers

Record in the space provided below the model and serial numbers. On all models, the

serial plate is located on the outside of the cabinet.

Model No.

Serial No.

The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,

signed and returned to the Frigidaire Company.

Normal Sounds

High pitched Chatter

Today's high efficiency compressors

may have a high pitched chatter

during the cooling cycle.

Sound of/?ushing Air

At the front of the unit, you may

hear the sound of rushing air

being moved by the fan.

Vibration

Unit may vibrate and make noise

because of poor wall or window

construction or incorrect installation.

Gurgle/Hiss

"Gurgling or hissing" noise may be heard

due to refrigerant passing through

evaporator during normal operation.

Pinging or Swishinq

-- Droplets of water hitting condenser

during normal operation may cause

"pinging or swishing" sounds.

Air Conditioner Features ELECTRONICCONTROL

Before you begin, thoroughly familiarize yourself with the control panel and remote

as shown below and all its functions, then follow the symbol for the functions you

desire. The unit can be controlled by the touch pad alone or with the remote.

EXHAUST SELECTOR

AD]USTS

DISPLAYS TEM PERATU RE

TEMPERATURE/TIME OR TIME

closed exhaust

_ o

f T[MP/TIM[R

-_. T[NP/TINER

°°2

steep af_to "me,

cool

energy saver

fan only

open

SETS MODE --

SLEEP MODE

CHECK FILTER ACTIVATES __ TURNS UNIT __ SETS FAN

RESET BUTTON TIMER ON OR OFF SPEED

Battery Size: AAA

Warning: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable

(nickel-cadmium) batteries.

STANDARDREMOTE

Operating Instructions

The following instructions represent the Touch Pad, the same instructions can be used for the Remote Control.

TO TURN UNIT ON:

energy_av?f_

ternp/timer temp/timer

DO THIS;

PRESSON/OFF

BUTTON

YOU WILL SEE:

auto lcoot

Ienergy saver

auto I

ihi I

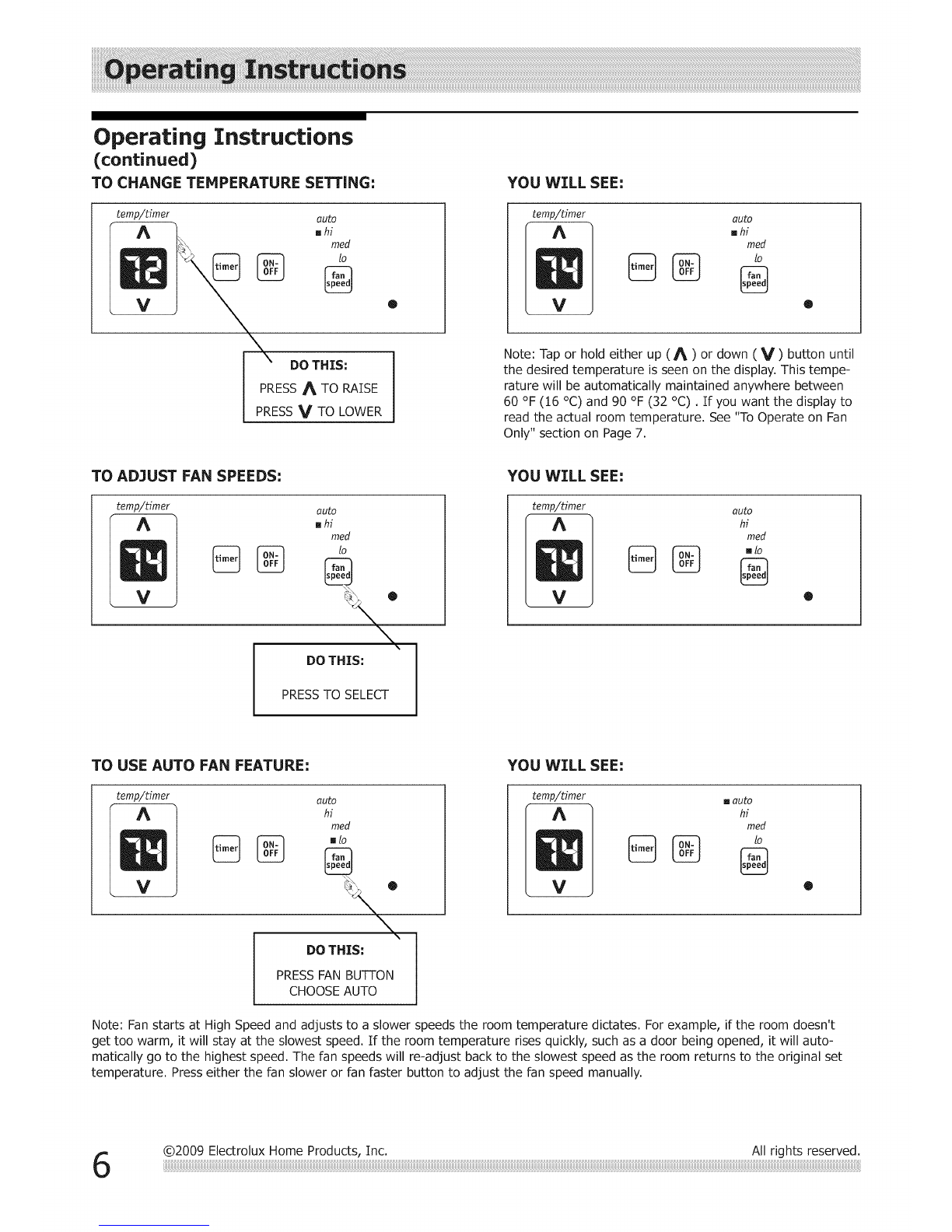

Operating Instructions

(continued)

TO CHANGE TEMPERATURE SETTING;

tamp/timer

auto

[] hi

_ mad

YOU WILL SEE:

temp/timer

auto

,,himad

Note: Tap or hold either up (a) or down ( V ) button until

the desired temperature is seen on the display. This tempe-

rature will be automatically maintained anywhere between

60 °F (16 °C) and 90 °F (32 °C). If you want the display to

read the actual room temperature. See "To Operate on Fan

Only" section on Page 7.

TO ADJUST FAN SPEEDS:

tamp/timer

auto

[]hi

mad

DOTHIS:

PRESSTO SELECT

YOU WILL SEE;

tamp/timer

auto

himed

[] 1o

TO USE AUTO FAN FEATURE; YOU WILL SEE;

temp/timer

auto

med

•lo

DO THIS:

PRESSFAN BUTTON

CHOOSE AUTO

tamp/timer

[] auto

himad

Note: Fan starts at High Speed and adjusts to a slower speeds the room temperature dictates. For example, if the room doesn't

get too warm, it will stay at the slowest speed. If the room temperature rises quickly, such as a door being opened, it will auto-

matically go to the highest speed. The fan speeds will re-adjust back to the slowest speed as the room returns to the original set

temperature. Press either the fan slower or fan faster button to adjust the fan speed manually.

Operating Instructions

(continued)

TO OPERATE ON FAN ONLY:

exhaust

cool[]

energysaver

fanonly

open

tamp/timer

I_ DO THIS;

PRESS

MODE BUTTON

CHOOSE

FAN ONLY

YOU WILL SEE:

exhaust

cool

energy saver

]=anonly []

open

temp/timer

Note: Use this function only when cooling is not desired,

such as for room air circulation or to exhaust stale air on

some models. (Remember to open the vent during this

function, but keep it closed during cooling for maximum

cooling efficiency.) You can choose any fan speed you

prefer. (Except "Auto Fan").

During this function, the display will show the actual room

temperature, not the set temperature as in the cooling

mode.

TO USE THE ENERGY SAVER FEATURE;

exhaust

cool

energysaver

fan only[]

open

temp/timer

\\ BO THIS:

PRESS

MODE BUTTON

CHOOSE

ENERGYSAVER

YOU WILL SEE:

exhaust

cool

energysaver[]

fan only

open

temp/timer

Note: In this mode, the fan will continue to run for 1 minu-

te after the compressor shuts off. The fan then cycles on

for 20 seconds at 10 minute intervals until the room tempe-

rature is above the set temperature, at which time the com-

pressor turns back on.

SLEEP FEATURE; YOU WILL SEE:

exhaust

cool

energy sever []

fan only

open

temp/timer

PRESS

SLEEP BUTTON

Vexhaust

cool

energysaver[] []

fan only

open

temp/timer

Note: In this mode the selected temperature will increase

by 2 °F 30 minutes after the mode is selected. The tempe-

rature will then increase by another 2 °F after an additional

30 minutes. This new temperature will be maintained for 7

hours before it returns to the originally selected tempera-

ture. This ends the "Sleep" mode and the unit will continue

to operate as originally programmed. The "Sleep" mode

program can be cancelled at any time during operation by

again pressing the "Sleep" button.

Operating Instructions

(continued)

TIMER; DELAY STOP /START FEATURE

tamp/timer

auto

[]hi

mad

% % o

\ FIRST

DO THIS:

\1 PRESS

_ TIHER BUTTON

\ THEN

"_ DO THIS;

PRESS

UP/DOWN

SET BUTTONS

CHECK FILTER FEATUREr YOU WILL SEE:

tamp/timer

exhaust

cool[]

energy saver []

open

Note: This feature is a reminder to clean the Air Filter (See

Care and Cleaning) for more efficient operation. The LED

(light) will illuminate after 250 hours of operation. To reset

after cleaning the filter, press the "Filter Reset" button and

the light will go off.

FAULT CODES:

exhaust

cool []

energy saver

fan only

open

tamp/timer

YOU WILL SEE HOW MUCH TIME IS CHOSEN:

tamp/timer

auto

•hi

[] mad

Note: For Delay Stop, the unit must be in the On position.

Note: For Delay Start, the unit must be in the Off position.

First, Press TIMER button, then adjust timer setting, tap or

hold the UP arrow (A) or the DOWN arrow ( V ) to

change delay timer at 0.5 hour increments, up to 10 hours,

then at 1 hour increments up to 24 hours. The control will

count down the time remaining until start (8, 7.5, 7, etc.).

The Delay Start Operation automatically selects cooling with

maximum Fan speed (if Cool, Energy Saver, or Fan Only was

the last mode selected). The temperature maintained will

be the same as previously set. To change the set tempera-

ture, press "COOL" then Up or Down arrows until the de-

sired temperature is indicated on the display. After 5 se-

conds, the control will automatically change the display back

to the hours remaining until the unit will start/stop. Pressing

the unit On/Off button at any time will cancel the Delay

Start/Stop function. The Delay Start/Stop Feature will work

until the unit either starts or stops. Once that happens the

above steps have to be repeated again.

exhaust

cool[]

energy saver

fan only

open

tamp/timer

DO THIS;

PRESS FILTER

RESETBUTTON

exhaust

cool []

energy saver

fan only

open

tamp/timer

If the display reads "AS", a sensor has failed. Contact your

Authorized Frigidaire Service Center.

If the display reads "ES", a sensor has failed. Contact your

Authorized Frigidaire Service Center.

Operating Instructions

(continued)

TO CHANGE TEMPERATURE DISPLAY:

temp/timer

DO THIS:

. PRESSAND HOLD THE

UP/DOWN BUTTONS

TOGETHER FOR 3 SECONDS

YOU WILL SEE:

temp/timer

Note: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.

TO TURN UNIT OFF:

temp/timer

auto

[]hi

med

% @

•

DO THIS:

PRESS

ON/OFF BUTTON

YOU WILL SEE;

temp/timer

auto

himed

ADDITIONAL THINGS YOU SHOULD KNOW

Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.

• The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.

This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue

to run during this time.

•There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY. This is to cover the possibility of having

to roll through to select another mode.

The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.

• After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.

EXHAUST CONTROL

cod []

energy saver

fan only

closed exhaust open

temp/timer

auto

[]himed

This Exhaust Control allows the air conditioner to either recirculate inside air (CLOSED) or exhaust air to the outside (OPEN).

The CLOSED position is used when maximum cooling is desired. It may also be used for air recirculation without cooling when the

air conditioner is set in any FAN position.

The OPEN position removes stale air from the room and exhausts it to the outside. Fresh air is drawn in through normal passages

in the home.

Operating Instructions

(continued)

4-WAY LOUVERS

j,,, ,,,

The 4=Way air directional louvers allow you to direct

the air flow Up or Down and Left or Right throughout

the room as needed,

Care and Cleaning Clean your air conditioner occasionally to keep it looking new. Be sure to unplug

the unit before cleaning to prevent shock or fire hazards.

Air Filter Cleaning

The air filter should be checked at least once a month to see if cleaning is

necessary. Trapped particles in the filter can build up and cause an accumulation

of frost on the cooling coils.

• Grasp the filter by the center and pull up and out.

•Wash the filter using liquid dishwashing detergent and warm water. Rinse filter

thoroughly. Gently shake excess water from the filter. Be sure filter is

thoroughly dry before replacing

•Or instead of washing, you may vacuum the filter clean.

Cabinet Cleaning

,Be sure to unplug the air conditioner to prevent shock or fire hazard. The

cabinet and front may be dusted with an oil-free cloth or washed with a cloth

dampened in a solution of warm water and mild liquid dishwashing detergent.

Rinse thoroughly and wipe dry.

• Never use harsh cleaners, wax or polish on the cabinet front.

• Be sure to wring excess water from the cloth before wiping around the controls.

Excess water in or around the controls may cause damage to the air conditioner.

•Plug in air conditioner.

Winter Storage

If you plan to store the air conditioner during the winter, remove it carefully from

the window according to the installation instructions. Cover it with plastic or return

it to the original carton.

NOTE:To prevent rust or electrical connections from being damaged, store air

conditioner in an upright position and a dry place.

Energy Saving Ideas • Do not block air flow inside with blinds, curtains or furniture; or outside with

shrubs, enclosures, or other buildings,

•The capacity of the room air conditioner must fit the room size for efficient and

satisfactory operation.

•Install the room air conditioner on the shady side of your home. A window that faces

north is best because it is shaded most of the day.

•Close the fireplace damper, floor and wall registers so cool air does not escape up

the chimney and into the duct work.

•Keep blinds and drapes in other windows closed during the sunniest part of the day.

•Clean the air filter as recommended in the section "Care and Cleaning".

•Proper insulation and weather stripping in your home will help keep warm air out

and cool air in.

•External house shading with trees, plants or awnings will help reduce the air

conditioner's work load.

•Operate heat producing appliances such as ranges, washers, dryers and dishwashers

during the coolest part of the day.

This manual suits for next models

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FRA08PZU113 User manual

Frigidaire

Frigidaire FAS297Q2A2 Quick start guide

Frigidaire

Frigidaire FRA084KT711 Owner's manual

Frigidaire

Frigidaire FAS225J2A4 User manual

Frigidaire

Frigidaire FHWH112WA1 User manual

Frigidaire

Frigidaire FAP094P1Z1 User manual

Frigidaire

Frigidaire Home Comfort FRA106HT1 Installation instructions

Frigidaire

Frigidaire Gallery FGRC1244T100 Owner's manual

Frigidaire

Frigidaire Home ComfortFRA086HT1 Installation instructions

Frigidaire

Frigidaire FAC053J7A4 User manual

Frigidaire

Frigidaire FAS225J2A2 User manual

Frigidaire

Frigidaire FFRS08C3Q10 Owner's manual

Frigidaire

Frigidaire FAM18HS2AB User manual

Frigidaire

Frigidaire FAC102P1AA User manual

Frigidaire

Frigidaire FAK085R7V - Slider/Casemen Room Air... User manual

Frigidaire

Frigidaire CRA050XT74 User manual

Frigidaire

Frigidaire FAC064J7A2 User manual

Frigidaire

Frigidaire LRA11PZW114 Owner's manual

Frigidaire

Frigidaire FAX050S7AA User manual

Frigidaire

Frigidaire Home ComfortFRA08EHT1 User manual

Frigidaire

Frigidaire FAK124Q1 User manual

Frigidaire

Frigidaire FRA182MT213 Owner's manual

Frigidaire

Frigidaire Home Comfort FRA093PT1 Quick start guide

Frigidaire

Frigidaire CRA065AT7 Owner's manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
