Frigidaire FAH086M1T1 User manual

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAH086M1T1 FAH086M1T Frigidaire 115 8000

MARKET

Domestic

Publication No.

5995383675

030107

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAH086M1T1

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309369917

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

01/03 2

Publication No. FAH086M1T1

5995383675

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FAH086M1T1 Publication No.

5995383675

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309627504 Cabinet,wrapper

1* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

2 309636101 Screen,safety ,wire mesh ,cabinet rear

2* 5304408740 Panel,plastic mesh ,cabinet rear

6 309629304 Louver Assy,grey ,Incl-7,8,9

7 309324004 Link,vertical louver ,with handle

8 309628004 Louver,horizontal

* 3202951 Seal,bottom

9 309628104 Louver,vertical

12 309628204 Filter,air ,molded plastic ,grey

17 309629405 Front Assy,18.5 bld cool

20 309307013 Knob,control

29 3015312 Screw,8-18AB x 0.500

43 309631805 Frame,cabinet front ,w/control label

* 5304402119 Seal-tube

* 309369917 Energy Guide,FAH086M1T1

01/03 4

Publication No. FAH086M1T1

5995383675

CONTROLS

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FAH086M1T1 Publication No.

5995383675

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309628501 Control Box

8 # 5304408739 Switch,selector ,7 posn,3 speed

9 # 5304408746 Control,temperature ,12 amp

12 309329801 Clip,sensor retainer ,3/8 inch

13 # 5304426336 Capacitor,250 V ,35+10 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 5303303077 Strap,capacitor mtg.

17 # 309343108 Cord-electric power,type A ,16 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

35 3200761 Spacer,control bulb ,rubber

01/03 6

Publication No. FAH086M1T1

5995383675

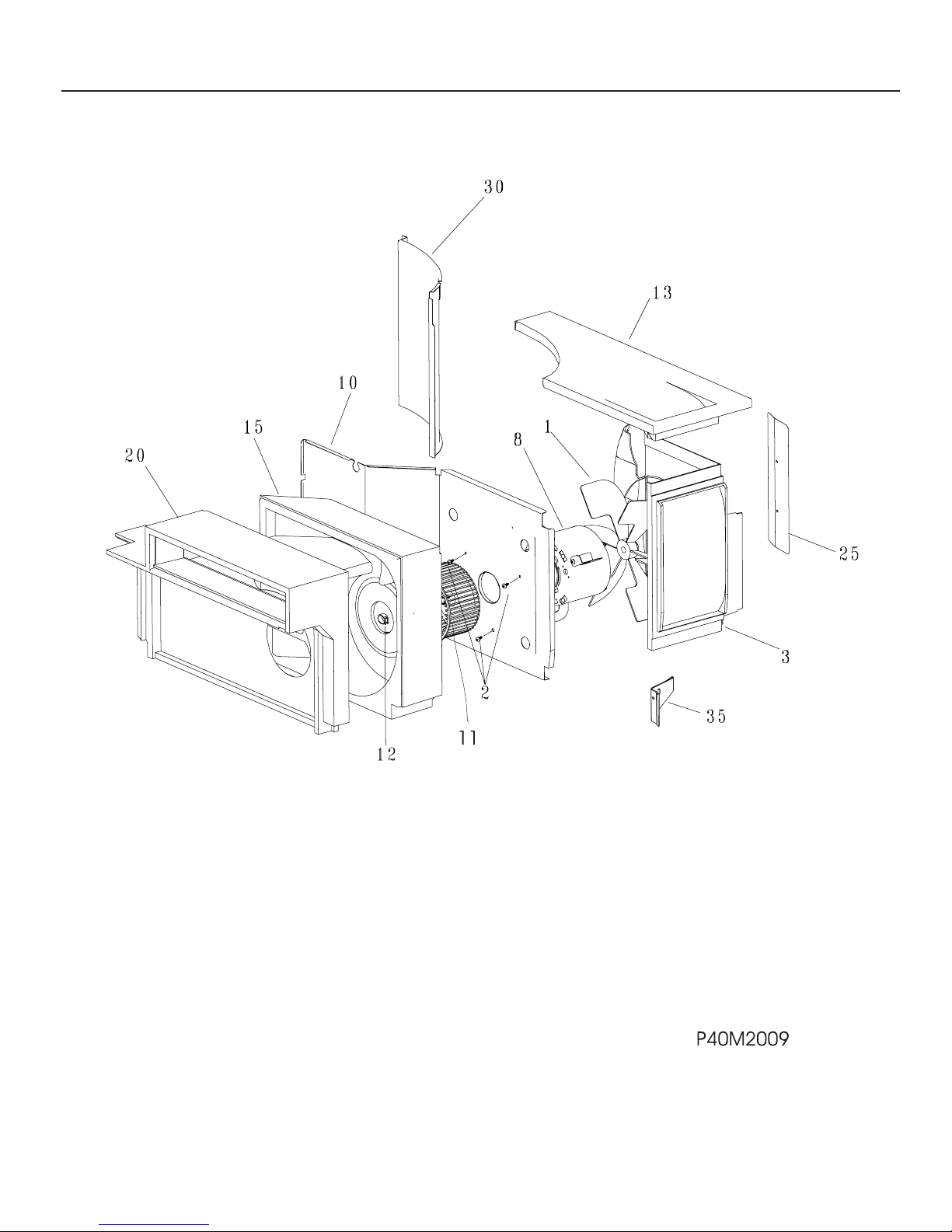

AIR HANDLING PARTS

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FAH086M1T1 Publication No.

5995383675

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309629102 Fan Blade

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309628901 Shroud,fan

* 3015312 Screw,8-18AB x 0.500

8 # 309647503 Motor,fan ,3 speed

10 309627401 Bulkhead

10* 309111201 Grommet,wire protector

* 5303015427 Screw,truss head ,8-18AB x 0.47 ,with nibs

11 # 309631701 Blower Wheel

12 5303012110 Clamp,blower wheel mt

13 309628802 Cover,fan ,top

15 309622801 Housing,blower scroll

20 309622901 Plate,scroll cover

25 309335201 Baffle,air

30 309629001 Partition,shroud,galv-steel

35 309335001 Baffle,splash/motor

01/03 8

Publication No. FAH086M1T1

5995383675

COMPRESSOR PARTS

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FAH086M1T1 Publication No.

5995383675

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616919 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5303317553 Overload Protector

9 3201670 Nut,terminal cover

11 # 309632303 Evaporator

12 309641901 Condenser

13 309628705 Tray,base

14 309632006 Base,compressor mt. ,with studs

16 # 3019025 Tube,capillary ,.10 x .05 x 40

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

01/03 10

Publication No. FAH086M1T1

5995383675

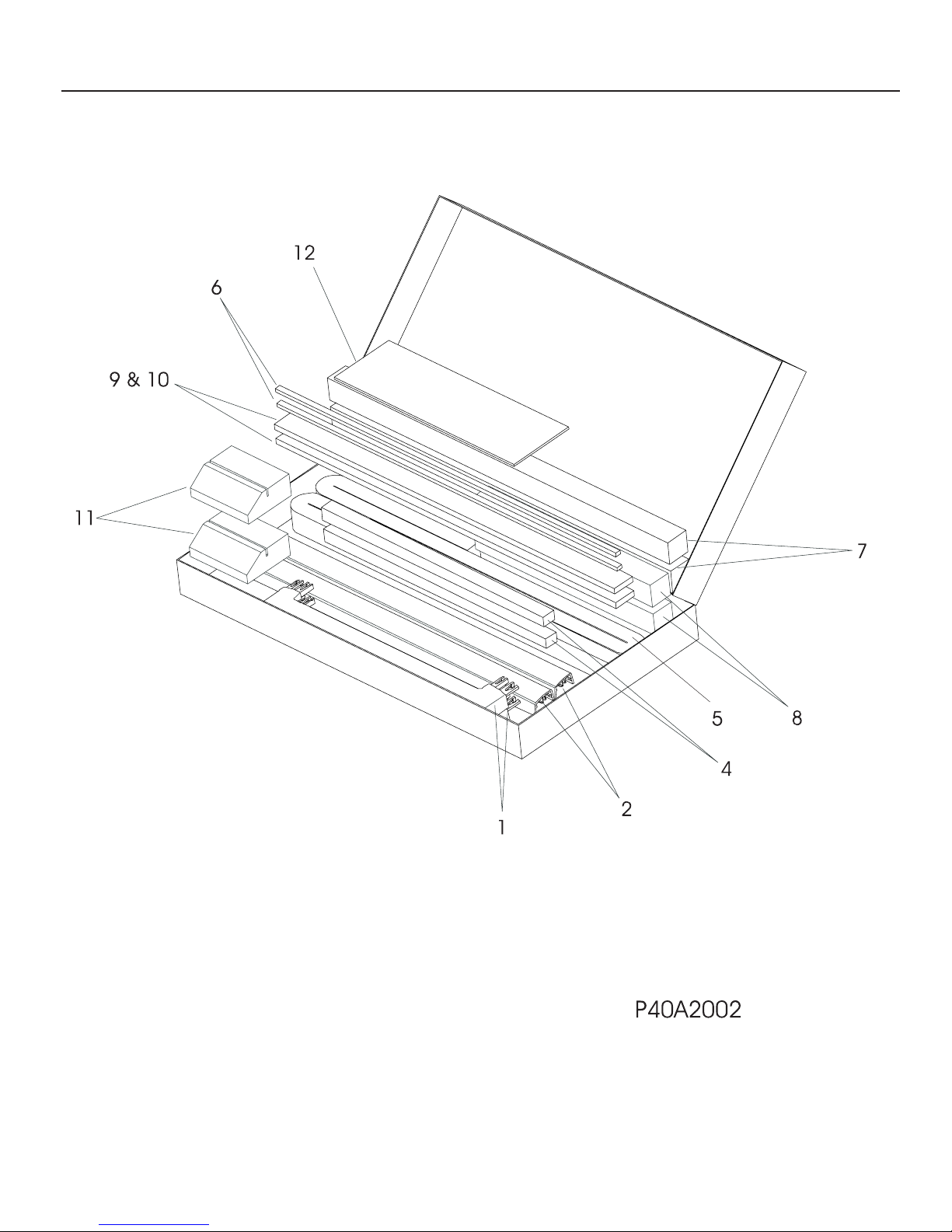

WINDOW MOUNTING PARTS
