Frigidaire FAH126M2T1 User manual

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAH126M2T1 FAH126M2T Intermediate 230 12000 BTU

FAH126M2T2 FAH126M2T Intermediate 230 12000 BTU

MARKET

Frigidaire

Publication No.

5995386017

030218

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAH126M2T

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309369959

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

02/03 2

Publication No. FAH126M2T1,2

5995386017

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 02/03

* = Non-Illustrated Parts

FAH126M2T1,2 Publication No.

5995386017

CABINET FRONT AND WRAPPER

A = FAH126M2T (FAH126M2T1)

B = FAH126M2T (FAH126M2T2)

POS. NO PART NO DESCRIPTION

1 309627504 A B Cabinet,wrapper

1* 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

2 309636101 A B Screen,safety ,wire mesh ,cabinet rear

2* 5304408740 A B Panel,plastic mesh ,cabinet rear

6 309629304 A B Louver Assy,grey ,includes 7,8,9

* 3202951 A B Seal,bottom

7 309324004 A B Link,vertical louver ,with handle

8 309628004 A B Louver,horizontal

9 309628104 A B Louver,vertical

12 309628204 A B Filter,air ,molded plastic ,grey

17 309629405 A B Front Assy,18.5 bld cool

20 309307013 A B Knob,control

29 3015312 A B Screw,8-18AB x 0.500

43 309631805 A B Frame,cabinet front ,w/control label

* 309369959 A B Energy Guide,FAH126M2T

02/03 4

Publication No. FAH126M2T1,2

5995386017

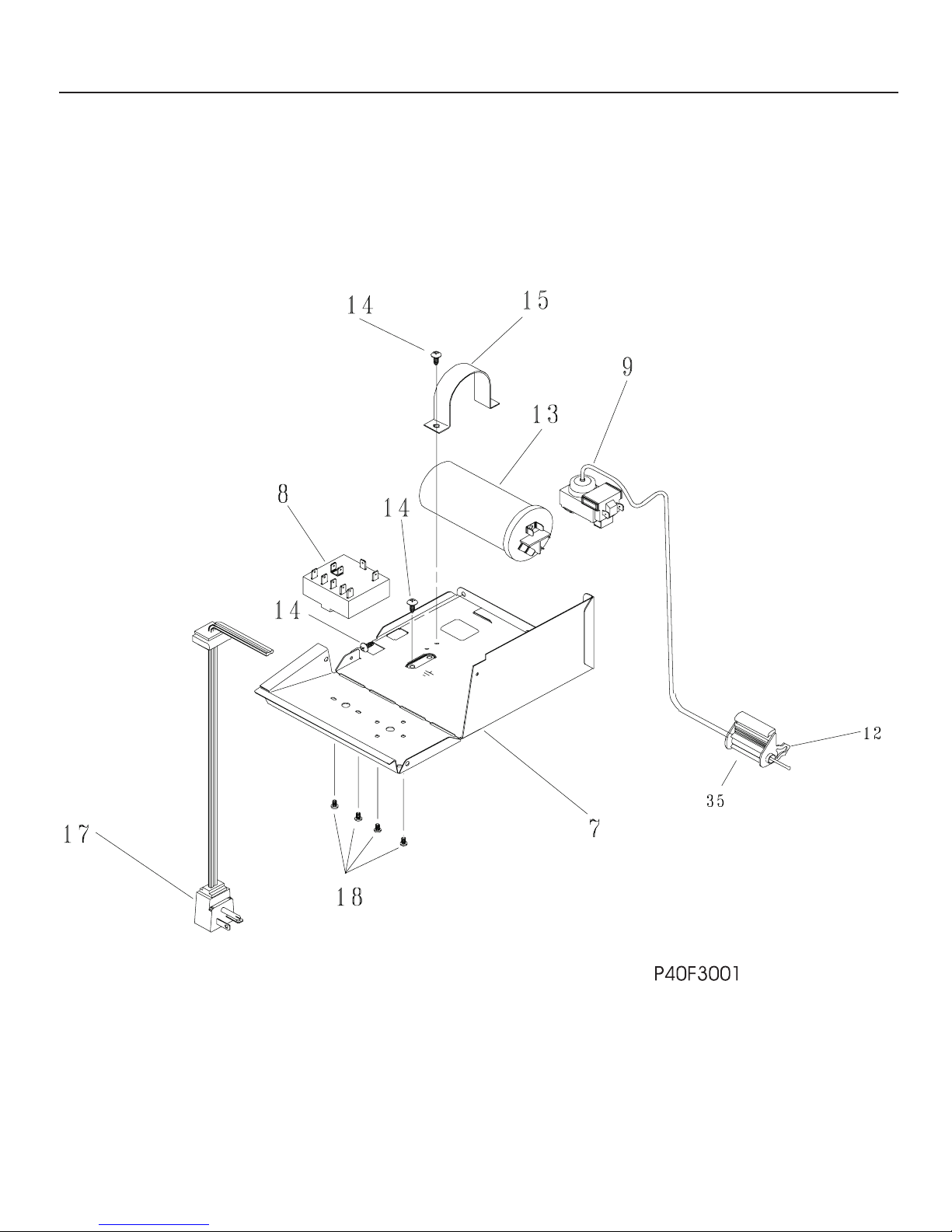

CONTROLS

# = Fast-moving Parts 5 02/03

* = Non-Illustrated Parts

FAH126M2T1,2 Publication No.

5995386017

CONTROLS

A = FAH126M2T (FAH126M2T1)

B = FAH126M2T (FAH126M2T2)

POS. NO PART NO DESCRIPTION

7 # 309628501 A B Control Box

8 # 5304408739 A B Switch,selector ,7 posn,3 speed

9 # 5304408746 A B Control,temperature ,12 amp

12 309329801 A B Clip,sensor retainer ,3/8 inch

13 # 5304430633 A B Capacitor,370 V ,30+7.5 mfd

14 5303285199 A B Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 5303303077 A B Strap,capacitor mtg.

17 # 309343109 A B Cord-electric power,type C ,18 AWG ,230 V

18 5303007754 A B Screw,6-32 x 0.188

35 3200761 A B Spacer,control bulb ,rubber

02/03 6

Publication No. FAH126M2T1,2

5995386017

AIR HANDLING PARTS

# = Fast-moving Parts 7 02/03

* = Non-Illustrated Parts

FAH126M2T1,2 Publication No.

5995386017

AIR HANDLING PARTS

A = FAH126M2T (FAH126M2T1)

B = FAH126M2T (FAH126M2T2)

POS. NO PART NO DESCRIPTION

1 # 309629102 A B Fan Blade

2 3202975 A B Screw,10-16AB x 0.72 ,square drive

3 309628901 A B Shroud,fan

* 3015312 A B Screw,8-18AB x 0.500

8 # 309647502 A B Motor,fan

10 309627401 A B Bulkhead

10* 309111201 A B Grommet,wire protector

* 5303015427 A B Screw,truss head ,8-18AB x 0.47 ,with nibs

11 # 309631701 A B Blower Wheel

12 5303012110 A B Clamp,blower wheel mt

13 309628802 A B Cover,fan ,top

15 309622801 A B Housing,blower scroll

20 309622901 A B Plate,scroll cover

25 309335201 A B Baffle,air

30 309629001 A B Partition,shroud,galv-steel

35 309335001 A B Baffle,splash/motor

02/03 8

Publication No. FAH126M2T1,2

5995386017

COMPRESSOR PARTS

# = Fast-moving Parts 9 02/03

* = Non-Illustrated Parts

FAH126M2T1,2 Publication No.

5995386017

COMPRESSOR PARTS

A = FAH126M2T (FAH126M2T1)

B = FAH126M2T (FAH126M2T2)

POS. NO PART NO DESCRIPTION

1 # 309603121 A B Compressor

2 5303283877 A B Grommet,compressor mtg ,(3)

3 5308006948 A B Nut,compressor mtg ,(3)

6 5303291330 A B Gasket,terminal cover

7 5304416126 A B Cover,elec terminal ,compressor

8 # 5304430634 A B Overload Protector

9 5303294292 A B Nut,terminal cover

11 # 309632403 A B Evaporator

12 # 309632507 A B Condenser

13 309628705 A B Tray,evap base

14 309632006 A B Base,compressor mt. ,with studs

16 # 5308017120 A B Capillary Tube,45 inch long ,cut to length

17 # 5300265301 A B Drier-filter,service kit

19 309112501 A B Washer,metallic

21 5303293809 A B Washer,terminal cover

02/03 10

Publication No. FAH126M2T1,2

5995386017

WINDOW MOUNTING PARTS
