Frigidaire FAK123J1V3 User manual

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAK123J1V3 FAK123J1V GALLERY 115 12000 BTU’S

FAK123J1V4 FAK123J1V GALLERY 115 12000 BTU’S

Publication No.

5995365821

020213

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAK123J1V3/4

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # A232012

OWNER’S GUIDE - # 309000816

ELECTROLUX HOME PRODUCTS, INC.

P.O.BOX 212378, AUGUSTA, GA 30917

02/02 2

Publication No. FAK123J1V3/4

5995365821

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 02/02

* = Non-Illustrated Parts

FAK123J1V3/4 Publication No.

5995365821

CABINET FRONT AND WRAPPER

A = FAK123J1V (FAK123J1V3)

B = FAK123J1V (FAK123J1V4)

POS. NO PART NO DESCRIPTION

1 309622004 A B Cabinet,sleeve ,complete assy

2 5303317604 A B Grille,rear

7 5304414087 A B Link-vertical louver

8 309622504 A B Louver Assy,Incl-7,8,9,10

8 309622204 A B Louver,horizontal

9 309622103 A B Louver,vertical

10 309622104 A B Louver,vertical ,w/handle

12 309622304 A B Filter,air ,front

17 309622404 A B Front assy,complete ,7,8,9,10,12,43

19 309622609 A B Dial Plate

20 309307013 A B Knob,control

39 3015312 A B Screw,8-18AB x 0.500

43 309621804 A B Frame,cabinet front

02/02 4

Publication No. FAK123J1V3/4

5995365821

CONTROLS

# = Fast-moving Parts 5 02/02

* = Non-Illustrated Parts

FAK123J1V3/4 Publication No.

5995365821

CONTROLS

A = FAK123J1V (FAK123J1V3)

B = FAK123J1V (FAK123J1V4)

POS. NO PART NO DESCRIPTION

7 309606501 A B Panel-mounting,controls

8 # 5303323284 A B Switch,selector ,7 posn,3 speed

9 # 5303321674 A B Control-temperature

12 309321201 A B Clip-control bulb

13 # 5304403167 A - Capacitor,370 V ,35-15

13 # 5304426452 - B Capacitor,250 V ,50+15 mfd

14 5303285199 A B Screw,Ph truss hd ,8-18 x 0.38 ,ground

15 5303303077 A B Strap,capacitor mtg.

17 309343106 A B Cord-electric power,type A ,14 AWG

* 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

18 5303007754 A B Screw,6-32 x 0.188

28 309625301 A B Door Opener,vent mechanism

29 309606402 A B Control Box

02/02 6

Publication No. FAK123J1V3/4

5995365821

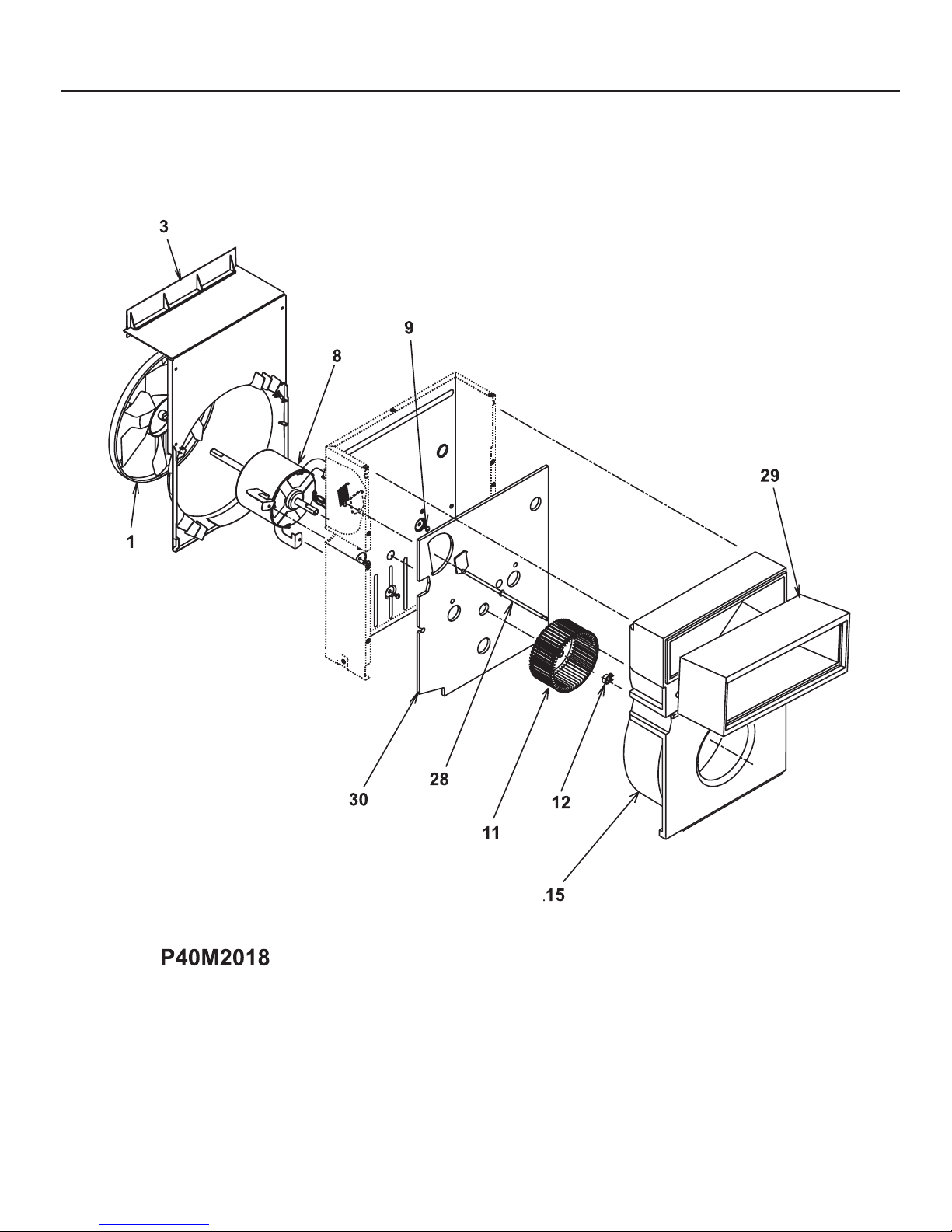

AIR HANDLING PARTS

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

FAK123J1V3/4 Publication No.

5995365821

AIR HANDLING PARTS

A = FAK123J1V (FAK123J1V3)

B = FAK123J1V (FAK123J1V4)

POS. NO PART NO DESCRIPTION

1 # 309626001 A B Fan Blade

3 309642301 A B Housing,fan shroud

8 # 309646001 A B Motor,fan

9 3202975 A B Screw,10-16AB x 0.72 ,square drive

11 # 309625201 A B Blower Wheel,plastic

12 5303012110 A B Clamp,blower wheel

15 309624801 A B Housing,blower scroll

28 309625301 A B Door Opener,vent mechanism

29 309624901 A B Adapter,scroll/housing ,front

30 309624601 A B Plate,scroll/housing ,back

02/02 8

Publication No. FAK123J1V3/4

5995365821

COMPRESSOR PARTS

# = Fast-moving Parts 9 02/02

* = Non-Illustrated Parts

FAK123J1V3/4 Publication No.

5995365821

COMPRESSOR PARTS

A = FAK123J1V (FAK123J1V3)

B = FAK123J1V (FAK123J1V4)

POS. NO PART NO DESCRIPTION

1 309616914 A - Compressor

1 # 309603111 - B Compressor

2 5303283877 A B Grommet,compressor mtg ,(3)

3 5308006948 A B Nut,compressor mtg ,(3)

6 3201668 A - Gasket,terminal cover

6 5303291330 - B Gasket,terminal cover

7 5304405245 A - Cover-terminal,compressor

7 5304416126 - B Cover-terminal,compressor

8 # 5304403611 A - Overload Protector

8 # 5304419795 - B Overload Protector,mra 12053-386

9 3201670 A - Nut,terminal cover

9 5303294292 - B Nut,terminal cover

10 # 5303317601 A B Start Assist Kit,compressor

11 # 309617007 A B Evaporator

12 # 309617205 A - Condenser

12 # 309617207 - B Condenser

13 309624101 A B Tray-evaporator

16 # 5308017120 A B Capillary Tube,cut to length

17 # 309325201 A - Drier-filter

17 # 5300265301 - B Drier-filter,service kit

19 5303002664 A B Washer,compressor mtg

19* 309112501 A B Washer,metallic

21 5303293809 - B Washer,terminal cover

23 309614106 A B Base,compressor

02/02 10

Publication No. FAK123J1V3/4

5995365821

MOUNTING PARTS
