Frigidaire FAC083K7A4 User manual

PRODUCT NO. BASE MODEL NO. MARKET BTU COOLING

FAC083K7A4 FAC083K7A USA 8000 BTU

Publication No.

5995364451

020124

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAC083K7A4

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS, INC.

P.O.BOX 212378, AUGUSTA, GA 30917

01/02 2

Publication No. FAC083K7A4

5995364451

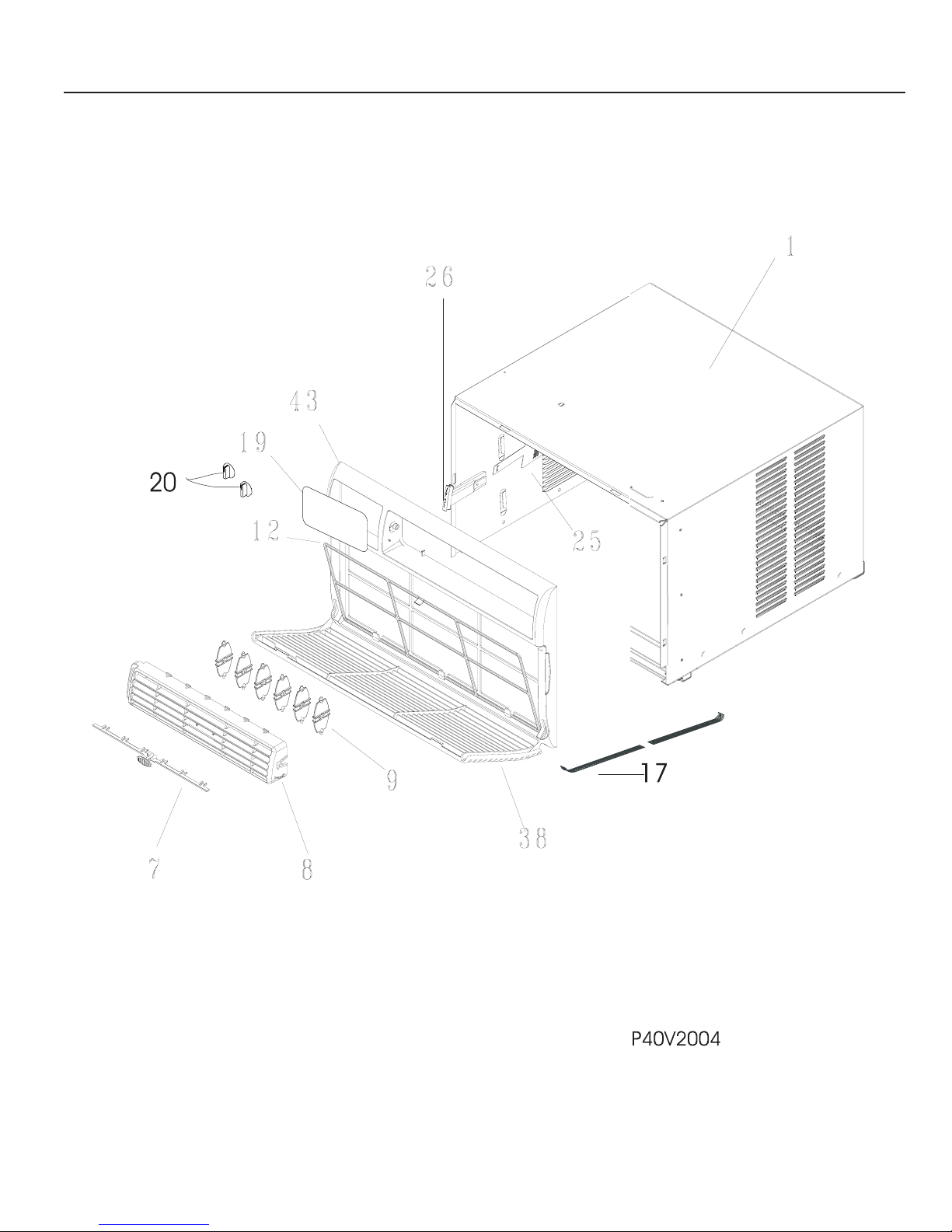

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 01/02

* = Non-Illustrated Parts

FAC083K7A4 Publication No.

5995364451

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,cabinet/base,w/nibs

8 309640202 Louver Assy,horizontal ,Incl-7,8,9

7 309638001 * Link,vertical louver ,with handle

8 309639301 * Louver,horizontal

9 309342001 * Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640104 Front-cabinet,4 way ,complete assy

19 309342903 Dial Plate

19* 5303001775 Spacer,dial plate

20 309306811 Knob-control,rotary

25 309328603 Door-vent,fresh air

26 309638201 Handle vent door

26* 309330201 Detent-vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

01/02 4

Publication No. FAC083K7A4

5995364451

CONTROLS

# = Fast-moving Parts 5 01/02

* = Non-Illustrated Parts

FAC083K7A4 Publication No.

5995364451

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Box-control

8 # 5303323284 Switch,selector ,7 posn,3 speed

9 # 5304402838 Control,temperature

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip,retainer ,temp sensor ,(2)

13 # 5304426450 Capacitor,250 V ,40+10 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

20 5304417582 Sleeve,temp sensor ,6 in.

01/02 6

Publication No. FAC083K7A4

5995364451

AIR HANDLING PARTS

# = Fast-moving Parts 7 01/02

* = Non-Illustrated Parts

FAC083K7A4 Publication No.

5995364451

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing-fan,shroud

4 5304421913 Seal,top

4 5303303759 Seal,bottom

6 08007481 Nut,Keps ,motor mtg

8 # 309644302 Motor-fan

10 309643702 Bulkhead

11 # 309631701 Blower Wheel

12 309112101 Clamp-blower

15 309642901 Housing-blower,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate-blower housing,scroll plate

01/02 8

Publication No. FAC083K7A4

5995364451

COMPRESSOR PARTS

# = Fast-moving Parts 9 01/02

* = Non-Illustrated Parts

FAC083K7A4 Publication No.

5995364451

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616918 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover-terminal,compressor

8 # 5304402840 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619313 Evaporator assy

12 # 5303307226 Condenser

13 # 309642801 Tray-evaporator

14 309644003 Base,compressor mtg ,with studs

16 # 5304409280 Capillary Tube,37 inch long

17 5304417516 Tube-process

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

01/02 10

Publication No. FAC083K7A4

5995364451

WINDOW MOUNTING PARTS
