Frico Thermozone PA3500 User manual

Thermozone PA3500/4200

.... 27

.... 46

.... 34

.... 26

NO .... 30

.... 42

.... 31

.... 38

DE .... 54

.... 50

.... 58

ES .... 62

Original instructions

PA3500/4200

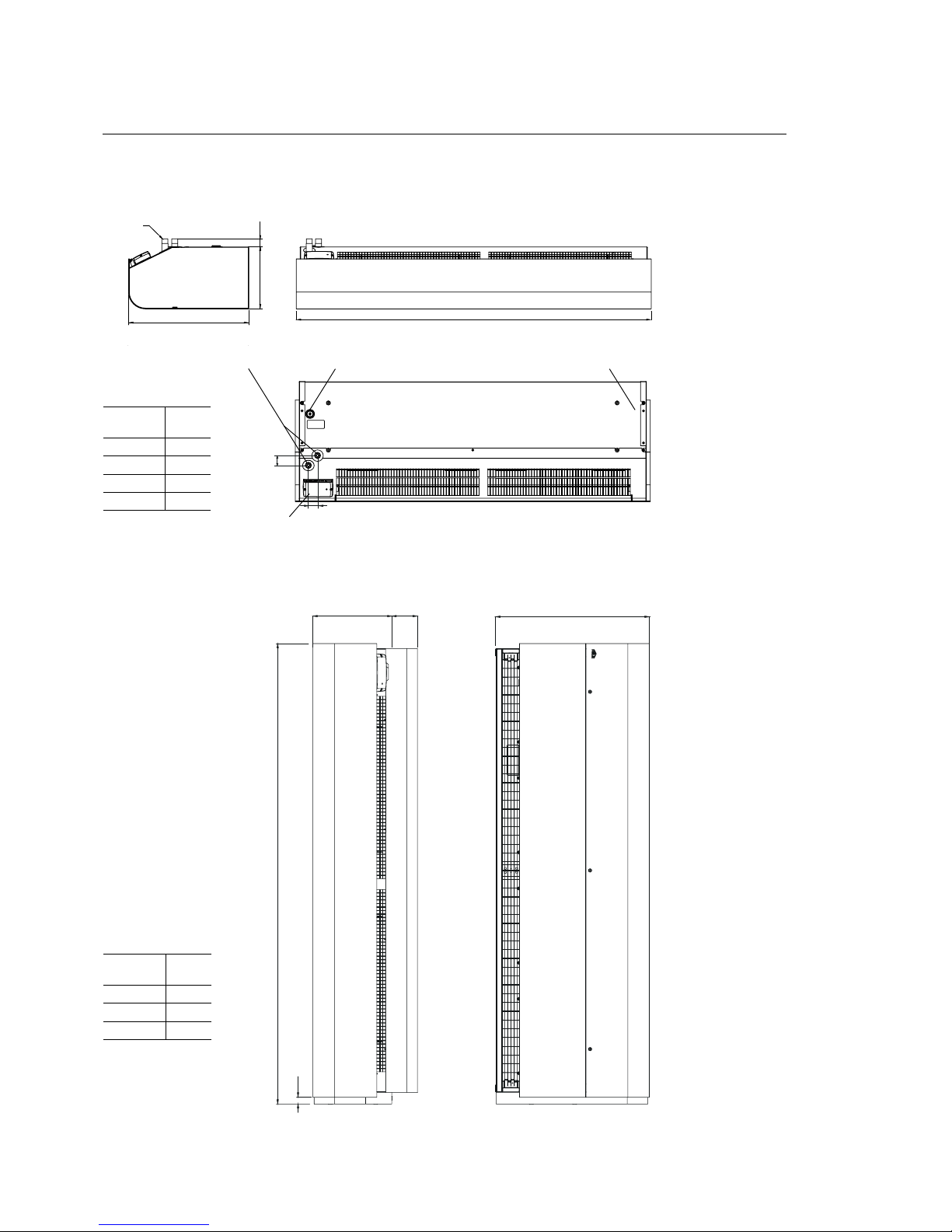

Dimensions

Water connection Electrical connection

DN20 (3/4"),

outside thread

SIRe

PA 2 m; 2,5 m

Electrical connection

The unit can be

reversed and placed

on either side of the

door. Connections

and PC Board SIRe

are positioned near

ﬂoor level when the

air curtain is placed

to the left of the door

and at the top when it

is placed to the right

(seen from the inside).

All models

Vertical mounting

Horizontal mounting

with Vertical kit and Design kit for vertical mounting

with Vertical kit

and Design kit for

vertical mounting

525 L

270 36

525

87270

525 L

270 36

[mm]

PA3510 1039

PA3515 1549

PA3520 2039

PA3525 2549

[mm]

PA3515* 1549

PA3520* 2039

PA3525* 2549

PA3500

PA3500/4200

Dimensions

Water connection Electrical connection

DN20 (3/4"),

outside thread

PA 2 m; 2,5 m

Electrical connection

The unit can be

reversed and placed

on either side of the

door. Connections

and PC Board SIRe

are positioned near

ﬂoor level when the

air curtain is placed

to the left of the door

and at the top when it

is placed to the right

(seen from the inside).

All models

Vertical mounting

Horizontal mounting

with Vertical kit and Design kit for vertical mounting

611 L

295 36

611

295 87

[mm]

PA4510 1039

PA4515 1549

PA4520 2039

PA4525 2549

[mm]

PA4515* 1549

PA4520* 2039

PA4525* 2549

611 L

295 36

PA4200

with Vertical kit

and Design kit for

vertical mounting

SIRe

PA3500/4200

Open the unit

Fig. 1A: Open the unit by raising the front panel.The front

is blocked in open position with the front hatch hook

Fig. 2: Control card SIRe is integrated in the air curtain at delivery.

SIRe

Integrated control system

Fig. 1B: When the front has been removed it it important

to be sure it is ﬁrmly seated in the front locks again.

PA3500/4200

100

Fig. 3: Minimum distance.

Mounting

127

127875875

127770745745

Fig. 4: M8-holes for mounting.

[mm]

PA3510 750

PA4210 750

PA3515 1260

PA4215 1260

A B

PA3500 205 92

PA4200 235 102

PA3500/4200

Fig. 5: Mounting with wall brackets (PA34WB).

Horizontal mounting

Horizontal mounting - wall bracket PA34WB

20 mm

PA34WB15 2 pcs

PA34WB20 3 pcs

PA34WB30 4 pcs

120

ø12

PA3500/4200

Fig. 6: Mounting with threaded bars (PA34TR) and ceiling

brackets (PA34CB). Supplemented with vibration dampers

(PA34VD) for reduced vibration.

See separate manual for PA34TR.

Fig. 7: Mounting with wire suspension kit (PA34WS), used

together with ceiling brackets (PA34CB).

See separate manual for PA34WS.

Wire lock

Horizontal mounting

Fig. 8: Joining kit PA3JK to join horizonal units together.

See separate manual for PA34JK - joining kit for horizontal

units.

Joint bracket

Fig. 9: Outlet extension PA3XT / PA4XT with telecopic

funktion used for recessed mounting in false ceilings. See

separate manual for PA3XT / PA4XT.

PA3500/4200

Mounting - vertical

Fig. 10: Vertical kit PA3JK to adapt horizonal unit for

vertical installation. Used together with design kit for

vertical installation for a neater installation.

See separate manual for PA3JK - Vertical installation.

Floor edging

Design kit for

vertical mounting

Accessories

Type Description Number included Length

PA34WB15 Wall brackets for PA3510/3515/4210/4215 2 pcs 400 mm Fig. 4

PA34WB20 Wall brackets for PA3520/4220 3 pcs 400 mm Fig. 4

PA34WB30 Wall brackets for PA3525/4225 4 pcs 400 mm Fig. 4

PA34CB15 Ceiling brackets for PA3510/3515/4210/4215 4 pcs Fig. 5/6

PA34CB20 Ceiling brackets for PA3520/4220 6 pcs Fig. 5/6

PA34CB30 Ceiling brackets for PA3525/4225 8 pcs Fig. 5/6

PA34WS15 Wire suspension kit for PA3510/3515/4210/4215 4 pcs 3 m Fig. 6

PA34WS20 Wire suspension kit for PA3520/4220 6 pcs 3 m Fig. 6

PA34WS30 Wire suspension kit for PA3525/4225 8 pcs 3 m Fig. 6

PA34TR15 Threaded bars for PA3510/3515/4210/4215 4 pcs 1 m Fig. 5

PA34TR20 Threaded bars for PA3520/4220 6 pcs 1 m Fig. 5

PA34TR30 Threaded bars for PA3525/4225 8 pcs 1 m Fig. 5

PA34VD15 Vibration dampers for PA3510/3515/4210/4215 4 pcs

PA34VD20 Vibration dampers for PA3520/4220 6 pcs

PA34VD30 Vibration dampers for PA3525/4225 8 pcs

PA3JK Joining kit for PA3500 Fig. 7

PA4JK Joining kit for PA4200 Fig. 7

PA34EF10 External intake ﬁlter for PA3510/4210

PA34EF15 External intake ﬁlter for PA3515/4215

PA34EF20 External intake ﬁlter for PA3520/4220

PA34EF25 External intake ﬁlter for PA3525/4225

FHDN20 Flexible hoses DN20, inside thread, 90° bend,

water temp. up to 90° C 1 pair 350 mm

For horizontally mounted units

Mounting and installation

See manual for FHDN20.

See manual for PA34EF.

PA3500/4200

Type Description HxDxW

[mm]

PA3DW10 Design kit for wall mounting PA3510 87x382x1006

PA3DW15 Design kit for wall mounting PA3515 87x382x1516

PA3DW20 Design kit for wall mounting PA3520 87x382x2006

PA3DW25 Design kit for wall mounting PA3525 87x382x2516

PA4DW10 Design kit for wall mounting PA4210 87x424x1006

PA4DW15 Design kit for wall mounting PA4215 87x424x1516

PA4DW20 Design kit for wall mounting PA4220 87x424x2006

PA4DW25 Design kit for wall mounting PA2425 87x424x2516

Design kit for wall mounting

Accessories

For horizontally mounted units

Start parts

Type Description Number

included

PA3DCN15S Start part for PA3510/3515 2 pcs

PA3DCN20S Start part for PA3520 3 pcs

PA3DCN30S Start part for PA3525 4 pcs

Intermediate parts

Type Description Number

included

PA3DC15S Intermediate part 300 mm for

PA3510/3515

2 pcs

PA3DC20S Intermediate part 300 mm for

PA3520

3 pcs

PA3DC30S Intermediate part 300 mm for

PA3525

4 pcs

PA3DC15M Intermediate part 500 mm for

PA3510/3515

2 pcs

PA3DC20M Intermediate part 500 mm for

PA3520

3 pcs

PA3DC30M Intermediate part 500 mm for

PA3525

4 pcs

PA3DC15L Intermediate part 700 mm for

PA3510/3515

2 pcs

PA3DC20L Intermediate part 700 mm for

PA3520

3 pcs

PA3DC30L Intermediate part 700 mm for

PA3525

4 pcs

Telescopic parts

Type Description Number

included

PA3DC15T Telescopic part for

PA3510/3515 2 pcs

PA3DC20T Telescopic part for PA3520 3 pcs

PA3DC30T Telescopic part for PA3525 4 pcs

See manual for PA3DW/PA4DW.

Design kit for ceiling mounting PA3500

Intermediate

part

Telescopic

part

See manual for PA3DC.

Start part

PA3500/4200
