Frico SWX CE Series User manual

SWX CE

Original instructions

... 7

SE ... 12

GB ... 17

NO ... 22

DE ... 27

... 32

FR ... 37IT ... 42NL ... 47PL ... 52RU

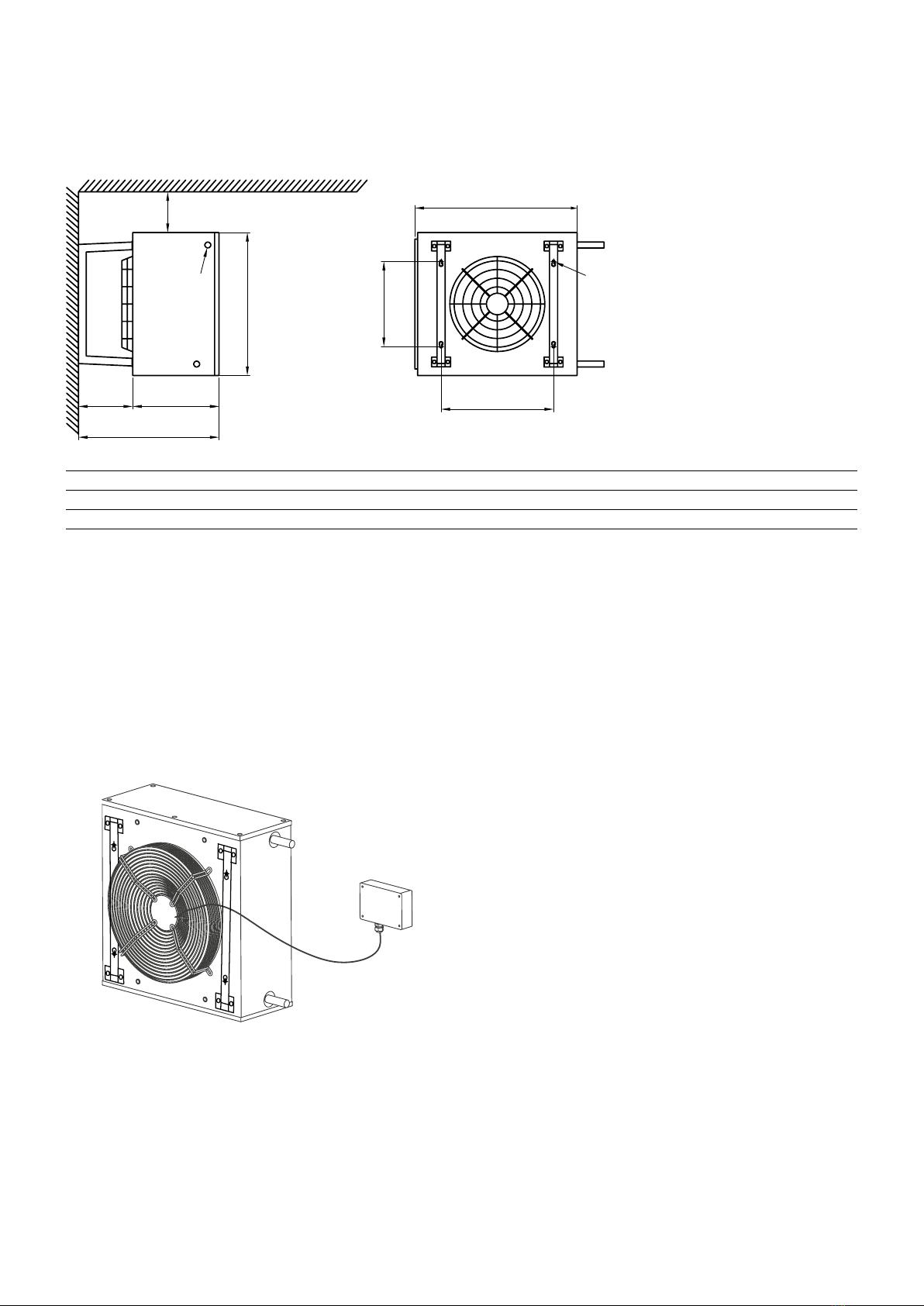

SWX CE

[mm] A B C D E F G H ØI

SWXCE12 550 530 380 630 R3/4” 250 330 410 10

SWXCE22 705 655 430 700 R1” 270 420 505 10

Electrical installation 230V~

0,85 m cable

Terminal box

min 150

ØI

SWX CE

Accessories

Type HxWxD

[mm]

SWXHFT1 SWXCE12 455x525x15

SWXHFT2 SWXCE22 595x650x15

SWXHFT

SD20

Controls SWX CE

*) Note: Only for mounting outside corrosive environment.

Type RSK-nr

(SE)

NRF-nr

(NO)

SD20* 672 70 37 85 021 57

TVV20* 672 70 35 85 021 47

TVV25* 672 70 36 85 021 48

Water regulation SWX CE

TVV20/25

SWXRT35

Type RSK-nr

(SE)

NRF-nr

(NO)

HxWxD

[mm]

SWXRT35 175x150x100

SWX CE

Wiring diagrams SWX CE

Internal

Control by thermostat only

SWX CE

SWX CE/CS -12, -22

SWXD -13, -23

BK BU WT RD

1110

230V~

SWXRT35

SWXCE/CS -12, -22

SD20*

TVV20/25*

L7654321N8

BK BU WT RD

1110

SWXCE/CS -12, -22

BK BU WT RD

1110

SD20*

TVV20/25*

*) Note!

Only for mounting outside

corrosive environment.

SWX CE

GB: Heat output

SE: Värmeeffekt

NO: Varmeeffekt

FR: Puissance

RU: Выходная мощность

DE: Heizleistung

PL: Moc grzewcza

ES: Potencia caloríﬁca

IT: Potenza

NL: Verwarmingscapaciteit

GB: Airﬂow

SE: Luftﬂöde

NO: Luftmengde

FR: Débit d’air

RU: Расход воздуха

DE: Volumenstrom

PL: Wydajność powietrza

ES: Caudal de aire

IT: Portata aria

NL: Luchtstroom

GB: Sound level

SE: Ljudnivå

NO: Lydnivå

FR: Niveau sonore

RU: Уровень шума

DE: Geräuschpegel

PL: Poziom głośności

ES: Nivel de ruido

IT: Livello sonoro

NL: Geluidsniveau

GB: Air throw

SE: Kastlängd

NO: Kastelengder

FR: Portée

RU: Длина струи

DE: Wurfweite

PL: Zasięg strumienia powietrza

ES: Distribución

IT: Lancio

NL: Luchtworp

GB: Water volume

SE: Vattenvolym

NO: Vannvolum

FR: Volume d’eau

RU: Объем воды

DE: Wasser-menge

PL: Objętość

ES: Volumen de agua

IT: Volume acqua

NL: Water volume

GB: Voltage

SE: Spänning

NO: Spenning

FR: Tension

RU: Напряжение

DE: Spannung

PL: Napięcie

ES: Tensión

IT: Tensione motore

NL: Voltage

GB: Amperage

SE: Ström

NO: Strøm

FR: Intensité

RU: Сила тока

DE: Stromstärke

PL: Natężenie

ES: Intensidad

IT: Corrente motore

NL: Stroom-sterkte

GB: Weight

SE: Vikt

NO: Vekt

FR: Poids

RU: Вес

DE: Gewicht

PL: Waga

ES: Peso

IT: Peso

NL: Gewicht

*1) Applicable at water temperature 60/40 °C, air temperature, in +15 °C.

*2) Conditions: Distance to the unit 5 metres.

*3) ∆t = temperature rise of passing air at maximum heat output.

*4) Water volume inside battery.

Intended for water temperatures up to +150 °C and 16 bar.

Max. surrounding temperature +70 °C.

Protection class: IP65.

CE compliant.

SWX CE

Ty p Heat

output*1

[kW]

Airﬂow

[m³/h]

Airﬂow

[m³/s]

Sound

level*2

[dB(A)]

∆t*1,3

[°C]

Air

throw

[m]

Water

volume*4

[l]

Voltage

[V]

Amperage

[A]

Weight

[kg]

SWXCE12 12 2100 0,7 59 17 7 1,7 230V~ 0,5 29

SWXCE22 24 4200 1,2 69 17 10 2,8 230V~ 1,35 45

SWX CE

Output charts water

Incoming / outgoing water temperature 90/70 °C

Air temp. in = +5 °C Air temp. in = +15 °C

Type Airﬂow

[m³/h]

Output

[kW]

Air temp.

out

[°C]

Water ﬂow

[l/s]

Pressure

drop

[kPa]

Output

[kW]

Air temp.

out

[°C]

Water

ﬂow

[l/s]

Pressure

drop

[kPa]

SWXCE12 2100 29,5 45,2 0,37 11,9 24,8 50,1 0,31 8,6

SWXCE22 4200 56,6 43,6 0,70 30,3 47,7 48,8 0,59 22

Incoming / outgoing water temperature 80/60 °C

Air temp. in = +5 °C Air temp. in = +15 °C

Type Airﬂow

[m³/h]

Output

[kW]

Air temp.

out

[°C]

Water ﬂow

[l/s]

Pressure

drop

[kPa]

Output

[kW]

Air temp.

out

[°C]

Water

ﬂow

[l/s]

Pressure

drop

[kPa]

SWXCE12 2100 25,2 39,4 0,31 9,0 20,6 44,2 0,26 6,1

SWXCE22 4200 48,5 38,1 0,60 23,1 39,8 43,2 0,49 15,9

Incoming / outgoing water temperature 60/40 °C

Air temp. in = +5 °C Air temp. in = +15 °C

Type Airﬂow

[m³/h]

Output

[kW]

Air temp.

out

[°C]

Water ﬂow

[l/s]

Pressure

drop

[kPa]

Output

[kW]

Air temp.

out

[°C]

Water

ﬂow

[l/s]

Pressure

drop

[kPa]

SWXCE12 2100 16,4 27,4 0,20 4,2 11,9 31,9 0,15 2,3

SWXCE22 4200 32,2 26,9 0,40 11,2 23,7 31,8 0,29 6,4

SWX CE

Installation and operating instructions

General Instructions

Read these instructions carefully before

installation and use. Keep this manual for

future reference.

The product may only be used as set out in

the assembly and operating instructions. The

guarantee is only valid if the product is used

in the manner intended and in accordance

with the instructions.

Application

SWX is a range of fan heaters suitable

for environments with strict demands on

materials and safety. Models are available for

use in dusty or corrosive environments. Fan

heater SWX has a robust design, adapted to

the requirements of harsh environments.

Supplied with air director with individually

adjustable louvres that direct the air ﬂow on

one plane.

SWX CE has an inspection hatch with quick

release.

Protection class: IP65.

SWX CE

The fan heater is available in two sizes,

SWXCE12 and SWXCE22. They have been

adapted speciﬁcally for use in corrosive

environments, such as offshore or chemical

industry.

Fitting the wall brackets

1. Remove the eight screws indicated by the

arrows in picture A.

2. Install the brackets with the holes toward

the fan motor, as shown in picture B.

• Meets the requirements for corrosion class

C5-M.

• Uses hot water as the energy medium.

• Casing, air deﬂector grille and brackets

made of acid-proof stainless steel,

EN 1.4404.

• Water coil with copper tube and aluminium

ﬁns coated with ElectroFin E-coat. This

means that the entire coil is dip-coated with

ﬂexible epoxy polymer with 100% coverage.

Thermal loss less than 1%.

• Protection class IP65 – protected against

dust and water jets.

• Inspection hatch with quick release.

• Fitted with draining plugs for removing

dirty water after spraying.

• Supplied without any automation and a

single fan speed.

• Wall brackets supplied for mounting of the

fan heater on the wall for a horizontal air

stream, or in the ceiling for a vertical air

stream.

Tip for installation

Leave the protective patch until the

installation is complete or use gloves that do

not imprint on the stainless steel plate.

C D

SWX CE

3. The fan heater is ﬁtted with a transport protection that is attached

to the top and bottom. Loosen the four screws that have the Torx 20

head as shown in Figure C and remove the transport guard. Replace the

screws, see ﬁgure D.

4. The fan heater may be mounted with the connection pipes facing

left or right, as seen from the front. In rooms with high ceilings, the

fan heater should be installed in a low position, but not so low that it

intrudes on the working space. Make sure that the wall is able to support

the weight of the fan heater.

6. Mount the fan heater as shown in photo F

when mounting it on the ceiling for a vertical

air stream. The minimum distance to the

wall should be 700 mm. If the fan heater

is mounted on a ceiling, near a corner, the

minimum distance to one of the walls should

be 700 mm and to the other 1000 mm. Make

sure that the ceiling is able to support the

weight of the fan heater.

5. The fan heaters are delivered with the air

deﬂector installed for water connection on the

left hand side. If the fan heater is mounted

with the pipes facing right, the air deﬂector

must be turned for the air to be deﬂected

downward. Remove the six screws (Torx 20)

attaching the air deﬂector as shown in picture

E, lift out the air deﬂector and turn it 180°.

Then reattach it.

SWX CE

Connection of heating coil

The installation must be carried out by an

authorised installer.

1.The fan heater must not be connected

to the hot mains water or steam. The

maximum permissible temperature and

pressure are indicated on the fan heater

type plate at the connection pipes.

2.Capacity, water temperature, ﬂow and

pressure drop can be found in the table for

the respective size.

3.The fan heater must be connected so that

the coil can drain water during shutdown

when there is a freezing hazard.

4.At the outlet of the fan heater or centrally

in the installation, a venting valve is

installed.

5.A connected pipe system to the fan heater

must be set so that they do not load the

inlet and outlet pipes of the fan heater.

6.The water inlet is connected to the heater’s

lowest placed pipe and the outlet at the

highest position according to the arrows

in Figure G. The connection is R3/4” on

SWXCE12 and R1” on the SWXCE22.

7.When tightening the couplings on the

connection nipples, these must be held

so that no torque is transferred to the fan

heater’s inlet and outlet pipes, see ﬁgure H.

Important! Make sure the entire system is

close to the water connection. Any potential

leakage can cause expensive water damage.

8.The connection of brass to the coil should

be protected against corrosion in aggressive

environments, for example with vulcanic

tape that can withstand the surrounding

environment, see ﬁgure I.

Electrical installation

The electrical installation should be carried

out by a qualiﬁed electrician in conformity

with prevailing regulations. The appliance

should be supplied via a triple-pole switch

with at least 3 mm breaking gap.

The fan motor is connected to a detached

terminal box, which is mounted on a wall

next to the unit (0,85 m cable).

The cable glands used must meet the

protection class requirements.

See wiring diagrams.

SWX CE

Maintenance

To ensure performance and reliabilty of

the unit, inspection and cleaning should be

carried out reguarly. Inspection should be

carried out at least twice a year. Clean the

unit when needed.

During inspection the power supply must

always be disconnected.

The fan heater is equipped with inspection

hatches with quick-release locks. Open the

quick-release locks according to picture J.

Cleaning

The interval between each cleaning depends

on the environment the fan heater is used

in. Dust on the fan protective grille and on

the water coil’s aluminum ﬁns impedes the

airﬂow and reduces its heat exchanging

performance. The water coil must therefore

be kept clean. Use mild detergents that do not

affect the surface treatment of the coil. The

fan cooling ﬂanges also need to be kept clean,

to obtain the lowest possible motor operating

temperature.

With the inspection hatch (picture K)

removed, the water coil's aluminium louvres

can be accessed for cleaning as below:

• Blown clean with compressed air or steam.

• Flushed with water. For grease coated

louvres add appropriate cleaning detergent.

• Cleaning spray for air conditioners. Follow

the instructions supplied with the spray

bottle.

Take care not to deform or damage the thin

aluminium louvres.

This manual suits for next models

Table of contents

Other Frico Heater manuals

Frico

Frico Panther T Series User manual

Frico

Frico AR3200 User manual

Frico

Frico AGI Series User manual

Frico

Frico AR3200C User manual

Frico

Frico Thermozone AD215E09 User manual

Frico

Frico Sierra User manual

Frico

Frico Thermozone PA3500 User manual

Frico

Frico Comfortinfra CIR20521 User manual

Frico

Frico Thermozone AC 500 User manual

Frico

Frico Arden 4200 User manual

Frico

Frico Elztrip EZ300 Series Service manual

Frico

Frico Thermocassette HP Series User manual

Frico

Frico Thermozone AGI User manual

Frico

Frico PA2500C Series User manual

Frico

Frico INFRAGLAS IHG12 User manual

Frico

Frico PA3500 Series User manual

$Frico Infracalm INC05E User manual$

Frico

Frico Infracalm INC05E User manual

Frico

Frico Elztrip EZ300 Series Service manual

Frico

Frico Scand User manual

Frico

Frico IHS20B24 User manual

Frico

Frico Elztrip EZ200 Service manual

Frico

Frico comfortinfra CIR11021C User manual

Frico

Frico Infratower IHA30BP User manual

Frico

Frico Thermozone AR 200 E Series User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
