Frico AREC4025E Series User manual

Original instructions

AREC4000

.... 26 .... 32

FR ES

.... 22

Frico AB certies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein

are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures

performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply

with the requirements of the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal

applies to airow rate, average outlet velocity, outlet velocity uniformity, velocity projection and

power rating at free delivery only.

Type Output

[kW]

Airow*1

[m3/h]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Weight

[kg]

AREC4010A-NA 0 2600 76 504 208V1~ 3.1 45

AREC4015A-NA 0 3650 76 670 208V1~ 3.9 63

AREC4020A-NA 0 5200 78 1008 208V1~ 6.2 82

AREC4025A-NA 0 6200 80 1174 208V1~ 7.0 106

Type Output

steps

[kW]

Airow*1

[m3/h]

Sound

power*2

[dB(A)]

FLA (full load

amperage).*3

[A]

Motor

power

[W]

Amperage

motor

[A]

Voltage [V]

Amperage [A]

(heat)

Weight

[kg]

AREC4010E10-208VNA 4/10 2600 76 31 504 3.1 208V3~/27 53.0

AREC4015E15-208VNA 5/15 3650 76 44 670 3.9 208V3~/40 74.0

AREC4020E20-208VNA 7/20 5200 78 60 1008 6.2 208V3~/54 96.0

AREC4010E12-480VNA 4/12 2600 76 19 504 3.1 480V3~/15 56.5

AREC4015E18-480VNA 6/18 3650 76 26 670 3.9 480V3~/22 77.5

AREC4020E24-480VNA 8/24 5200 78 35 1008 6.2 480V3~/29 101.5

AREC4025E30-480VNA 9.9/30 6200 80 43 1174 7.0 480V3~/36 130.0

AREC4010E12-600VNA 4/12 2600 76 15 504 3.1 600V3~/12 56.5

AREC4015E18-600VNA 6/18 3650 76 22 670 3.9 600V3~/18 77.5

AREC4020E24-600VNA 8/24 5200 78 30 1008 6.2 600V3~/24 101.5

AREC4025E30-600VNA 9.9/30 6200 80 36 1174 7.0 600V3~/29 130.0

Type Output*4

[kW]

Airow*1

[m3/h]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Water

volume

[l]

Weight

[kg]

AREC4010W-NA 15 2325 76 503 208V1~ 3.0 1.87 52

AREC4015W-NA 23 3350 76 670 208V1~ 4.0 2.96 71

AREC4020W-NA 32 4650 78 1006 208V1~ 6.0 4.14 94

AREC4025W-NA 41 5700 80 1173 208V1~ 7.0 5.10 121

3 Electrical heat - AREC4000E (IP20)

2 Water heat - AREC4000W (IP20)

1 Ambient, no heat - AREC4000A (IP20)

*1) Highest airow of totally 5 fan steps.

*2) Values shown are for total sound power levels for Installation Type A: free inlet, free outlet. The Sound

power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA Standard 301.

*3) FLA: total amperage for motor and heat.

*4) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.

Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for

230V/1ph/60Hz will differ from stated data.

Protection class: IP20.

CE compliant.

Metric chart

AREC4000

Frico AB certies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein

are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures

performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply

with the requirements of the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal

applies to airow rate, average outlet velocity, outlet velocity uniformity, velocity projection and

power rating at free delivery only.

Type Nozzle depth

and width

[mm]

Max velocity

at nozzle

[m/s]

Outlet velocity

[m/s]

Outlet velocity

uniformity

[%]

AREC4010A/AREC4010Exx 80x970 14.95 13.61 94

AREC4015A/AREC4015Exx 80x1485 14.36 13.11 94

AREC4020A/AREC4020Exx 80x1975 14.95 13.61 94

AREC4025A/AREC4025Exx 80x2508 14.36 13.11 94

AREC4010W-NA 80x970 13.55 12.54 90

AREC4015W-NA 80x1485 12.68 12.16 96

AREC4020W-NA 80x1975 13.55 12.54 90

AREC4025W-NA 80x2508 12.68 12.16 96

Velocity projection: Model AREC4010E/A-NA

Distance from nozzle [mm] 80 500 1000

Core velocity [m/s] 13.61 8.89 7.01

Uniformity [%] 94 86 85

Velocity projection: Model AREC4010W-NA

Distance from Nozzle [mm] 80 500 1000

Core Velocity [m/s] 12.54 8.19 6.36

Uniformity [%] 90 89 86

AREC4000

Protection class: IP20.

CE compliant.

Type Output

[MBH]

Airow*1

[cfm]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Weight

[lb]

AREC4010A-NA 0 1530 76 504 208V1~ 3.1 99

AREC4015A-NA 0 2150 76 670 208V1~ 3.9 139

AREC4020A-NA 0 3050 78 1008 208V1~ 6.2 181

AREC4025A-NA 0 3650 80 1174 208V1~ 7.0 234

Type Output

steps

[MBH]

Airow*1

[cfm]

Sound

power*2

[dB(A)]

FLA (full load

amperage).*3

[A]

Motor

power

[W]

Amperage

motor

[A]

Voltage [V]

Amperage [A]

(heat)

Weight

[lb]

AREC4010E10-208VNA 14/34 1530 76 31 504 3.1 208V3~/27 117

AREC4015E15-208VNA 17/51 2150 76 44 670 3.9 208V3~/40 163

AREC4020E20-208VNA 24/68 3050 78 60 1008 6.2 208V3~/54 212

AREC4010E12-480VNA 14/41 1530 76 19 504 3.1 480V3~/15 125

AREC4015E18-480VNA 20/61 2150 76 26 670 3.9 480V3~/22 171

AREC4020E24-480VNA 27/82 3050 78 35 1008 6.2 480V3~/29 224

AREC4025E30-480VNA 34/102 3650 80 43 1174 7.0 480V3~/36 287

AREC4010E12-600VNA 14/41 1530 76 15 504 3.1 600V3~/12 125

AREC4015E18-600VNA 20/61 2150 76 22 670 3.9 600V3~/18 171

AREC4020E24-600VNA 27/82 3050 78 30 1008 6.2 600V3~/24 224

AREC4025E30-600VNA 34/102 3650 80 36 1174 7.0 600V3~/29 287

Type Output*4

[MBH]

Airow*1

[cfm]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Water

volume

[US gal]

Weight

[lb]

AREC4010W-NA 51 1350 76 503 208V1~ 3.0 0.49 115

AREC4015W-NA 78 1950 76 670 208V1~ 4.0 0.78 157

AREC4020W-NA 109 2730 78 1006 208V1~ 6.0 1.09 207

AREC4025W-NA 140 3350 80 1173 208V1~ 7.0 1.12 267

*1) Highest airow of totally 5 fan steps.

*2) Values shown are for total sound power levels for Installation Type A: free inlet, free outlet. The Sound

power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA Standard 301.

*3) FLA: total amperage for motor and heat.

*4) Applicable at water temperature 140/104F, air temperature, in +64F.

Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for

230V/1ph/60Hz will differ from stated data.

Imperial chart

3 Electrical heat - AREC4000E (IP20)

2 Water heat - AREC4000W (IP20)

1 Ambient, no heat - AREC4000A (IP20)

AREC4000

Frico AB certies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein

are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures

performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply

with the requirements of the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal

applies to airow rate, average outlet velocity, outlet velocity uniformity, velocity projection and

power rating at free delivery only.

Type Nozzle depth

and width

[in]

Max velocity

at nozzle

[fpm]

Outlet velocity

[fpm]

Outlet velocity

uniformity

[%]

AREC4010A/AREC4010Exx 3.1x38.2 2943 2679 94

AREC4015A/AREC4015Exx 3.1x58.5 2827 2581 94

AREC4020A/AREC4020Exx 3.1x77.8 2943 2679 94

AREC4025A/AREC4025Exx 3.1x97.7 2827 2581 94

AREC4010W-NA 3.1x38.2 2667 2469 90

AREC4015W-NA 3.1x58.5 2469 2394 96

AREC4020W-NA 3.1x77.8 2667 2469 90

AREC4025W-NA 3.1x97.7 2469 2394 96

Velocity projection: Model AREC4010E/A-NA

Distance from Nozzle [in] 320 40

Core Velocity [fpm] 2679 1750 1377

Uniformity [%] 94 86 85

Velocity projection: Model AREC4010W-NA

Distance from Nozzle [in] 320 40

Core Velocity [fpm] 2468 1612 1251

Uniformity [%] 90 89 86

AREC4000

Output charts water AREC4000W

*1) Recommended outlet air temperature for good comfort and optimized output.

*2) Nominal output at given supply and return water temperature.

Supply water temperature:80 °C

Room temperature: +18 °C

Outlet air temperature: +35 °C*1

Water temperature: 80/60 °C

Room temperature: +18 °C

Type Fan

position

Airow

[m3/h]

Output

[kW]

Return

water

temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

Output*2

[kW]

Outlet

air temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

AREC4010W-NA max 2550 14.7 31 0.07 2.6 28.1 50 0.34 39.6

AREC4015W-NA max 3300 18.9 35 0.09 1.6 39.4 53 0.48 29.5

AREC4020W-NA max 4700 27.8 30 0.13 1.5 55.4 53 0.68 25.9

AREC4025W-NA max 5700 32.3 27 0.15 2.2 69.3 54 0.85 46.5

Supply water temperature: 60 °C

Room temperature: +18 °C

Outlet air temperature: +35 °C*1

Water temperature: 60/40 °C

Room temperature: +18 °C

Type Fan

position

Airow

[m3/h]

Output

[kW]

Return

water

temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

Output*2

[kW]

Outlet

air temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

AREC4010W-NA max 2550 15.2 37 0.16 11.2 16.3 37 0.20 15.8

AREC4015W-NA max 3300 18.8 33 0.17 5.1 22.9 38 0.28 11.8

AREC4020W-NA max 4700 27.7 35 0.27 5.3 32.3 38 0.39 10.3

AREC4025W-NA max 5700 32.6 35 0.28 7.2 40.1 39 0.49 19.0

Metric chart

Imperial chart

*1) Recommended outlet air temperature for good comfort and optimized output.

*2) Nominal output at given supply and return water temperature.

Supply water temperature:176 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 176/140 °F

Room temperature: +64 °F

Type Fan

position

Airow

[cfm]

Output

[MBH]

Return

water

temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

Output *2

[MBH]

Outlet

air temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

AREC4010W-NA max 1501 50.2 88 68.5 2.6 95.9 122 326.2 39.6

AREC4015W-NA max 1942 64.5 95 84.6 1.6 134.5 127 456.5 29.5

AREC4020W-NA max 2766 94.9 86 127.5 1.5 189.1 127 643.0 25.9

AREC4025W-NA max 3355 110.2 81 142.7 2.2 236.5 129 808.5 46.5

Supply water temperature: 140 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 140/104 °F

Room temperature: +64 °F

Type Fan

position

Airow

[cfm]

Output

[MBH]

Return

water

temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

Output *2

[MBH]

Outlet

air temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

AREC4010W-NA max 1501 51.9 99 155.0 11.2 55.6 99 187.4 15.8

AREC4015W-NA max 1942 64.2 91 163.6 5.1 78.2 100 264.4 11.8

AREC4020W-NA max 2766 94.5 95 252.0 5.3 110.2 100 370.9 10.3

AREC4025W-NA max 3355 111.3 95 266.3 7.2 136.9 102 466.1 19.0

AREC4000

The introduction pages consist mainly of pictures. For translation of the English

texts used, see the respective language pages.

Les pages de présentation contiennent principalement des images. Pour la

traduction des textes en anglais, consultez la page correspondante à la langue

souhaitée.

Las páginas introductorias contienen básicamente imágenes. Consulte la

traducción de los textos en inglés que las acompañan en las páginas del idioma

correspondiente.

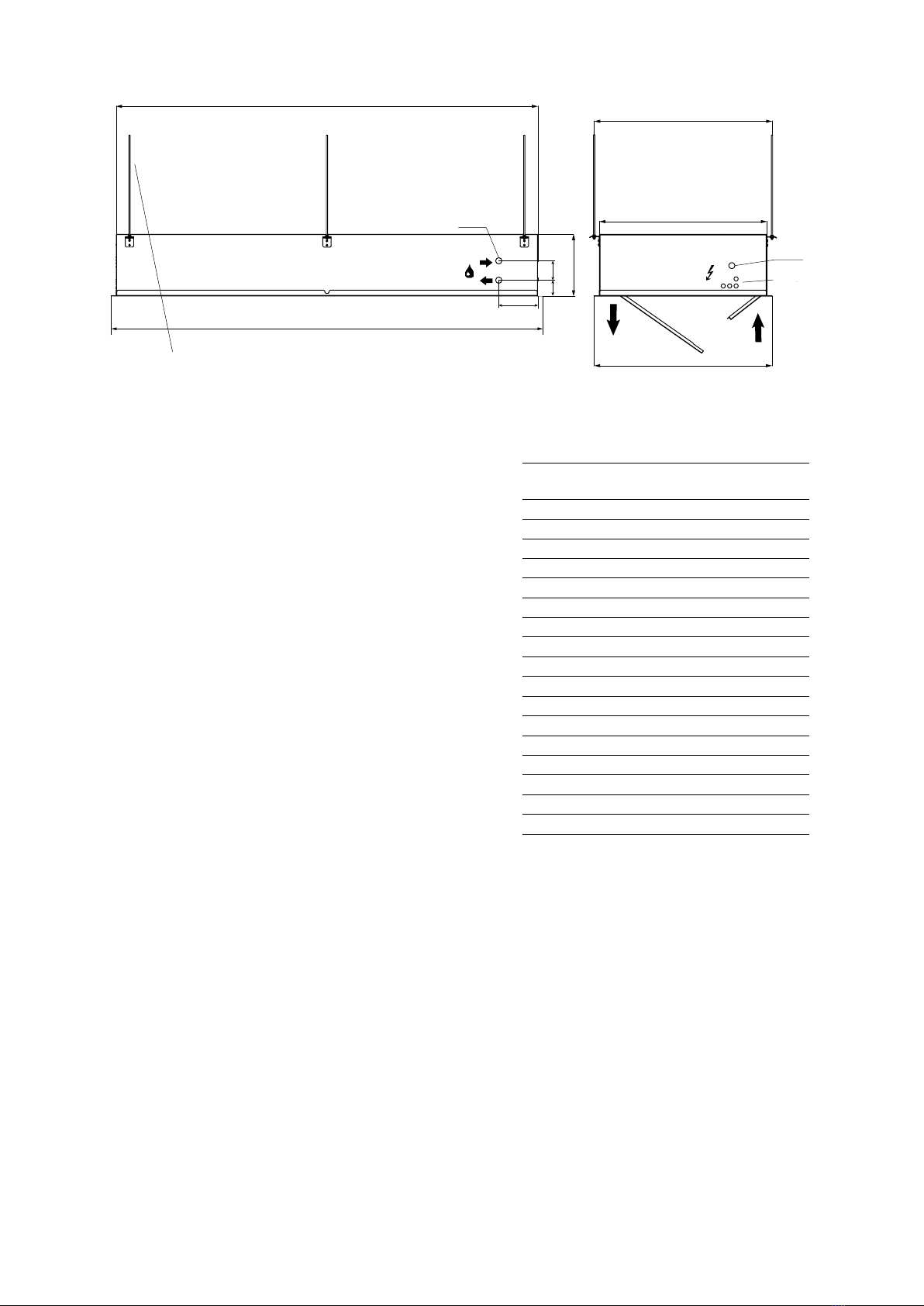

1 m: 4 x M8

1,5 m: 4 x M8

2 m: 6 x M8

2,5 m: 6-8 x M8

803

851

296

53 90

218

ø29

ø20

218

ø29

Ref Metric

[mm]

Imperial

[in]

Product type

A1067 42.68 AREC4010x

B1577 63.08 AREC4015x

C 2067 82.68 AREC4020x

D 2579 103.16 AREC4025x

E1020 40.80 AREC4010x

F1520 60.80 AREC4015x

G2020 80.80 AREC4020x

H 2520 100.80 AREC4025x

I29 1.16

J90 3.60

K 53 2.12

L 218 8.72

M296 11.84

N851 34.04

O803 32.12

P 851 34.04

Q20 0.80

A / B / C / D

E / F / G / H

AREC4000

Metric

Imperial

1 m: 4 x M8

1.5 m: 4 x M8

2 m: 6 x M8

2.5 m: 6-8 x M8

3.3 ft: 4 x M8

4.9 ft: 4 x M8

6.6 ft: 6 x M8

8.2 ft: 6-8 x M8

Ref Metric

[mm]

Imperial

[in]

Product type

A884 35.36 AREC4010x

B851 34.04 AREC4010x

C 20 0.80 AREC4010x

D 29 1.16 AREC4010x

E71 2.84 AREC4010x

F 56 2.24 AREC4010x

G218 8.72 AREC4010x

H 1400 56.00 AREC4015x

I 851 34.04 AREC4015x

J945 37.80 AREC4020x

K851 34.04 AREC4020x

L 1198 47.92 AREC4025x

M 851 34.04 AREC4025x

AREC4000

884

851

218

1400

851

945

1198 1198

945

ø29

ø20

ø29

Mounting on threaded bars outside the unit

AREC4015x

AREC4010x

Top view

AREC4020x

AREC4025x

L L

AREC4000

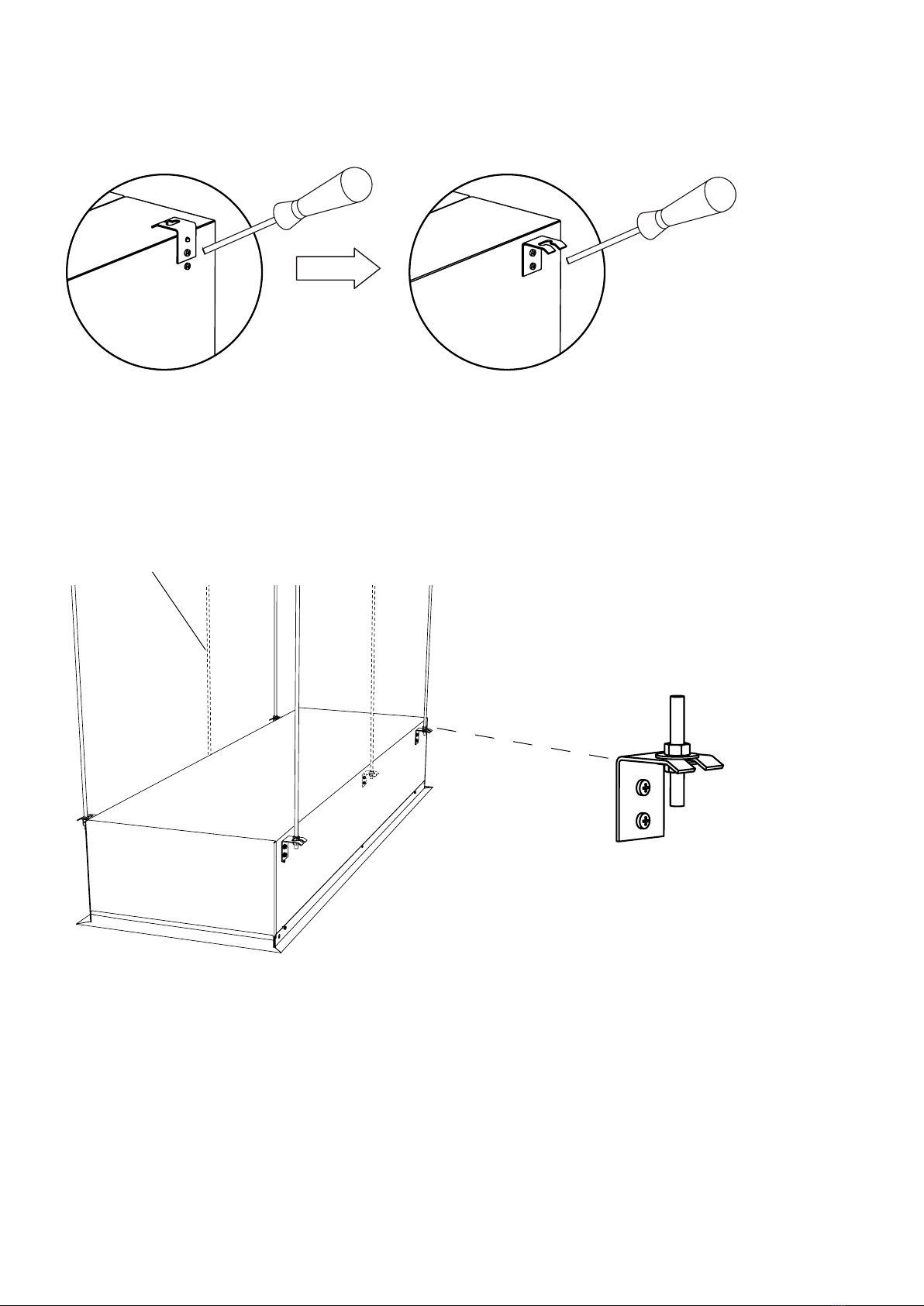

Fig. 1b. Mounting on threaded bars outside the unit.

Mounting on threaded bars outside the unit

Fig. 1a: Mounting brackets on delivery.

AREC4020x-NA

AREC4025x-NA

This manual suits for next models

Table of contents

Other Frico Heater manuals

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
