Frico CIR105 User manual

Comfortinfra

CIR

... 5

... 4

... 8

... 7

... 6

FI ...

... 9

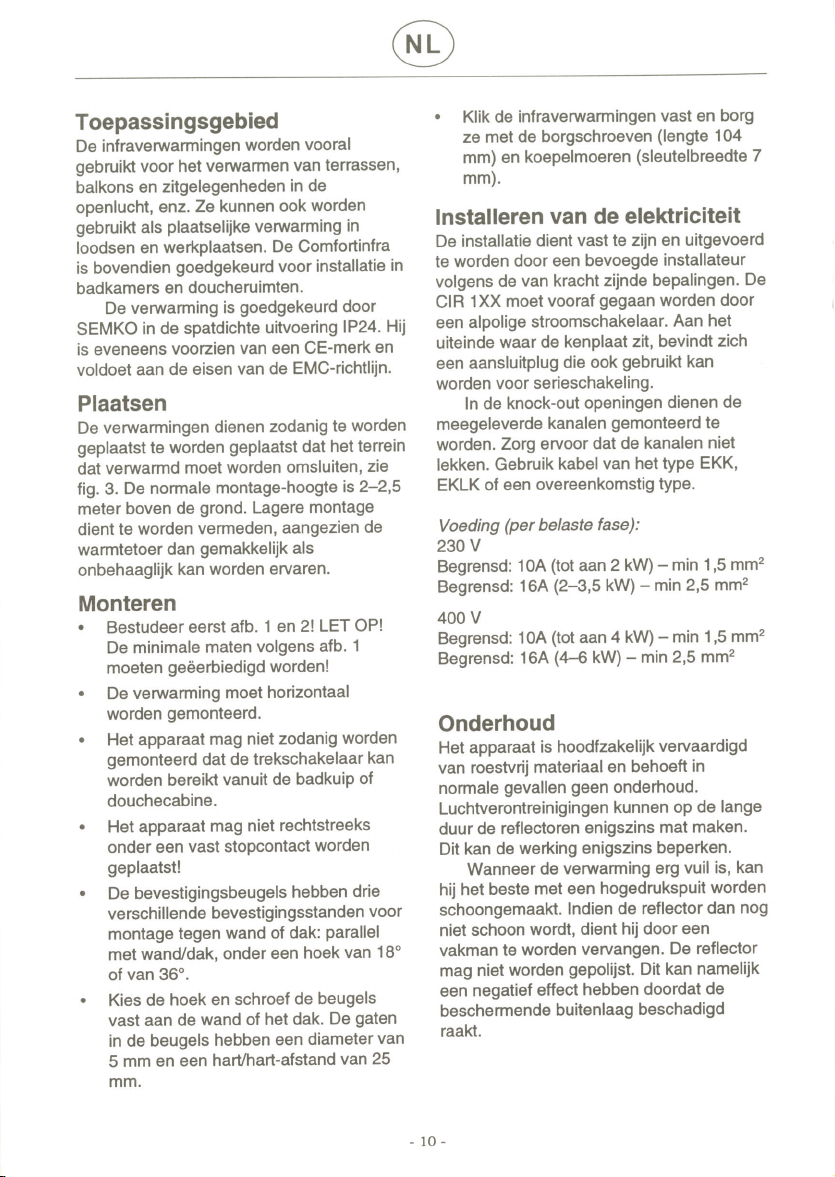

NL ... 10

CIR

Area of use

The radiant heaters are primarily used to create

comfortable heating on terraces, balconies,

openair

restaurants etc. They can also be used for

selective heating in storage rooms and workshops.

The Confortinfra is also approved for installation in

bathrooms and shower rooms.

The heater is approved by SEMKO in splash proof

design, IP24. It carries the CE-mark and is in

compliance with the EMC-directive.

Positioning

The heaters must be mounted so that they enclose

the area which is to be heated, see fig. 3. Suitable

distance from the floor is 2—2,5 m. Closer to the

floor is not recommended as the additional heat

may seem unpleasant.

Mounting

• First study fig. 1 and 2. NB! The minimum

distances in fig. 1 must be kept!

• The heaters may only be mounted horizontally!

• The heater must not be mounted so the circuit

breaker can be reached from a bathtub or

shower.

• The heater must not be placed directly under a

wall-outlet!

• The mounting brackets enable mounting in

three different angles for ceiling or wall

mounting. Parallel to the wall/ceiling, 18° or

36° angle.

• Choose the desired angle and fasten the

bracket onto wall or ceiling. The holes are Ø 5

mm, c-c distance is 25 mm.

• Fasten the heaters, snap into the brackets, and

secure it by tightening the securing screws (104

mm long) and the domed nuts (spanner width

7 mm).

Electrical installation

The electrical installation should be perma-nent

and carried out by a qualified electrician in

conformity with prevailing regulations. The CIR

1XX type must be preceded by an all-pole switch. A

terminal block, which enables connection to other

heaters is situated on the same end of the heater

as the name plate.

Please note that the inlet must be tight. A cable of

EKK or EKLK type or similar must be used.

Minimum cross section area

230V

protected by 10A (up to 2 kW) - min. 1,5mm²

protected by 16A (2—3,5 kW) - min. 2,5 mm²

400V

protected by 10A (up to 4kW) - min. 1,5 mm²

protected by 1 6A (4—6 kW) - min. 2,5 mm²

Maintenance

The heater is on the whole made of rustproof

material and usually does not require any

maintenance. Pollution can in the long run dull

the reflectors somewhat. This however has very

little affect on its function.

If the heater is very dirty it can be cleaned with

compressed air. If the reflector remains dirty it must

be replaced by an authorized repairman. The

reflector must not be polished as this may damage

the protective surface.

Declaration of Conformity

Frico AB

Box 102

S-433 22 Partille

under own responsibility hereby declare that the following product(s)

Room heaters: Infrared radiators

Type: CIR 105, CIR 110, CIR 115 and CIR 120.

CIR 205, CIR 210, CIR 215 and CIR 220.

which is(are) covered by this declaration of conformity comply with the

EC Electromagnetic Compatibility (EMC) Directive 89/336 /EEC & 92/31 EEC

EC Low Voltage Directive (LVD) 73/23/EEC

and is(are) manufactured in accordance with the following stated harmonised

standard(s) or other normative document(s).

EMC: EN 55 014: 1993

EN 60 555-2/3: 1991

EN 55 104

LVD: EN 60 335-1: 1988 incl. Am. 2, 5, 6, 51-54

EN 60 335-2-30: 1992 incl. Am. 51

Partille , 15 December 1995

Mats Careborg

Technical Manager

Main office

FRICO AB Tel: +46 (0)31 336 86 00

Box 102 Fax: +46 (0)31 26 28 25

S-433 22 Partille e-mail: [email protected]

SWEDEN http://www.frico.se

Norway

FRICO AS

Postboks 82, Alnabru Tel: +47 (0)2 272 38 44

N-0614 Oslo Fax: +47 (0)2 272 38 39

NORWAY e-mail: [email protected]

http://www.frico.no

France

FRICO FRANCE Tel: +33 (0) 4 72 42 99 42

7, rue de la libération Fax: +33 (0) 4 72 42 99 49

F-69 270 Fontaines sur Saone e-mail: [email protected]

FRANCE

Russia

FRICO representative office in Russia

1 st Golutvinsky per., 3 Tel/Fax: +7 095 238 63 20

Moscow 109180 e-mail: [email protected]

RUSSIA

For latetest updated information, see: www.frico.se

Artnr: 201397 01-08-24
