Franke FFPD100 SERIES User manual
FFPD100 SERIES
Swivelling spout faucet with spray head
Installation guide
2
ENGLISH
PARTS LIST
G 1561.XX Handle
G R0171.XX Ring cap
G 01156 Cartridge
G R0338031 Fastening set (rubber washer, triangular ange, metal washer, nut)
G R0593 Valve-holder
G 01735 Supply exible hose
G 01648 Flexible hose
G 28734.XX Spray head
G 01431.XX Aerator
G 01646 Headvalve
G 01418.XX Knob
TECHNICAL FEATURES
Maximum water ow 2.2 gpm - 60 psi
Recommended pressure range 15-75 psi - Over 75 psi PRV required
Complies with Proposition 65, NSF61, UPC and C-UPC requirements
TECHNICAL DATA
· Minimum working pressure 0,5 bar
· Maximum working pressure 5 bar
· Recommended working pressure 3 bar (in case of water pressure
higher than 5 bar it is recommended to install pressure reducers)
· Maximum working temperature 70°C
G 01735
G 01648
G 28734.XX
G 01561.XX
G R0171.XX
G 01156
G R0338031
G R0593
G 01431.XX
G 01418.XX
G 01646
3
ENGLISH
Faucet installation
Please remove all components from package and inspect prior to
installation (see itemized table and picture).
NOTE:
Call us immediately if you see inconsistencies. (1-800-626-5771)
or visit
www.frankeksd.com
TABLE OF CONTENTS
1 Faucet
2Wall fastening set
3Wall ange (over the sink)
4Wall ange (under the sink)
5Fastening set (rubber washer, triangular ange, metal washer, nut)
6Non-return valves
3
1
24
5
6
4
ENGLISH
4. Install the mounting hardware (G R0338031) to the threaded shank in the following
sequence:
1 - round at ber washer
2 - triangular shaped plastic support
3 - at metal washer
4 - thread brass nut
5. Assure that the handle and spout are properly aligned in forward position
6. Tighten the brass nut (4) with the provided wrench or use other professional tools.
7. Connect the supply exible hoses to the supply net, interposing between-them the
non-return valve with the gaskets as indicated in the gure.
NOTE:
solid surface installation: The sub-countertop mounting surface
needs to be at and free of debris; otherwise the faucet will not
sit properly.
Tile installation: Avoid installations near or on top of grout lines.
The faucet will not sit secure when sitting on such.
2. Remove all mounting hardware from protecting plastic bag.
3. Place the large O-ring over the faucet shank and place the faucet into the desired
location.
NOTE:
the rubber O-ring should be sitting on top of the countertop and between the faucet
body. DO NOT use putty or other sealant at this location
11
3
4
2
21 mm [13/16”] key
5
ENGLISH
8. Flush out debris from water lines and faucet.
1. Pull spray hose out of the faucet spout and point the open end towards the
sink drain.
2. Open faucet handle - cold side rst - by turning handle to the right and mov-
ing it upward.
3. Let the faucet run on cold for 15 to 30 seconds.
4. Open faucet handle - hot side second - by turning handle to the left and mov-
ing it upward.
5. Let the faucet run on cold for 15 to 30 seconds.
6. Turn faucet off.
7. Test for leaks under the cabinet.
7. The body can be xed both onto the wall and on surface: .
1. Screw the xing rail onto the single lever body.
2. Insert it completely in the given plate.
3. Place the single lever body into the sink hole made at a certain distance from
the wall.
4. Place the plate properly where it has to be xed, making sure the drilling
points on the wall are well marked corresponding to the two holes with a 28
mm [1-1/8”] interaxe.
5. Place the dowels in the holes.
6. Fix the plate onto the wall with the given screws.
7. give stability to the position of the single lever by acting on the xing rail
and block the movement with the given nut.
A
over the sink under the sink
B
6
ENGLISH

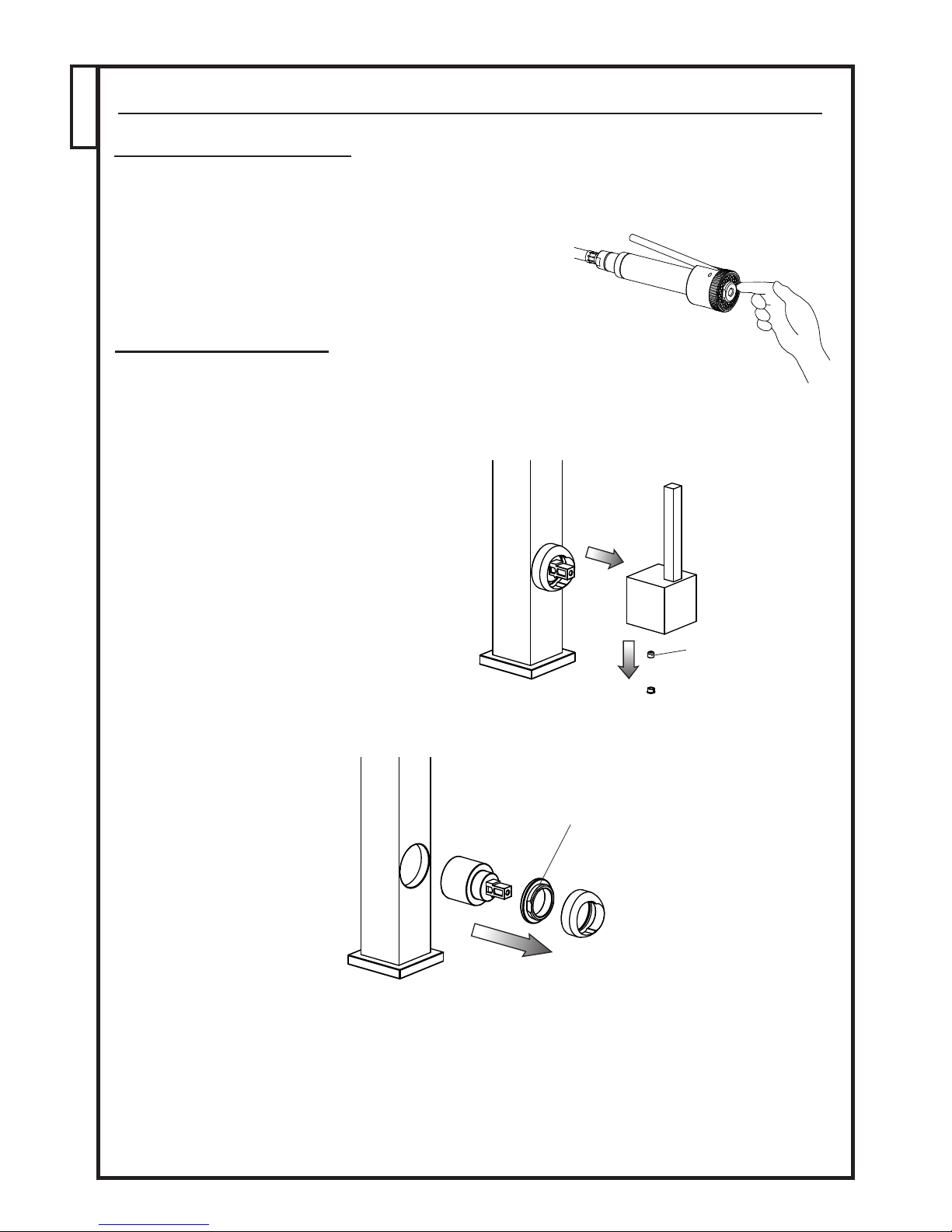

Standard maintenance and trouble shooting
Cleaning of the spray head
Any deposits which may accumulate on the nozzle can be removed by simply running
a nger over the rubber extrusions and then running the water for a few seconds. In
extreme cases this step may have to be repeated.
Replacing the Cartridge
1. Shut off the water supply to the faucet.
2. Open the faucet briey to relief any pressure inside the faucet.
3. Move the faucet handle to the “OFF” position.
4. Use a the provided allen key to loosen the set screw which is accessible from the back
of the handle.
5. Lift the handle from the cartridge.
6. Find the small notch at the base of the chrome ring cap and carefully pry up against
this to remove the cap.
7. Remove the brass retaining ring.
8. Lift out the cartridge.
9. Ensure that the seats and O-rings are in good condition.
10. Remove potential mineral deposits from inside the faucet body.
11. Install the new cartridge so that the central pivots t into the corresponding seats.
12. Re-assemble faucet in reverse order.
13. Test for leakage.
2.5 mm [1/8”] key
28 mm [1-1/8”] key
7
ENGLISH
Replacing the Headvalve
1. Shut off the water supply to the faucet.
2. Open the faucet briey to relief any pressure inside the faucet.
3. Move the faucet knob to the “OFF” position.
4. Use a the provided allen key to loosen the set screw which is accessible from the back
of the handle.
5. Lift the handle from the headvalve.
6. Unscrew then the headvalve using a 17 mm wrench and replace it.
7. Reinstall all the details, proceeding in opposite order.
2 mm [1/16”] key
17 mm [11/16”] key
General maintenance
Clean aerator periodically.
Do not use harsh detergents, solvents, chemical agents, metallic sponges, etc. that could
harm the surface.
Clean only with a soft sponge and soapy water,
Clean and then dry properly the faucet in case of very hard or calcareous water, whose
deposits cold damage the surface.
8
ENGLISH
Limited lifetime warranty
Franke Consumer Products, Inc., Kitchen Systems Division extends the following warranty to the origi-
nal purchaser of its faucets effective January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime warranty on all mechanical
parts to be free of manufacturing defects in material and workmanship under normal usage. All chrome
nishes carry a limited lifetime warranty; all other nishes are warranted for ve (5) years form the
original date of purchase.
Marine and Outdoor Installation: Franke Consumer Products, Inc. faucets are NOT warranted for
Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product has been installed in accordance
with our installation instructions, used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof of purchase - save sales
receipt. This warranty covers all components which make the product operational. Franke, at its op-
tion, may repair or replace the product or components necessary to restore the product to good working
condition. Franke reserves the right to inspect the installation prior to the actual replacement of the
product or component part.
This warranty does not cover misuse or abuse, accidental damages, scuffs or scratches, improper installa-
tion, abnormal usage, negligence or damage caused by improper maintenance or cleaning. Normal wear
of parts is excluded from the warranty. Damage caused by impurities or acts beyond our control are not
covered. Any product or part which has been repaired or altered in any manner outside of Franke’s fac-
tory, unless previously authorized in writing by Franke, will void warranty. Any replacement excludes
transportation and any labor re-installation costs. This warranty does not allow recovery of incidental
or consequential damages such as loss of use, delay, property damage or other consequential damage,
and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the warranty period specied herein and is
exclusive. Franke DISCLAIMS all other warranties, expressed or implied, including IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND/OR FITNESS FOR AS PARTICULAR PURPOSE. This
warranty gives you specic legal rights that may vary from state to state.
Further information
For any further information about our products, about the installation
of them or about the guarantee, please dial the number of the
customer service:
Phone number +1-215-822-6590
Or: 1-800-626-5771
Fax number + 1-215-822-5873
Franke Consumer Products Inc. - Kitchen Systems Division
3050 Campus Drive, Suite 500 Hateld, PA 19440
