Endress+Hauser Prolevel FMC 661 User manual

prolevel

FMC 661

Level Measurement

Operating Instructions

BA 142F/00/en/07.98a

016562-1000

valid for Software 1.x

Hauser

Endress

Nothing beats know-how

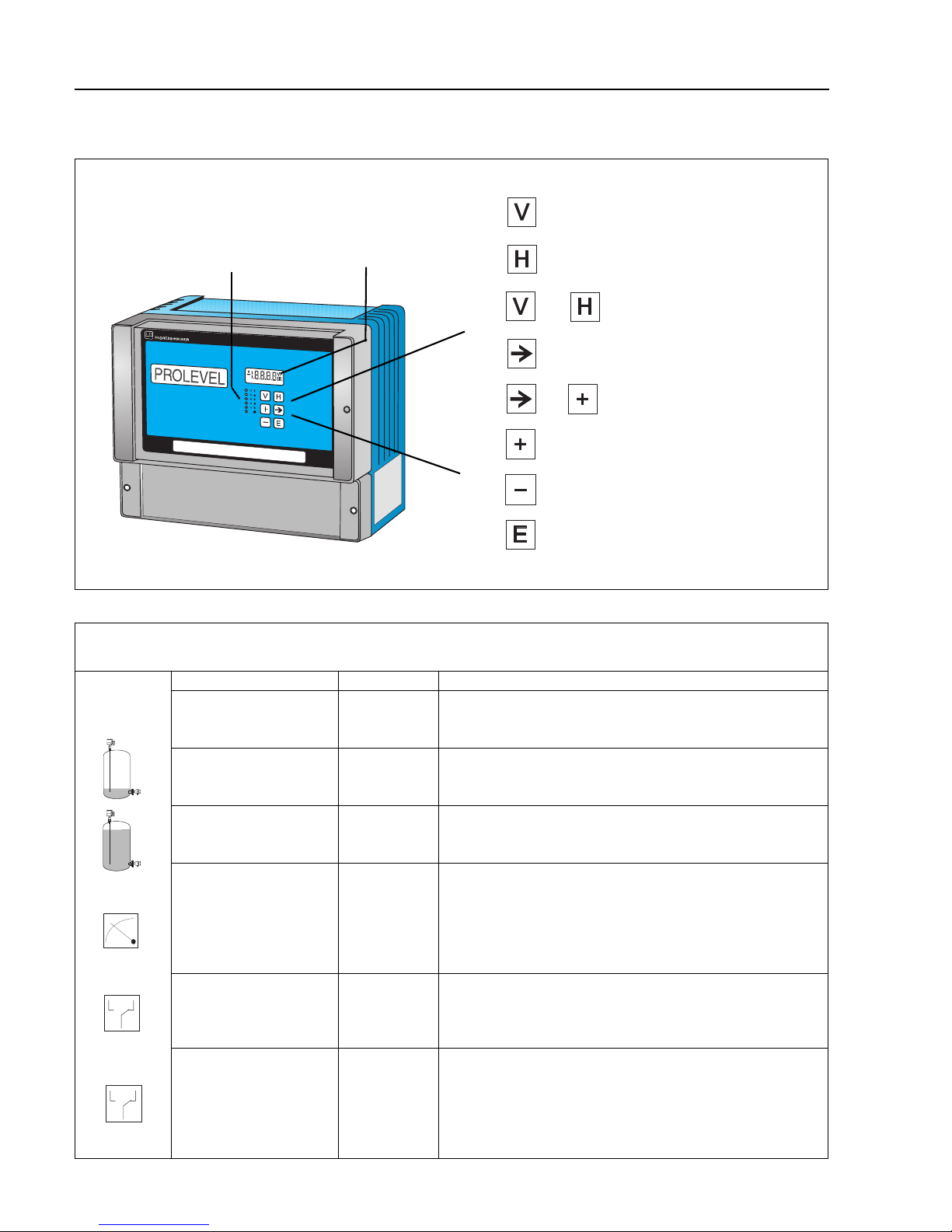

Short Instructions

..Quick configuration for level measurement

Function Matrix Action

1Reset transmitter V9H5 ●Enter 671

Press »E« to register entry

- Omit if commissioned as in Section 4.1

2»Empty« calibration* V0H1 ●Fill vessel 0…40% full (probe covered)

Enter level in %, m, ft, etc.

Press »E« to register entry

3»Full« calibration* V0H2 ●Fill vessel 60…100% full

Enter level in %, m, ft, etc.

Press »E« to register entry

40/4 mA signal V0H3

V0H5

V0H6

●Enter 0 for 0…20 mA signal, 1 for 4…20 mA signal

Press »E« to register entry

●Enter level for 0/4 mA signal (if not 0)

Press »E« to register entry

●Enter level for 20 mA signal (if not 100)

Press »E« to register entry

5Relays 1a and 1b V1H0

V1H1

●Enter level for switching in calibration units

Press »E« to register entry

●Enter fail-safe mode: 0 = minimum, 1 = maximum

Press »E« to register

6Relays 2a and 2b V1H5

V1H6

V1H9

●Enter level for switching in calibration units

Press »E« to register entry

●Enter fail-safe mode: 0 = minimum, 1 = maximum

Press »E« to register

●Enter 1 = Relay 2 assigned to channel 1

Press »E« to register entry

* Can be performed in reverse order

4 yellow relay LEDs,

1 red alarm LED,

1 green operation LED LC display

Operation

Selects vertical matrix position

Selects horizontal matrix position

Select position V0H0

Selects next digit

Move decimal point

Increases value of digit

Decreases value of digit

Registers entry

Short Instructions Prolevel FMC 661

Endress+Hauser

Table of Contents

Short Instructions . . . . . . . front cover

Notes on Safety . . . . . . . . . . . . . 3

1 Introduction . . . . . . . . . . . . . . 5

1.1 Application . . . . . . . . . . . . . . . 6

1.2 Measuring system . . . . . . . . . . . . 7

1.3 Measuring principle . . . . . . . . . . . . 8

1.4 Functional description . . . . . . . . . . . 9

1.5 Technical data . . . . . . . . . . . . . 10

2 Installation . . . . . . . . . . . . . . 12

2.1 Probes and sensors . . . . . . . . . . . 13

2.2 Prolevel FMC 661 installation . . . . . . . 14

2.3 Transmitter wiring . . . . . . . . . . . . 15

2.4 Sensor connection . . . . . . . . . . . 16

2.5 Rackbus RS-485 option . . . . . . . . . 18

3 Controls . . . . . . . . . . . . . . . 19

3.1 Operating matrix . . . . . . . . . . . . 19

3.2 Keyboard and display . . . . . . . . . . 20

3.3 Commulog VU 260 Z . . . . . . . . . . 21

3.4 Rackbus RS-485 (option) . . . . . . . . 22

4 Level Measurement . . . . . . . . . . 23

4.1 Commissioning . . . . . . . . . . . . 23

4.2 Calibration . . . . . . . . . . . . . . 24

4.3 Analogue Outputs . . . . . . . . . . . 30

4.4 Relays . . . . . . . . . . . . . . . . 32

4.5 Measured value display . . . . . . . . . 34

4.6 Parameter locking . . . . . . . . . . . 34

5 Level Measurement with Limit Switch . . 35

5.1 Level measurement with automatic calibration

correction . . . . . . . . . . . . . . . 36

5.2 External limit switch . . . . . . . . . . . 39

6 Trouble-Shooting . . . . . . . . . . . 40

6.1 Fault recognition . . . . . . . . . . . . 40

6.2 Incorrect measurements . . . . . . . . . 42

6.3 Simulated operating mode . . . . . . . . 43

6.4 Exchanging transmitters and sensors . . . . 44

6.5 Repairs . . . . . . . . . . . . . . . . 45

7 Appendix . . . . . . . . . . . . . . . 46

7.1 Calibration and linearisation in volume units . 46

Index . . . . . . . . . . . . . . . . 48

Operating matrix . . . . . . . back cover

Prolevel FMC 661 Table of Contents

Endress+Hauser 1

Table of Contents Prolevel FMC 661

2Endress+Hauser

Notes on Safety

Approved usageThe Prolevel FMC 661 is a field transmitter for level measurement which can be used

with a variety of capacitance probes and hydrostatic sensors. It has been designed to

operate safely in accordance with current technical and safety standards, and must be

installed by qualified personnel according to the instructions in this manual.

The manufacturer accepts no responsibility for any damage arising from incorrect use,

installation or operation of the equipment. Changes or modifications to the equipment

not expressly approved in the operating manual or by the bodies reponsible for

compliance may void the user’s authority to operate the equipment.

CertificatesThe Prolevel FMC 661 transmitter is available with certificate of conformity for use with

probes and sensors operating in hazardous areas. The Table below indicates the

combinations available and conditions for installation. Full details can be taken from the

certificates. Please note that where quoted technical data differs from that listed in

Section 1.5, that in the certificate applies.

Certificate Instruments Notes

Certificate of Conformity

PTB No. Ex-96.D.2074

Prolevel FMC 661 [EEx ia] IIC,

install outside Ex-area

CSA

LR 53988-81

FMC 661 Class I, II, III

Div. I

Groups A-G

J.I. 0Z2A7.AX

FMC 661 Class I, II, III

Div. I

Groups A-G

PTB Certificate of

Conformity

PTB Ex 93.C.2171 X

ZE 104F/00/d

for Germany

ZE 103F/00/d, e, f

for foreign countries

PTB Nr. Ex-93.C.2062 X

ZE 097F/00/d

Capacitance probes

Multicap DC 11, DC 16,

DC 21, DC 26

with electronic insert

EC 37 Z or EC 47 Z

EEx ia IIC T4…T6

suitable for installation on Channel 1

of Prolevel FMC 661

Certificate of Conformity

PTB Nr. Ex-96.D.2017 X

DB 50…53

with FEB 17 or FEB 17 P

EEx ia IIC

T4…T6

KEMA No. Ex-92.C.8494

ZE 076F/00/d, e, f

for foreign countries

Liquiphant

FDL 30, 31, 35, 36

EEx ib IIC T6

suitable for installation on Channel 2

of Prolevel FMC 661

Type approval

BVS 93.4.8004 B

Capacitance probes

11 450 S; 21265 S with

electronic insert EC 17 Z

Dust-Ex, Zone 10 (Germany)

suitable for installation on Channel 2

of Prolevel FMC 661

German Lloyd

No. 97517 HH

Prolevel FMC 661

Capacitance probes

Insert EC 37 Z or EC 47 Z

Insert EC 17 Z

Level indication on channel 1

(EC 37 Z or EC 47 Z)

Level limit detection on channel 2

(EC 17 Z)

Suitable for unlimited use within the

Rules

German Lloyd

No. 99350-97HH

DB 50, 50 L, 52, 53

with FEB 17 or FEB 17 B

Prolevel FMC 661 Notes on Safety

Endress+Hauser 3

Safety conventions

In order to highlight safety-relevant or alternate operation procedures in the manual the

following conventions have been used, each indicated by a corresponding icon in the

margin.

Note!

•A note highlights actions or procedures which, if not performed correctly, may

indirectly affect operation or may lead to an instrument response which is not

planned.

Caution!

•Caution indicates actions or procedures which, if not performed correctly, may lead

to personal injury or incorrect functioning of the instrument

Warning!

•A warning indicates actions or procedures which, if not performed correctly, will lead

to personal injury, a safety hazard or destruction of the instrument

Note!

Warning!

Caution!

Notes on Safety Prolevel FMC 661

4 Endress+Hauser

1 Introduction

The Prolevel FMC 661 field transmitter measures level with hydrostatic pressure sensors

or capacitance probes. It may be installed, commissioned and maintained by authorised

personnel only. The operating manual must have been read and understood before the

equipment is installed: instructions are to be followed exactly.

In this manualSince it is not possible to describe all applications in detail, the standard application,

continuous level measurement, has been used as the basis for the functional description.

Other applications as listed in Section 1.1 are described in Chapter 5. The operating

instructions are structured as follows:

•Chapter 1: Introduction;

contains general information including application, measurement

principle, functional description and technical data.

•Chapter 2: Installation;

contains hardware configuration, installation instructions and

connection diagrams.

•Chapter 3: Controls;

describes operation with the front panel keys, Commulog VU 260 Z,

and via the Rackbus RS-485 interface.

•Chapter 4: Calibration and Operation;

tells you how to commission the Prolevel for the standard

application including calibration, linearisation, analogue outputs,

relays and locking the parameter matrix.

•Chapter 5: Level Measurement with Limit Switch;

describes the automatic calibration correction and other operating

modes of the Prolevel FMC 661.

•Chapter 6: Trouble-Shooting;

contains a description of the self-checking system with error

messages, the simulation feature as well as instructions for

configuration on replacement of the transmitter, probe or

electronic insert.

•Appendix: Contains a flowchart for calibration and linearisation using

volume units.

•Index: lists key words to help you find information quickly.

Short instructionsShort instructions for the standard set-up, continuous level measurement, which is used

in 80% of applications, are to be found in the front cover. We advise you to commission

as described in Section 4.1. before using this procedure as this ensures that probes can

be exchanged without the need for re-calibration.

Further documentationIn addition to this manual, the following publications provide information on configuration

of the Prolevel FMC 661.

•BA 028F Commulog VU 260 Z handheld terminal

•BA 134F Rackbus RS-485

The installation of the probes, electronic inserts and accessories is described in the

documentation accompanying these articles - see text for references. When installing

probes in explosion hazardous areas the instructions included in the accompanying

probe certification must also be observed.

Prolevel FMC 661 Chapter 1: Introduction

Endress+Hauser 5

1.1 Application

The Prolevel FMC 661 is designed for level measurement with a capacitance probe or

hydrostatic pressure sensor. A second channel allows level limit detection with a vibration

sensor, i.e. Liquiphant or Soliphant, or capacitance probe. The applications described

in this manual are as follows:

•Level or volume measurement …Chapter 4

•Level limit detection …Chapter 5

•Level measurement with automatic calibration correction …Chapter 5.

Prolevel transmitters may also be used for applications in explosion hazardous areas

and possess intrinsically-safe sensor circuits conforming to EEx ia IIC. A list of certificated

combinations is to be found in »Notes on Safety« preceding this chapter.

Endress+Hauser

PROLEVEL

FMC661

123.4

0/4...20 mA limit relays

Prolevel FMC 661

transmitter

BA142_01

Liquids

Bulk solids

Channel 1

hazardous area safe area

Channel 1

alarm

relay

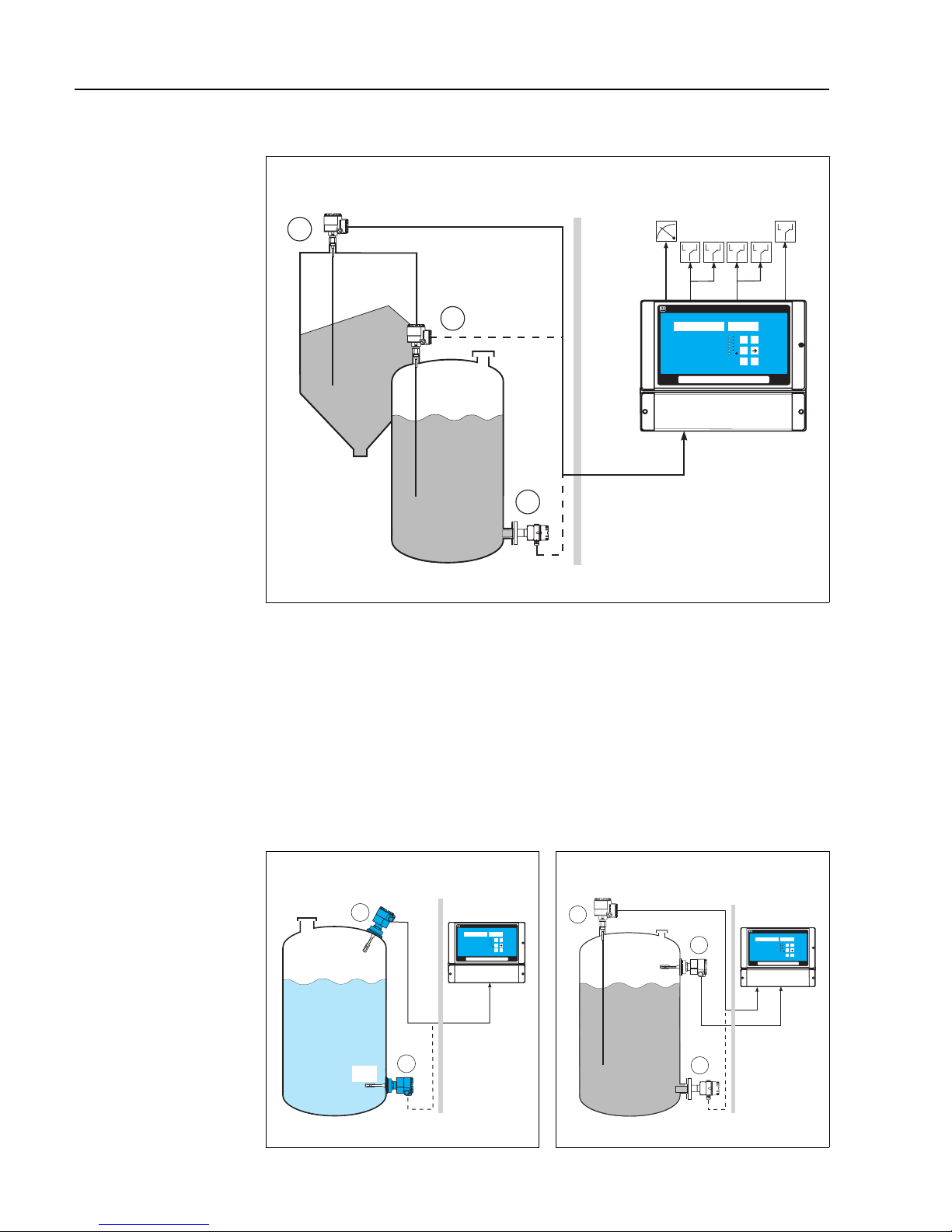

Fig.1.1:

Standard application showing

Prolevel FMC 661 controlling

level measurement

➀

Capacitance probe

➁

Hydrostatic probe

Endress+Hauser

PROLEVEL

FMC661

123.4

Min

hazardous area

BA142_02

Max

safe area

FMC 661

Fig.1.2:

Left:

Prolevel FMC 661 with

Liquiphant limit switch

➀

Maximum fail-safe mode

➁

Minumum fail-safe mode

Right:

Prolevel FMC 661 with

simultaneous level measurement

and limit switching

➀

Capacitance level probe

➁

Hydrostatic level sensor

➂

Limit switch

The same arrangement is used

for automatic calibration

correction

channel 2

Endress+Hauser

PROLEVEL

FMC661

123.4

channel 2 limit

switch

channel 1 level

BA142_03

hazardous area safe area

FMC 661

Chapter 1: Introduction Prolevel FMC 661

6 Endress+Hauser

Table of contents

Other Endress+Hauser Measuring Instrument manuals

Endress+Hauser

Endress+Hauser EngyCal RH33 Technical specifications

Endress+Hauser

Endress+Hauser Proline t-mass T 150 User manual

Endress+Hauser

Endress+Hauser Micropilot FMR62 Instructions for use

Endress+Hauser

Endress+Hauser analytikjena multi EA 5100 User manual

Endress+Hauser

Endress+Hauser LT5 User manual

Endress+Hauser

Endress+Hauser Smartec S CLD134 User manual

Endress+Hauser

Endress+Hauser Teqwave H Technical specifications

Endress+Hauser

Endress+Hauser Memograph M RSG40 Manual

Endress+Hauser

Endress+Hauser Proline Promass 40 Technical specifications

Endress+Hauser

Endress+Hauser PROline promag 53 User manual

Endress+Hauser

Endress+Hauser SpectraSensors SS2100i-1 User manual

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Technical specifications

Endress+Hauser

Endress+Hauser Prosonic M FMU41 Technical specifications

Endress+Hauser

Endress+Hauser prowirl 77 User manual

Endress+Hauser

Endress+Hauser Proline Promag 50 User manual

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Endress+Hauser

Endress+Hauser Proline Promag 50H User manual

Endress+Hauser

Endress+Hauser Micropilot FMR51 Manual

Endress+Hauser

Endress+Hauser Proline Promag W 800 Technical specifications

Endress+Hauser

Endress+Hauser Prosonic T FMU30 Technical specifications

Endress+Hauser

Endress+Hauser RID14 User manual

Endress+Hauser

Endress+Hauser Liquiphant M FTL51C User manual

Endress+Hauser

Endress+Hauser Oxymax COS61D User manual

Endress+Hauser

Endress+Hauser Proline Promag L 400 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual

Acterna

Acterna MS1400 Operation manual

R&S

R&S ZPH manual

Endress+Hauser prolevel FMC 661 User manual

Popular Measuring Instrument manuals by other brands
