Endress+Hauser FQG66 User manual

Products Solutions Services

Operating Instructions

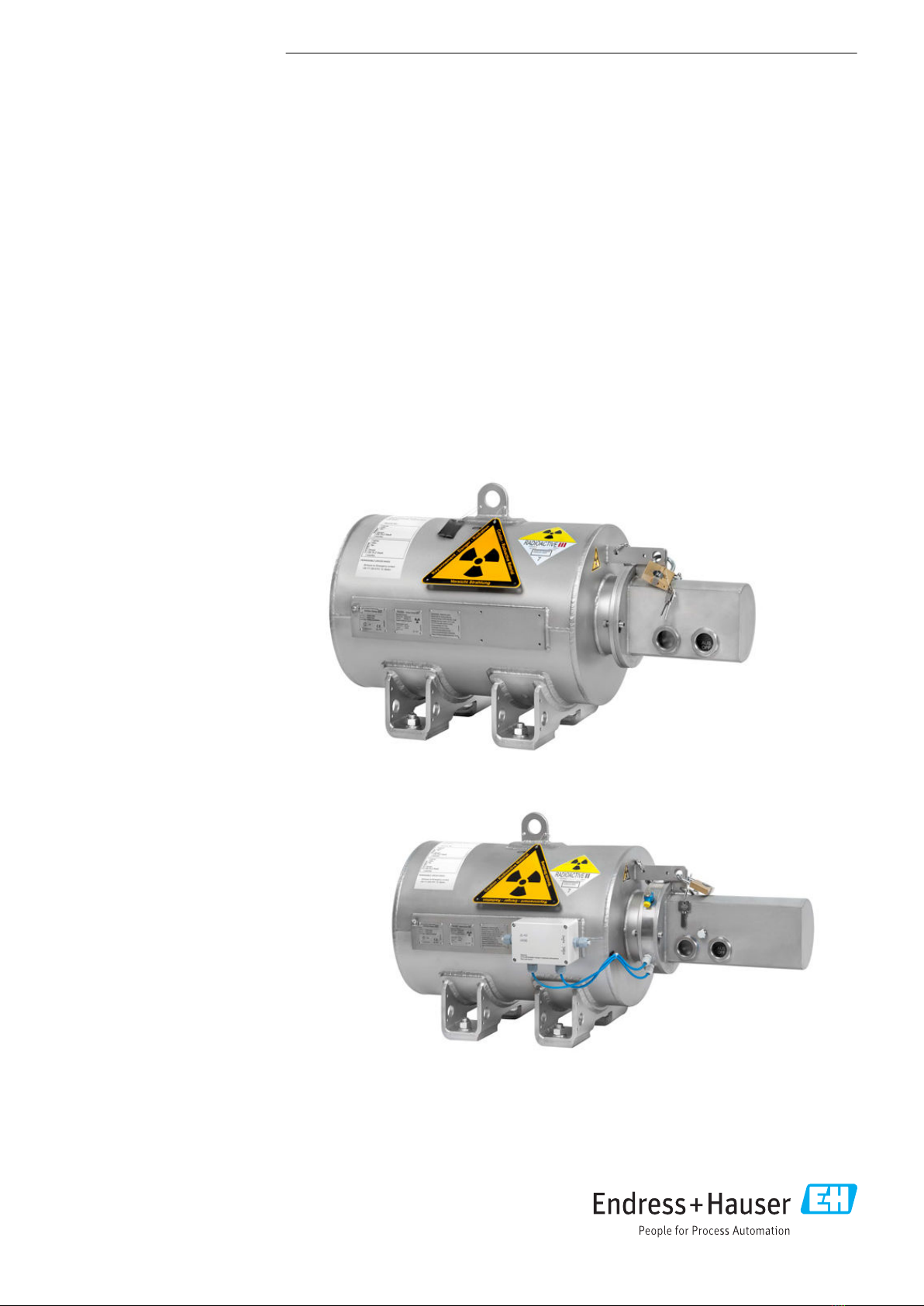

Source container FQG66

Radiometric level measurement

BA01327F/00/EN/02.20

71483609

2020-06-19

Source container FQG66

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Source container FQG66 Table of contents

Endress+Hauser 3

Table of contents

1 About this document ................ 4

1.1 Document function ..................... 4

1.2 Symbols used .......................... 4

1.3 Documentation ........................ 5

2 Basic safety instructions ............ 6

2.1 Requirements for personnel ............... 6

2.2 Designated use ........................ 6

2.3 Workplace safety ....................... 6

2.4 Operational safety ...................... 6

2.5 Product safety ......................... 7

2.6 Basic instructions for use and storage ........ 7

2.7 Hazardous area ........................ 7

2.8 General instructions on radiation protection ... 8

2.9 Legal regulations for radiation protection ..... 8

2.10 Supplementary safety instructions .......... 9

3 Product description ................ 10

3.1 Product design ........................ 10

4 Incoming acceptance and product

identification ..................... 11

4.1 Packaging dimensions .................. 11

4.2 Incoming acceptance ................... 11

4.3 Product identification ................... 12

4.4 Manufacturer address .................. 12

4.5 Nameplate ........................... 12

4.6 Storage and transport .................. 14

5 Installation ....................... 16

5.1 Installation conditions .................. 16

5.2 Mounting the measuring device ........... 16

5.3 Post-installation check .................. 20

6 Electrical connection .............. 22

6.1 Connection conditions .................. 22

6.2 Connecting the measuring device .......... 24

6.3 Post-connection check .................. 24

7 Commissioning .................... 26

7.1 Preparatory steps ...................... 26

7.2 Function check ....................... 26

7.3 Switching ON the measuring device ........ 26

7.4 Switching OFF the measuring device ........ 30

8 Maintenance ...................... 31

8.1 Maintenance schedule .................. 31

8.2 Maintenance tasks ..................... 31

8.3 Measuring and test equipment ............ 35

8.4 Endress+Hauser services ................ 35

9 Emergency procedure .............. 36

9.1 Objective and overview .................. 36

9.2 Emergency procedure .................. 36

9.3 Notification to authority ................. 37

10 Repair ............................ 38

10.1 General notes ........................ 38

10.2 Spare parts .......................... 38

10.3 Endress+Hauser services ................ 38

10.4 Return .............................. 38

10.5 Disposing of the measuring device ......... 40

About this document Source container FQG66

4 Endress+Hauser

1 About this document

1.1 Document function

These Operating Instructions provide all of the information that is required in various

phases of the life cycle of the device including:

• Product identification

• Incoming acceptance

• Storage

• Installation

• Connection

• Operation

• Commissioning

• Troubleshooting

• Maintenance

• Disposal

1.2 Symbols used

1.2.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.2.2 Symbols for certain types of information and graphics

Radiation symbol

Warns against radioactive substances or ionizing radiation

Permitted

Procedures, processes or actions that are permitted

Preferred

Procedures, processes or actions that are preferred

Forbidden

Procedures, processes or actions that are forbidden

Tip

Indicates additional information

Reference to documentation

Reference to graphic

Notice or individual step to be observed

Source container FQG66 About this document

Endress+Hauser 5

Series of steps

Result of a step

1, 2, 3, ...

Item numbers

A, B, C, ...

Views

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions

1.3 Documentation

The following documentation types are available in the Downloads section of the Endress

+Hauser website (www.endress.com/downloads):

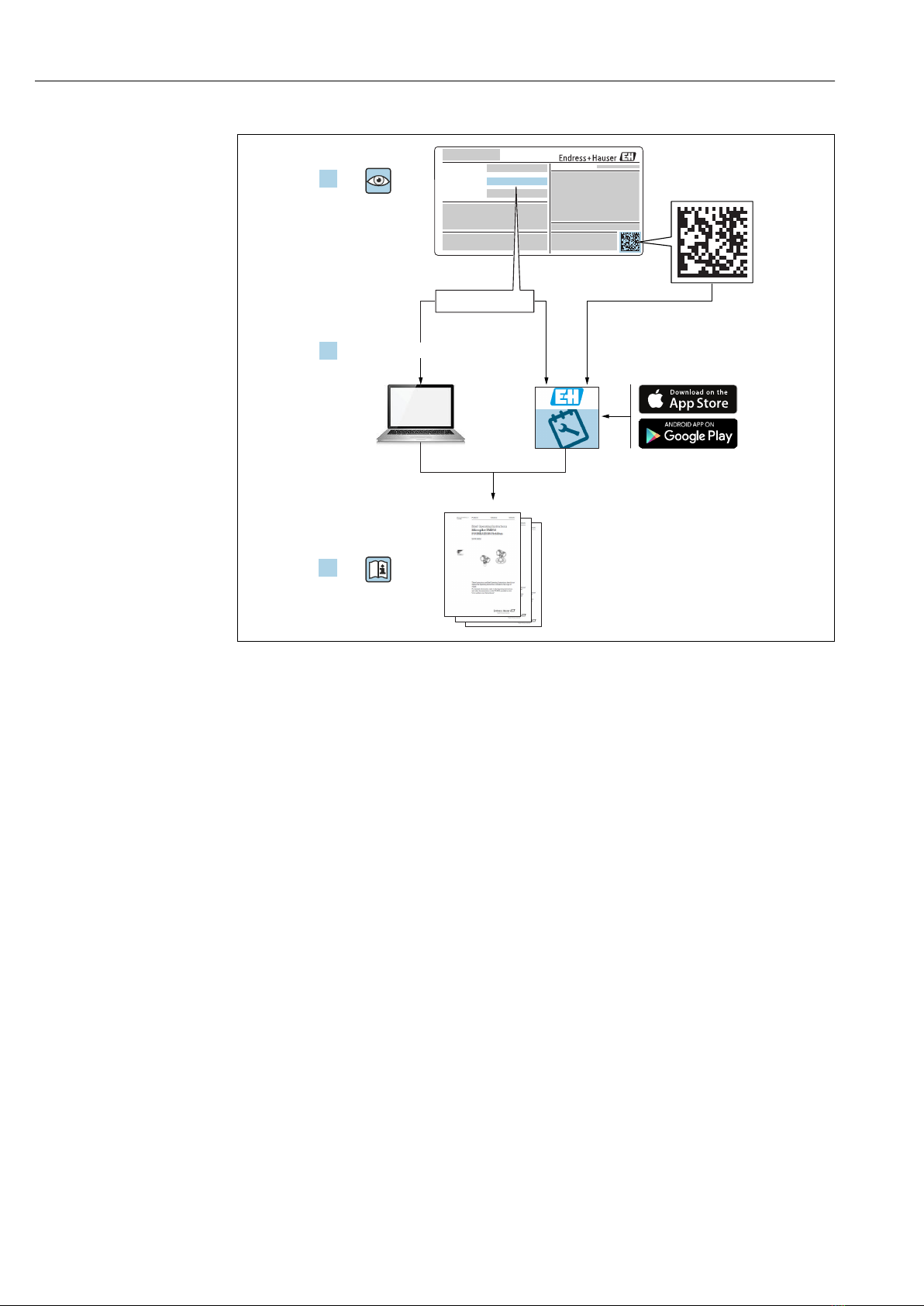

For an overview of the scope of the associated Technical Documentation, refer to the

following:

•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number

from nameplate

•Endress+Hauser Operations App: Enter the serial number from the nameplate or

scan the 2D matrix code (QR code) on the nameplate

1.3.1 Technical Information (TI)

Planning aid

The document contains all the technical data on the device and provides an overview of

the accessories and other products that can be ordered for the device.

1.3.2 Brief Operating Instructions (KA)

Guide that takes you quickly to the 1st measured value

The Brief Operating Instructions contain all the essential information from incoming

acceptance to initial commissioning.

Basic safety instructions Source container FQG66

6 Endress+Hauser

2 Basic safety instructions

2.1 Requirements for personnel

The personnel for installation, commissioning, diagnostics and maintenance must fulfill

the following requirements:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Personnel must be authorized by the plant owner/operator.

‣Be familiar with federal/national regulations.

‣Before starting work: personnel must read and understand the instructions in the

manual and supplementary documentation as well as the certificates (depending on

the application).

‣Personnel must follow instructions and comply with general policies.

The operating personnel must fulfill the following requirements:

‣Personnel are instructed and authorized according to the requirements of the task by

the facility's owner-operator.

‣Personnel follow the instructions in this manual.

2.2 Designated use

The source containers described in this document contain the radioactive source, which is

used for radiometric point level measurement, level measurement and density

measurement. They screen the radiation from the surrounding environment and allow it

to be emitted almost unattenuated in the direction of measurement only. In order to

guarantee the screening effect and rule out damage to the radiation source, it is essential

to comply strictly with all the instructions provided in these operating instructions for

mounting and operating the unit, as well as all legal regulations surrounding radiation

protection. Endress+Hauser does not accept any responsibility for damage caused by

incorrect use.

When moving or changing the location of the source container, it is absolutely essential to

switch the container to the "AUS/OFF" position (radiation source is switched off).

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

2.4 Operational safety

Risk of injury!

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for interference-free operation of the device.

Modifications to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers and render the product approval null and void:

‣If modifications are nevertheless required, consult with Endress+Hauser.

Repair

To ensure continued operational safety and reliability:

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of a device.

Source container FQG66 Basic safety instructions

Endress+Hauser 7

‣Use original spare parts and accessories from Endress+Hauser only.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet

state-of-the-art safety requirements, has been tested, and left the factory in a condition in

which it is safe to operate.

2.6 Basic instructions for use and storage

• Observe applicable regulations and national/international standards.

• Comply with radiation protection regulations when using, storing and working with the

radiometric measuring system.

• When storing and transporting the source container, pay attention to the center of

gravity and weight indicated on the packaging.

• Heed warning signs and observe safety zones.

• Install and operate the device according to the instructions in this document and as

specified by the regulatory authority.

• Never operate or store the device outside the specified parameters.

• When operating and storing the device, protect it against extreme influences (i.e.

chemical products, weather, mechanical impacts, vibrations etc.).

• Always secure the "AUS/OFF" switch position by using the lock pin and padlock.

• Before switching on the radiation, make sure that no-one is in the radiation zone (or

inside the product vessel). The radiation may only be switched ON by properly instructed

staff.

• Do not operate damaged or corroded devices. Seek the advice of the competent radiation

safety officer immediately if damage or corrosion occurs. Follow instructions.

• Conduct the required leak test according to the applicable regulations and instructions.

LWARNING

The device is exposed to strong vibrations or impact.

‣At regular intervals, please check that the fastening unit is securely seated and stable

and check the condition of the padlock or the retaining element.

LCAUTION

The plant is not in proper operating condition.

Radiation can escape.

‣Check the area around the device for signs of radiation.

‣Notify the radiation safety officer.

2.7 Hazardous area

NOTICE

The suitability of the radiometric measurement method and of the device for

applications in hazardous areas must be checked by the plant operator according to

the national rules and regulations that apply.

‣Compliance with national rules and regulations is mandatory.

The following must be observed:

• Avoid electrostatic charge at the device. Do not rub synthetic surfaces dry.

• Avoid friction sparks and impact sparks.

• The device must be integrated in the plant potential equalization system.

Basic safety instructions Source container FQG66

8 Endress+Hauser

LCAUTION

Source containers with a proximity switch or pneumatic drive are not suitable for

hazardous areas.

‣Do not use source containers with a proximity switch or pneumatic drive in hazardous

areas.

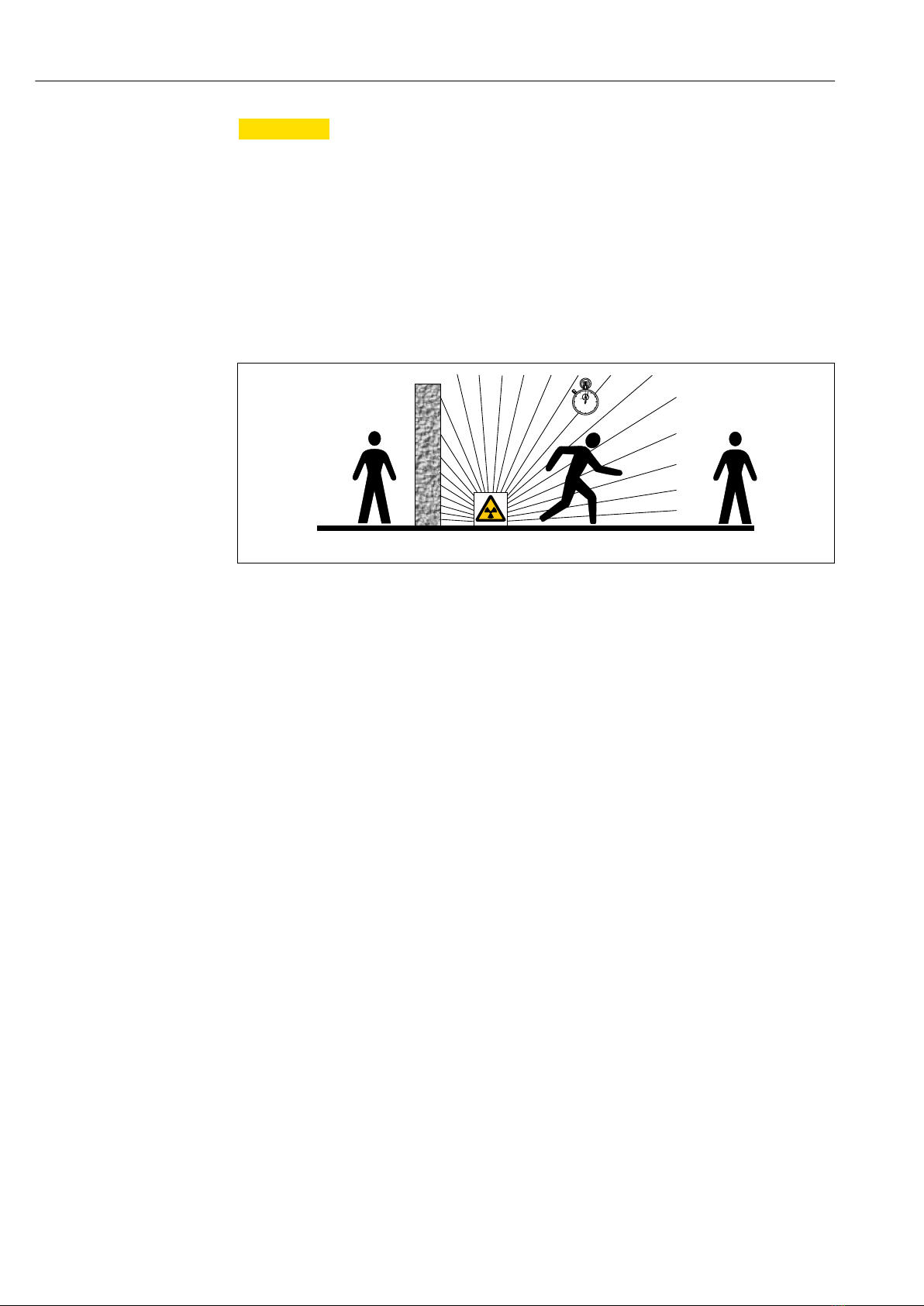

2.8 General instructions on radiation protection

When working with radioactive sources, avoid any unnecessary exposure to radiation. All

unavoidable radiation exposure must be kept to a minimum. Three basic concepts apply to

achieve this:

ABC

A0016373

A Shield

B Time

C Distance

2.8.1 Shield

Ensure the best possible screening between the radiation source and yourself and all other

persons. Source containers (e.g. FQG60, FQG61, FQG62, FQG63, FQG66) and all high-

density materials (lead, iron, concrete) can be used for effective screening purposes.

2.8.2 Time

The time spent in the exposed area should be kept to a minimum.

2.8.3 Distance

Keep as far away from the radiation source as possible. The local radiation dose rate

decreases in proportion to the square of the distance from the radiation source.

2.9 Legal regulations for radiation protection

The handling of radioactive emitters is legally controlled. The radiation protection

regulations of the country in which the plant is operated are of overriding importance and

must be strictly observed. In the Federal Republic of Germany, the current versions of the

Radiation Protection Act and the Radiation Protection Directive apply. The following points

derived from this Ordinance are particularly important for radiometric measurement:

2.9.1 Handling permit

A handling permit is required by the operator of a plant that uses gamma radiation. Permit

applications are made to the local state government or the authority responsible (State

Offices for Environmental Protection, Trade Inspection Offices, etc.). The Endress+Hauser

sales organization will be happy to help you obtain the handling permit.

Source container FQG66 Basic safety instructions

Endress+Hauser 9

2.9.2 Radiation safety officer

The plant operator must appoint a radiation safety officer (RSO) who has the necessary

specialist knowledge and who is responsible for observing the Radiation Protection

Directive and all radiation protection procedures. Endress+Hauser offers training courses

in which individuals can acquire the necessary specialist knowledge.

2.9.3 Control zone

Only persons who are exposed to radiation during the course of their job and are subject to

official personal dose monitoring procedures may work in control zones (i.e. areas where

the local dose rate exceeds a specific value). The limit values for the control zone are

specified in the current Radiation Protection Ordinance applicable for your area.

The Endress+Hauser sales organization will be pleased to provide further information on

radiation protection and regulations in other countries.

2.10 Supplementary safety instructions

Please observe the safety instructions in documents SD00292F/00 (for Canada) and

SD01561F/00 (for the United States).

Product description Source container FQG66

10 Endress+Hauser

3 Product description

3.1 Product design

Feature 020 "Version"

• A - "Manual operation"

Lock pin to secure the "EIN/ON" and "AUS/OFF" switch position

• B - "Manual operation + proximity switch"

Lock pin to secure the "EIN/ON" and "AUS/OFF" switch position, with proximity switch

• L - "Pneumat. drive + proximity switch"

• Pneumatic drive with proximity switch

• "EIN/ON" switch position: pressurized

• "AUS/OFF" switch position: unpressurized

A B, L

6 6

A0023516

A Manual operation

B Manual operation + proximity switch

L Pneumatic drive + proximity switch

1 Lifting eye

2 Radiation symbols: fitted when FQG66 is loaded

3 Source container

4 Padlock

5 Operating unit with protection cap

6 Bracket for mounting

7 Terminal housing

8 Sign holders (for fitting nameplates and connection for potential equalization)

Table of contents

Other Endress+Hauser Measuring Instrument manuals

Endress+Hauser

Endress+Hauser Deltabar S PMD70 Manual

Endress+Hauser

Endress+Hauser Proline Promass I 100 User manual

Endress+Hauser

Endress+Hauser Proline Prowirl D 200 Technical specifications

Endress+Hauser

Endress+Hauser Proline Promag 51 User manual

Endress+Hauser

Endress+Hauser Proline Promass A 300 PROFINET User manual

Endress+Hauser

Endress+Hauser Proline Promag 300 Installation instructions

Endress+Hauser

Endress+Hauser Memosens COS81E User manual

Endress+Hauser

Endress+Hauser promag 31 User manual

Endress+Hauser

Endress+Hauser Proline Promass 83 Installation instructions

Endress+Hauser

Endress+Hauser Liquiline Control CDC90 User manual

Endress+Hauser

Endress+Hauser Liquicap M FMI51 Installation instructions

Endress+Hauser

Endress+Hauser Proline Fieldcheck User manual

Endress+Hauser

Endress+Hauser Proline Promass series Technical specifications

Endress+Hauser

Endress+Hauser Micropilot NMR81 Technical specifications

Endress+Hauser

Endress+Hauser Cerabar M User manual

Endress+Hauser

Endress+Hauser Proline Promass 80 Technical specifications

Endress+Hauser

Endress+Hauser Proline Promass E 200 Manual

Endress+Hauser

Endress+Hauser Micropilot FMR20 Technical specifications

Endress+Hauser

Endress+Hauser Proline Prowirl 72 User manual

Endress+Hauser

Endress+Hauser Proline Promass 83 User manual

Endress+Hauser

Endress+Hauser Micropilot S FMR540 User manual

Endress+Hauser

Endress+Hauser Proline Promass 40E Manual

Endress+Hauser

Endress+Hauser Liquiline To Go CYM290 User manual

Endress+Hauser

Endress+Hauser Proline t-mass 65F Manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual

Acterna

Acterna MS1400 Operation manual

R&S

R&S ZPH manual
