Endress+Hauser Deltapilot S FMB70 Technical specifications
Products Solutions Services
Brief Operating Instructions
Deltapilot S FMB70
Hydrostatic level measurement
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information about the device can be found in the
Operating Instructions and the additional documentation.
Available for all device versions via
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
KA01023P/00/EN/19.22-00
71565952
2022-04-05
Associated documentation Deltapilot S FMB70
2 Endress+Hauser

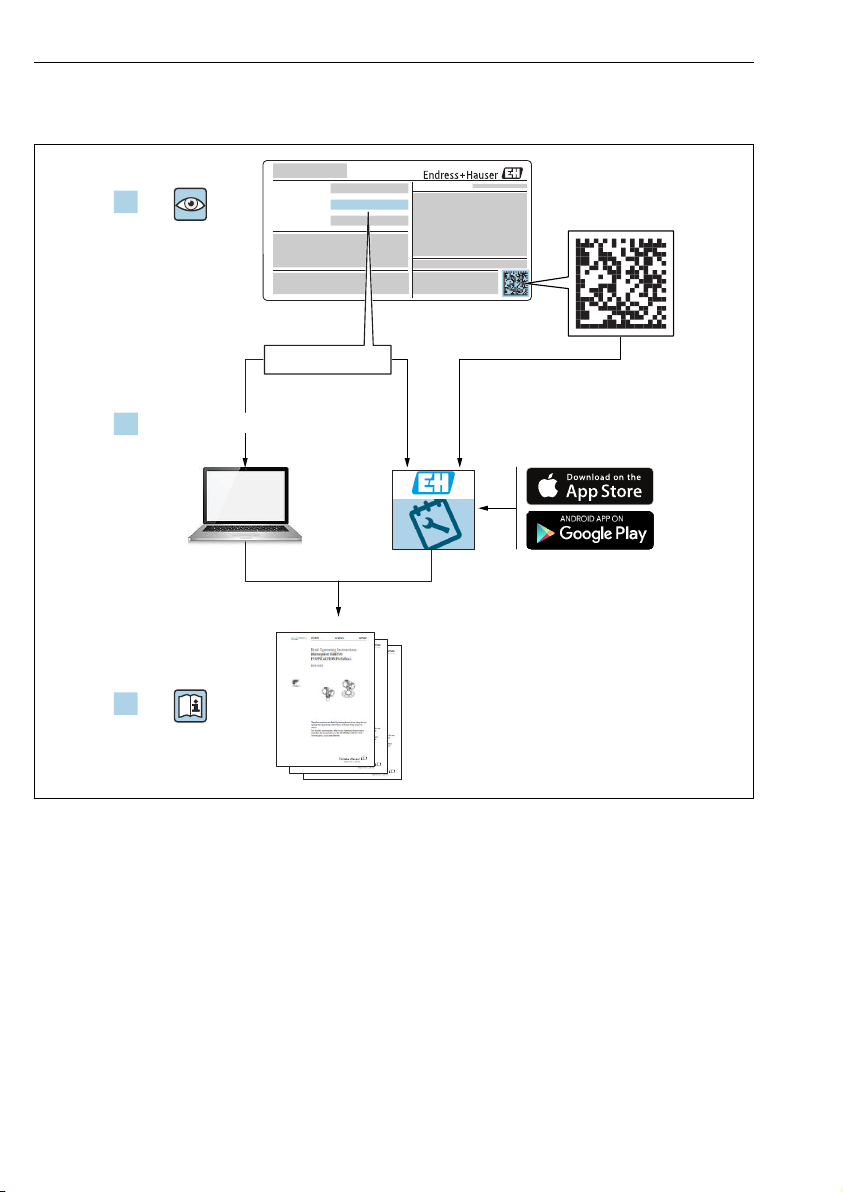

1 Associated documentation
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555
2 About this document
2.1 Document function
The Brief Operating Instructions contain all the essential information from incoming
acceptance to initial commissioning.
Deltapilot S FMB70 About this document
Endress+Hauser 3
2.2 Symbols
2.2.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
2.2.2 Electrical symbols
Protective earth (PE)
Ground terminals that must be connected to ground prior to establishing any other
connections.
The ground terminals are located on the interior and exterior of the device:
• Interior ground terminal: protective earth is connected to the mains supply.
• Exterior ground terminal: device is connected to the plant grounding system.
2.2.3 Symbols for certain types of information and graphics
Symbols for certain types of information and graphics
Permitted
Procedures, processes or actions that are permitted
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to documentation
A
Reference to page
Visual inspection
Notice or individual step to be observed
Basic safety instructions Deltapilot S FMB70
4 Endress+Hauser
1, 2, 3, ...
Item numbers
1.
,
2.
,
3.
Series of steps
Result of a step
2.3 Registered trademarks
•KALREZ®
Trademark of E.I. Du Pont de Nemours & Co., Wilmington, USA
•TRI-CLAMP®
Trademark of Ladish & Co., Inc., Kenosha, USA
•PROFIBUS PA®
Trademark of the PROFIBUS User Organization, Karlsruhe, Germany
•GORE-TEX®
Trademark of W.L. Gore & Associates, Inc., USA
3 Basic safety instructions
3.1 Requirements for the personnel
Personnel must meet the following requirements for their tasks:
‣Trained, qualified specialists must be suitably qualified to perform this function and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application)
‣Follow instructions and comply with basic conditions
3.2 Intended use
The Deltapilot S is a hydrostatic pressure sensor for measuring level and pressure.
3.2.1 Foreseeable incorrect use
The manufacturer is not liable for damage caused by improper or non-intended use.
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability.
Deltapilot S FMB70 Basic safety instructions
Endress+Hauser 5
3.3 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
‣Switch off the supply voltage before connecting the device.
3.4 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for the interference-free operation of the device.
Modifications to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers:
‣If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability:
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to the repair of an electrical device.
‣Use original spare parts and accessories from Endress+Hauser only.
Hazardous area
To eliminate danger to persons or the installation when the device is used in the hazardous
area (e.g. explosion protection, pressure vessel safety):
‣Check the nameplate to verify whether the ordered device can be used for the intended
purpose in the hazardous area.
‣Observe the specifications in the separate supplementary documentation, which is an
integral part of this manual.
3.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets the general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
Incoming acceptance and product identification Deltapilot S FMB70
6 Endress+Hauser
4 Incoming acceptance and product identification
4.1 Incoming acceptance
DELIVERY NOTE
1 = 2
A0016870
• Is the order code on the delivery note (1) identical to the order code on the product sticker
(2)?
• Are the goods undamaged?
• Do the data on the nameplate correspond to the order specifications and the delivery note?
• Is the documentation available?
• If required (see nameplate): are the Safety Instructions (XA) provided?
If one of these conditions is not fulfilled, please contact your Endress+Hauser sales office.
4.2 Storage and transport
4.2.1 Storage conditions
Use original packaging.
Store the measuring device in clean and dry conditions and protect from damage caused by
shocks (EN 837-2).
4.2.2 Transporting the product to the measuring point
LWARNING
Incorrect transport!
Housing and membrane may become damaged, and there is a risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or by the
process connection.
‣Follow the safety instructions and transport conditions for devices weighing more than 18
kg (39.6 lbs).
Deltapilot S FMB70 Mounting
Endress+Hauser 7
5 Mounting
5.1 Mounting requirements
5.1.1
Dimensions → see the Technical Information for Deltapilot S TI00416P, "Mechanical
construction" section.
5.1.2 General installation instructions
• Devices with a G 1 1/2 thread:
When screwing the device into the tank, the flat seal has to be positioned on the sealing
surface of the process connection. To avoid additional strain on the process membrane, the
thread should never be sealed with hemp or similar materials.
• Devices with NPT threads:
• Wrap Teflon tape around the thread to seal it.
• Tighten the device at the hexagonal bolt only. Do not turn at the housing.
• Do not overtighten the thread when screwing. Max. tightening torque:
20 to 30 Nm (14.75 to 22.13 lbf ft)
5.2 Mounting the device
• Due to the orientation of the Deltapilot S, a zero point shift may occur, i.e. when the vessel
is empty, the measured value does not display zero. You can correct this zero point shift
either directly on the device via the button or via remote operation.
• To ensure optimum readability of the local display, it is possible to rotate the housing by up
to 380°.
• The local display can be rotated in 90° stages.
• Endress+Hauser offers a mounting bracket for installation on pipes or walls.
5.2.1 Installation instructions
NOTICE
Damage to the device!
If a heated device is cooled during a cleaning process (e.g. by cold water), a vacuum develops
for a short time and, as a result, moisture can enter the sensor through the pressure
compensation element (1).
‣Mount the device with the pressure compensation element (1) pointing diagonally
downwards or to the side as much possible.
Mounting Deltapilot S FMB70
8 Endress+Hauser
1
1
1
1
A0031804
• Keep the pressure compensation and GORE-TEX® filter (1) free from contamination and
water.
• Do not clean or touch process membranes with hard or pointed objects.
• The device must be installed as follows in order to comply with the cleanability
requirements of the ASME-BPE (Part SD Cleanability):
A0031805
Deltapilot S FMB70 Mounting
Endress+Hauser 9
Level measurement
• Always install the device below the lowest measuring point.
• Do not install the device at the following positions:
• In the filling curtain
• In the tank outlet
• In the suction area of a pump
• At a point in the tank which could be affected by pressure pulses from the agitator
• The adjustment and functional test can be carried out more easily if you mount the device
downstream from a shutoff device.
• The Deltapilot S must also be insulated in the case of media that can harden when cold.
Pressure measurement in gases
Mount the Deltapilot S with shutoff device above the tapping point so that any condensate
can flow into the process.
Pressure measurement in vapors
• Mount the Deltapilot S with the water pocket pipe above the tapping point.
• Fill the water pocket pipe with liquid before commissioning. The water pocket pipe reduces
the temperature to almost ambient temperature.
Pressure measurement in liquids
Mount the Deltapilot S with the shutoff device below or at the same level as the tapping point.
5.2.2 Turning the housing
The housing can be rotated by up to 380° by loosening the setscrew.
T14 T15 T17
32
A0019996
1. T14 and T15 housing: loosen the setscrew with a 2 mm (0.08 in) Allen key. T17
housing: loosen the setscrew with a 3 mm (0.12 in) Allen key.
2. Rotate the housing (max. up to 380°).
3. Retighten the setscrew with 1 mm (0.74 lbf ft)1 Nm (0.74 lbf ft).
Electrical connection Deltapilot S FMB70
10 Endress+Hauser
5.2.3 Closing the housing covers
NOTICE
Devices with EPDM cover seal - leaking transmitter!
Mineral-, animal- or plant-based lubricants cause the EPDM cover seal to swell and the
transmitter to leak as a result.
‣It is not necessary to grease the thread due to the coating applied to the thread at the
factory.
NOTICE
The housing cover can no longer be closed.
Damaged thread!
‣When closing the housing covers make sure that the threads on the covers and the housing
are free from dirt, such as sand. If you encounter resistance when closing the covers, then
check the threads again for dirt.
Closing the covers on the hygienic stainless steel housing (T17)
The covers for the terminal compartment and electronics compartment are hooked into the
housing and closed with a screw in each case. These screws must be tightened finger-tight (2
Nm (1.48 lbf ft)) to the stop to ensure that the covers are securely seated and leak-tight.
6 Electrical connection
6.1 Connecting requirements
LWARNING
Risk of electric shock!
If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
‣In a wet environment, do not open the cover if voltage is present.
Other manuals for Deltapilot S FMB70
8
This manual suits for next models
2
Table of contents
Other Endress+Hauser Measuring Instrument manuals
Endress+Hauser
Endress+Hauser Prosonic M FMU41 User manual
Endress+Hauser
Endress+Hauser EngyVolt RV12 User manual
Endress+Hauser
Endress+Hauser Proline Promag D 400 HART User manual
Endress+Hauser
Endress+Hauser Proline Promass 83 User manual
Endress+Hauser
Endress+Hauser StamoLys CA 70 User manual
Endress+Hauser
Endress+Hauser Levelflex M FMP43 Manual
Endress+Hauser
Endress+Hauser Proline t-mass 65 PROFIBUS DP User manual
Endress+Hauser
Endress+Hauser RIA46 User manual
Endress+Hauser
Endress+Hauser Proline Promag 55 PROFIBUS PA User manual
Endress+Hauser
Endress+Hauser Proline t-mass 65 Technical specifications
Endress+Hauser
Endress+Hauser Cerabar S PMC71 User manual
Endress+Hauser
Endress+Hauser Proline Promass E 300 HART User manual
Endress+Hauser
Endress+Hauser Deltapilot S FMB70 User manual
Endress+Hauser
Endress+Hauser 2-Pack TDLAS Firmware update
Endress+Hauser
Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 User manual
Endress+Hauser
Endress+Hauser Cerabar S PMC71 Manual
Endress+Hauser
Endress+Hauser Proline Promass 80 User manual
Endress+Hauser
Endress+Hauser Proline Promag H 200 Technical specifications
Endress+Hauser
Endress+Hauser Prosonic M FMU40 User manual
Endress+Hauser
Endress+Hauser Soliwave FQR56 User manual
