Empire Comfort Systems DVX36DP31(N Quick start guide

LUXURY DIRECT VENT

GAS FIREPLACE HEATER

MODEL SERIES

MILLIVOLT STANDING PILOT

DVX36DP31(N,P)-1

DVX42DP31(N,P)-1

INTERMITTENT PILOT

DVX36DP71(N,P)-1

DVX42DP71(N,P)-1

REMOTE RF

DVX36DP91(N,P)-1

DVX42DP91(N,P)-1

UL FILE NO. MH30033

INSTALLATION INSTRUCTIONS

AND

OWNER’S MANUAL

WARNING: If not installed, operated and maintained

in accordance with the manufacturer’s instructions,

this product could expose you to substances in fuel or

from fuel combustion which can cause death or seri-

ous illness.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA only)

or mobile home, where not prohibited by state or local

codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certied

kit is used.

The Studio Series Direct Vent Zero

Clearance Gas Fireplace Heater

GAS-FIRED

Installer: Leave this manual with the appli-

ance.

Consumer:Retain this manual for future refer-

ence.

— Do not store or use gasoline or other amma-

ble vapors and liquids in the vicinity of this or

any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from

a neighbor’s phone. Follow the gas sup-

plier’s instructions.

• If you cannot reach your gas supplier, call

the re department.

— Installation and service must be performed by

a qualied installer, service agency or the gas

supplier.

WARNING: If the information in these instruc-

tions are not followed exactly, a re or explosion

may result causing property damage, personal

injury or loss of life.

Page 1

25613-0-0309Page 2

Important Safety Information .....................................................................................................................................3

Safety Information for Users of LP Gas .....................................................................................................................4

Requirements for Massachusetts ................................................................................................................................5

Introduction.................................................................................................................................................................6

Specication................................................................................................................................................................7

Fireplace Dimensions .................................................................................................................................................7

Clearances...................................................................................................................................................................8

Locating Fireplace ......................................................................................................................................................8

Gas Supply..................................................................................................................................................................9

Installation .......................................................................................................................................................... 10-13

Venting Fireplace - Top....................................................................................................................................... 14-17

Examples - Top Vent Run .........................................................................................................................................18

DVVK-4FV Direct Vent Termination Kit........................................................................................................... 19-25

DVVK-4RE Vent Kit Installation Instructions ................................................................................................... 26-28

DVVK-4F Flex Vent Instructions .............................................................................................................................29

Termination Clearances ............................................................................................................................................30

Vent Clearances.........................................................................................................................................................31

Vent System Identication........................................................................................................................................32

Framing and Finishing........................................................................................................................................ 33-34

Horizontal Termination.............................................................................................................................................35

DVVK-5F Flex Vent Instructions .............................................................................................................................36

Vertical Termination............................................................................................................................................ 37-38

Log Identication......................................................................................................................................................39

Log Placement (13 Log Set) ............................................................................................................................... 40-43

Operating Instructions......................................................................................................................................... 44-45

Standing Pilot Wiring Diagram.................................................................................................................................46

Standing Pilot Lighting Instructions.........................................................................................................................47

Standing Pilot Troubleshooting ................................................................................................................................48

Intermittent Pilot Operating Instructions ..................................................................................................................49

Intermittent Pilot Wiring Diagram............................................................................................................................49

Intermittent Pilot Lighting Instructions ....................................................................................................................50

Intermittent Pilot Troubleshooting...................................................................................................................... 51-55

RF Standing Pilot Operating Instructions.................................................................................................................56

RF Transmitter Functions .........................................................................................................................................57

RF Wiring Diagram ..................................................................................................................................................58

RF Standing Pilot Lighting Instructions ...................................................................................................................59

Maintenance and Service.................................................................................................................................... 60-61

Parts View .................................................................................................................................................................62

Parts List ............................................................................................................................................................. 63-64

FBB4 Variable Speed Blower Installation .......................................................................................................... 65-66

Junction Box Wiring Installation Instructions ..........................................................................................................66

Accent Lamp.............................................................................................................................................................67

Brick Liner Installation Instructions.........................................................................................................................67

Accessories ...............................................................................................................................................................68

Master Parts Distributor List.....................................................................................................................................69

How To Order Repair Parts.......................................................................................................................................69

Quick Reference Guide....................................................................................................................................... 70-71

Section Page

TABLE OF CONTENTS

25613-0-0309 Page 3

DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED

Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.

• If this appliance is installed directly on carpeting, tile

or other combustible material other than wood ooring

the appliance shall be installed on a metal or wood panel

extending the full width and depth of the appliance.

The base referred to above does not mean the reproof

base as used on wood stoves. The protection is for rugs

that are extremely thick and light colored tile.

• Children and adults should be alerted to the hazards of

high surface temperatures and should stay away to avoid

burns or clothing ignition.

• Young children should be carefully supervised when they

are in the same room as the appliance.

• Clothing or other ammable material should not be placed

on or near the appliance.

• Adequate accessibility clearances for servicing and proper

operation.

• This appliance must not share or be connected to a ue

serving a separate solid-fuel burning appliance.

• Keep the area around your appliance clear of combustible

materials, gasoline and other flammable vapor and

liquids.

• Under no circumstances should any solid fuels (wood, coal,

paper or cardboard etc.) be used in this appliance.

• The ow of combustion and ventilation air must not be

obstructed in any way.

• Due to high temperatures the appliance should be located out

of trafc and away from furniture and draperies.

• The glass front or any part removed for servicing the appliance

must be replaced prior to operating the appliance. Work should

be done by a qualied service person.

• Keep burner and control compartment clean.

• Vent cap is hot while replace is in operation.

• Installation and repair should be done by a qualied service

person. The appliance should be inspected before use

and at least annually by a qualied service person. More

frequent cleaning may be required due to excessive lint from

carpeting, bedding materials, etc. It is imperative that control

compartments, burners and circulating air passageways of the

appliance be kept clean.

• Do not put anything around the replace that will obstruct

the ow of ventilation air.

• Clearance in accordance with local installation codes and the

requirements of the gas supplier.

• Do keep the appliance area clear and free from combustible

material, gasoline and other ammable vapors and liquids.

• Do examine venting system periodically and replace damaged

parts.

• Do make a periodic visual check of pilot and burners. Clean

and replace damaged parts.

• CAUTION: The glass used in your replace is ceramic glass.

If the glass is cracked or damaged in any way, it should be

replaced only with a complete glass frame assembly from

Empire. See parts list on Pages 63 and 64 for ordering.

• Do not use this replace if any part has been under water.

Immediately call a qualied service technician to inspect the

heater and to replace any part of the control system and any

gas control which has been under water.

• Any safety screen or guard removed for servicing an appliance

must be replaced prior to operating the appliance.

IMPORTANT SAFETY INFORMATION

25613-0-0309Page 4

Some people cannot smell well. Some people cannot smell the

odor of the chemical put into the gas. You must nd out if you

can smell the odorant in propane. Smoking can decrease your

ability to smell. Being around an odor for a time can affect your

sensitivity or ability to detect that odor. Sometimes other odors

in the area mask the gas odor. People may not smell the gas odor

or their minds are on something else. Thinking about smelling a

gas odor can make it easier to smell.

The odorant in LP-Gas is colorless, and it can fade under some

circumstances. For example, if there is an underground leak, the

movement of the gas through soil can lter the odorant. Odorants

in LP-Gas also are subject to oxidation. This fading can occur if

there is rust inside the storage tank or in iron gas pipes.

The odorant in escaped gas can adsorb or absorb onto or into walls,

masonry and other materials and fabrics in a room. That will take

some of the odorant out of the gas, reducing its odor intensity.

LP-Gas may stratify in a closed area, and the odor intensity could

vary at different levels. Since it is heavier than air, there may be

more odor at lower levels. Always be sensitive to the slightest gas

odor. If you detect any odor, treat it as a serious leak. Immediately

go into action as instructed earlier.

Propane (LP-Gas) is a ammable gas which can cause res

and explosions. In its natural state, propane is odorless and

colorless. You may not know all the following safety precau-

tions which can protect both you and your family from an

accident. Read them carefully now, then review them point

by point with the members of your household. Someday when

there may not bea minute to lose, everyone’s safety will depend

on knowing exactly what to do. If, after reading the following

information, you feel you still need more information, please

contact your gas supplier.

• Learn to recognize the odor of LP-Gas. Your local LP-Gas

Dealer can give you a “Scratch and Sniff” pamphlet. Use it

to nd out what the propane odor smells like. If you suspect

that your LP-Gas has a weak or abnormal odor, call your

LP-Gas Dealer.

• If you are not qualied, do not light pilot lights, perform

service, or make adjustments to appliances on the LP-Gas

system. If you are qualied, consciously think about the odor

of LP-Gas prior to and while lighting pilot lights or perform-

ing service or making adjustments.

• Sometimes a basement or a closed-up house has a musty

smell that can cover up the LP-Gas odor. Do not try to light

pilot lights, perform service, or make adjustments in an area

where the conditions are such that you may not detect the

odor if there has been a leak of LP-Gas.

• Odor fade, due to oxidation by rust or adsorption on walls of

new cylinders and tanks, is possible. Therefore, people should

be particularly alert and careful when new tanks or cylinders

are placed in service. Odor fade can occur in new tanks, or

reinstalled old tanks, if they are lled and allowed to set too

long before relling. Cylinders and tanks which have been

out of service for a time may develop internal rust which will

cause odor fade. If such conditions are suspected to exist, a

periodic sniff test of the gas is advisable. If you have any

question about the gas odor, call your LP-Gas dealer. A

periodic sniff test of the LP-Gas is a good safety measure

under any condition.

• If, at any time, you do not smell the LP-Gas odorant and you

think you should, assume you have a leak. Then take the same

immediate action recommended above for the occasion when

you do detect the odorized LP-Gas.

• If you experience a complete “gas out,” (the container is un-

der no vapor pressure), turn the tank valve off immediately.

If the container valve is left on, the container may draw in

some air through openings such as pilot light orices. If this

occurs, some new internal rusting could occur. If the valve is

left open, then treat the container as a new tank. Always be

sure your container is under vapor pressure by turning it off

at the container before it goes completely empty or having it

relled before it is completely empty.

• Do not operate electric switches, light matches, use your

phone. Do not do anything that could ignite the gas.

• Get everyone out of the building, vehicle, trailer, or area. Do

that IMMEDIATELY.

• Close all gas tank or cylinder supply valves.

• LP-Gas is heavier than air and may settle in low areas such

as basements. When you have reason to suspect a gas leak,

keep out of basements and other low areas. Stay out until

reghters declare them to be safe.

• Use your neighbor’s phone and call a trained LP-Gas service

person and the re department. Even though you may not

continue to smell gas, do not turn on the gas again. Do not

re-enter the building, vehicle, trailer, or area.

• Finally, let the service man and reghters check for escaped

gas. Have them air out the area before you return. Properly

trained LP-Gas service people should repair the leak, then

check and relight the gas appliance for you.

SOME POINTS TO REMEMBER

NO ODOR DETECTED - ODOR FADE

LP-GAS WARNING ODOR

If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.

That’s your signal to go into immediate action!

SAFETY INFORMATION FOR USERS OF LP GAS

25613-0-0309 Page 5

REQUIREMENTS FOR MASSACHUSETTS

For all side wall horizontally vented gas fueled equipment installed

in every dwelling, building or structure used in whole or in part

for residential purposes, including those owned or operated by the

Commonwealth and where the side wall exhaust vent termination

is less than seven (7) feet above nished grade in the area of

the venting, including but not limited to decks and porches, the

following requirements shall be satised:

1. INSTALLATION OF CARBON MONOXIDE

DETECTORS.

At the time of installation of the side wall horizontal vented

gas fueled equipment, the installing plumber or gastter shall

observe that a hard wired carbon monoxide detector with an

alarm and battery back-up is installed on the oor level where

the gas equipment is to be installed. In addition, the installing

plumber or gastter shall observe that a battery operated

or hard wired carbon monoxide detector with an alarm is

installed on each additional level of the dwelling, building or

structure served by the side wall horizontal vented gas fueled

equipment. It shall be the responsibility of the property owner

to secure the services of qualied licensed professionals for

the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas

fueled equipment is installed in a crawl space or an attic,

the hard wired carbon monoxide detector with alarm and

battery back-up may be installed on the next adjacent

oor level.

b. In the event that the requirements of this subdivision can

not be met at the time of completion of installation, the

owner shall have a period of thirty (30) days to comply

with the above requirements; provided, however, that

during said thirty (30) day period, a battery operated

carbon monoxide detector with an alarm shall be

installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each

carbon monoxide detector as required in accordance with the

above provisions shall comply with NFPA 720 and be ANSI/

UL 2034 listed and IAS certied.

3. SIGNAGE. A metal or plastic identication plate shall be

permanently mounted to the exterior of the building at a

minimum height of eight (8) feet above grade directly in line

with the exhaust vent terminal for the horizontally vented gas

fueled heating appliance or equipment. The sign shall read,

in print size no less than one-half (1/2) inch in size, “GAS

VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side

wall horizontally vented gas fueled equipment shall not

approve the installation unless, upon inspection, the inspector

observes carbon monoxide detectors and signage installed in

accordance with the provisions of 248 CMR 5.08(2)(a) 1

through 4.

(b) EXEMPTIONS: The following equipment is exempt

from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled

“Equipment Not Required To Be Vented” in the

most current edition of NFPA 54 as adopted by the

Board; and

2. Product Approved side wall horizontally vented gas

fueled equipment installed in a room or structure

separate from the dwelling, building or structure

used in whole or in part for residential purposes.

(d) MANUFACTURER REQUIREMENTS - GAS

EQUIPMENT VENTING SYSTEM NOT PROVIDED.

When the manufacturer of a Product Approved side

wall horizontally vented gas fueled equipment does not

provide the parts for venting the ue gases, but identies

“special venting systems”, the following requirements

shall be satised by the manufacturer:

1. The referenced “special venting system” instructions

shall be included with the appliance or equipment

installation instructions; and

2. The “special venting systems” shall be Product

Approved by the Board, and the instructions for

that system shall include a parts list and detailed

installation instruction.

(e) A copy of all installation instructions for all Product

Approved side wall horizontally vented gas fueled

equipment, all venting instructions, all parts lists for

venting instructions, and/or all venting design instructions

shall remain with the appliance or equipment at the

completion of the installation.

25613-0-0309Page 6

Instructions to Installer

1. Installer must leave instruction manual with owner after

installation.

2. Installer must have owner ll out and mail warranty card supplied

with the replace.

3. Installer should show owner how to start and operate the

replace.

This direct vent gas replace heater is designed to operate with all

combustion air being siphoned from the outside of the building

and all exhaust gases expelled to the outside of the building. The

information contained in this manual pertains to all models and gas

control systems unless otherwise noted.

Warning: This unit is not for use with solid fuels.

Appliance Certication

This replace is design certied in accordance with American

National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by

Underwriters Laboratories as a Direct Vent Gas Fireplace Heater

and shall be installed according to these instructions.

Consult your local building code agency, prior to installation,

to ensure compliance with local codes-including permits and

inspections.

The replace, when installed, must be electrically grounded in

accordance with local codes or, in absence of local codes, with the

National Electric Code ANSI/NFPA 70 or Canadian Electric code,

CSA C22.1, if an external electrical source is utilized.

These models may be installed in a bedroom or bed-sitting room

in the U.S.A. and Canada.

Qualied Installing Agency

Installation and replacement of gas piping, gas utilization equipment

or accessories and repair and servicing of equipment shall be

performed only by a qualied agency. The term “qualied agency”

means any individual, rm, corporation or company which either in

person or through a representative is engaged in and is responsible

for (a) the installation or replacement of gas piping or (b) the

connection, installation, repair or servicing of equipment, who is

experienced in such work, familiar with all precautions required

and has complied with all the requirements of the authority having

jurisdiction.

State of Massachusetts: The installation must be made by

a licensed plumber or gas tter in the Commonwealth of

Massachusetts.

The installation must conform with local codes or, in the absence

of local codes, with the National Fuel Gas Code ANSI Z223.1/

NFPA 54* Natural Gas and Propane Installation Code, or CSA

B149.1 in Canada. *Available from the American National Standards Institute, Inc.

11 West 42nd St., New York, N.Y. 10036.

Warning: ANY CHANGE TO THIS FIREPLACE OR ITS

CONTROLS CAN BE DANGEROUS.

Improper installation or use of the replace can cause serious

injury or death from re, burns, explosions, or carbon

monoxide poisoning.

Any alteration of the original design, installed other than as

shown in these instructions or use with a type of gas not shown on

the rating plate is the responsibility of the person and company

making the change.

Important

All correspondence should refer to complete Model Number, Serial

Number and type of gas.

High Altitude

When installing this unit at an elevation above 2000 feet (in the

United States) it may be necessary to decrease the input rating by

changing the existing burner orice to a smaller size. Generally,

input should be reduced 4 percent for each 1000 feet above sea

level. However, if the heating value of the gas has been reduced,

this general rule may not apply. Check with local gas utility for

proper orice size identication.

Canadian High Altitude

Altitude: 0-4500 feet (0-1370 m)

When installing this unit at an elevation above 4500 feet (in Canada),

check with local authorities.

Consult your local gas utility for assistance in determining the

proper orice for location.

Preparation

This direct vent gas replace and its components are tested and safe

when installed in accordance with this Installation Manual. Report

to your dealer any parts damaged in shipment, specically check

glass condition. Do not install unit with damaged, incomplete, or

substitute parts. Read all instructions before starting installation

and follow these instructions carefully during installation to insure

maximum benet and safety. Failure to follow them will void your

warranty and may present a re hazard.

The warranty will be voided by, and the warranter disclaims any

responsibility for the following actions:

• Installation of any damaged fireplace or vent system

component.

• Modication of the replace or direct vent system.

• Installation other than as instructed by Empire Comfort Systems,

Inc.

• Improper positioning of the logs, glass door or decorative

rock.

• Installation and/or use of any component part not manufactured

or approved by manufacturer.

INTRODUCTION

25613-0-0309 Page 7

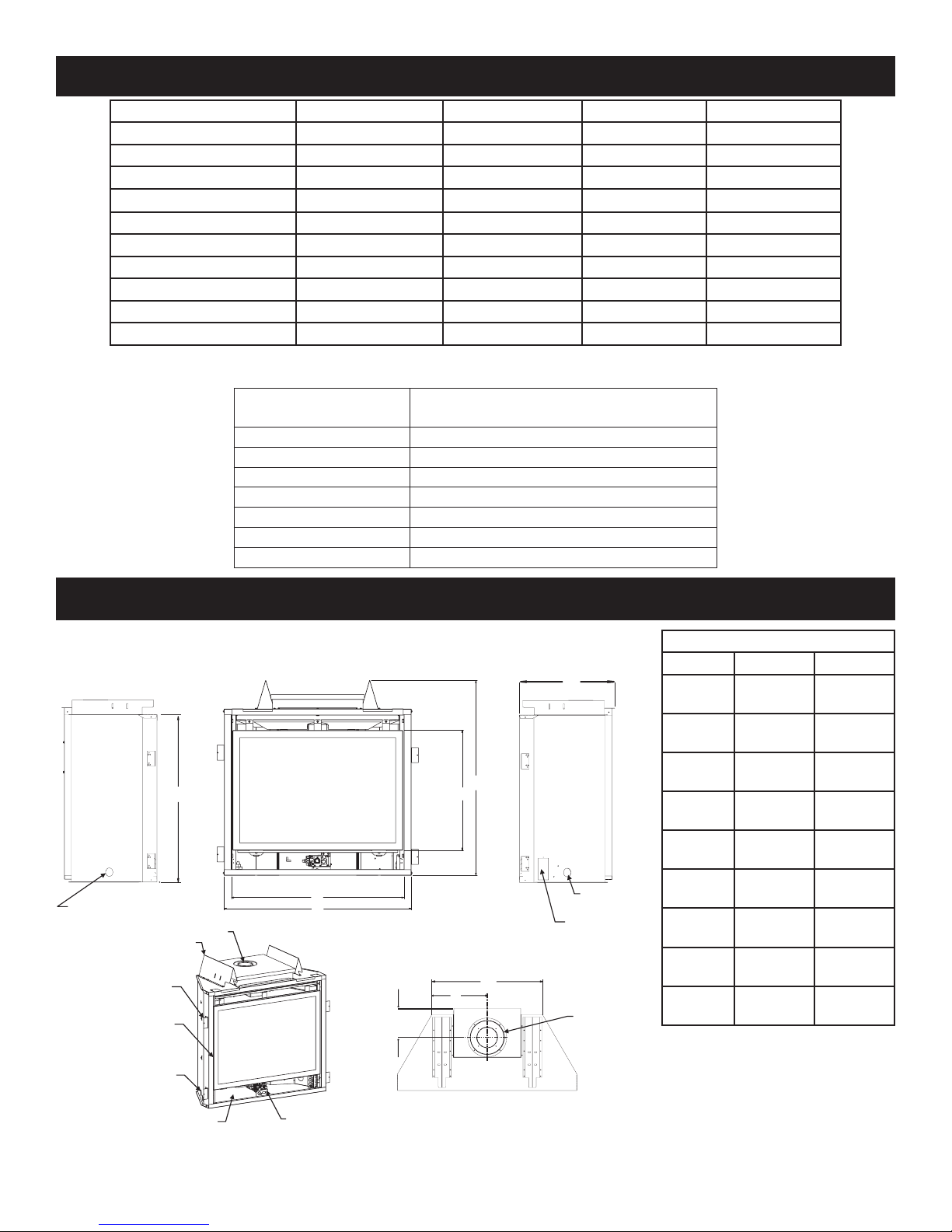

Figure 1

LEFT SIDE VIEW FRONT VIEW

RIGHT SIDE VIEW

ELECTRICAL

ACCESS

VENT COLLAR

TOP VIEW

GAS LINE ACCESS

GAS LINE

ACCESS

VENT COLLAR

STANDOFFS

NAILING

FLANGES

GLASS

FRAME

ASSEMBLY

GAS LINE

ACCESS

RATING PLATE

AND LABELS

GAS CONTROLS

AND SWITCHES

Remote Control Options

& Accessories

Description

FRBC Millivolt Battery Remote ON/OFF

FRBTC Millivolt Battery Remote Thermostat

TRW Millivolt WIRELESS Wall Thermostat

TMV Millivolt REED SWITCH Wall Thermostat

FWS-1 Millivolt Wall Switch

FREC Electric Remote

FBB4 Complete Blower Assembly (IP Only)

NOTE: Air shutter settings are factory minimum settings. Some venting congurations may require minor air shutter adjustments for

optimum performance.

SPECIFICATIONS

FIREPLACE DIMENSIONS

DVX36 NAT DVX36 LP DVX42 NAT DVX42 LP

Input Btu/hr Maximum 35,000 30,000 37,500 35,000

Btu/hr Minimum 24,000 21,000 26,000 24,000

KWH (Maximum) 10.3 8.8 11.0 10.3

(Minimum) 7.2 6.2 7.6 7.2

Orice #32 (P-211) 1.65 mm (P-250) #31 (P-209) #50 (P-245)

Air Shutter Opening 1/4"(6.4 mm) FULL OPEN 1/4" (6.4 mm) FULL OPEN

Height without standoff 34 3/4 (3.2 mm) 34 3/4" (3.2 mm) 34 3/4" (3.2 mm) 34 3/4" (3.2 mm)

Width 39 3/8" (1,000 mm) 39 3/8" (1,000 mm) 43 3/8" (1,101 mm) 43 3/8" (1,101 mm)

Depth 19 7/8" (505 mm) 19 7/8" (505 mm) 19 7/8" (505 mm) 19 7/8" (505 mm)

Gas Inlet Shutoff Valve (Pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT

DVX Dimensions

Dimension DVX36FP DVX42FP

A34 3/4"

882.7 mm

34 3/4"

882.7 mm

B39"

990.6 mm

43"

1092.2 mm

C19 7/8"

505 mm

19 7/8"

505 mm

D25"

635 mm

25"

635 mm

E36"

914.4 mm

40"

1016 mm

G26 1/2"

673.1 mm

26 1/2"

673.1 mm

H40 3/4"

1035.1 mm

40 3/4"

1035.1 mm

I13 1/4"

336.6 mm

13 1/4"

336.6 mm

J7 1/8"

181 mm

7 1/8"

181 mm

25613-0-0309Page 8

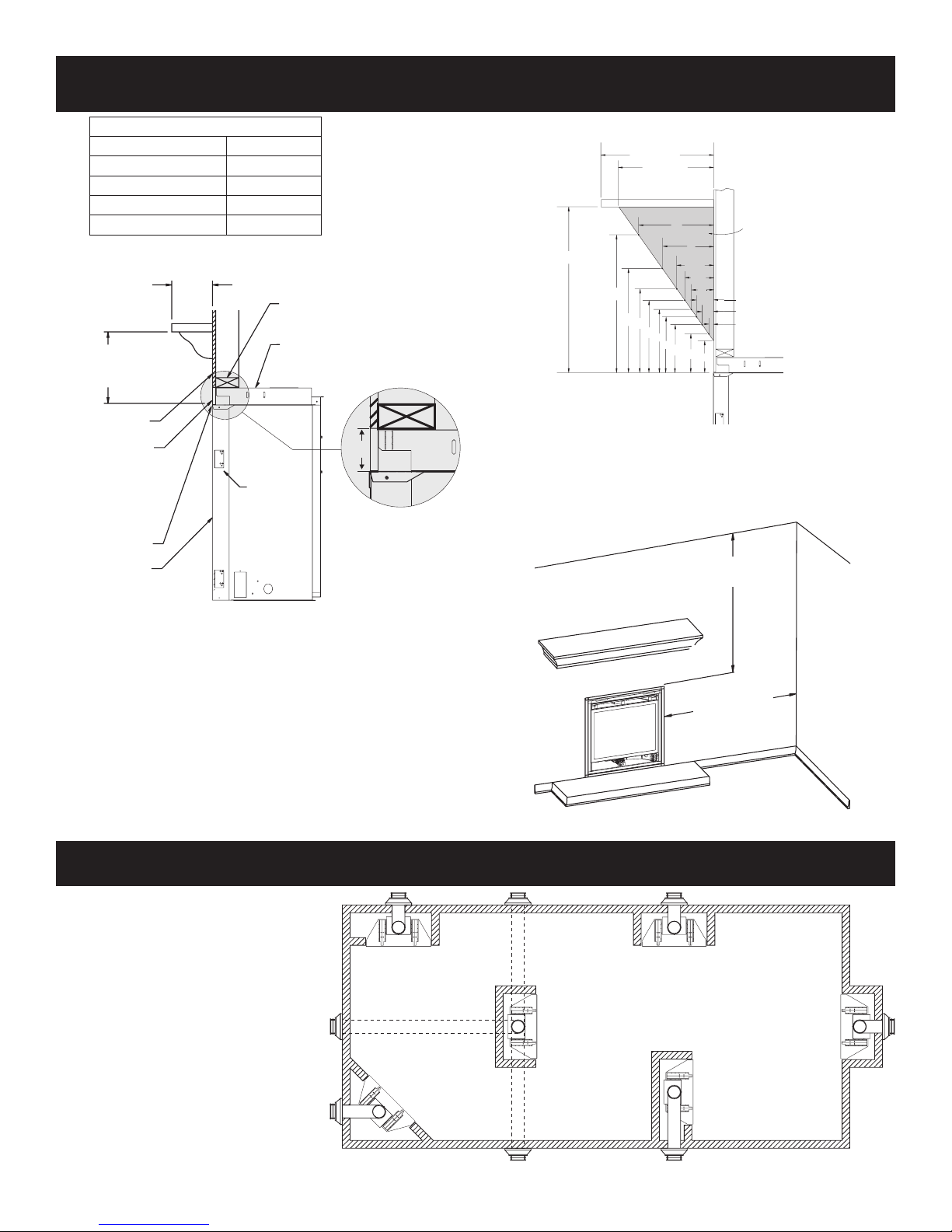

Mantel Chart (Figure 3)

Figure 3

Clearances (Figure 4)

Clearance from top front edge of replace to ceiling is 36"

Clearance from side of replace to adjacent sidewall is 6".

36”

(914mm)

6” (152mm)

Figure 4

Figure 5

Note: Island (C) and Room Divider (F)

installation is possible as long as the

horizontal portion of the vent system

(H) does not exceed 20 feet with a

minimum vertical run of 8 feet. See

details in Venting Section.

When you install your Direct Vent

Fireplacein(F) Roomdivider or (A)Flat

on wall corner positions, a minimum of

6 inches clearance must be maintained

from the perpendicular wall and the

front edge of the appliance.

Figure 2

Combustible Material

No greeting cards, stockings or ornamentation of any type should

be placed on or attached to the replace. The ow of heat can

ignite combustibles.

(A) CORNER

INSTALLATION

(E) ANGLED CORNER

INSTALLATION

(B) CABINET

INSTALLATION

(F) ROOM DIVIDER

INSTALLATION

(D) FLUSH WALL

INSTALLATION

Clearance to Combustibles

Back 0" (0 mm)

Side 0" (0 mm)

Floor 0" (0 mm)

Top Stand-off 0" (0 mm)

Top Framing Edge 6" (152 mm)

GLASS FRONT

6”

SEE MANTLE CHART FOR

MAXIMUM MANTLE DEPTH

2” x4” HEADER

STAND OFF

6” (152mm) HEIGHT

ABOVE TOPOF

FIREPLACE

NAILING

FLANGES

TOP FRAMING

LEDGE

NON-COMBUSTIBLE

FIRST 6” (SEE

MAGNIFIED VIEW)

FINISHED WALL

(COMBUSTIBLE)

SEE MANTLE CHART

FOR MINIMUM HEIGHT

OF MANTLE ABOVE UNIT

CLEARANCES

LOCATING FIREPLACE

MANTEL

19”

18 3/4”

17” 16”

15” 14”

13”12” 11”10”

2 1/4”

1 1/2”

3/4”

8”

6”

4 1/2”

3 3/4”

3”

12” (305mm)

10” (254mm)

TOP EDGEOF FIREPLACE

COMBUSTIBLE TRIM AND

MANTELS ALLOWED IN

SHADED AREA

25613-0-0309 Page 9

Figure 6

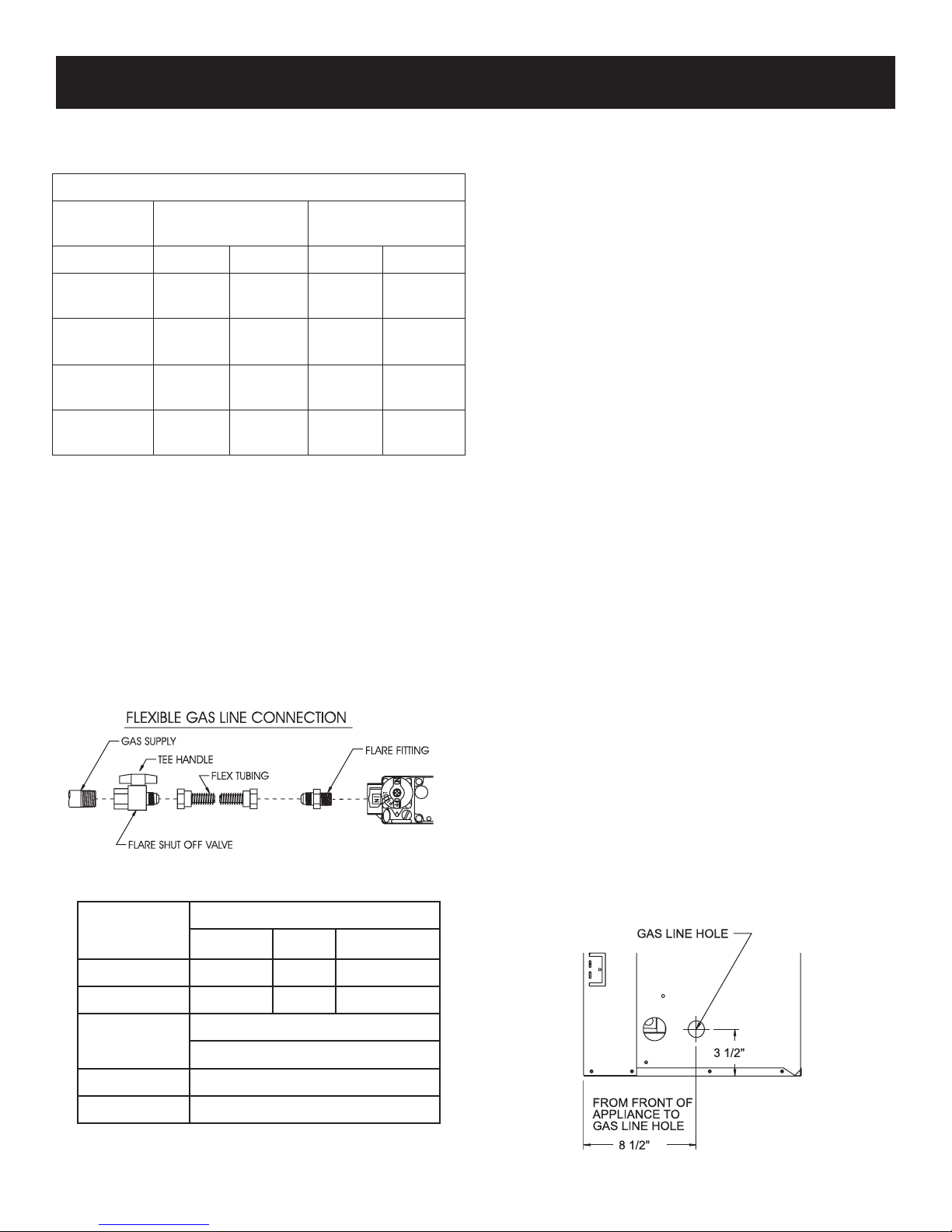

The gas pipeline can be brought in through the right or left side of

the appliance. Consult the current National Fuel Gas Code, ANSI

Z223.1 CAN/CGA-B149 (.1 or .2) installation code.

Installing a New Main Gas Cock

Each appliance should have its own manual gas cock.

A manual main gas cock should be located in the vicinity of the

unit. Where none exists, or where its size or location is not ad-

equate, contact your local authorized installer for installation or

relocation.

Compounds used on threaded joints of gas piping shall be resistant

to the action of liqueed petroleum gases. The gas lines must be

checked for leaks by the installer. This should be done with a soap

solution watching for bubbles on all exposed connections, and if

unexposed, a pressure test should be made.

Never use an exposed ame to check for leaks. Appliance must

be disconnected from piping at inlet of control valve and pipe

capped or plugged for pressure test. Never pressure test with

appliance connected; control valve will sustain damage!

NOTE: The millivolt gas controls are equipped with a captured

screw type pressure test point, therefore it is not necessary to provide

a 1/8" test point up stream of the control.

When using copper or ex connector use only approved ttings.

The appliance and it’s individual shut off valve must be disconnected

from supply piping system during any pressure testing of that system

at test pressures in excess of 1/2 psig (3.5kPa).

The appliance must be isolated from the gas supply piping system

by closing its individual manual shut off valve during any pressure

testing of the gas supply piping system at test pressures equal to or

less than 1/2 psig (3.5kPa).

Attention! If one of the procedures results in pressures in excess

of 1/2 psig (14" w.c.) (3.5 kPa) on the replace gas valve, it will

result in a hazardous condition.

Checking Manifold Pressures

Both Propane and Natural gas valves have a built-in pressure

regulator in the gas valve. Natural gas models will have a manifold

pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet

with the inlet pressure to the valve from a minimum of 4.5" w.c.

(1.120kPa) for the purpose of input adjustment to a maximum of

14.0" w.c. (3.484kPa). Propane gas models will have a manifold

pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet

with the inlet pressure to the valve from a minimum of 10.8" w.c.

(2.68kPa) for the purpose of input adjustment to a maximum of

14.0" w.c. (3.484kPa).

Figure 7

Gas Supply Pressure (inches w.c.)

Minimum Normal Maximum

Natural Gas 4.5" 7.0" *14.0"

LP (Propane) 10.8" 11.0" 14.0"

Manifold Pressure (inches w.c.)

Normal (HI)

Natural Gas 3.5"

LP (Propane) 10.0"

Note: Never use plastic pipe. Check to conrm whether your local

codes allow copper tubing or galvanized.

Note: Since some municipalities have additional local codes, it is

always best to consult your local authority and installation code.

The use of the following gas connectors is recommended:

— ANS Z21.24 Appliance Connectors of Corrugated Metal Tubing

and Fittings.

— ANS Z21.45 Assembled Flexible Appliance Connectors of

Other Than All-Metal Construction

The above connectors may be used if acceptable by the authority

having jurisdiction. The state of Massachusetts requires that a exible

appliance connector cannot exceed three feet in length.

Recommended Gas Pipe Diameter

Pipe Length Schedule 40 Pipe

Inside Diameter

Tubing, Type L

Outside Diameter

Nat. L.P. Nat. L.P.

0-10ft

0-3m

1/2"

12.7 mm

3/8"

9.5 mm

1/2"

12.7 mm

3/8"

9.5 mm

11-40ft

4-12m

1/2"

12.7 mm

1/2"

12.7 mm

5/8"

15.9 mm

1/2"

12.7 mm

41-100ft

13-30m

1/2"

12.7 mm

1/2"

12.7 mm

3/4"

19 mm

1/2"

12.7 mm

101-150ft

31-46m

3/4"

19 mm

1/2"

12.7 mm

7/8"

22.2 mm

3/4"

1.9 mm

*NOTE: Remote "RF" Models - 10.5" w.c. maximum

GAS SUPPLY

25613-0-0309Page 10

Framing and Finishing

1. Choose unit location.

2. Frame in replace with a header across the top. It is important to

allow for nished face when setting the depth of the frame.

3. Attach replace to frame using adjustable nailing ange. Preset

depth to suit facing material (adjustable to 3/8", 1/2" or 3/4" depths).

Note: Fireplace must mount ush to facing material. If facing

material requires more depth than 3/4" mark and drill two

(2) 1/8" holes into replace side at appropriate depth. See

Figure 10.

4. Use (8) 1/2" hex-head screws supplied in hardware package,

to screw through slotted holes in drywall strip and then screw

into pre-drilled holes on replace side. Measure from face of

replace to face of drywall strip to determine nal depth.

Figure 8A

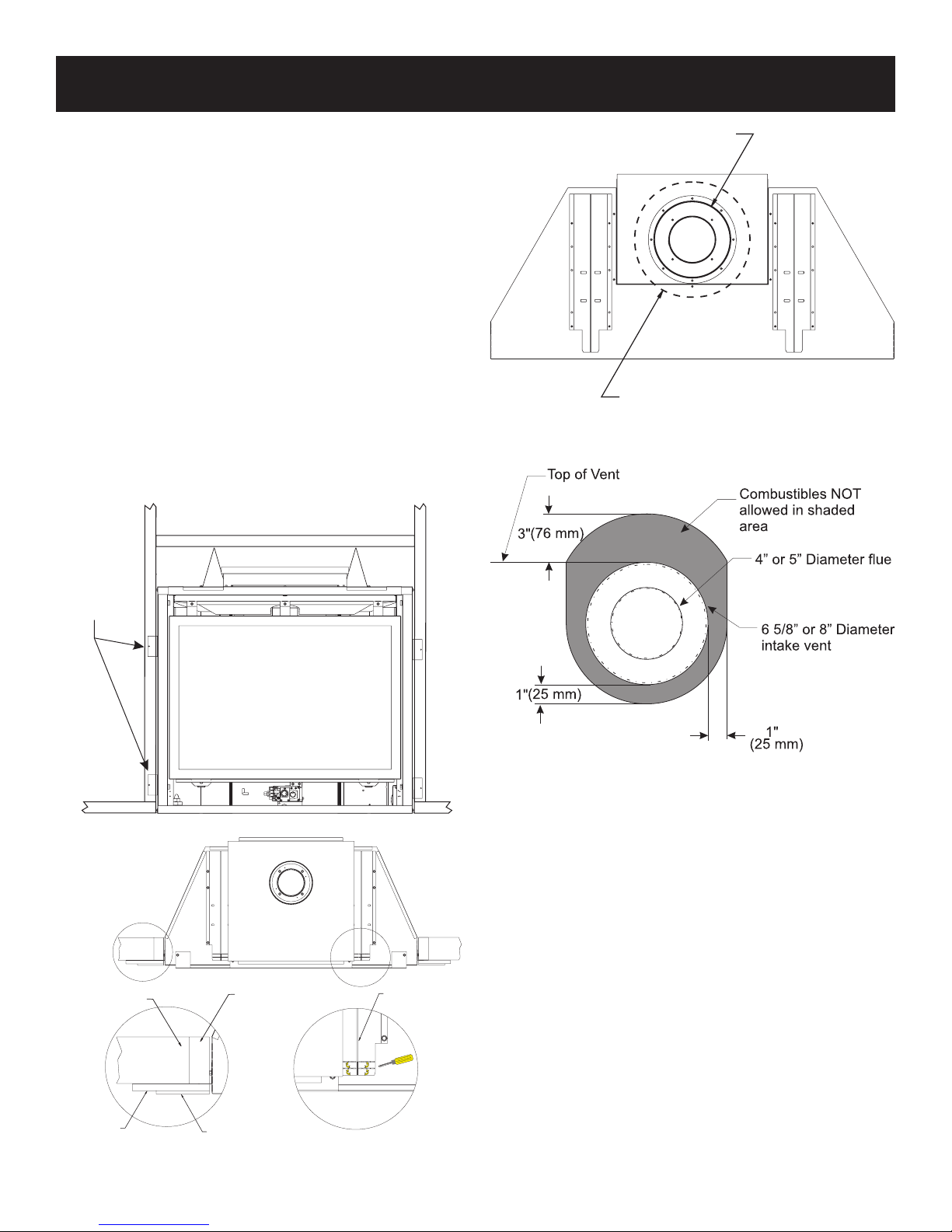

Vent Pipe Clearance

Note: Maintain one inch (1") of clearance around vertical vent

pipe. See Figure 9A. For horizontal vent, maintain a minimum 1"

clearance to the bottom and sides of the vent, and 3" clearance to

combustibles above the vent pipe. See Figure 9B.

Figure 9A

VENT PIPE

1" MINIMUM CLEARANCE AROUND VENT PIPE

USE OUTER

(4) FLANGES

FOR 1/2”

DRYWALL

Figure 9B

INSTALLATION

2” X4” STUD

2” X4” BOTTOM

PLATE

FINISHED WALL FINISHED SURFACE

(TILE, ETC.)

TOPSTANDOFF

Figure 8B

This manual suits for next models

Table of contents

Other Empire Comfort Systems Indoor Fireplace manuals

Empire Comfort Systems

Empire Comfort Systems DVLT series Quick start guide

Empire Comfort Systems

Empire Comfort Systems ONR-24-1 Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFP36SP32EN-2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems B3STHK18STN-1 Quick start guide

Empire Comfort Systems

Empire Comfort Systems EMBF11S Series User manual

Empire Comfort Systems

Empire Comfort Systems vfp36pp32EN-2vfp36pp32Ep-2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFP36SP32E Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVCP36PP30 Series Quick start guide

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Quick start guide

Empire Comfort Systems

Empire Comfort Systems OP32FB2MF-1 User manual

Empire Comfort Systems

Empire Comfort Systems DVCP32BP30N-4 User manual

Empire Comfort Systems

Empire Comfort Systems BVD34FP30(F Quick start guide

Empire Comfort Systems

Empire Comfort Systems MILLIVOLT DVD32FP30N-3 User manual

Empire Comfort Systems

Empire Comfort Systems VFD26FM(2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems Boulevard DVLL60BP90K-2 User manual

Empire Comfort Systems

Empire Comfort Systems VFP36PP32EP-2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFLL48SP(3 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVP42FP3(0 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVP48FP30 Quick start guide

Empire Comfort Systems

Empire Comfort Systems LSU24RR-2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems BFM18MTN Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVD32FP34N-2 User manual

Empire Comfort Systems

Empire Comfort Systems DVCT36CBP User manual

Empire Comfort Systems

Empire Comfort Systems DF28GBL-1 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
