Empire Comfort Systems DVP42FP3(0 Quick start guide

Page 117375-10-0706

DIRECT VENT

GAS FIREPLACE HEATER

MODEL SERIES

MILLIVOLT STANDING PILOT

DVP42FP3(0,1,2,3)(N,P)-1

DVP48FP3(0,1,2,3)(N,P)-1

INTERMITTENT PILOT

DVP42FP7(0,1,2,3)(N,P)-1

DVP48FP7(0,1,2,3)(N,P)-1

REMOTE RF MODELS

DVP42FP9(1,3)(N,P)-1

DVP48FP9(1,3)(N,P)-1

EFFECTIVE DATE

JULY 2006

UL FILE NO. MH30033

INSTALLATION INSTRUCTIONS

AND

OWNER’S MANUAL

WARNING: If not installed, operated and maintained

in accordance with the manufacturer’s instructions,

this product could expose you to substances in fuel or

from fuel combustion which can cause death or seri-

ous illness.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA only)

or mobile home, where not prohibited by state or local

codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certiﬁed

kit is used.

The Tahoe Direct Vent Zero Clearance

Gas Fireplace Heater

- Do not store or use gasoline or other ﬂammable

vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS

● Do not try to light any appliance.

● Do not touch any electrical switch; do not use

any phone in your building.

● Immediately call your gas supplier from a

neighbors phone. Follow the gas supplier's

instructions.

● If you cannot reach your gas supplier, call the

ﬁre department.

- Installation and service must be performed by

a qualiﬁed installer, service agency, or the gas

supplier.

GAS-FIRED

Warning: If the information in this manual is not fol-

lowed exactly, a ﬁre or explosion may result causing

property damage, personal injury or loss of life.

Installer: Leave these instructions with the

consumer.

Consumer: Retain these instructions for future

use.

Page 2 17375-10-0706

Important Safety Information ......................................................................................................... 3

Safety Information for Users of LP Gas ......................................................................................... 4

Requirements for Massachusetts .................................................................................................... 5

Introduction ................................................................................................................................... 6

Speciﬁcations ................................................................................................................................. 7

Fireplace Dimensions ..................................................................................................................... 7

Clearances ...................................................................................................................................... 8

Locating Fireplace .......................................................................................................................... 8

Gas Supply ..................................................................................................................................... 9

Rear Vent Conversion/Vent Systems ............................................................................................ 10

Installation ..............................................................................................................................11-14

Venting Fireplace-Top Vent .....................................................................................................15-18

Venting Fireplace-Rear Vent ...................................................................................................19-20

Termination Clearances ................................................................................................................ 21

Vent Clearances ............................................................................................................................ 22

Vent System Identiﬁcation ........................................................................................................... 23

Framing and Finishing ............................................................................................................24-25

Horizontal Termination ................................................................................................................ 25

DVVK-5F Flex Vent .................................................................................................................... 26

Vertical Termination ...............................................................................................................27-28

Log Placement ............................................................................................................................. 29

Operating Instructions .............................................................................................................30-31

Wiring Diagram-Standing Pilot .................................................................................................... 32

Lighting Instructions-Standing Pilot ............................................................................................ 33

Troubleshooting-Standing Pilot ................................................................................................... 34

Intermittent Pilot Operating Instructions ...................................................................................... 35

Intermittent Pilot Wiring Instructions .......................................................................................... 35

Intermittent Pilot Lighting Instruction ......................................................................................... 36

Intermittent Pilot Troubleshooting ..........................................................................................37-40

RF Standing Pilot Operating Instructions .................................................................................... 41

RF Transmitter Functions ............................................................................................................. 42

RF Wiring Diagram ...................................................................................................................... 43

RF Standing Pilot Lighting Instructions ....................................................................................... 44

Maintenance and Service ............................................................................................................. 45

Parts View .................................................................................................................................... 46

Parts List ..................................................................................................................................47-48

FBB4 Optional Variable Speed Blower Installation ...............................................................49-50

Junction Box Wiring Installation Instruction ............................................................................... 51

Optional Brick Liner Installation Instruction ............................................................................... 51

Accessories ................................................................................................................................... 52

How To Order Repair Parts .......................................................................................................... 53

Service Notes ...........................................................................................................................53-56

Section Page

MAIN TITLE

Page 317375-10-0706

DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED

Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.

• If this appliance is installed directly on carpeting, tile

or other combustible material other than wood ﬂooring

the appliance shall be installed on a metal or wood panel

extending the full width and depth of the appliance.

The base referred to above does not mean the ﬁreproof

base as used on wood stoves. The protection is for rugs

that are extremely thick and light colored tile.

• Children and adults should be alerted to the hazards of

high surface temperatures and should stay away to avoid

burns or clothing ignition.

• Young children should be carefully supervised when they

are in the same room as the appliance.

• Clothing or other ﬂammable material should not be placed

on or near the appliance.

• Adequate accessibility clearances for servicing and proper

operation.

• This appliance must not share or be connected to a ﬂue

serving a separate solid-fuel burning appliance.

• Keep the area around your appliance clear of combustible

materials, gasoline and other flammable vapor and

liquids.

• Under no circumstances should any solid fuels (wood, coal,

paper or cardboard etc.) be used in this appliance.

• The ﬂow of combustion and ventilation air must not be

obstructed in any way.

• Due to high temperatures the appliance should be located

out of trafﬁc and away from furniture and draperies.

• The glass front or any part removed for servicing the appliance

must be replaced prior to operating the appliance. Work

should be done by a qualiﬁed service person.

• Keep burner and control compartment clean.

• Vent cap is hot while ﬁreplace is in operation.

• Installation and repair should be done by a qualiﬁed service

person. The appliance should be inspected before use

and at least annually by a qualiﬁed service person. More

frequent cleaning may be required due to excessive lint from

carpeting, bedding materials, etc. It is imperative that control

compartments, burners and circulating air passageways of

the appliance be kept clean.

• Do not put anything around the ﬁreplace that will obstruct

the ﬂow of ventilation air.

• Clearance in accordance with local installation codes and

the requirements of the gas supplier.

• Do keep the appliance area clear and free from combustible

material, gasoline and other ﬂammable vapors and liquids.

• Do examine venting system periodically and replace damaged

parts.

• Do make a periodic visual check of pilot and burners. Clean

and replace damaged parts.

• CAUTION: The glass used in your ﬁreplace is tempered glass.

If the glass is cracked or damaged in any way, it should be

replaced only with a complete glass frame assembly from

Empire. See parts list on Pages 47 and 48 for ordering.

• Do not use this ﬁreplace if any part has been under water.

Immediately call a qualiﬁed service technician to inspect the

heater and to replace any part of the control system and any

gas control which has been under water.

• Any safety screen or guard removed for servicing an appliance

must be replaced prior to operating the appliance.

IMPORTANT SAFETY INFORMATION

Page 4 17375-10-0706

Some people cannot smell well. Some people cannot smell the

odor of the chemical put into the gas. You must ﬁnd out if you

can smell the odorant in propane. Smoking can decrease your

ability to smell. Being around an odor for a time can affect your

sensitivity or ability to detect that odor. Sometimes other odors

in the area mask the gas odor. People may not smell the gas odor

or their minds are on something else. Thinking about smelling a

gas odor can make it easier to smell.

The odorant in LP-Gas is colorless, and it can fade under some

circumstances. For example, if there is an underground leak, the

movement of the gas through soil can ﬁlter the odorant. Odorants

in LP-Gas also are subject to oxidation. This fading can occur if

there is rust inside the storage tank or in iron gas pipes.

The odorant in escaped gas can adsorb or absorb onto or into walls,

masonry and other materials and fabrics in a room. That will take

some of the odorant out of the gas, reducing its odor intensity.

LP-Gas may stratify in a closed area, and the odor intensity could

vary at different levels. Since it is heavier than air, there may be

more odor at lower levels. Always be sensitive to the slightest gas

odor. If you detect any odor, treat it as a serious leak. Immediately

go into action as instructed earlier.

Propane (LP-Gas) is a ﬂammable gas which can cause ﬁres

and explosions. In its natural state, propane is odorless and

colorless. You may not know all the following safety precau-

tions which can protect both you and your family from an

accident. Read them carefully now, then review them point

by point with the members of your household. Someday when

there may not be a minute to lose, everyone’s safety will depend

on knowing exactly what to do. If, after reading the following

information, you feel you still need more information, please

contact your gas supplier.

• Learn to recognize the odor of LP-Gas. Your local LP-Gas

Dealer can give you a “Scratch and Sniff” pamphlet. Use it to

ﬁnd out what the propane odor smells like. If you suspect that

your LP-Gas has a weak or abnormal odor, call your LP-Gas

Dealer.

• If you are not qualiﬁed, do not light pilot lights, perform service,

or make adjustments to appliances on the LP-Gas system. If

you are qualiﬁed, consciously think about the odor of LP-Gas

prior to and while lighting pilot lights or performing service

or making adjustments.

• Sometimes a basement or a closed-up house has a musty smell

that can cover up the LP-Gas odor. Do not try to light pilot

lights, perform service, or make adjustments in an area where

the conditions are such that you may not detect the odor if

there has been a leak of LP-Gas.

• Odor fade, due to oxidation by rust or adsorption on walls of

new cylinders and tanks, is possible. Therefore, people should

be particularly alert and careful when new tanks or cylinders

are placed in service. Odor fade can occur in new tanks, or

reinstalled old tanks, if they are ﬁlled and allowed to set too

long before reﬁlling. Cylinders and tanks which have been

out of service for a time may develop internal rust which will

cause odor fade. If such conditions are suspected to exist, a

periodic sniff test of the gas is advisable. If you have any

question about the gas odor, call your LP-Gas dealer. A

periodic sniff test of the LP-Gas is a good safety measure

under any condition.

• If, at any time, you do not smell the LP-Gas odorant and you

think you should, assume you have a leak. Then take the same

immediate action recommended above for the occasion when

you do detect the odorized LP-Gas.

• If you experience a complete “gas out,” (the container is under

no vapor pressure), turn the tank valve off immediately. If the

container valve is left on, the container may draw in some air

through openings such as pilot light oriﬁces. If this occurs,

some new internal rusting could occur. If the valve is left

open, then treat the container as a new tank. Always be sure

your container is under vapor pressure by turning it off at the

container before it goes completely empty or having it reﬁlled

before it is completely empty.

• Do not operate electric switches, light matches, use your phone.

Do not do anything that could ignite the gas.

• Get everyone out of the building, vehicle, trailer, or area. Do

that IMMEDIATELY.

• Close all gas tank or cylinder supply valves.

• LP-Gas is heavier than air and may settle in low areas such as

basements. When you have reason to suspect a gas leak, keep

out of basements and other low areas. Stay out until ﬁreﬁghters

declare them to be safe.

• Use your neighbor’s phone and call a trained LP-Gas service

person and the ﬁre department. Even though you may not

continue to smell gas, do not turn on the gas again. Do not

re-enter the building, vehicle, trailer, or area.

• Finally, let the service man and ﬁreﬁghters check for escaped

gas. Have them air out the area before you return. Properly

trained LP-Gas service people should repair the leak, then

check and relight the gas appliance for you.

SOME POINTS TO REMEMBER

NO ODOR DETECTED - ODOR FADE

LP-GAS WARNING ODOR

If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.

That’s your signal to go into immediate action!

SAFETY INFORMATION FOR USERS OF LP GAS

Page 517375-10-0706

REQUIREMENTS FOR MASSACHUSETTS

For all side wall horizontally vented gas fueled equipment installed

in every dwelling, building or structure used in whole or in part

for residential purposes, including those owned or operated by the

Commonwealth and where the side wall exhaust vent termination

is less than seven (7) feet above ﬁnished grade in the area of

the venting, including but not limited to decks and porches, the

following requirements shall be satisﬁed:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS.

At the time of installation of the side wall horizontal vented

gas fueled equipment, the installing plumber or gasﬁtter shall

observe that a hard wired carbon monoxide detector with an

alarm and battery back-up is installed on the ﬂoor level where

the gas equipment is to be installed. In addition, the installing

plumber or gasﬁtter shall observe that a battery operated

or hard wired carbon monoxide detector with an alarm is

installed on each additional level of the dwelling, building or

structure served by the side wall horizontal vented gas fueled

equipment. It shall be the responsibility of the property owner

to secure the services of qualiﬁed licensed professionals for

the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas

fueled equipment is installed in a crawl space or an attic,

the hard wired carbon monoxide detector with alarm and

battery back-up may be installed on the next adjacent

ﬂoor level.

b. In the event that the requirements of this subdivision can

not be met at the time of completion of installation, the

owner shall have a period of thirty (30) days to comply

with the above requirements; provided, however, that

during said thirty (30) day period, a battery operated

carbon monoxide detector with an alarm shall be

installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each

carbon monoxide detector as required in accordance with the

above provisions shall comply with NFPA 720 and be ANSI/

UL 2034 listed and IAS certiﬁed.

3. SIGNAGE. A metal or plastic identiﬁcation plate shall be

permanently mounted to the exterior of the building at a

minimum height of eight (8) feet above grade directly in line

with the exhaust vent terminal for the horizontally vented gas

fueled heating appliance or equipment. The sign shall read,

in print size no less than one-half (1/2) inch in size, “GAS

VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side

wall horizontally vented gas fueled equipment shall not

approve the installation unless, upon inspection, the inspector

observes carbon monoxide detectors and signage installed in

accordance with the provisions of 248 CMR 5.08(2)(a) 1

through 4.

(b) EXEMPTIONS: The following equipment is exempt

from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled

“Equipment Not Required To Be Vented” in the

most current edition of NFPA 54 as adopted by the

Board; and

2. Product Approved side wall horizontally vented gas

fueled equipment installed in a room or structure

separate from the dwelling, building or structure

used in whole or in part for residential purposes.

(d) MANUFACTURER REQUIREMENTS - GAS

EQUIPMENT VENTING SYSTEM NOT PROVIDED.

When the manufacturer of a Product Approved side

wall horizontally vented gas fueled equipment does not

provide the parts for venting the ﬂue gases, but identiﬁes

“special venting systems”, the following requirements

shall be satisﬁed by the manufacturer:

1. The referenced “special venting system” instructions

shall be included with the appliance or equipment

installation instructions; and

2. The “special venting systems” shall be Product

Approved by the Board, and the instructions for

that system shal include a parts list and detailed

installation instruction.

(e) A copy of all installation instructions for all Product

Approved side wall horizontally vented gas fueled

equipment, all venting instructions, all parts lists for

venting instructions, and/or all venting design instructions

shall remain with the appliance or equipment at the

completion of the installation.

Page 6 17375-10-0706

Instructions to Installer

1. Installer must leave instruction manual with owner after

installation.

2. Installer must have owner ﬁll out and mail warranty card supplied

with the ﬁreplace.

3. Installer should show owner how to start and operate the

ﬁreplace.

This direct vent gas ﬁreplace heater is designed to operate with all

combustion air being siphoned from the outside of the building

and all exhaust gases expelled to the outside of the building. The

information contained in this manual pertains to all models and gas

control systems unless otherwise noted.

Warning: This unit is not for use with solid fuels.

Appliance Certiﬁcation

This ﬁreplace is design certiﬁed in accordance with American

National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by

Underwriters Laboratories as a Direct Vent Gas Fireplace Heater

and shall be installed according to these instructions.

Consult your local building code agency, prior to installation,

to ensure compliance with local codes-including permits and

inspections.

The ﬁreplace, when installed, must be electrically grounded in

accordance with local codes or, in absence of local codes, with the

National Electric Code ANSI/NFPA 70 or Canadian Electric code,

CSA C22.1, if an external electrical source is utilized.

These models may be installed in a bedroom or bed-sitting room

in the U.S.A. and Canada.

Qualiﬁed Installing Agency

Installation and replacement of gas piping, gas utilization equipment

or accessories and repair and servicing of equipment shall be

performed only by a qualiﬁed agency. The term “qualiﬁed agency”

means any individual, ﬁrm, corporation or company which either in

person or through a representative is engaged in and is responsible

for (a) the installation or replacement of gas piping or (b) the

connection, installation, repair or servicing of equipment, who is

experienced in such work, familiar with all precautions required

and has complied with all the requirements of the authority having

jurisdiction.

State of Massachusetts: The installation must be made by

a licensed plumber or gas ﬁtter in the Commonwealth of

Massachusetts.

The installation must conform with local codes or, in the absence of

local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA

54* Natural Gas and Propane Installation Code, or CSA B149.1

in Canada. *Available from the American National Standards Institute, Inc. 11 West 42nd

St., New York, N.Y. 10036.

Warning: ANY CHANGE TO THIS FIREPLACE OR ITS

CONTROLS CAN BE DANGEROUS.

Improper installation or use of the ﬁreplace can cause serious

injury or death from ﬁre, burns, explosions, or carbon

monoxide poisoning.

Any alteration of the original design, installed other than as

shown in these instructions or use with a type of gas not shown on

the rating plate is the responsibility of the person and company

making the change.

Important

All correspondence should refer to complete Model Number, Serial

Number and type of gas.

High Altitude

When installing this unit at an elevation above 2000 feet (in the

United States) it may be necessary to decrease the input rating by

changing the existing burner oriﬁce to a smaller size. Generally,

input should be reduced 4 percent for each 1000 feet above sea

level. However, if the heating value of the gas has been reduced,

this general rule may not apply. Check with local gas utility for

proper oriﬁce size identiﬁcation.

Canadian High Altitude

Altitude: 0-4500 feet (0-1370 m)

When installing this unit at an elevation above 4500 feet (in Canada),

check with local authorities.

Consult your local gas utility for assistance in determining the

proper oriﬁce for location.

Preparation

This direct vent gas ﬁreplace and its components are tested and safe

when installed in accordance with this Installation Manual. Report

to your dealer any parts damaged in shipment, speciﬁcally check

glass condition. Do not install unit with damaged, incomplete, or

substitute parts. Read all instructions before starting installation

and follow these instructions carefully during installation to insure

maximum beneﬁt and safety. Failure to follow them will void your

warranty and may present a ﬁre hazard.

The warranty will be voided by, and the warranter disclaims any

responsibility for the following actions:

• Installation of any damaged fireplace or vent system

component.

• Modiﬁcation of the ﬁreplace or direct vent system.

• Installation other than as instructed by Empire Comfort Systems,

Inc.

• Improper positioning of the logs, glass door or decorative

rock.

• Installation and/or use of any component part not manufactured

or approved by manufacturer.

INTRODUCTION

Page 717375-10-0706 Figure 1

DVP42 DVP48

A 43"

1092mm

49"

1245mm

B 40"

1016mm

46"

1168mm

C 25 1/16"

636 mm

25 1/16"

636 mm

D 37 5/8"

956 mm

37 5/8"

956 mm

E 34 3/4"

883 mm

34 3/4"

883 mm

F 19 7/8"

505 mm

19 7/8"

505 mm

G 26"

660 mm

26"

660 mm

H 7 1/8"

181 mm

7 1/8"

181 mm

I 26 1/2"

826 mm

32 1/2"

826 mm

J 13 1/4"

337 mm

16 1/4"

413 mm

K 12 3/4"

324 mm

12 3/4"

324 mm

RIGHT SIDE VIEW

Remote Control Options &

Accessories

Description

FRBC Millivolt Batt. Remote ON/OFF

FRBTC Millivolt Batt. Remote T-Stat

TMW Millivolt WIRELESS Wall Thermostat

TRW Millivolt REED SWITCH Wall Thermostat

FWS-1 Direct Ignition/Millivolt Wall Switch

Venting Options Description

DVVK-5TS TOP VENT KIT (HORZ.) - 4½" to 6" wall

thickness (114.3mm to 152mm)

DVVK-5T top vent kit (horz.) - 8" to 12" wall thickness

(203mm to 305mm)

DVVK-5R rear vent kit (horz.) - 5" to 7" wall thickness

(203mm to 305mm)

DVVK-5V VERTICAL vent kit

DVVK-5F HORIZONTAL FLEX VENT KIT (4' FLEX)

(1.22M)

DVP42 DVP48

Input Btu/hr Maximum 28,000 30,000

Btu/hr Minimum (millivolt only) 19,000 20,500

KWH (Maximum) 8.2 8.8

(Minimum) 5.5 6.0

NAT.

Oriﬁce #38 (.1015)

P-203 #37 (.1040) P-213

Air Shutter Opening 1/8"(3.2mm) 1/8"(3.2mm)

Oriﬁce #52 (.0635")

P-213

1.65MM

P-250

Air Shutter Opening FULL OPEN FULL OPEN

Height without standoff 34 3/4"(3.2mm) 34 3/4"(3.2mm)

Width 43"(1092mm) 49"(1245mm)

Depth 19 7/8"(505mm) 19 7/8"(505mm)

Gas Inlet Shutoff Valve (Pipe) 1/2 NPT 1/2 NPT

NOTE: Air shutter settings

are factory minimum settings.

Some venting configurations

may require minor air shutter

adj ust men ts fo r op ti m um

performance.

SPECIFICATIONS

FIREPLACE DIMENSIONS

Page 8 17375-10-0706

Mantel Chart (Figure 3)

Figure 3

Clearances (Figure 4)

Clearance from top front edge of ﬁreplace to ceiling is 36"

Clearance from side of ﬁreplace to adjacent sidewall is 6".

(914mm)

Figure 4

15”

(381mm)

TOP EDGE OF FIREPLACE

12” (305mm)

10” (254mm)

MANTEL

COMBUSTIBLE TRIM AND MANTELS

ALLOWED IN SHADED AREA

4”

5”

6”

7”

8”

9”

11”

13 3/4”

3/4”

1 ½”

2 1/4”

3”

3 3/4”

4 ½”

6”

8”

3”

Figure 5

Note: Island (C) and Room Divider

(D) installation is possible as long

as the horizontal portion of the

vent system (H) does not exceed

20 feet with a minimum vertical

run of 8 feet. See details in Venting

Section.

When you install your Direct Vent

Fireplace in (D) Room divider or

(E) Flat on wall corner positions,

a minimum of 6 inches clearance

must be maintained from the

perpendicular wall and the front

edge of the appliance.

Figure 2

Combustible Material

No greeting cards, stockings or ornamentation of any type should

be placed on or attached to the ﬁreplace. The ﬂow of heat can

ignite combustibles.

CABINET

INSTALLATION

FLUSH WALL

INSTALLATION

ROOM DIVIDER

INSTALLATION

CORNER

INSTALLATION

ANGLED CORNER

INSTALLATION

ISLAND

INSTALLATION

Clearance to Combustibles

Back 0" (0 mm)

Side 0" (0 mm)

Floor 0" (0 mm)

Top Stand-off 0" (0 mm)

Top Framing Edge 3" (76 mm)

SEE MANTLE CHART FOR

MAXIMUM MANTLE DEPTH

NON-COMBUSTIBLE

FIRST 3 (SEE MAGNIFIED

VIEW)

NAILING

FLANGES

GLASS FRONT

TOP FRAMING

LEDGE

FINISHED WALL

(COMBUSTIBLE)

SEE MANTLE CHART

FOR MINIMUM HEIGHT

OF MANTLE ABOVE UNIT

2" x 4" HEADER

STAND OFF

3" (76 mm) HEIGHT

ABOVE TOP OF

FIREPLACE

”

CLEARANCES

LOCATING FIREPLACE

Page 917375-10-0706

Figure 6

The gas pipeline can be brought in through the right or left side of

the appliance. Consult the current National Fuel Gas Code, ANSI

Z223.1 CAN/CGA-B149 (.1 or .2) installation code.

Installing a New Main Gas Cock

Each appliance should have its own manual gas cock.

A manual main gas cock should be located in the vicinity of the

unit. Where none exists, or where its size or location is not ad-

equate, contact your local authorized installer for installation or

relocation.

Compounds used on threaded joints of gas piping shall be resistant

to the action of liqueﬁed petroleum gases. The gas lines must be

checked for leaks by the installer. This should be done with a soap

solution watching for bubbles on all exposed connections, and if

unexposed, a pressure test should be made.

Never use an exposed ﬂame to check for leaks. Appliance must

be disconnected from piping at inlet of control valve and pipe

capped or plugged for pressure test. Never pressure test with

appliance connected; control valve will sustain damage!

NOTE: The millivolt gas controls are equipped with a captured

screw type pressure test point, therefore it is not necessary to provide

a 1/8" test point up stream of the control.

On direct ignition valves, hex plugs may be replaced with hose ﬁttings

for pressure checks, then reinstalled before operating ﬁreplace.

When using copper or ﬂex connector use only approved ﬁttings.

The appliance and it’s individual shut off valve must be disconnected

from supply piping system during any pressure testing of that system

at test pressures in excess of 1/2 psig (3.5kPa).

The appliance must be isolated from the gas supply piping system

by closing its individual manual shut off valve during any pressure

testing of the gas supply piping system at test pressures equal to or

less than 1/2 psig (3.5kPa).

Attention! If one of the procedures results in pressures in excess

of 1/2 psig (14" w.c.) (3.5 kPa) on the ﬁreplace gas valve, it will

result in a hazardous condition.

Checking Manifold Pressures

Both Propane and Natural gas valves have a built-in pressure

regulator in the gas valve. Natural gas models will have a manifold

pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet

with the inlet pressure to the valve from a minimum of 4.5" w.c.

(1.120kPa) for the purpose of input adjustment to a maximum of

14.0" w.c. (3.484kPa). Propane gas models will have a manifold

pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet

with the inlet pressure to the

valve from a minimum of 10.8"

w.c. (2.68kPa) for the purpose of

input adjustment to a maximum

of 14.0" w.c. (3.484kPa).

Figure 7

Gas Supply Pressure (inches w.c.)

Minimum Normal Maximum

Natural Gas 4.5" 7.0" *14.0"

LP (Propane) 10.8" 11.0" *14.0"

Manifold Pressure (inches w.c.)

Normal (HI)

Natural Gas 3.5"

LP (Propane) 10.0"

Note: Never use plastic pipe. Check to conﬁrm whether your local

codes allow copper tubing or galvanized.

Note: Since some municipalities have additional local codes, it is

always best to consult your local authority and installation code.

The use of the following gas connectors is recommended:

— ANS Z21.24 Appliance Connectors of Corrugated Metal Tubing

and Fittings.

— ANS Z21.45 Assembled Flexible Appliance Connectors of

Other Than All-Metal Construction

The above connectors may be used if acceptable by the authority

having jurisdiction. The state of Massachusetts requires that a ﬂexible

appliance connector cannot exceed three feet in length.

Recommended Gas Pipe Diameter

Pipe Length Schedule 40 Pipe

Inside Diameter

Tubing, Type L

Outside Diameter

Nat. L.P. Nat. L.P.

0-10ft

0-3m

1/2"

12.7mm

3/8"

9.5mm

1/2"

12.7mm

3/8"

9.5mm

11-40ft

4-12m

1/2"

12.7mm

1/2"

12.7mm

5/8"

15.9mm

1/2"

12.7mm

41-100ft

13-30m

1/2"

12.7mm

1/2"

12.7mm

3/4"

19mm

1/2"

12.7mm

101-150ft

31-46m

3/4"

19mm

1/2"

12.7mm

7/8"

22.2mm

3/4"

1.9 mm

*NOTE: Remote "RF" Models - 10.5" w.c. maximum

GAS SUPPLY

Page 10 17375-10-0706

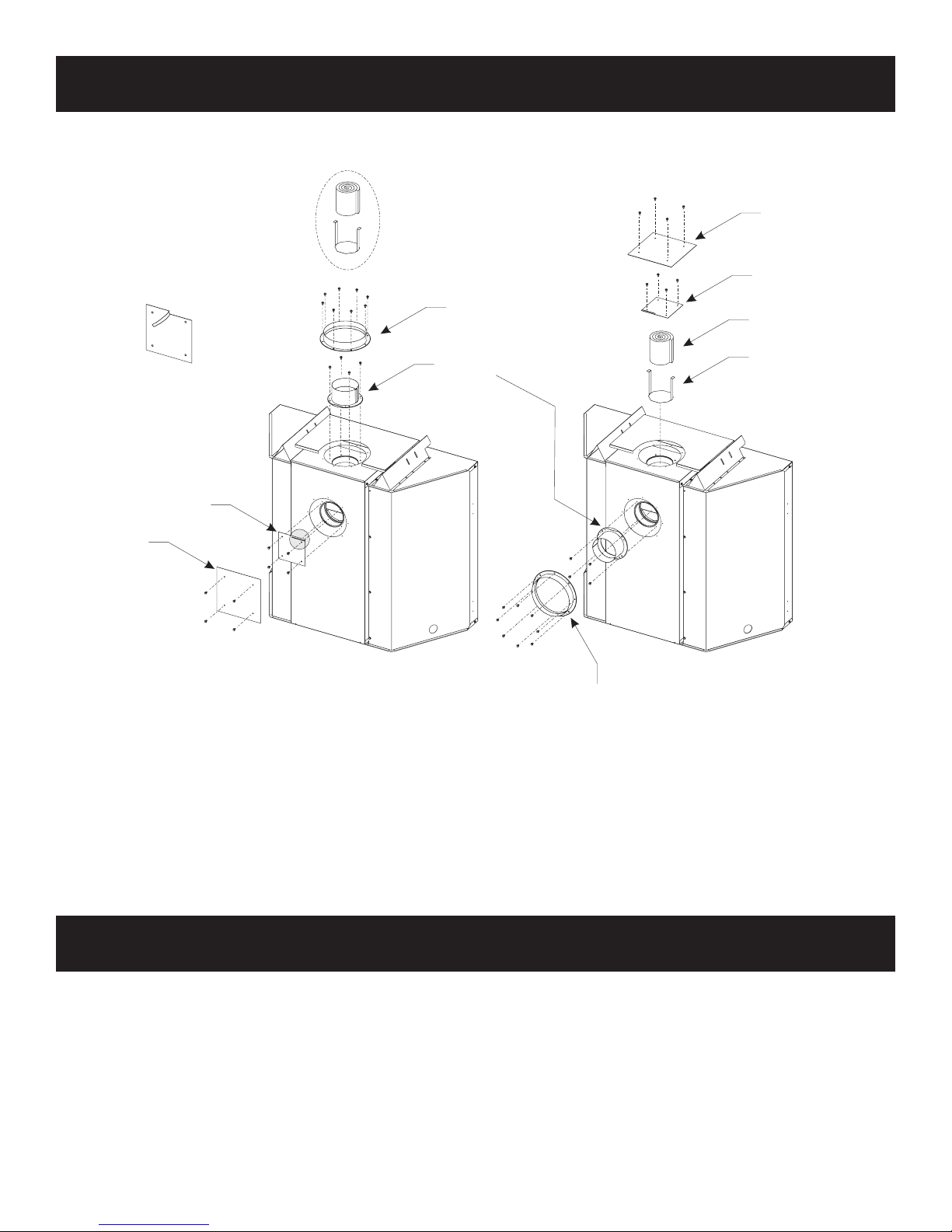

REAR VENT CONVERSION

Note: Discard insulation

& retainer when using

vertical venting off

VERTICAL VENTING

HORIZONTAL VENTING

FLUE INSULATION

INSULATION

RETAINER

INLET VENT COLLAR

FLUE OUTLET

COLLAR

FLUE COVER PLATE

(See note above)

INLET VENT

COVER PLATE

FLUE COVER PLATE

INLET VENT

COVER PLATE

Note: It is recommended that the

flue cover plate tab be pulled

outward prior to removal.

This will ensure that the plate

is not accidentally dropped

inside the rear air chamber.

Note: Discard insulation

& retainer when venting off

top of fireplace.

Converting ﬂue take-off to rear venting

When switching out the ﬂue and inlet vent collars to run horizontally

off the rear vent, the following steps must be taken.

1. Remove the inlet vent collar (8 screws) and ﬂue collar (4 screws)

from the top of the ﬁreplace, and set to the side.

2. Remove the inlet cover plate and ﬂue cover plate located on the

back of the ﬁreplace. These will be used to close the top ﬂue

and inlet openings.

3. Insert the insulation retainer bracket and insulation into the top

ﬂue pipe before reinstalling the ﬂue cover plate over the top ﬂue

with 4 screws.

4. Reinstall the inlet cover plate over the top inlet opening with 4

screws. See illustration above..

5. Install the ﬂue collar assembly to the rear ﬂue with 4 screws.

6. Install the inlet vent collar to the rear of the ﬁreplace with 8

screws.

7. This completes the conversion for a rear vent application.

Note: for top vented installations, the insulation and retainer are

to be removed from the ﬂue pipe and discarded.

VENT SYSTEMS

The following vent systems are acceptable for use with the

DVP (42,48) series ﬁreplaces:

Simpson Duravent® GS 5" - 8", Refer to Page 23

*American Metal Products 5" - 8"

*Selkirk Direct-Temp® 5" - 8"

*Security Secure Vent® 5" - 8"

Empire Flexvent Kit DVVK-5F, Refer to Page 26

* Can not be used in side wall horizontal vent installations in

the State of Massachusetts.

Other manuals for DVP42FP3(0

This manual suits for next models

Table of contents

Other Empire Comfort Systems Indoor Fireplace manuals

Empire Comfort Systems

Empire Comfort Systems VFS32FB0F-5 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVP20MS Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVCT40CSP95N-1 User manual

Empire Comfort Systems

Empire Comfort Systems DVP42FP3 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVP42DP31N-2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFH-33M-1 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVCT50CBP95-1 Planning guide

Empire Comfort Systems

Empire Comfort Systems Boulevard MULTIFUNCTION REMOTE DVLL60BP90N-2 User manual

Empire Comfort Systems

Empire Comfort Systems DVX36DP31(N Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFHS-20R-1 User manual

Empire Comfort Systems

Empire Comfort Systems DVP36CPKR-1 User manual

Empire Comfort Systems

Empire Comfort Systems VFP32FB Series Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFD26 Series Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFD32FB0L-2 User manual

Empire Comfort Systems

Empire Comfort Systems MILLIVOLT DVCP3630-1 Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFP32BP series User manual

Empire Comfort Systems

Empire Comfort Systems OP36FP32MN-1 User manual

Empire Comfort Systems

Empire Comfort Systems BP)-1 Quick start guide

Empire Comfort Systems

Empire Comfort Systems OP36FP32MN-3 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVLXG55BP90N Assembly instructions

Empire Comfort Systems

Empire Comfort Systems VFP36SB2EL-4 Quick start guide

Empire Comfort Systems

Empire Comfort Systems VFP36SB2EL-3 User manual

Empire Comfort Systems

Empire Comfort Systems VFP36SP32EN-2 Quick start guide

Empire Comfort Systems

Empire Comfort Systems DVP36XKR-1 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
