Emerson Klauke EK 135FTCFB User manual

EK 135FTCFB

HE.17253_E © 05/2016 R&D-2

HE.16789_E

Next Generation

T30001

RoHS

Serialnumber

Gustav Klauke GmbH • Auf dem Knapp 46 • D-42855 Remscheid • Telefon +49 2191 907 0 • www.klauke.com

www.klauke.com

Klauke UK Ltd.

NR35 1JX

Wir freuen uns, dass Sie sich für ein Klauke

Werkzeug entschieden haben und wünschen

Ihnen viel Freude damit.

Sie haben ein Qualitätsprodukt „Made in

Germany“ erworben und erhalten 2 Jahre

Garantie. Diese beginnt mit dem Kaufbe-

legdatum.

Um lange Freude und eine einwandfreie Funk-

tion des Werkzeuges sicherzustellen, muss das

Gerät spätestens beim Erreichen von 10.000

Arbeitsvorgängen oder nach 3 Jahren durch

ein Autorisiertes Service Center (ASC) gewartet

werden. Wird das Wartungsintervall von 10.000

Arbeitsvorgängen nicht eingehalten, erlischt der

Garantieanspruch.

Im Rahmen dieser Wartung werden verschlis-

sene Teile ersetzt und sicherheitsrelevante Teile

geprüft und ggf. vorbeugend ersetzt.

Darüber hinaus empfehlen wir das Gerät jährlich

zur Überprüfung an das zuständige ASC einzu-

senden.

Für Fragen rund um unseren Werkzeugservice

stehen wir Ihnen unter folgenden Rufnummern

persönlich zur Verfügung:

Technik +492332709544

Reparaturen / Leihgeräte +492332709540

Ihr Klauke-Service Team

Die Bluetooth®-Wortmarke und das Bluetooth®-

Symbol sind eingetragene Warenzeichen der

Bluetooth SIG, Inc. und jegliche Verwendung

durch Gustav Klauke GmbH ist lizenziert.

Thank you for choosing a Klauke tool. We hope

it gives you lots of pleasure.

You have purchased a quality product

„Made in Germany“, which is covered by

a 2 year warranty. The warranty commen-

ces from the purchase receipt date.

To ensure lasting enjoyment and a Àawless tool

function, the product must be serviced by an

AuthorisedServiceCenter(ASC)after10,000ope-

rations or after 3 years. Should the service Interval

exceed 10.000 cycles the warranty claim is void.

The Service includes predictive maintenance in

which worn-out parts will be replaced and safety

relevant parts checked/replaced.

We recommend to have the tools checked year-

ly through an Authorized Service Center (ASC).

For questions about our tool service we are per-

sonally available under the following telephone

numbers:

Technical Support +492332709544

Repairs / Loaner tools +492332709540

Your Klauke-Service Team

The Bluetooth® word mark and Bluetooth® sym-

bol are registered trademarks of Bluetooth SIG,

Inc. and any use by Gustav Klauke GmbH is

licensed.

EK 135FTCFB

HE.17253_E © 05/2016

ACHTUNG! Garantiesiegel

Bei Beschädigung Garantieverlus

ATTENTION! Warranty seal

If broken loss of Warranty

HE.17537

WORK SERVICE DON´T DO General

safety rules

OIL

HE.16789_E

Next Generation

T30001

RoHS

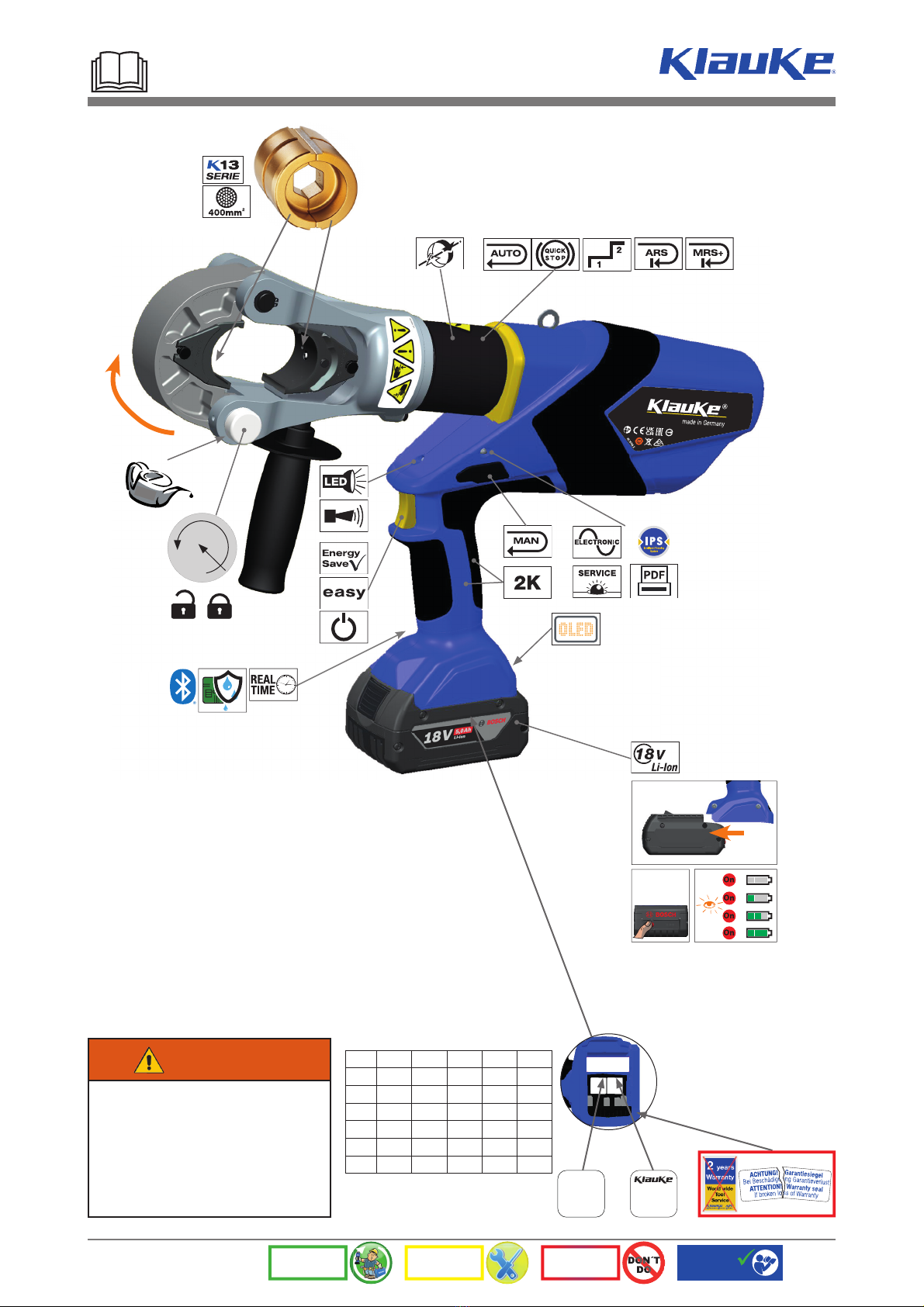

WARNING

Read all safety warnings, instruc-

tions, illustrations and speciﬁca-

tions provided with this power tool.

Failure to follow all instructions listed

below may result in electric shock, ﬁre

and/or serious injury.

Save all warnings and instructions

for future reference.

Auf dem Knapp 46

D-42855

Remscheid

304711

142

HE.17537

batch# e.g. 304711

datecode e.g. X = 2027; R = April

consecutive# e.g. „142“ = tool # 142

datecode

Year Code Month Code Month Code

2022 R Jan. N July V

2023 S Feb. P Aug. W

2024 T Mar. Q Sept. X

2025 V Apr. R Oct. Y

2026 W May S Nov. Z

2027 X June T Dec. 1

EK 135FTCFB

HE.17253_E © 05/2016

EK135FTCFB

Crimping tool

135 kN • 630 mm² • 18V

Gustav Klauke GmbH •Auf dem Knapp 46 • D-42855 Remscheid

For use only with 18 V Bosch battery series

For use with UL listed wire connectors identiﬁed in the instructions provided

HE.17257_C

E244184

13 2

338,5

215

123

483

Li-ion

#1 609 92A 19R

#1 609 92A 0F3

Ladegerät GAL 3680 CV GAL 1880 CV

Sachnummer 2 607 225 ...

2 607 226 ...

2 607 225 9..

2 607 226 0..

Akku-Ladespannung

matische Spannungserkennung)

(auto-

V 14,4–36 14,4–18

Ladestrom 0,8A 8,0

Zulässiger Ladetemperaturbereich °C 0 – 45 0 – 45

Ladezeit bei Akku-Kapazität, ca. (80%) 100% (80%) 100%

– 1,3 Ah min (10) 25 (10) 25

– 1,5 Ah min (10) 25 (10) 25

– 2,0 Ah min (15) 30 (15) 30

– 2,6 Ah min (15) 30 (15) 30

– 3,0 Ah min (20) 35 (20) 35

– 4,0 Ah min (25) 35 (25) 35

– 5,0 Ah min (35) 45 (35) 45

– 6,0 Ah min (35) 50 (35) 50

Anzahl der Akkuzellen 4 – 30 4 – 10

Gewicht entsprechend

EPTA-Procedure 01:2014 9,0gk 0,7

Schutzklasse / II /II

1. 3.

Loading Full

Use tool only with 18 V Bosch battery

–

RALB1__ (36Wh)

RALB2__ (90Wh)

WORK SERVICE DON´T DO General

safety rules

HE.16789_E

Next Generation

T30001

RoHS

123

<70dB <2,5m/s2

+40°C

-20°C

10,2 kg 135 kN

EK 135FTCFB

HE.17253_E © 05/2016

30% max.

WORK SERVICE DON´T DO General

safety rules

PRESS

on/off

PRESS

1.2.3.

STOP

>350°

Artikel-Nr.

Part No.

Erläuterung

Explanation

Pressbereich

Crimping range

UA15T Adapter für die 13er Einsatzserie

Adapter for the 13 series dies

HL15500 Einsatz für Kupfer Kabelschuhe

Die for copper cable lug up 500 mm²

HL15630 Einsatz für Kupfer Kabelschuhe

Die for copper cable lug up 630 mm²

HA15500 Einsatz für Aluminium Kabelschuhe

Die for aluminium cable lugs

500 mm²

HA13400 400 mm²

HA13300 300 mm²

III

EK 135FTCFB

HE.17253_E © 05/2016 WORK SERVICE DON´T DO General

safety rules

UA15T

PRESS

CLICK

PRESS

1. 2.



45°

Tab. 2

CLICK

PRESS

EK 135FTCFB

HE.17253_E © 05/2016 WORK SERVICE DON´T DO General

safety rules

PRESS



45°

CLICK

EK 135FTCFB

HE.17253_E © 05/2016 WORK SERVICE DON´T DO General

safety rules

OIL

•

DIN EN 50110

BEFORE WORK

Klauke R-series

Copper connector type Ring type Angle type 90° Angle type 45°

Copper lugs R-series 3Rxx - 12Rxx 43Rxx - 52Rxx 43Rxx45 - 52Rxx45

(Class 2 & 5)

Copper slices R-series

(Class 2 & 5)

T-splices R-series

(Class 2 & 5)

Cross-Splices

(Class 2 & 5)

Lugs for switch gear 5SGxx - 12SGxx

connections (Class 2 & 5)

Klauke L-series

Copper connector type Ring type Angle type 90° Angle type 45°

Copper lugs L-series L16xxxx - L240xxxxx L16890xx - L240890xxx L16845xx - L240845xxx

(Class 2, 5 & 6)

Copper slices L-series

(Class 2, 5 & 6)

Klauke NDC-series

Copper connector type Ring type Fork type Pin type

Copper lugs NDC-series NDC16-300

(Class 2 & 5)

Number of crimps*1: 16 mm² - 185 mm² = 1 crimp / 240 mm² - 300 mm² = 2 crimps

HE.18590_D

Crimp Chart EK120xxx tool series*2Hex crimps

*1see chart in main catalog EK120/30L, EK120/30LINS, EK120/42L, EK120/42LINS, EK120UNVL,

HK120/30INS, HK120/42INS,

EK12030L, EK12042L, EK120UL, EK12030CFM, EK12030CFB, EK12042CFM, EK12042CFB, EK12030CFMINS,

EK12030CFBINS, EK12042CFMINS, EK12042CFBINS, EK120UCFM, EK120UCFB, HK12030, HK12042, HK120U,

PK12030, PK12042, EK135FTL, EK135FTCFM, EK135FTCFB, PK135FT, EK135L, EK135CFM, EK135CFB,

PK135FT, EK120UNVCFM, EK120UNVCFB, HK120UNV, PK120UNV

[email protected]

WEEE

2012/19/EU

SAFETY

3 years or

10.000 operations

EK 135FTCFB

HE.17253_E © 05/2016

P 3 bar

ERROR CODE:

****

TOTAL:

t = 0.07 h

Q = 21.12 Ah

n = 174

USER 3:

RD3 Doppelklick

NEXT SERVICE:

9826 OPs

Doubleclick

Singleclick

enter menue

Doubelclick

select

Cycles

(until next service)

Since manufacturing:

operating houres

Capacity

# crimps

Bluetooth (if connected) *2

Battery charging level

Current pressure

Pressure max.

Error code *1

USER SELECT 3:

RD3 Einfachklick

USER SELECT:

RD3 Doppelklick

USER SELECT:

RD3 Doppelklick

3 sec.

PRESS

Doubelclick

conﬁrmed

additional proﬁles:

ARS Single Click

ARS Double Click

MRS+ Single Click

MRS+ Double Click

WORK SERVICE DON´T DO General

safety rules

Klauke i-press®Software

www.klauke.com/connectivity

Klauke i-press®App

PRESS

≤20 sec.

PRESS

REPEAT

> 20 sec.

PRESS

≤20 sec.

PRE

PRESS

≤20 sec.

PRE

PRESS

REPEAT

> 20 sec.

PRE

PRESS

≤20 sec.

Klauke i-press®Software

www.klauke.com/connectivity

Klauke i-press®App

*1 Error codes/ Fehlermeldungen:

1 Overcurrent fuse

2 Overcurrent comparator

3 Overheat board

4 Overheat battery

5 Battery empty, operation stop

6 Faulty crimp motor in operation

7 Faulty crimp motor not in operation

8 Low battery

9 Battery empty

10 RTC battery low

12 Service necessary

13 RTC not found

14 BT unit not found

15 Mobile unit not found

16 Pressure sensor not found

17 Burst pressure exceeded

18 Battery temperature too low

19 Battery reserves

20 Overcurrent fuse (I)

21 Remote Control Battery Low!*

22 Service necessary SAST1

23 Service necessary SAST2

24 Service necessary SAST3

25 Remote mode: tool trigger not actuated*

27 Overheat motor

28 Service necessary: Pressure low

29 Service necessary: Pressure high

1 Überstromsicherung

2 Überstromsicherung durch Komparator

3 Boardtemperatur zu hoch

4 Akkutemperatur zu hoch

5 Akkuspannung zu gering

6 Fehlpressung bei laufendem Motor

7 Fehlpressung bei stehendem Motor

8 Niedrige Akkuspannung

9 Akku leer

10 RTC-Batterie leer

12 Service nötig

13 RTC nicht verfügbar

14 BT-Modul nicht verfügbar

15 Modul nicht verfügbar

16 Drucksensor nicht verfügbar

17 Berstdruck überschritten

18 Akkutemperatur zu gering

19 Batteriereserven zu gering

20 Überstromsicherung (I)

21 Fernbedienung-Batterie schwach*

22 Service notwendig SAST1

23 Service notwendig SAST2

24 Service notwendig SAST3

25 Remote-Modus: WZ-Taster nicht betätigt*

27 Motortemperatur zu hoch

28 Service notwendig: Druck niedrig

29 Service notwendig: Druck hoch

* remote control tools only /

nur bei fernbedienungsfähigen Werkzeugen

*2 (2Hz)

VII

EK 135FTCFB

safety rules

Automatic Retraction Stop

Manual Retraction Stop +

>tr

<tr

reset

PRESS

<tr

>tr

reset

PRESS

VIII

Other manuals for Klauke EK 135FTCFB

Table of contents

Other Emerson Crimping Tools manuals

Emerson

Emerson Klauke EK 60/22CFB User manual

Emerson

Emerson Klauke ES 32CFB User manual

Emerson

Emerson Klauke ES 20ISM User manual

Emerson

Emerson Klauke EK 135FTCFB User manual

Emerson

Emerson Klauke MAPAX216CFB User manual

Emerson

Emerson Klauke EK 120/32CFB User manual

Emerson

Emerson Klauke MAP215CFM User manual

Emerson

Emerson Klauke EK 135FTCFM User manual

Emerson

Emerson Klauke ES 20CFM User manual

Emerson

Emerson Klauke EK 35/4CFM User manual

Emerson

Emerson Klauke ES 85CFM User manual

Emerson

Emerson Klauke EK 60/22CFM User manual

Emerson

Emerson Klauke UAP432CFB User manual

Emerson

Emerson Klauke MAPAX445CFB User manual

Emerson

Emerson Klauke EKM 60UNVCFM User manual

Emerson

Emerson Klauke EK 60VPCFB User manual

Emerson

Emerson Klauke MAPAX216CFM User manual

Emerson

Emerson Klauke ESG 105RMCPCFB User manual

Emerson

Emerson Klauke ESG 85CFB User manual

Emerson

Emerson Klauke EBS12CFB User manual

Emerson

Emerson Klauke ESM 50CFM User manual

Emerson

Emerson Klauke mini EK 15/50ML User manual

Emerson

Emerson Klauke ESGM 45CFB User manual

Emerson

Emerson Klauke ESM 50ISM User manual

Popular Crimping Tools manuals by other brands

Panduit

Panduit CT-1000 Operation & instruction manual

JST

JST CS 10 instruction manual

molex

molex 63811-5100 Specification sheet

Danfoss

Danfoss ET4200 Operator's manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III instruction sheet

TE Connectivity

TE Connectivity 2063528-1 instruction sheet

molex

molex 63825-3000 Specification sheet

Tyco Electronics

Tyco Electronics 69156-1 instruction sheet

CRH

CRH CRL CBLHCT1 instruction manual

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Operating instructions manual

Danfoss

Danfoss ET4350 Operator's manual

Milwaukee

Milwaukee M18 Operator's manual

HOGERT

HOGERT HT1P169 user manual

Textron

Textron ESG105L instruction manual

Tyco Electronics

Tyco Electronics 90035-3 instruction sheet

Continental Refrigerator

Continental Refrigerator PC150HD quick start guide

TE Connectivity

TE Connectivity ERGOCRIMP 1-1579001-3 instruction sheet

Tyco Electronics

Tyco Electronics CERTI-CRIMP 90418-1 instruction sheet
