1. SAFETY INFORMATION

Before beginning the installation and use of this

appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or

damages that are the result of incorrect installation or

usage. Always keep the instructions in a safe and

accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Children of less than 3 years should be kept away

unless continuously supervised.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, this should

be activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from

your authorized vendor, can be used only with the

ENGLISH 3

appliance specified in the instructions, supplied with

the accessory. Read it carefully before installation

(Refer to the Installation leaflet).

•The appliance can be installed as freestanding or

below the kitchen counter with correct space (Refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully opened.

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied

through an external switching device, such as timer, or

connected to a circuit that is regularly switched on and

off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•Ensure good air ventilation in the located room to

avoid the backflow of unwanted gases into the room

from appliances burning gas or other fuels, including

open fires.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 7 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

www.electrolux.com4

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be less

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when being moved.

• The rear surface of the appliance

must be put against the wall.

• When the appliance is in its

permanent position, check that it is

fully level with the aid of a spirit level.

If it is not, adjust the feet accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

ENGLISH 5

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electric shock,

fire, burns or damage to the

appliance.

• This appliance is for household use

only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• Only dry fabrics which are applicable

to dry in the tumble dryer. Follow the

instructions on the fabric label.

• If you have washed your laundry with

a stain remover start an extra rinse

cycle before you start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the

tumble dryer.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use any abrasive products,

abrasive cleaning pads, solvents or

metal objects.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

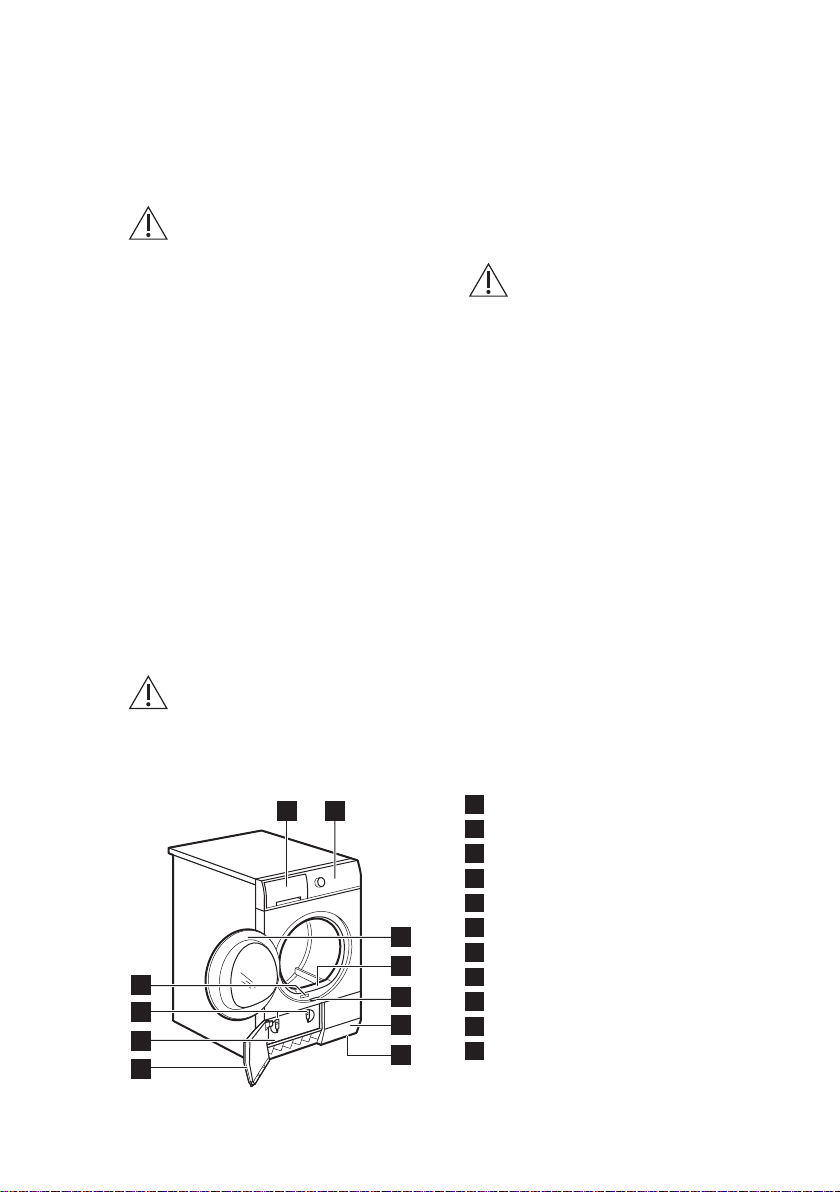

3. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Appliance door

4Primary Filter

5Button for condenser door

6Airflow slots

7Adjustable feet

8Condenser door

9Condenser cover

10 Locks for condenser lid

11 Rating plate

www.electrolux.com6

For ease of loading laundry

or ease of installation the

door is reversible. (see

separate leaflet).

4. CONTROL PANEL

1Programme knob and OFF switch

2Indicators

3Display

4 Time touchpad

5 Delay touchpad

6 Buzzer touchpad

7 Delicate touchpad

8 Start/Pause touchpad

Press the touch buttons with

your finger in the area with

the symbol or name of the

option. Do not wear gloves

when you operate the

control panel. Make sure

that the control panel is

always clean and dry.

4.1 Indicators

Indicators Description

Drying phase

Cooling phase

Crease guard phase

Condenser

Water container

Filter

ENGLISH 7

Indicators Description

Delay start

Child lock

Acoustic signals

Programme duration

- Time Drying duration

- Delay start duration

5. PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

Cotton

Extra Dry Drying level: extra dry. 7kg/

Strong Dry Drying level: strong dry. 7kg/

Cupboard

Dry2)3) Drying level: cupboard dry. 7kg/

Iron Dry2) Drying level: suitable for ironing. 7kg/

Synthetic

Extra Dry Drying level: extra dry. 3kg/

Cupboard Dry2) Drying level: cupboard dry. 3kg/

Iron Dry Drying level: suitable for ironing. 3kg/

Mixed

Cotton and synthetic fabrics. Low tem‐

perature programme. Delicate pro‐

gramme with warm air. 2kg/

Time Drying

With this programme you can use the

Time option and set the programme du‐

ration. 7kg/

Refresh Refreshing textiles that were in storage. 1kg

www.electrolux.com8

Programmes Type of load Load (max.)1) /

Fabric mark

Wool Refresh

Refreshing a wool fabrics. Wool items

become soft and cosy. Remove the items

immediately after the programme end.

1kg

Delicates Delicate fabrics. 2kg/

Sports Sportswear, thin and light fabrics, micro‐

fiber, polyester. 2kg/

Easy Iron

Easy care fabrics for which a minimum of

ironing is necessary. The drying results

can be different from one type of fabric to

another. Shake the items before putting

them in the appliance. When the pro‐

gramme has ended, immediately remove

the items and put them on a hanger.

1kg (or 5 shirts)/

1) The maximum weight refers to dry items.

2) For test institutes only: Standard programmes for tests are specified in the EN 61121

document.

3) The Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐

cording to Commission Regulation EU n 392/2012. It is suitable for drying normal wet cotton

laundry and it is the most efficient programme in terms of energy consumption for drying wet

cotton laundry.

6. OPTIONS

6.1 Time

This option is applicable only to the Time

Drying programme. You can set the

programme duration, from a minimum of

10 minutes to a maximum of 2 hours.

The setting of the duration is related to

the quantity of laundry in the appliance.

We recommend that you set

a short duration for small

quantities of laundry or for

only one item.

6.2 Delicate

With this option you can set a delicate

drying programme that has a low

temperature. Use this option with a

fabrics that have the symbol on the

fabric label (e.g. acrylic, viscose).

6.3 Buzzer

you can hear the buzzer at the:

• cycle end

• start and end of crease guard phase

• cycle interruption

The buzzer function is by default always

on. You can use this function to activate

or deactivate the sound.

You can activate the Buzzer

option with all programmes.

ENGLISH 9

6.4 Options table

Programmes1)

Cotton

Extra Dry ■ ■

Strong Dry ■ ■

Cupboard Dry ■ ■

Iron Dry ■ ■

Synthetic

Extra Dry ■ ■

Cupboard Dry ■ ■

Iron Dry ■ ■

Mixed ■

Time Drying ■ ■ ■

Refresh ■

Wool Refresh ■ ■

Delicates ■ ■

Sports ■ ■

Easy Iron ■ ■

1) Together with the programme you can set 1 or more options. To activate or deactivate

them, press the related touch button.

7. SETTINGS

A. Time touchpad

B. Delay touchpad

C. Buzzer touchpad

D. Delicate touchpad

E. Start/Pause touchpad

7.1 Child lock function

This option prevents children to play with

the appliance while a programme

operates. The programme knob and the

touchpads are locked.

www.electrolux.com10

Table of contents

Languages:

Other Electrolux Dryer manuals

Electrolux

Electrolux TW5459F User manual

Electrolux

Electrolux 137357000A User manual

Electrolux

Electrolux FGQ332ES User manual

Electrolux

Electrolux SAGQ7000FS0 User manual

Electrolux

Electrolux Zanussi ZDE 57140W User manual

Electrolux

Electrolux EDE 425 M User manual

Electrolux

Electrolux TWGL5E User manual

Electrolux

Electrolux FGQ332E User manual

Electrolux

Electrolux TW SL6 E User manual

Electrolux

Electrolux EDC 5335 User manual

Electrolux

Electrolux FEQ1442ES User manual

Electrolux

Electrolux EWMED70J IW User manual

Electrolux

Electrolux EIMGD60LT3 User manual

Electrolux

Electrolux TK GL5 E User manual

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW User manual

Electrolux

Electrolux EDH9000W3 User manual

Electrolux

Electrolux EDC 46130 W User manual

Electrolux

Electrolux EDC804P5WB User manual

Electrolux

Electrolux SWISSLINE TW SL5M 100 User manual

Electrolux

Electrolux T5190LE User manual

Electrolux

Electrolux 6000 User manual

Electrolux

Electrolux EDH3498RDL User manual

Electrolux

Electrolux EDC 5368 User manual

Electrolux

Electrolux EDE 57160W User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
