Electrolux EDP2074PDW User manual

EDP2074PDW

................................................ .............................................

EN TUMBLE DRYER USER MANUAL

CONTENTS

1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. PROGRAMME TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

8. HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

10. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

11. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

12. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great

results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.electrolux.com/productregistration

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

2www.electrolux.com

1. SAFETY INSTRUCTIONS

Before the installation and use of the ap-

pliance, carefully read the supplied in-

structions. The manufacturer is not re-

sponsible if an incorrect installation and

use causes injuries and damages. Always

keep the instructions with the appliance

for future reference.

1.1 Children and vulnerable

people safety

WARNING!

Risk of suffocation, injury or per-

manent disability.

• This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction for the opera-

tion of the appliance by a person who is

responsible for their safety.

• Do not let children play with the appli-

ance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the

appliance door when it is open.

• Cleaning and user maintenance shall

not be made by children without super-

vision.

1.2 Installation

• Remove all the packaging.

• Do not install or use a damaged appli-

ance.

• Obey the installation instruction sup-

plied with the appliance.

• Make sure that the floor where you in-

stall the appliance is flat, stable, heat

resistant and clean.

• Do not install or use the appliance

where the temperature is less than 5°C

or higher than 35°C.

• Do not install the appliance behind a

lockable door, a sliding door or a door

with a hinge on the opposite side,

where the appliance door can not be

fully opened.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Always move the appliance vertically.

• The rear surface of the appliance must

be put against the wall.

• Make sure that there is air circulation

between the appliance and the floor.

• Make sure the carpet does not obstruct

the ventilation openings in the base of

the appliance (if applicable).

• Exhaust air must not be discharged into

a flue which is used for exhausting

fumes from appliances burning gas or

other fuels.

• If the tumble dryer is put on top of a

washing machine, use the stacking kit.

The stacking kit, available from your au-

thorized vendor, can be used only with

the appliance specified in the instruc-

tions, supplied with the accessory.

Read it carefully before installation (Re-

fer to the Installation leaflet).

• Ensure you have good ventilation in the

installation room to avoid the back flow

of gases into the room from appliances

burning other fuels, including open fires.

• The appliance can be installed as free-

standing or below the kitchen counter

with correct space (Refer to the Installa-

tion leaflet).

• When the appliance is put in its perma-

nent position, check if it is fully level

with the aid of a spirit level. If it is not,

adjust the feet until it is.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the pow-

er supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and ex-

tension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

ENGLISH 3

Should the appliance power supply ca-

ble need to be replaced, this must be

carried out by our Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installa-

tion. Make sure that there is access to

the mains plug after the installation.

• Do not pull the mains cable to discon-

nect the appliance. Always pull the

mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the E.E.C.

Directives.

1.3 Use

WARNING!

Risk of fire, explosion, electric

shock or damage to the appliance

• Use this appliance in a household only.

• Do not change the specification of this

appliance.

• The final part of the drying cycle occurs

without heat (cool down cycle) to en-

sure that the items will not be dam-

aged.

If you stop the appliance before the end

of the drying cycle, immediately remove

and spread out all items, so that the

heat can dissipate.

• If you use fabric softener or similar

products, obey the instructions on the

packaging.

• Do not run the appliance without a filter.

Clean the lint filter before or after each

use.

• Wipe away lint that has accumulated

around the appliance.

• Do not dry the damaged items which

contain padding or fillings.

• Do not dry items such as foam rubber

(latex foam), shower caps, waterproof

textiles, rubber backed articles and

clothes or pillows fitted with foam rub-

ber pads..

• Before drying items that have been in

contact with substances such as cook-

ing oil, acetone, alcohol , petrol, kero-

sene, spot removers, turpentine, waxes

and wax removers, wash them in hot

water with an extra amount of deter-

gent.

• Do not dry items in the appliance if in-

dustrial chemicals have been used for

cleaning.

• Make sure that no gas lighters or

matches have been left in the pockets

of the clothing.

• Only dry fabrics which are applicable to

dry in the tumble dryer. Follow the in-

structions on the fabric label.

• Do not dry not washed items in the ap-

pliance.

• If you have washed your laundry with a

stain remover start an extra rinse cycle

before you start the dryer.

• Do not drink or prepare food with the

condensed water. It can cause health

problems to people and pets.

• Do not sit or stand on the open door.

• Obey the maximum load volume of 7 kg

(refer to the “Programme chart” chap-

ter).

• Do not dry dripping wet clothes in the

tumble dryer.

1.4 Care and Cleaning

WARNING!

Risk of injury or damage to the

appliance.

• Before maintenance, deactivate the ap-

pliance and disconnect the mains plug

from the mains socket.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal ob-

jects.

1.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil-

dren and pets to get closed in the ap-

pliance.

4www.electrolux.com

2. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Appliance door

4Filter

5Button for condenser door

6Airflow slots

7Adjustable feet

8Condenser door

9Condenser cover

10 Locks for condenser lid

11 Rating plate

The load door can be installed by

the user in the opposite side. It

can help to easily put and remove

the laundry or if there is a limit to

install the appliance (see separate

leaflet).

3. CONTROL PANEL

1Programme knob and OFF switch

2Indicators

3Display

4Time Dry touchpad

5Delay touchpad

6Buzzer touchpad

7Delicate touchpad

8Start/Pause touchpad

Touch the touchpads with your

finger in the area with the symbol

or the name of the option.

Do not wear gloves when you op-

erate with the control panel.

Make sure that the control panel

is always clean and dry.

Indicators Description

Drying phase.

ENGLISH 5

Indicators Description

Cooling phase.

Crease guard phase.

Condenser.

Water container.

Filter.

Delay start.

Child lock.

Acoustic signals.

Programme duration.

- Time Drying duration.

- Delay start duration.

4. PROGRAMME TABLE

Programmes Type of load / Load (max.)

/ Fabric mark

Cotton fabrics

Extra Dry Drying level: extra dry. / 7kg /

Strong Dry Drying level: strong dry. / 7kg /

Cupboard Dry

Drying level: cupboard dry. / 7kg /

Iron Dry

Drying level: applicable for iron. / 7kg /

Synthetic fabrics

Extra Dry Drying level: extra dry. / 3kg /

Cupboard Dry

Drying level: cupboard dry. / 3kg /

Iron Dry Drying level: applicable for iron. / 3kg /

Quick Mixed Cotton and synthetic fabrics. Low temperature programme.

Delicate programme with warm air. / 2kg /

Time Drying With this programme you can use the option Time and set

the programme duration. / 7kg /

Refresh Refreshing a textiles that were in storage or after line drying.

/ 1kg

Wool Refresh

Refreshing a wool fabrics. Wool items become soft and co-

sy. Remove the items immediately after the programme

end. / 1kg

6www.electrolux.com

Programmes Type of load / Load (max.)

/ Fabric mark

Delicates Delicate fabrics. / 2kg /

Sports Sportswear, thin and light fabrics, microfiber, polyester,

which are not ironed. / 2kg /

Easy Iron

Easy care fabrics for which a minimum of ironing is neces-

sary. The drying results can be different from one type of

fabric to the other. Shake the items before you put them in

the appliance. When the programme is completed, Immedi-

ately remove the items and put them on a hanger. / 1 kg

(or 5 shirts) /

1) The maximum weight refers to dry items.

2) For test institutes only: Standard programmes for tests are specified in the EN 61121

document.

5. OPTIONS

5.1 Time

This option is applicable only to the Time

Drying programme. You can set the pro-

gramme duration, from a minimum of 10

minutes to a maximum of 2 hours. The

setting of the duration is related to the

quantity of laundry in the appliance.

We recommend that you set a short dura-

tion for small quantities of laundry or for

only one item.

5.2 Delicate

With this option you can set a delicate

drying programme that has a low temper-

ature. Use this option with synthetic fab-

rics that have the symbol on the fabric

label (e.g. acrylic, viscose).

5.3 Buzzer

When the buzzer function is activated,

you can hear the buzzer at the:

•cycleend

• start and end of crease guard phase

• cycle interruption

The buzzer function is by default always

on. You can use this function to activate

or deactivate the sound.

You can activate the Buzzer op-

tion with all programmes.

Programmes

Cotton fabrics

Extra Dry ● ●

Strong Dry ● ●

Cupboard Dry ● ●

Iron Dry ● ●

Synthetic fabrics

Extra Dry ● ●

Cupboard Dry

● ●

ENGLISH 7

Programmes

Iron Dry ● ●

Quick Mixed ●

Time Drying ●●●

Refresh ●

Wool Refresh ●

Delicates ● ●

Sports ● ●

Easy Iron ● ●

1) Together with the programme you can set 1 or more options. To activate or deactivate

them, press the related touchpad.

6. SETTINGS

A) Time Dry touchpad

B) Delay touchpad

C) Buzzer touchpad

D) Delicate touchpad

E) Start/Pause touchpad

6.1 Child lock function

This option prevents children to play with

the appliance while a programme oper-

ates. The programme knob and the

touchpads are locked. Only OFF

switch is unlocked.

Activating the child lock option

1. Use the programme knob to set any

programme.

2. Press and hold touchpads (A) and (D)

at the same time until the child lock in-

dicator comes on.

• It is possible to deactivate the child

lock option while a programme op-

erates. Press and hold the same

touchpads until the child lock indi-

cator goes off.

6.2 Water hardness and

conductivity

Water hardness is different for different lo-

cations. Water hardness has an effect on

the water conductivity and on the con-

ductivity sensor of the appliance. If you

know, the value of the water conductivity

you can adjust the sensor in order to have

better drying results.

Adjusting the conductivity sensor

1. Use the programme knob to set any

programme.

2. Press and hold touchpads (A) and (B)

at the same time until one of the these

indicators comes on:

•(low <300 μS/cm)

•(moderate 300-600 μS/cm)

•(high >600 μS/cm)

3. Press the touchpad (E) again and

again until the indicator of the correct

level comes on.

4. To confirm the adjustment, press and

hold touchpads (A) and (B) at the

8www.electrolux.com

same time for approximately 2 sec-

onds.

7. DAILY USE

Before you use the appliance for the

first time

1. Clean the appliance drum with a moist

cloth.

2. Start a short programme (e.g. 30 mi-

nutes) with moist laundry.

7.1 Starting a programme

without delay start

1. Prepare the laundry and load the ap-

pliance.

2. Set the correct programme and op-

tions for the type of load.

• The display shows the programme

duration.

3. Press the Start/Pause touchpad, the

programme starts.

CAUTION!

Make sure that when you close

the door, the laundry does not

catch between the appliance door

and the rubber seal.

7.2 Starting the programme with

delay start

1. Set the correct programme and op-

tions for the type of load.

2. Press the delay start button again and

again until the display shows the delay

time you want to set.

• You can delay the start of a pro-

gramme from a minimum of 30 mi-

nutes to a maximum of 20 hours.

3. Press the Start/Pause touchpad, the

countdown starts. The display shows

the countdown of the delay start.

• When the countdown is completed,

the programme starts.

7.3 Change a programme

1. Turn the Programme knob to OFF

2. Set the programme.

7.4 At the end of the

programme

When the programme is completed,

• An intermittent acoustic signal oper-

ates.

•The indicator flashes.

•The indicator comes on.

• The Start/Pause indicator is on.

The appliance continues to operate with

the crease guard phase for approximately

other 30 minutes.

The crease guard phase removes creases

from your laundry.

You can remove the laundry before the

crease guard phase is completed. We

recommend, for better results, that you

remove the laundry when the phase is al-

most completed or completed.

When the crease guard phase is comple-

ted:

•The indicator is on but does not flash.

•The indicator goes off.

• Start/Pause indicator goes off.

1. Turn the Programme knob to OFF

2. Open the appliance door.

3. Remove the laundry.

4. Close the appliance door.

Always clean the filter and empty

the water container when a pro-

gramme is completed.

7.5 Auto STAND-BY function

To decrease the energy consumption, this

function automatically deactivates the ap-

pliance:

• After 5 minutes if you do not start the

programme.

• After 5 minutes from the end of the pro-

gramme.

ENGLISH 9

8. HINTS AND TIPS

8.1 Preparing the laundry

• Close the zippers.

• Close the fasteners of the duvet covers.

• Do not keep ties or ribbons loose (e.g.

apron ribbons). Tie them before you

start a programme.

• Remove all items from the pockets.

• If an item has the internal layer made of

cotton, turn it inside out. Make sure that

the cotton layer is always external.

• We recommend that you set the cor-

rect programme applicable for the type

of fabrics that are in the appliance.

• Do not put fabrics with strong colours

together with fabrics with light colours.

Strong colours can bleed.

• Use an applicable programme for cot-

ton jersey and knitwear to prevent the

items to shrink.

• Make sure that the laundry weight is

not more than the maximum weight

that is in the programme table.

• Dry only the laundry that is applicable

for tumble dryer. Refer to the fabric la-

bel on the items.

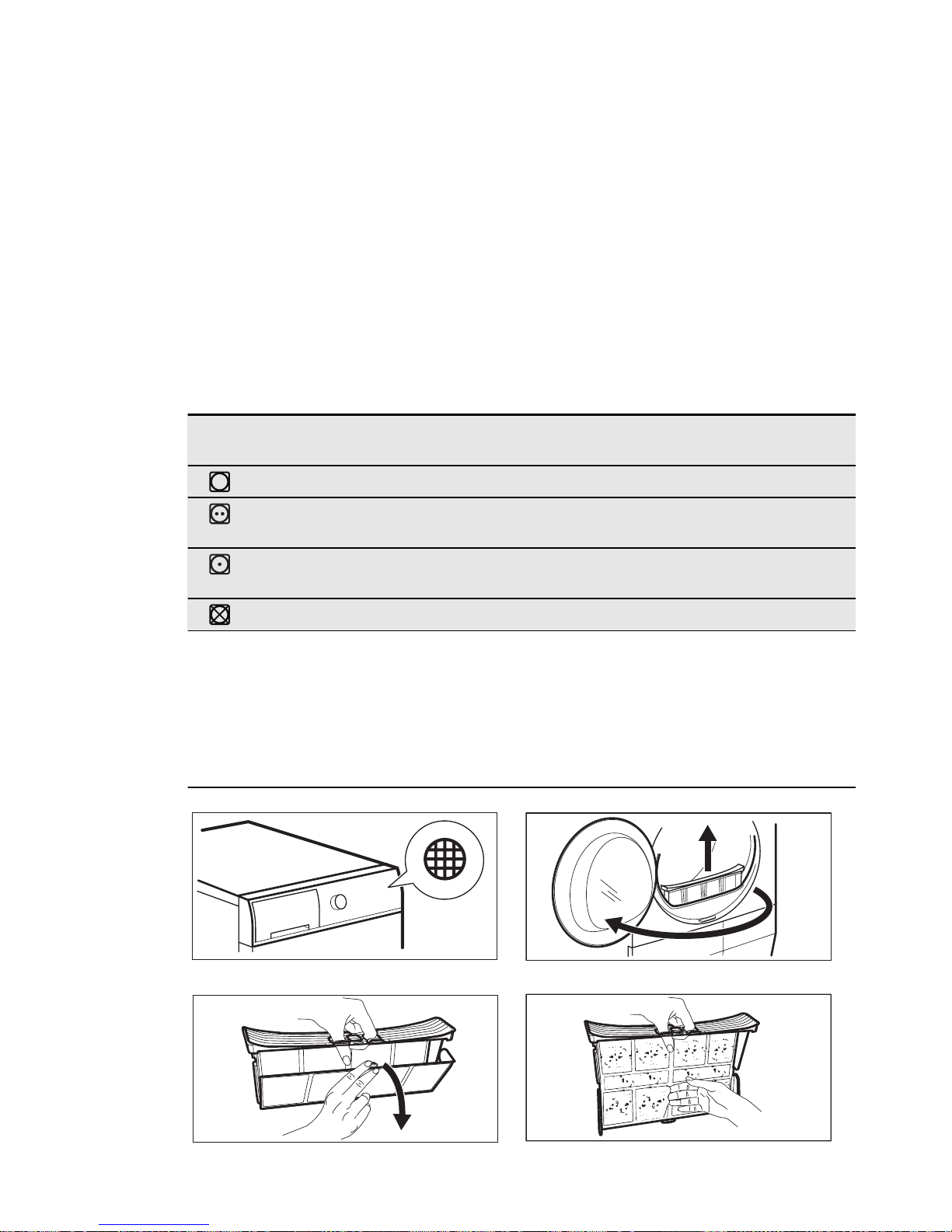

Fabric

label

Description

Laundry that is applicable for tumble dryer.

Laundry that is applicable for tumble dryer. Set the programme with

standard temperature.

Laundry that is applicable for tumble dryer. Set the programme with low

temperature.

Laundry that is not applicable for tumble dryer.

9. CARE AND CLEANING

9.1 Cleaning the filter

1. 2.

3. 4.

10 www.electrolux.com

Other manuals for EDP2074PDW

Table of contents

Other Electrolux Dryer manuals

Electrolux

Electrolux TE1120HP User manual

Electrolux

Electrolux TD6-14 User manual

Electrolux

Electrolux LAVATHERM 58840R User manual

Electrolux

Electrolux EDV805JQSA User manual

Electrolux

Electrolux EKDR14XAKW0 User manual

Electrolux

Electrolux EWMED65HIW - 27" Perfect Steam Electric... User manual

Electrolux

Electrolux EDH3685PDW User manual

Electrolux

Electrolux EDV5552 User manual

Electrolux

Electrolux EFME617SIW User manual

Electrolux

Electrolux IQ-TOUCH EIGD55H IW User manual

Electrolux

Electrolux DC6-15 User manual

Electrolux

Electrolux 864500 User manual

Electrolux

Electrolux Compass Pro TD6-37LAC User manual

Electrolux

Electrolux Electric Dryer User manual

Electrolux

Electrolux EIMED6CJSS User manual

Electrolux

Electrolux FGQ332ES User manual

Electrolux

Electrolux T5190 User manual

Electrolux

Electrolux EDH804U5WB User manual

Electrolux

Electrolux 137357000A User manual

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Service manual

Electrolux

Electrolux EDP2074PEW User manual

Electrolux

Electrolux EDV6552 User manual

Electrolux

Electrolux EDH 97961 W User manual

Electrolux

Electrolux T4130 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
