Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in

the first pages.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle emphasize information that is particularly important for your safety or correct

functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

ENGLISH

Contents

Important safety information ............4

Disposal ............................................................5

Tips for environmental protection 5

Description of the appliance..............6

Installation ......................................................7

Unpacking ............................................................7

Positioning ............................................................7

Fitting the vent hose ..........................................7-8

Stacking kit............................................................8

Door reversal ........................................................8

Electrical connection ............................................8

Use........................................................................9

The control panel ............................................9-10

Programme chart ................................................11

Operating sequence............................................12

Useful hints ........................................................13

Maintenance and Cleaning................14

External cleaning ................................................14

Cleaning the door................................................14

Cleaning the filters ..............................................14

Something not working?....................15

Technical specifications

DIMENSIONS: Height 85 cm

Width 60 cm

Depth 58 cm

ELECTRICAL CONNECTION: 230/240 V/50 Hz

MAX. POWER ABSORBED: 2200 W

MIN. FUSE RATING: 10 A

MAX. DRYING CAPACITY: Cotton, linen 5 kg

Synthetics 2.5 kg

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Important safety information

Installation

• Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

• This tumble dryer is designed to be vented through

to the open air. It should have its own ventilation

system which should not be joined with any other

ventilation system connected to any other

appliance.

Use

• This appliance is designed for domestic use only. If

the machine is used for any other purposes or is

not used correctly, the manufacturer accepts no

responsibility for any damage that might occur.

• Always unplug the appliance after use.

• Clothes which are dripping wet should not be

placed in the dryer.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substances are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

• Do not dry canvas shoes or sports shoes, as they

could get stuck between the door and the drum,

thus blocking this latter.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

• Clean fluff filters after using the tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filters are damaged or without filters.

• Do not allow fluff to accumulate around the dryer.

General safety

• It is dangerous to alter the specifications or attempt

to modify this product in any way.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Electrolux

Service Centre. Always insist on genuine

Electrolux spare parts.

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

• Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or

using the appliance.

ENGLISH

To save energy and to help protect the environment,

we recommend that you follow these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

Select the drying programme according to the type

of laundry and the required degree of dryness.

• To utilize the maximum load, laundry which is to be

dried ready to put away (store dry) can be dried

together with items to be ironed. To do this, select

the programme for iron-dry, remove the iron-dry

items at the end of the programme and then finish-

dry the rest of the load.

• Clean the filters regularly to avoid excessive drying

times and high electricity consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

Tips for environmental protection

• Packaging materials

The materials marked with the symbol are

recyclable.

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

• Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

Disposal

Description of the appliance

01 Control panel

02 Fluff filters

03 Rating Plate

04 Adjustable feet

05 Side vent outlets

06 Ring nut

07 Rear vent outlet

ENGLISH

Installation

Warning!

Unpacking

Slide out the polythene bag with the

polystyrene stuffing before using the appliance.

Positioning

It is recommended that, for your convenience, the

machine is positioned close to your washing machine.

Whilst drying, the tumble dryer will expel a certain

amount of warm, very moist air, and this should be

removed from the room as quickly as possible to

prevent condensation. In an extremely well ventilated

room or close to an open window, this may occur

naturally.

However, in general, it is better to carry the dryer's

exhaust outside via the 100 mm diameter flexible

hose supplied with the appliance; ending either

temporarily at an open window, or permanently at a

fixed ventilation grille, fitted to an exterior wall or

window.

The tumble dryer must be installed in a clean place,

where dirt does not build up.

Make sure there are no obstructing items or material

near the air-intake louvres provided at

the back (e.g. paper, rags etc.).

To keep vibration and noise to a minimum when the

dryer is in use, it should be placed on a firm, level

surface.

Once in its permanent operating position, check that

the dryer is absolutely level with the aid of a spirit

level. If it is not, raise or lower the feet until it is.

P0046

P1106

The feet must never be removed.

Do not restrict the floor clearance through deep-

pile carpets, strips of wood or similar. This might

cause heat build-up which would interfere with

the operation of the appliance.

Important

When operating the tumble dryer, the room

temperature must not exceed 35°C, as it may affect

the performance of the appliance.

Fitting the vent hose

To simplify the installation, there is a choice of vent

outlets: one at the back, the others in the left and

right-hand side.

Connect the hose to whichever is the more

convenient by pulling the ring nut (A) from the vent

outlet at the back, screwing it on to the hose and

pushing it firmly back into place.

The unused vents should now be sealed with the

special snap covers provided.

Advice: If the hose is long and the room

temperature low, the moisture might condense to

water inside the hose. This is an unavoidable

natural phenomenon. To prevent this water from

Iying in the hose or flowing back into the tumble

dryer, it is advisable to drill a small hole (dia.

3 mm) in the lowest point of the hose and to place a

small container below it.(See picture, point B).

Once connected to the dryer, run the vent hose to

the desired outlet point, ensuring that the run’s

overall length is less than 2.5 m, and that it contains

no more than two bends. As to the outlet itself, if

you have decided on a fixed wall/window grille, a

good local builder’s merchant should be able to

supply you with the necessary fittings and

installation advice.

P1056 B

P1027

P1028

ENGLISH

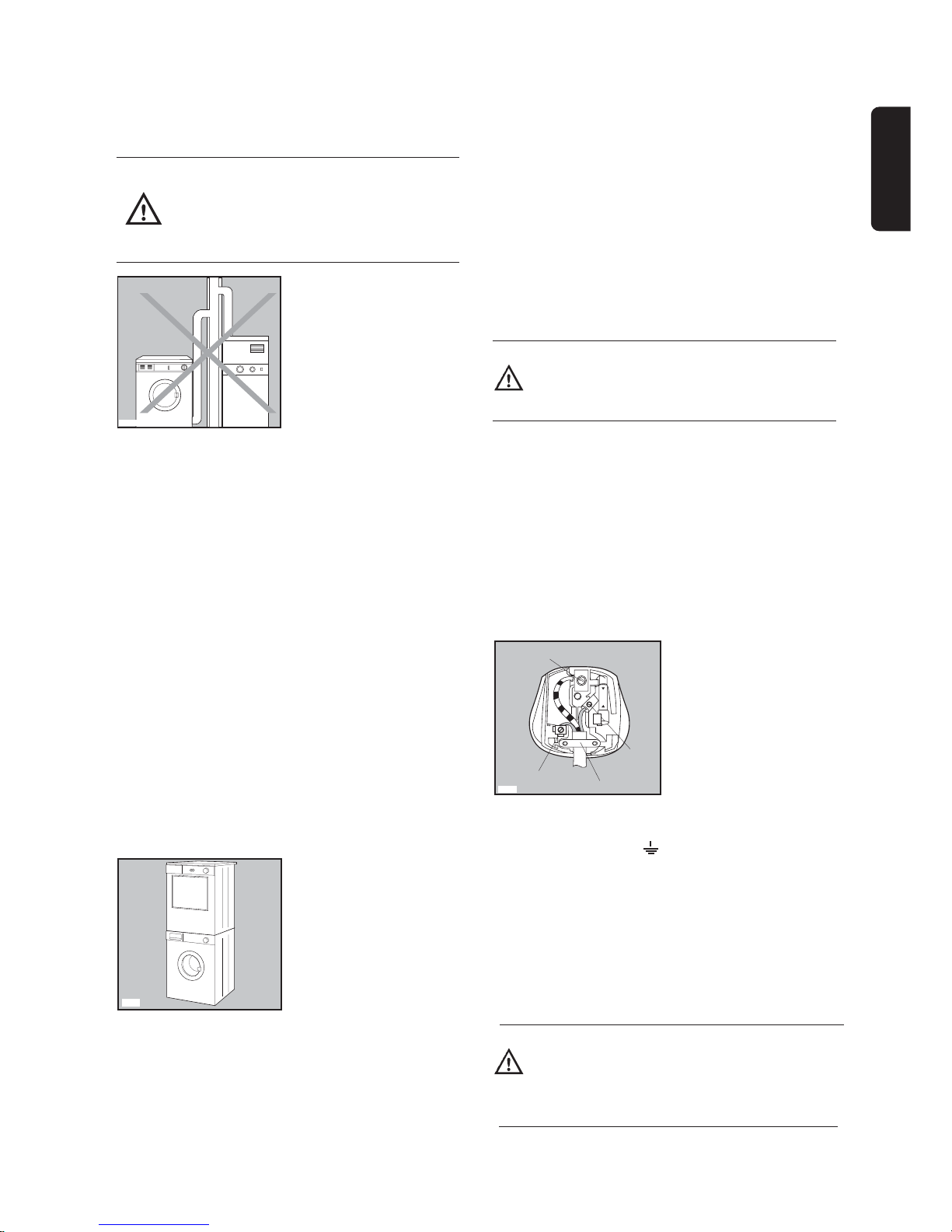

It is important not to connect the vent

hose to, for example, a cooker hood, or

a chimney or flue pipe designed to carry

the exhaust from a fuel burning

appliance.

Note that to avoid condensation problems, it is

essential that the dryer be fitted with the flexible hose

to carry its “exhaust” at least beyond the kitchen

units; preferable outside the kitchen.

In order to prevent the appliance from overheating, it

is important that the steam exhaust is unobstructed.

Therefore, in case of a permanent hose fitted to an

exterior wall or ceiling, it must be ensured an

exhaust capacity of at least 150 m3/h.

If the dryer is fitted next to kitchen units, make

sure that the vent hose is not squashed. If the

hose is partially squashed, drying efficiency will

be reduced, resulting in longer drying times and

higher energy consumption.

If the hose is completely squashed, the safety

cut-outs with which the machine is fitted may

operate.

Stacking kit

A special stacking kit is available through your

dealer, to enable the mounting of the dryer on top of

your washing machine.

Door reversal

To make it easier to load or unload the laundry the

door can be reversed.

This operation must be carried out by qualified

personnel.

Please contact the nearest Electrolux Service

Centre.

P1107

P0055

Electrical connection

This machine is designed to operate on a 230-240 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.2 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket, in

accordance with current wiring regulations.

The manufacturer declines any

responsibility for damage or injury through

failure to comply with the above safety

precaution.

The appliance is supplied with a 13amp plug fitted.

In the event of having to change the fuse in the plug

supplied, a 13amp ASTA approved (BS1363A) fuse

must be used.

Should the plug need to be replaced for any reason,

proceed as described below.

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

The wire coloured green and yellow must be

connected to the terminal marked with the letter «E»

or by the earth symbol or coloured green and

yellow.

The wire coloured blue must be connected to the

terminal «N» or coloured black.

The wire coloured brown must be connected to the

terminal marked «L» or coloured red.

Upon completion there must be no cut, or stray

strands of wire present and the cord clamp must be

secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp

socket is a serious safety (shock) hazard.

Ensure that the cut off plug is disposed of

safely.

GREEN & YELLOW

BROWN

CORD CLAMP

BLUE

13 A

P1041

ENGLISH

ENGLISHENGLISH

Use

The control panel

12 3 4 5 6 7 8

1 Programme chart

This will help you to select the correct programme for

drying.

2 Mains-ON light

Comes on when the appliance is switched on

(ON/OFF button pressed down) and goes out when

this button is released.

3 ON/OFF button

This button is used to switch the dryer on. At the end

of the programme, release this button by pressing it

again to switch the dryer off.

4 Low temperature button

Pressing this button allows drying to be performed at

a lower temperature, for delicate items.

The corresponding pilot light comes on.

5 Buzzer OFF button

A buzzer sounds during the anti-creasing phase.

Press this button when selecting the programme if

you wish to switch the buzzer off. The corresponding

light illuminates.

6 Start button

Press this button for about 2 seconds to start the

dryer after having selected the programme.

If the door is opened while the programme is

running, this button must be pressed again after

closing the door in order to restart the programme

from the point at which it was interrupted.

This button must also be pressed after a power cut.

In both cases light or (depending on the

phase in progress)

flashes to remind you that the start button needs to

be pressed again.

7 Programme phase indicator lights

These lights indicate the various phases of the

programme as they are being performed.

“Drying” light

This light indicates that the appliance is in the drying

phase.

“Cooling” light

This light indicates that the appliance is in the

cooling phase. At the end of drying, there is a 10

minute cooling phase to cool the laundry.

If light or is flashing, this means that the Start

button needs to be pressed again for the programme

to resume.

“End of programme” light

This light flashes at the end of the cooling phase and

during the anti-creasing phase.

“Anti-creasing phase” light

This light flashes alternately with the light at the

end of the drying phase (after cooling) and during the

anti-creasing phase.

If only light flashes, this means that the anti-

creasing phase has finished.

8 Programme/Time selector dial

Allows you to select electronically controlled or time

controlled drying.

Turn the dial to the required programme or time.

Electronically controlled drying

(automatic)

The appliance runs these programmes with the help

of probes which detect the degree of dampness of

the laundry.

Simply select the programme according to the type

of laundry and degree of drying required.

Time controlled drying

Can be used to finish off drying if necessary.

Select the 60 minute programme for cottons (“I”) or

the 30 minute programme for synthetics (“L”).

To cancel a programme which is running, turn the

programme selector dial to “0”.

At the end of drying, turn the selector dial to “0”

before removing the laundry.

ENGLISH

Table of contents

Other Electrolux Dryer manuals

Electrolux

Electrolux ENV06 User manual

Electrolux

Electrolux EDE 37100W User manual

Electrolux

Electrolux Wave-Touch 137018100 A User manual

Electrolux

Electrolux EDH803BEWA User manual

Electrolux

Electrolux EDP2074PDW User manual

Electrolux

Electrolux EDE56140W User manual

Electrolux

Electrolux TWL3E500 User manual

Electrolux

Electrolux U04488 WT40 User manual

Electrolux

Electrolux FGQ332ES User manual

Electrolux

Electrolux 137357000A User manual

Electrolux

Electrolux EDC2086PDW User manual

Electrolux

Electrolux EIED55H IW User manual

Electrolux

Electrolux EDH3497TDS User manual

Electrolux

Electrolux EWMGD65H User manual

Electrolux

Electrolux T5130 User manual

Electrolux

Electrolux EWMED65IRR User manual

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer User manual

Electrolux

Electrolux EIGD50LIW Installation instructions

Electrolux

Electrolux EDP2074GDW User manual

Electrolux

Electrolux EDH3498RDL User manual

Electrolux

Electrolux LAVATHERM 56840L User manual

Electrolux

Electrolux EDV705HQWA User manual

Electrolux

Electrolux TK SL5 E User manual

Electrolux

Electrolux EDH3685PDW User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
