Electrolux EDV6552 User manual

EDV6552

EDV7552

EDV7552S

User ManualTumble Dryer

Mesin Pengering Manual Pengguna

使用说明书滚筒干衣机

2 www.electrolux.com

Visit our website to:

Subject to change without notice.

WE’RE THINKING OF YOU

CUSTOMER CARE AND SERVICE

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time. Welcome to Electrolux.

We recommend the use of original spare parts.When contacting Service, ensure that

you have the following data available. The information can be found on the rating plate.

Model, PNC, Serial Number.

Get usage advice, brochures, trouble shooter, service information, buy accessories

& spare parts, online product registration : www.electrolux.com

CONTENTS

1.1 Dryer Safety

1.2 Fire Hazards

1.3 Cleaning The Lint Filter

1.4 Drying Guide

1. IMPORTANT SAFETY INSTRUCTIONS

2. INSTALLATION INSTRUCTIONS

................................................................................................................. 3

................................................................................................................ 3

................................................................................................ 4

................................................................................................................ 4

3.1 The Control Panel

3.2 Operating Sequence

........................................................................................................ 6

.................................................................................................... 8

....................................................................................................... 11

...................................................................................... 5

3. USE

4. HINTS ................................................................................................................................ 9

5. TROUBLESHOOTING

Caution, risk of fire.

Warning / Caution-Safety information.

General information and tips

Environmental information.

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS1.

The final part of a tumble dryer cycle occurs without

heat (cooling cycle) to ensure that the items are left

at the temperature that ensures that the items will

not be damaged.

1.1 Dryer Safety 1.2 Fire Hazards

Lint must not be allowed to accumulate around

the tumble dryer.

Do not dry unwashed items in the tumble dryer.

These dryers are for drying clothes, towels and

linen at home. Do not use them for any other

purpose.

If the electrical cord of this appliance is

damaged, it must be replaced by the

Manufacturer, Authorised Service Agent or

similarly qualified person in order to avoid a

hazard.

IMPORTANT:

WARNING:

Never stop a tumble dryer before the end of the

drying cycle unless all items are quickly removed

and spread out so that the heat is dissipated.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that they do

not play with the appliance.

See the serial number sticker located on the bottom of

the door opening for voltage information.

www.electrolux.com

Never operate your dryer without the lint filter.

Do not allow lint to build around your dryer.

A torn or damaged lint filter must be replaced

immediately.

Overloading can increase lint build-up because the

airflow is reduced.

1.3 Cleaning The Lint Filter 1.4 Drying Guide

6.5 kg for the EDV6552 dryer

7.5 kg for the EDV7552, EDV7552S dryer

ENGLISH

INSTALLATION INSTRUCTIONS2.

Control Panel

Door

Door Safety Switch

Button

Door Handle

Exhaust Grille

Front Feet

Name Badge

Worktop

Mains Cable

Air Inlet Duct

Outlet Cover

Back Feet

Removable

Exhaust

Grille

Air Flow

Washing Machine

Dryer

Upside

Down

Normal

You can reverse name

badge when you want to

mount your dryer upside

down. Use a suitable tool

(such as a thin bladed

tool). Unclip the badge

from the panel, then

reverse and clip back.

You can remove program

sticker from control panel

and replace with inverse

sticker provided in user

manual bag, when

installation upside down

machine.

Name Badge

Program Sticker

www.electrolux.com

USE3.

These two buttons used to select dryness program or dry

time as below:

Program Button (Up “ ” and Down “ ”)

This button is a feature that permits you to start

the dryer after a defined number of hours, ranging

from 6 or 9 hours.

To abort Delayed start, press Start/Pause ( ) to

pause the machine then modify or cancel delay

time.

Delay Button

Is used to select one of the following options :

Boost: Higher temperature during drying cycle.

Low Heat: Lower Temperature during drying

cycle.

Airing: No Heating.

Option Button

When a new program is selected while the

dryer is already running, the drying process

will continue using the setting from the new

program.

NOTE: Make sure you have set the

desired program before setting the delay.

For best result we recommend to sort out

your laundry according to fabric type and

spin dry at highest speed available in your

washing machine.

Extra Dry Ideal for towels or similar such as

cotton and linen.

6.5 kg/

7.5 kg

6.5 kg/

7.5 kg

4 kg

3-5 pcs

(dry items)

2 kg

Normal

Dry

Iron Dry

Program Textile Type Info Load Size

Info (Max.)*

Select this cycle to dry everyday

fabrics including cottons, linens and

sheets.

Suitable for ironing such as cotton

and linen.

Delicate For drying delicate clothing and

Synthetics.

Refresh

90 min.

Refreshing items that have been in

storage for long time (a short cycle

with warm temp).

For drying most fabrics, cotton. 3 kg60 min.

1.5 kg30 min.

Program

Press “ ” and “ ” buttons to select programs as below:

Program Table Guides

If you wish to carry out a timed drying program, pressing

“ ” and “ ” buttons to select desired time, time

available are:

Corresponding LED for selected program will turn on.

3.1 The Control Panel

: Extra Dry, Normal Dry, Iron Dry;

: 90 min, 60 min, 30 min

: Fast 40, Delicate, Refresh.

* Depend on model of Dryer (6.5 or 7.5 kg capacity)

1 1 2 4 85 6 7

Fast 40

Select this cycle to dry everyday

fabrics, cotton or blended fabrics

that need to be dried quickly.

ENGLISH

Press and hold the Program “ ” “ ” buttons

simultaneously until Anti Crease LED turns on.

This button allows you to start or pause the dryer to

check the contents or perhaps add more clothes.

NOTE: The dryer will not start unless the

door safety button is pressed in. If the safety

button is not pressed in a door switch fault

will be indicated (“beeps” 6 times).

Start/Pause Button ( )

This feature helps prevent creases forming in the

clothes after normal drying cycle has ended.

When activated, after the normal drying cycle has

finished, the drum will rotate about 5 seconds every

minute. This cycle will continue for 3 hours.

Anti Crease is not activated by default. This option

must be activated manually for each cycle if desired.

Anti Crease Default Behavior

Activating Anti Crease

Anti Crease Feature

When activated, the options and start/pause buttons

are disabled.

Child Lock ( )

The Clean Filter LED turns on

and blinks at the end of each dry

cycle to serve as a reminder to

user to clean lint filter at the end

of each load.

Clean Filter Reminder

This button is used to switch the appliance ON or OFF.

On/Off Button

These indicators show at which phase the

drying cycle is.

Progress Indicator Lights

The Buzser feature is designed to remind user when

the dry cycle has ended, with a “beep” sound.

Buzzer

Note: If Child Lock is activated clean filter

reminder LED will turn on but will not blink.

It remains solid.

If Anti Crease LED is on, to deactivate press and

hold the Program “ ” “ ” buttons simultaneously

until Anti Crease LED turns off.

Deactivating Anti Crease

Press and hold the “Delay” and “Option” buttons

simultaneously until the “ ” & Clean Filter LED

turns on.

Activating Child Lock

Press and hold the Program “ ” and “Delay”

buttons simultaneously until a long beep is heard.

Activating Buzzer

Press and hold the same buttons until a short beep

is heard.

Deactivating Buzzer

Press and hold the “Delay” and “Option” buttons

simultaneously until the “ ” & Clean Filter LED

turns off.

Deactivating Child Lock

www.electrolux.com

Press door

safety switch

button.

For drying delicates and

synthetics at lower heat for

maximum care of the fabrics. The

Low Heat setting will cause the

heater to cycle on for shorter time

than the Boost setting.

This setting does not heat. ONLY

circulate the air in the dryer to

shake out dust and refresh

clothes.

To obtain the best drying results with

small loads it is recommended to use

“Time drying” program.

Press “ ” button or “ ” button

to select either “Extra Dry”,

“Normal Dry”, “Iron Dry” for full

load and “Fast 40”, “Delicate”,

“Refresh” for smaller load.

Press the “Option” button to select either

Boost or Low Heat from the option

program.

“Airing” is NOT available in Drying program.

Press then release the On/Off button on the control

panel. You are now ready to select your drying

Program.

This mode gives you the

option of selecting different

drying levels.

This option allows you to set

the program duration.

Do not load clothes or other articles which

are dripping wet or have sand and grit on

them into your dryer.

Auto sensing

Manual timing program

You can use your dryer 2 ways

1. Select Drying Program or Set Drying Time

2. Select Option

3. Now press Start/Pause button to start the

Dryer.

Step 1

Step 2

Step 3

Do not select the “Extra Dry” option for

delicates fabric such polyester as

shrinking may occur.

Press the “ ” button or

“ ” button to select either

90, 60 and 30 min.

Refer to the table below for option setting

recommendations.

See program table guides for load size info.

Boost

Low Heat

Airing

3.2 Operating Sequence

Drying Program

Time drying

Option

ENGLISH

WARNING: Never stop a tumble dryer before

the end of the drying cycle unless all items

are quickly removed and spread out so that

the heat is dissipated.

both

Step 4

Switch Off

When you have finished using the dryer, press the

On/Off button, to turn off the power, then switch off at

the power point. It is recommended to power off the

appliance when not in use.

Step 5

Clean Lint Filter

After every load clean the lint filter to reduce

drying time and avoid overheating.

Checking the Load

Cooling

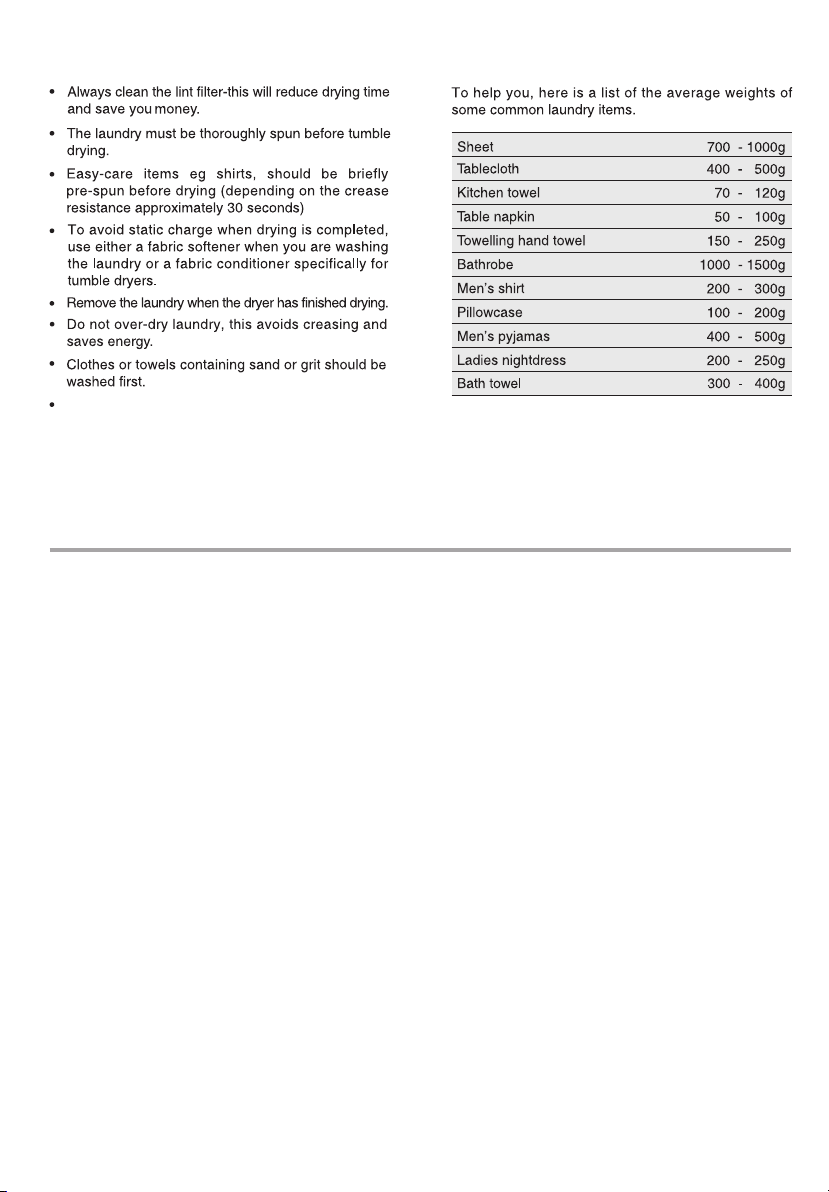

Hints4.

www.electrolux.com

Due to variations in dryer load fabric texture and

thickness it is possible that not all items will be

dried evenly. It you experience uneven dryness on

Normal Dry program please use either Extra Dry or

Timer Program but be mindful of the type of fabric

being dried to avoid overdrying certain types of

fabric. Always follow drying instructions attached to

the items intended to be dried in a clothes dryer.

This manual suits for next models

Table of contents

Other Electrolux Dryer manuals

Electrolux

Electrolux EFME617SIW User manual

Electrolux

Electrolux 864500 User manual

Electrolux

Electrolux EW8H2966IR User manual

Electrolux

Electrolux EEFDG317TIW User manual

Electrolux

Electrolux EFME617SIW User manual

Electrolux

Electrolux EDH804H3WB User manual

Electrolux

Electrolux SAHARA User manual

Electrolux

Electrolux EDH3786GDW User manual

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Quick start guide

Electrolux

Electrolux EDH903R9WB User manual

Electrolux

Electrolux T4650 User manual

Electrolux

Electrolux EWMED70J MB User manual

Electrolux

Electrolux EIGD55HIW - 27" Gas Dryer Quick start guide

Electrolux

Electrolux IQ-Touch EIED50LIW0 User manual

Electrolux

Electrolux Zanussi ZDE 57140W User manual

Electrolux

Electrolux 300 Series User manual

Electrolux

Electrolux WT31RT Instruction Manual

Electrolux

Electrolux DC6-14 User manual

Electrolux

Electrolux EDV5051 User manual

Electrolux

Electrolux GLER642CAS3 User manual

Electrolux

Electrolux EDC 510E User manual

Electrolux

Electrolux TDC 1000 W User manual

Electrolux

Electrolux EDH3386PDW User manual

Electrolux

Electrolux EIMED60LT User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
