DW PIXIM DWC-V365D User manual
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
09172013
PIXIM Vandal Dome Camera
DWC-V365D
DWC-V365TIR
User Manual
2
PRECAUTIONS
FCC COMPLIANCE
WARNING : Changes or modifications are not expressly approved by the manufacturer.
Do not open or modify.
Do not open the case except during maintenence and installation,
for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of kitchen or a boiler room,
as the temperature may rise to high levels.
Cleaning :
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface :
The material of the mounting surface must be strong enough to support the camera.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
Provide reasonable protection against harmful interference. when the equipment is
operated in a residential environment. This equipment generates, uses, and radiates
radio frequency energy; and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications.
3
TABLE OF CONTENTS
Introduction
Installation
Module OSD Menu
Troubleshooting
Warranty Information
Specifications
Features
Parts and Descriptions
Dimensions
Inside the Box
Easy Installation
Connecting to Monitors
Adjusting the Camera Lens
4
5
6
7
8
9
10
12-26
27
28-29
30-31
Adjusting the 3-Axis Gimbal 11
4
FEATURES*
DWC-V365D / DWC-V365TIR
1/3” PIXIM Nightwolf CMOS Sensor
690 Horizontal TV Lines
3.3~12mm Varifocal Auto Iris Lens
85ft IR Distance with Smart IR [V365TIR Only]
TDN (True Day and Night / IR Cut Filter) [V365TIR Only]
3D DNR (Digital Noise Reduction)
Powerful Wide Dynamic Range
Star-Light (Super Low Light Technology)
8X Digital Zoom
Ultra Low Light Sensitivity
Smear Cancelation
Low Power Consumption
Programmable Privacy Zones (6) & Motion Detection
AGC/ BLC/ AWB
OSD Menu with Built-In Joystick
IP66 Certified
Auto Sensing 12VDC or 24VAC with Line Lock
Secondary Video-BNC Output
5

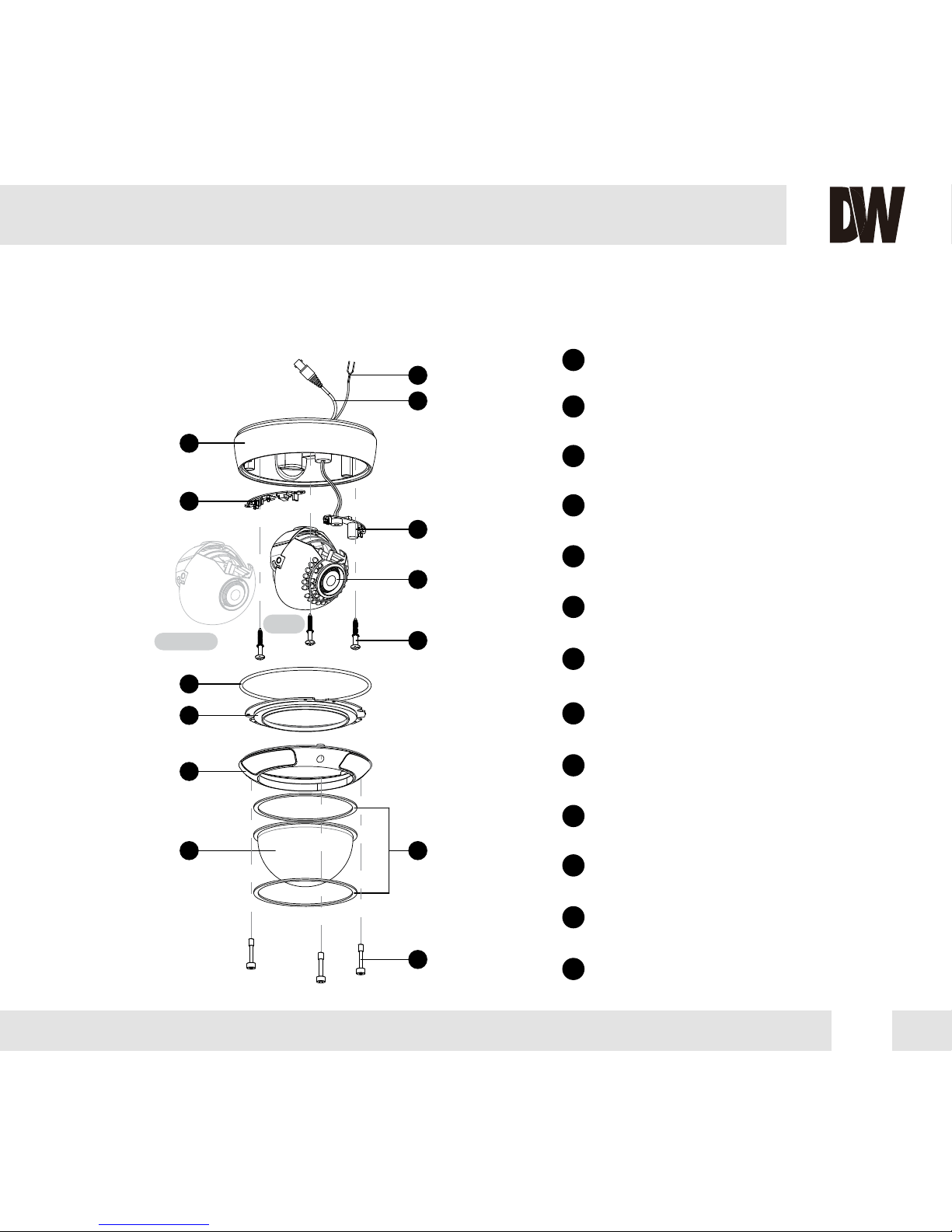

PART & DESCRIPTIONS*
1Lens
4Upper Case
5Bubble
2Power Input Connctor
12VDC/24VAC Dual Voltage
3Video Output Connector - BNC
6Bubble Rubber
7Mounting Plate
Assemby Screws
9
Bottom Case
10
Control Board
11
Power Board
12
Mounting Screws
13
8
Upper Ring
11
10
12
13
3
2
1
6
9
7
8
4
5
NO IR
IR

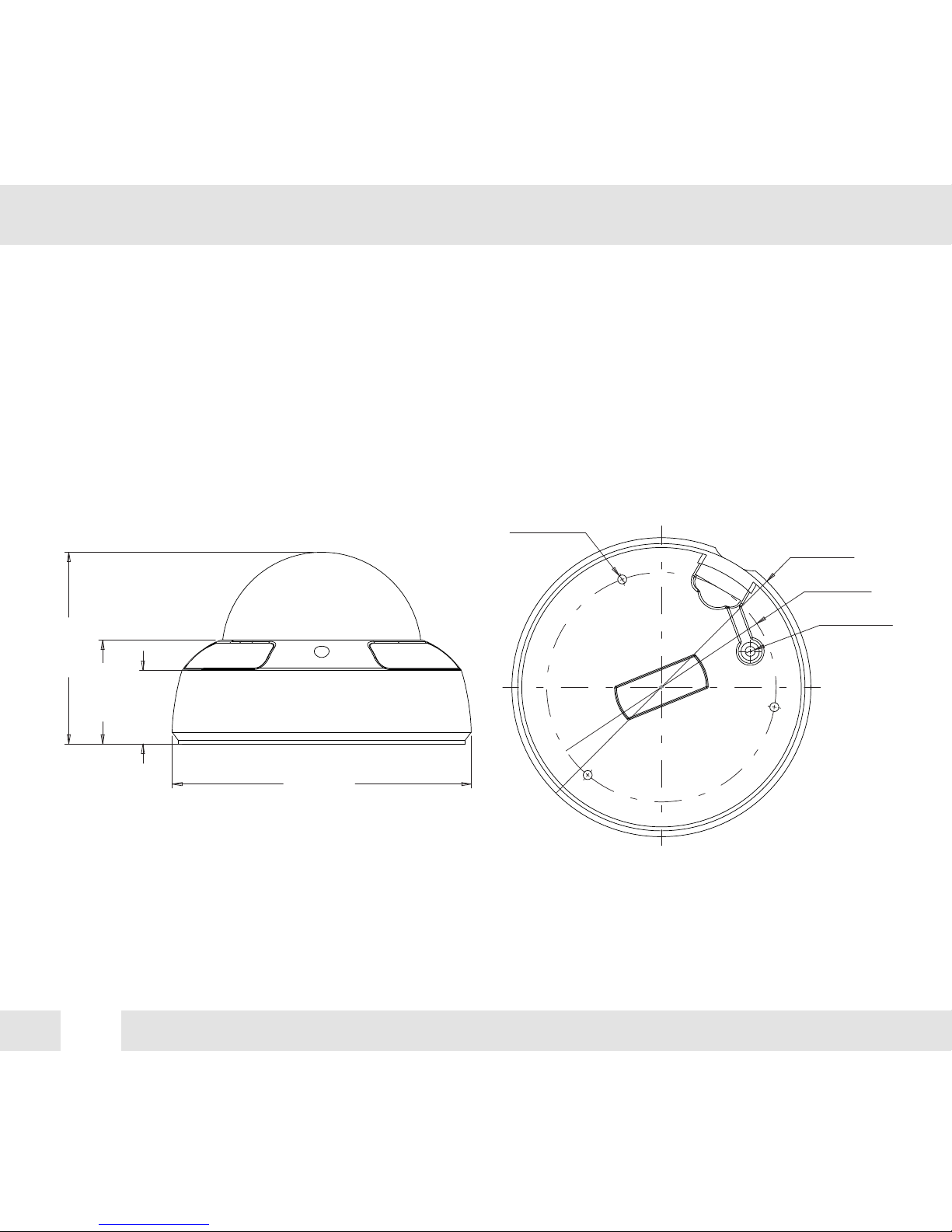

DIMENSIONS IN MILLIMETERS (IN)*
6
See the diagrams below for the exact dimensions for the Surface Mount Housing.
52.2
(2.05”)
96.2
(3.79”)
Ø149.9
(Ø 5.9”)
37.0
(1.46”)
Ø149.9
(Ø 5.9”)
Ø115.0
(Ø 4.53”)
Ø5.0
(Ø 0.2”)
3- Ø4.5
(3- Ø0.18”)
7

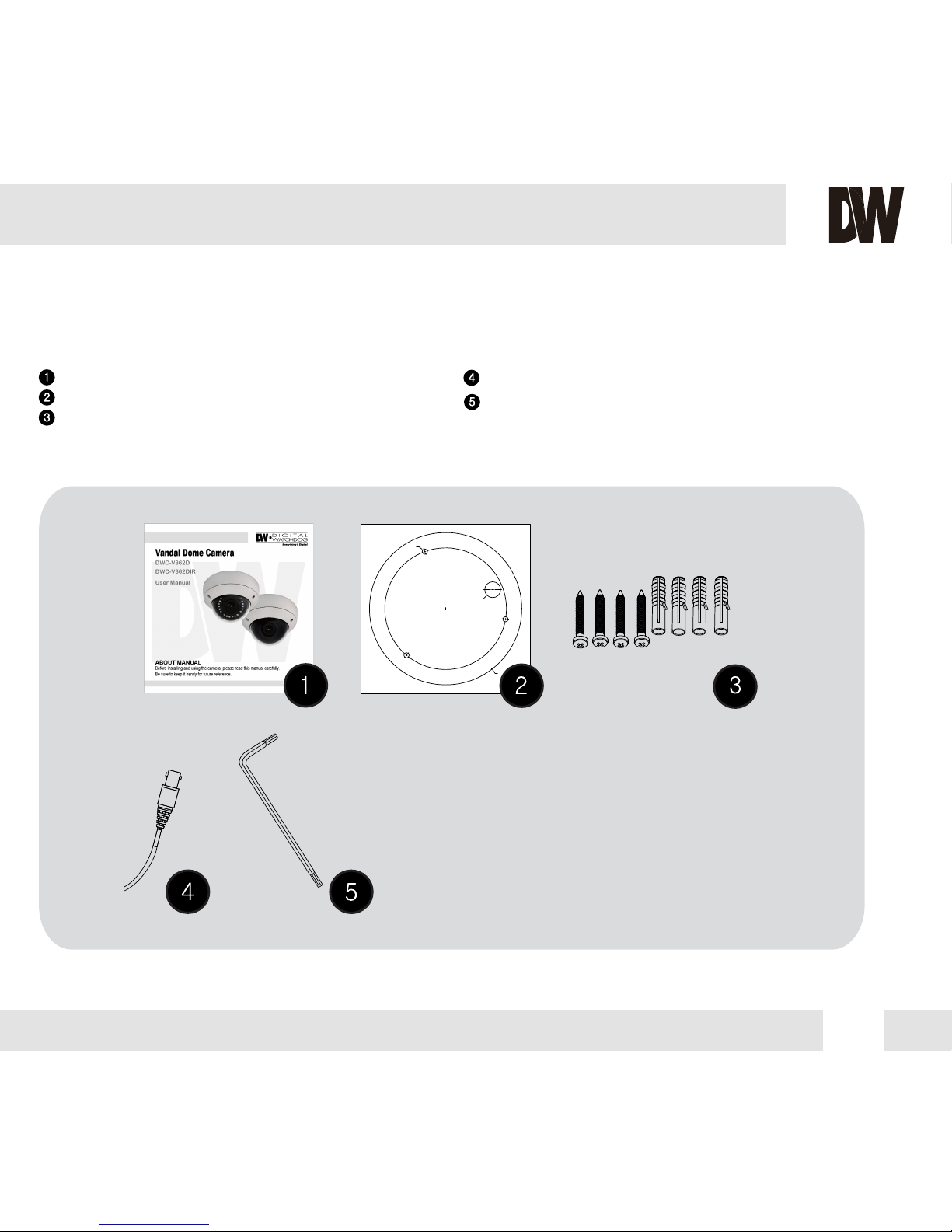

INSIDE THE BOX*
Included with Snapit Vandal Dome Camera
User Manual
Mounting Template
4 Machine Screws and 4 Dry Wall Anchors
Secondary Video-BNC Cable
L-Wrench
1
2
3
4
5
Ø144.0
Ø5.0
Mounting template
VD101
Ø15.0
8

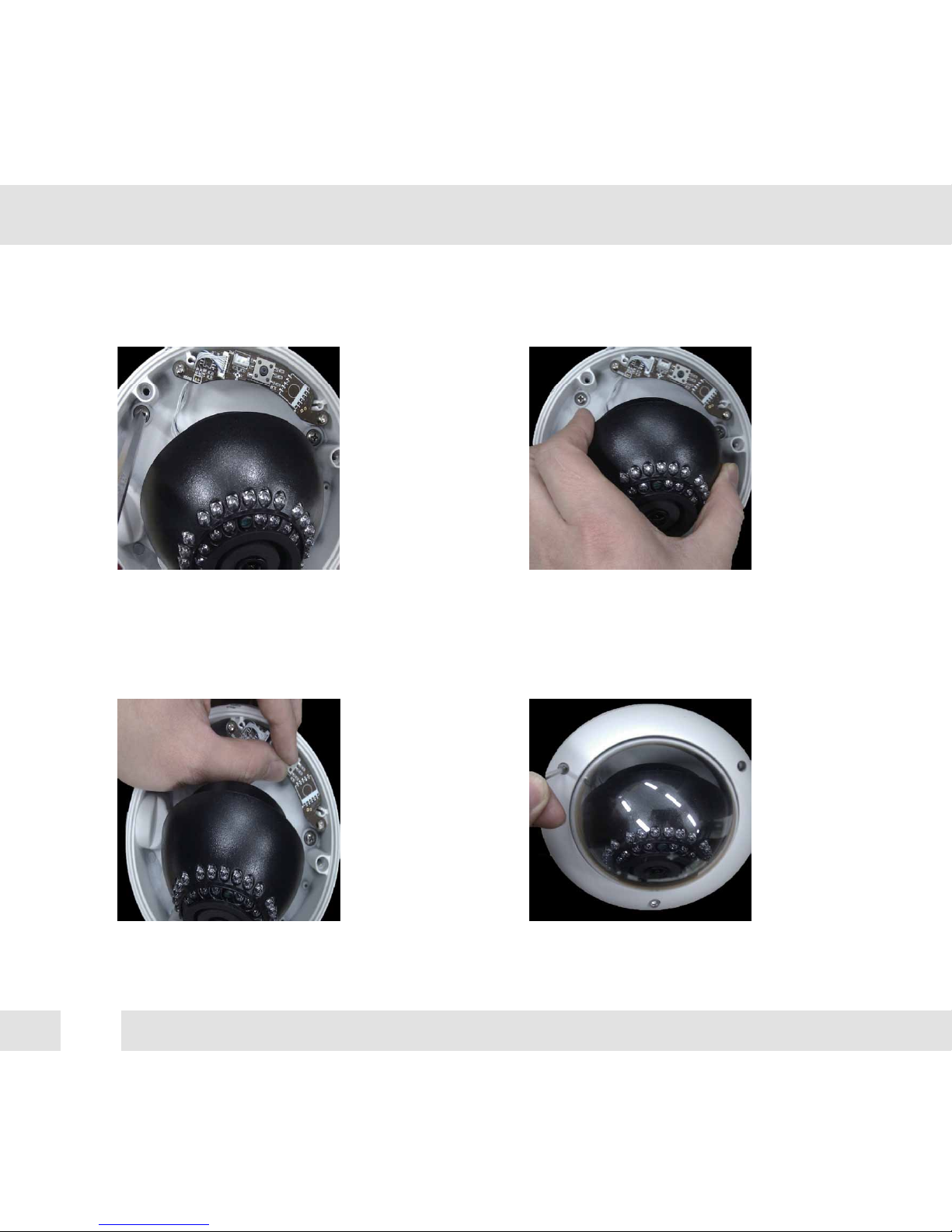

BASE INSTALLATION*
1. Pull wires through and make connections.
Refer to page 10. Use mounting template to
mount camera with dry wall mounts and wood
screws.
3. Use the joystick to adjust the OSD menu.
See page 13~16 for details.
2. Adjust the camera’s pan,tilt and zoom.
See page 12 for details.
4. Attach the camera housing to the
junction box using the assembly screws.
9

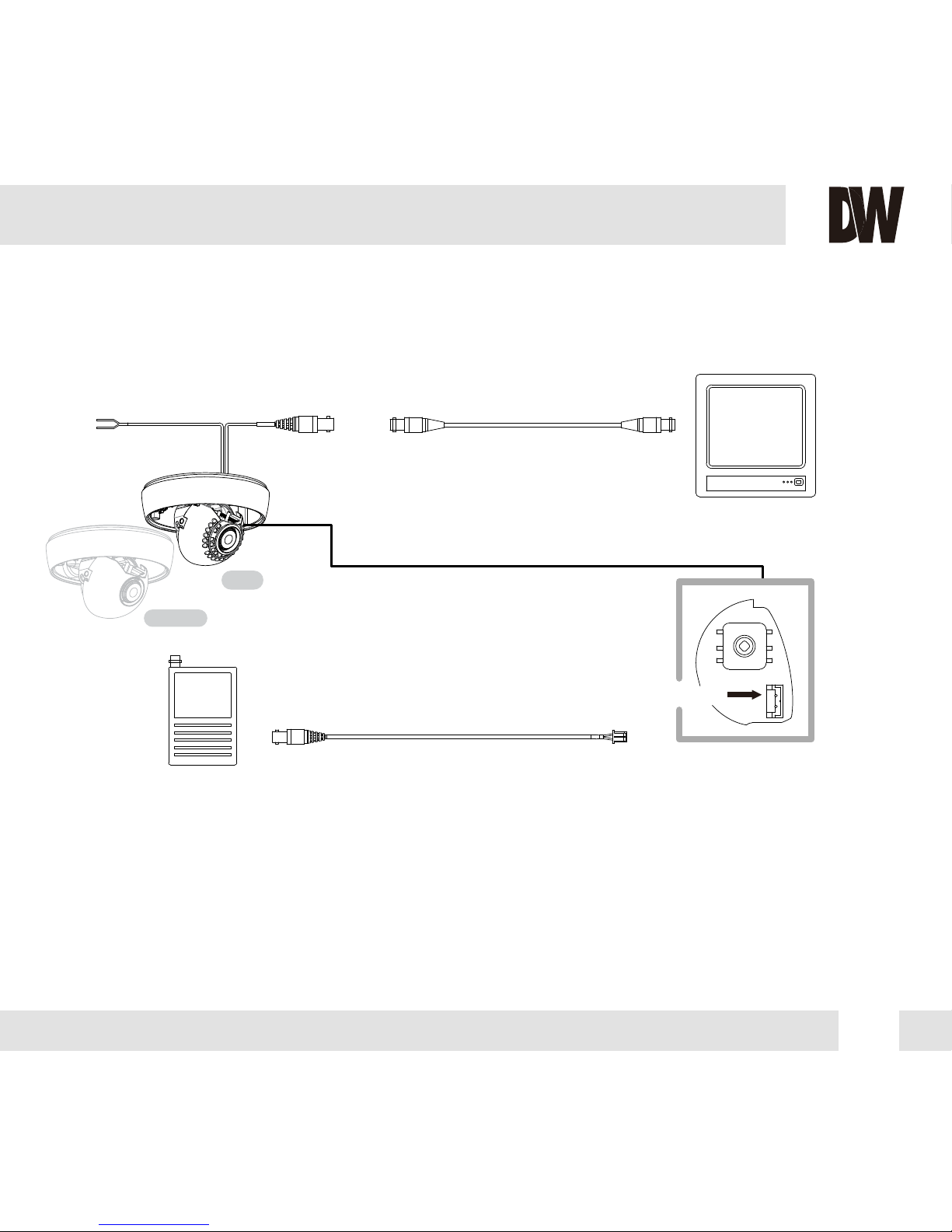

CONNECTING TO MONITORS*
Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection)
All cameras are equipped with a second video output for on-site configuration.
Use the diagram below to connect to a Monitor or CRT Monitor properly.
DC 12V / AC 24V
CCTV Monitor
Monitor
300.0mm(11.8”)
Second Video Output
NO IR
IR
10

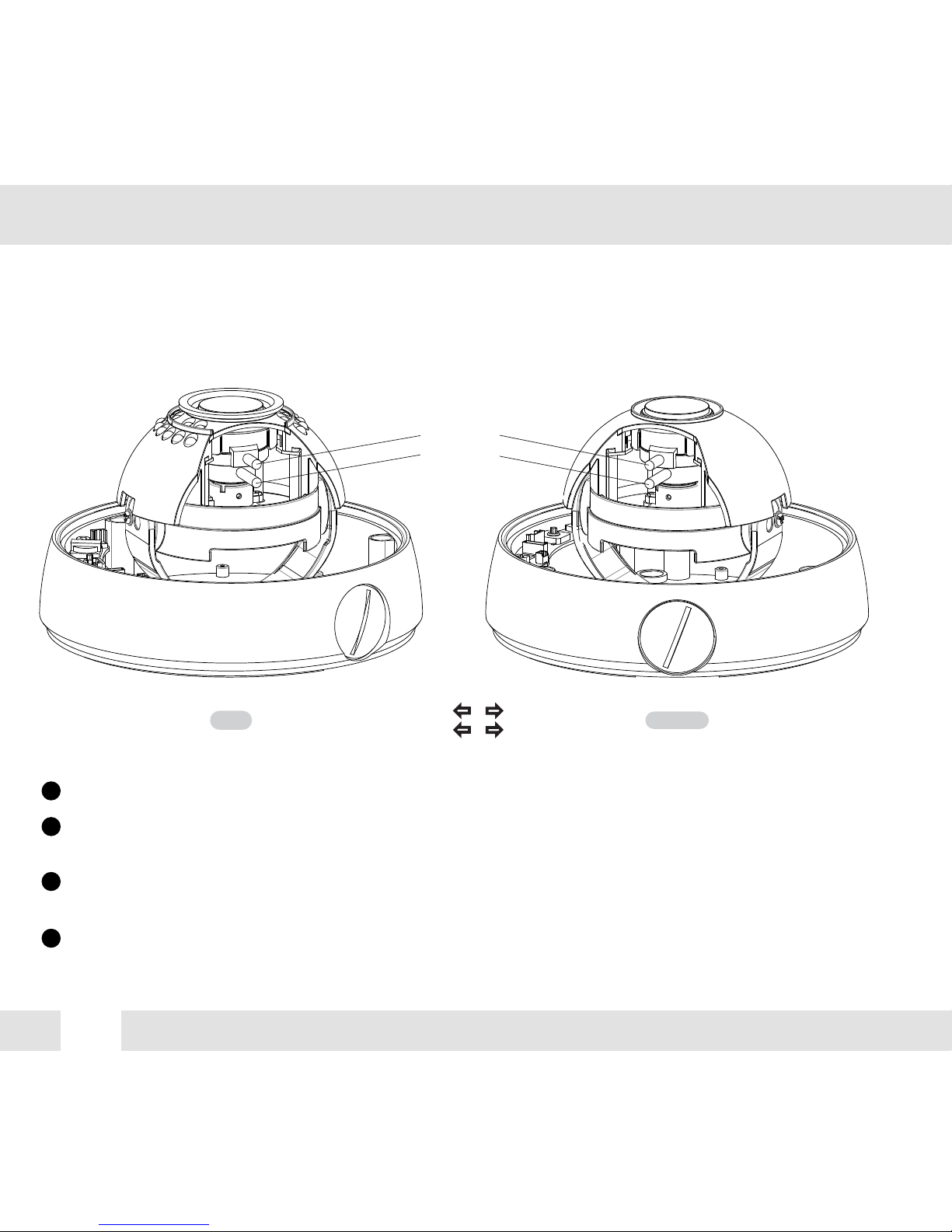

ADJUSTING THE CAMERA*
ZOOM
FOCUS
NO IRIR Zoom:
Focus:
Tele - Wide
Far - Near
Loosen the Zoom & Focus Handles by rotating them counter-clockwise.
1
Adjust the Field of view by moving the handle to the RIGHT(Tele) to zoom in, or to the
LEFT(Wide) to zoom out.
2
Adjust the Focus the same way as described above AFTER the desires Zoom position
is estabilished.
3
Once the desired adjustments have been made, please tighten the handles back by
turning them clockwise.
4
