DW MEGApix CaaS DWC-MF4Wi4C6 User manual
User’s Manual Ver. 03/20
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
MEGApix® CaaSTM 4MP
Ultra low-profile vandal dome IP camera
DWC-MF4Wi4C6 - 64GB storage
DWC-MF4Wi4C1 - 128GB storage
DWC-MF4Wi4C2 - 256GB storage
DWC-MF4Wi6C6 - 64GB storage
DWC-MF4Wi6C1 - 128GB storage
DWC-MF4Wi6C2 - 256GB storage
Safety Information
This symbol indicates that dangerous voltage
consisting a risk of electric shock is present within
this unit.
Warning Precaution
This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
To prevent damage which may result in fire or electric shoc
hazard, do not expose this appliance to rain or moisture.
WARNING
Be sure to use only the standard adapter that is specified i
the specification sheet. Using any other adapter could caus
fire, electrical shock, or damage to the product
Incorrectly connecting the power supply or replacing battery
may cause explosion, fire, electric shock, or damage to th
product.
Do not connect multiple cameras to a single adapter.
Exceeding the capacity may cause excessive heat generation
or fire
Securely plug the power cord into the power receptacle.
Insecure connection may cause fire
When installing the camera, fasten it securely and firmly
A falling camera may cause personal injury.
Do not place conductive objects (e.g. screw drivers, coins,
metal items, etc.) or containers filled with water on top o
the camera. Doing so may cause personal injury due to fire
electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations.
Doing so may cause fire or electric shock
If any unusual smells or smoke come from the unit, stop
using the product. Immediately disconnect the power sorce
and contact the service center. Continued use in such a
condition may cause fire or electric shock
If this product fails to operate normally, contact the nearest
service center. Never disassemble or modify this product in
any way.
When cleaning, do not spray water directly onto parts of the
product. Doing so may cause fire or electric shock
WARNING
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Precaution
Operating
• Before using, make sure power supply and all other parts are
properly connected.
• While operating, if any abnormal condition or malfunction
is observed, stop using the camera immediately and contact
your dealer.
Handling
• Do not disassemble or tamper with parts inside the camera.
• Do not drop the camera or subject it to shock or vibration as
this can damage the camera.
• Clean the clear dome cover with extra care. Scratches and
dust can ruin the quality of the camera image.
Installation and Storage
• Do not install the camera in areas of extreme temperature,
exceeding the allowed range.
•Avoid installing in humid or dusty environments.
•Avoid installing in places where radiation is present.
•Avoid installing in places where there are strong magnetic
fields and electric signals.
•Avoid installing in places where the camera would be subject
to strong vibrations.
•Never expose the camera to rain or water.
Important Safety Instructions
Disposal of Old Appliances
1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately form the municipal waste stream
stream in accordance to laws designated by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the
environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interferenece at his own expense.
1. Read these instructions. - All safety and operating instructions should be read before installation or operation.
2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instructions should be followed.
5. Do not use this device near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet
basement; near a swimming pool; etc.
6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Slots and
openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it
from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar
surfaces. This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided and the manufacturer’s instructions have been adhere to.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Table of Contents
Introduction
Product & Accessories......................................................................................................................................................................5
Parts Name...........................................................................................................................................................................................6
Installation
Factory Reset......................................................................................................................................................................................7
Installation......................................................................................................................................................................................8-11
Cabling................................................................................................................................................................................................12
SD Memory Card..............................................................................................................................................................................13
Network Setup
DW IP Finder......................................................................................................................................................................................14
Network Connection ......................................................................................................................................................................15
DDNS Registration..........................................................................................................................................................................16
Network Environments...........................................................................................................................................................17-19
Port Forwarding...............................................................................................................................................................................20
Starting the IP Camera...................................................................................................................................................................21
Web Viewer
GUI Overview....................................................................................................................................................................................22
Camera Settings
Setup > Video & Audio Setup > Video Configuration.................................................................................................23-26
Setup > Video & Audio > OSD Configuration.......................................................................................................................27
Setup > Video & Audio > Region of Interest Configuration ...........................................................................................28
Setup > Video & Audio > Privacy Mask Configuration......................................................................................................29
Setup > Camera > Camera Image adjustment and Enhancement.........................................................................30-35
Setup > Network Settings......................................................................................................................................................37-46
Setup > Trigger Action............................................................................................................................................................47-49
Setup > Security........................................................................................................................................................................59-63
Setup > System > Firmware Update..................................................................................................................................65-66
Setup > System > Date & Time...................................................................................................................................................67
Setup > System > User Management......................................................................................................................................68
Setup > System > System Log....................................................................................................................................................69
Setup > System > System Information....................................................................................................................................64
Setup > System > Factory Reset................................................................................................................................................70
Setup > System > Restart.............................................................................................................................................................71
Appendix...............................................................................................................................................72-73
FAQs............................................................................................................................................................74
Dimensions.................................................................................................................................................75
Warranty.....................................................................................................................................................76
Limits & Exclusions.....................................................................................................................................77
Setup > Events Setup...............................................................................................................................................................50-53
Disassembling the Camera............................................................................................................................................................7
Setup > Camera > Video Enhancement..................................................................................................................................36
Setup > Edge Setup..................................................................................................................................................................54-58
Product & Accessories
Introduc�on -
Screw &
Plas�c Anchor-3pcs
Camera Cables
Moisture absorber
& Absorber Guide
Template Sheet
for Installing by Bolt & Nut
Template Sheet
for Installing by Plate
Mount Bolt & Nut
Torx Wrench
Mount Plate
Test Monitor Cable Waterproof cap & Gasket
Quick Manual &
Download Guide
Note : Micro SD Card is built-in in this camera.
5
Plate Hook
Mount Plate
Bezel
Lens
Bottom Case
Gimbal
Tilt Stopper Screw
Dome Cover
DC Power Jack
Waterproof cap
RJ-45 Connector
Reset Button
SD Card Slot
Part Name
Introduction -
Test Monitor
Cable Connector
6
Disassemble the camera
Ia
Before installing your camera, read the following cau�ons.
1. Check whether the mounting surface can bear five mes the weight of your camera.
2. Do not let the cables get caught in improper place or the electric line cover to be damaged.
It may cause a breakdown or fire.
3. When installing your camera, do not allow any person to approach the installaon site. If you
have any valuable things under the place, move them away.
Detach the dome cover using torx wrench provided.
Use the Torx wrench to loosen 3 bolts counter-
clockwise to remove the dome cover.
1
2
.
3
Reset to the Factory Default
ress the reset butt r 5 secs treturthe setu
Warning:
ata. Ieee leasemake a te r urther istallati.
2
3
1
7
Disassemble the camera. See the secon
‘Installaon - Disassemble the camera’ for
details.
Using the template sheet, mark and drill the
necessary holes.
Connect the network cable and power cable
respecvely. See the secon 'Installaon -
Cabling' for details.
1
2
3
4
5
6
7
ab
c
3
2
7
6
5
4
3
2
8
Template Sheet
InstallaUsing Mount Plate
Installa
7
8
1
2
3
4
respectively.
5
6
ab
c
2
5
6
7
8
3
4
9
Installation -

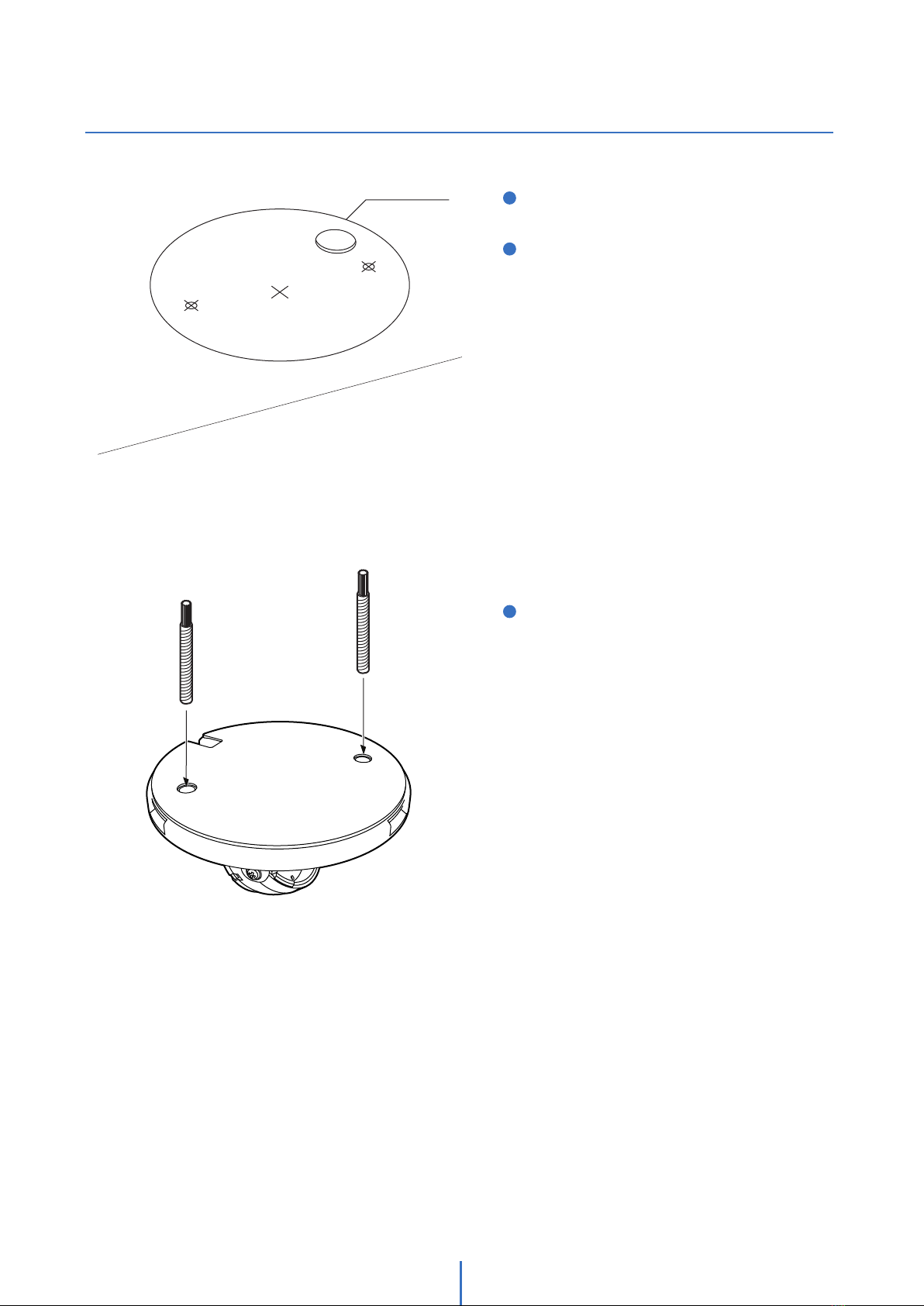

Installation Using Mount Bolt & Nut
Template Sheet 1Disassemble the camera. See the section ‘Installation -
Disassemble the camera’ for details.
Using the template sheet, make the cabling holes on
the ceiling panel.
Insert the 2 mount bolts into bottom case of camera.
3
2
10
This manual suits for next models
5
Table of contents
Other DW Security Camera manuals
DW
DW DWC-VSDG04Bi User manual
DW
DW MEGApix DWC-MVA2WiAT User manual
DW
DW STAR-LIGHT HDCOAX DWC-PTZ220X User manual
DW
DW MEGApix DWC-MV95Wi28TW User manual
DW
DW PIXIM DWC-MC355T User manual
DW
DW DWC-MV95WiATW User manual
DW
DW megaPix DWC-MV950TIR User manual
DW
DW Megapix DWC-MF21M4TIR User manual
DW
DW MEGAPIX DWC-MC421D User manual
DW
DW DWC-MT95WiATW User manual
DW
DW DWC-D1362D User manual
DW
DW DWC-MVC8WiATW User manual
DW
DW DWC-MV9CMJ User manual
DW
DW DWC-MV84WiAC2 User manual
DW
DW DWC-MD44WA User manual
DW
DW MEGApix DWC-MVA2Wi28T User manual
DW
DW DWC-MT95Wi28TW User manual
DW
DW Snapit DWC-V4363D User manual
DW
DW PIXIM DWC-V365D User manual
DW
DW DWC-MB421TIR User manual
