Dimplex OLF46-AM User manual

Installation and User’s Guide

IMPORTANT SAFETY INFORMATION:

Read this manual first before attempting to install or use this electric fireplace. Always comply with the

warnings and safety instructions contained in this manual to prevent personal injury or property damage.

To view the full line of Dimplex products, visit www.dimplex.com

7216400100R04

Share the warmth and leave a review.

dimplex.com/sharethewarmth

Models

OLF46-AM

OLF66-AM

OLF86-AM

Your input helps to create even better

products and experiences.

We value your feedback!

2www.dimplex.com

Welcome .................................................................... 3

IMPORTANT INSTRUCTIONS ................................................. 4

Technical Speciﬁcations ....................................................... 6

Electrical Rating .............................................................6

Product Dimensions ..........................................................6

Package Contents ............................................................ 7

Installation................................................................... 9

Placement..................................................................9

Preparing the Firebox for Installation ............................................10

Fresh Air Inlets .............................................................10

Framing...................................................................11

Installation Instructions.......................................................12

Water Supply Connection.....................................................13

Electrical Installation.........................................................14

Heater Hardware Disconnect ..................................................16

Flame Bafes ..............................................................17

Media Arrangement .........................................................17

Front Glass Installation .......................................................18

Operation .................................................................. 19

General Operation ..........................................................19

Resetting the Temperature Cutoff Switch.........................................21

Factory Reset ..............................................................22

Priming the Unit ............................................................22

Maintenance ................................................................ 23

Remote Control Battery Replacement ...........................................23

Cleaning ..................................................................23

Transducer Replacement .....................................................23

Servicing ..................................................................23

Troubleshooting ............................................................. 24

Wiring Diagrams ............................................................. 26

Warranty ................................................................... 28

Table of Contents

NO NEED TO RETURN TO THE STORE

If you have questions regarding the operation of this product or if you require

service, before returning this product to the place of purchase,

For Troubleshooting and Technical Support

OR Toll-Free 1-888-346-7539

Please have your model number and product serial number ready.

QR Code label

(on pull-out bracket)

For more information on

the Flame Connect app,

visit dimplex.com/fcapp

Welcome

Thank you and congratulations for choosing to purchase a Dimplex replace.

Please carefully read and save these instructions.

WARNING: Read all instructions and warnings carefully before starting installation. Failure to follow these

instructions may result in a possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers for future reference. Model and serial numbers can be found on the

label located at the top right corner inside the replace.

Model and serial number label

(inside the replace, upper panel)

Rating label

Model MOD

Serial Number

4www.dimplex.com

When using any electrical appliance, basic

precautions should always be followed to reduce

the risk of re, electric shock, and injury to persons.

These precautions include:

①Read all instructions before using this electric

fireplace.

② This fireplace is hot when in use. To avoid burns,

do not let bare skin touch hot surfaces. The trim

around the heater outlet becomes hot during

heater operation.

DANGER: High temperatures may be generated

under certain abnormal conditions. Do not

partially or fully cover orobstruct the front of the

fireplace.

③ Extreme caution is necessary when the fireplace

is used by or near children or people with

disabilities and whenever the fireplace is left

operating and unattended.

④Always turn off the fireplace when it is not in use.

⑤ Do not operate the fireplace after it malfunctions,

has been dropped, or damaged in any manner.

Disconnect power at the service panel and have

the fireplace inspected by a reputable electrician

before using.

⑥ Do not operate any unit with a damaged cord or

if the heater has malfunctioned, or if the heater

has been dropped or damaged in any manner,

contact Glen Dimplex Americas Technical

Service at 1-888-346-7539.

⑦Do not use this fireplace outdoors.

⑧Never locate the fireplace where it may fall into a

bathtub or other water container.

⑨To disconnect the heater, turn the unit off with

the controls and turn off the power to the heater

circuit at the main disconnect panel.

⑩Do not insert or allow foreign objects to enter

any ventilation or exhaust opening as this may

cause an electric shock, fire, or damage to the

fireplace.

⑪To prevent a possible fire, do not block air

intakes or exhaust in any manner.

⑫All electrical heaters have hot and arcing or

sparking parts inside. Do not use it in areas

where gasoline, paint, or flammable liquids are

used or stored.

⑬Do not modify this fireplace. Use it only as

described in this manual. Any other use may

cause fire, electric shock, or injury to persons.

⑭ Always use a certified electrician should new

circuits or outlets be required.

⑮ Always use properly grounded, fused and

polarized outlets.

⑯ Disconnect all power coming to the fireplace at

the main service panel before performing any

cleaning, maintenance, or relocation of the unit.

⑰ When transporting or storing the fireplace, keep

it in a dry place, free from excessive vibration,

and store to avoid damage.

⑱ Regular cleaning and maintenance is required to

ensure safe and correct operation.

!NOTE: Changes or modifications not

expressly approved by the party responsible

for compliance could void user’s authority to

operate the equipment.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

FCC Compliance

CAUTION: This unit has been tested and found

to comply with the limits for Class B digital

device, pursuant to part15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This unit generates, uses

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio or television reception, which can be

determined by turning the unit OFF and ON,

the user is encouraged to try to correct the

interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the unit and the

receiver.

Connect the unit into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV

technician for help.

This unit complies with Part15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This unit may not cause harmful interference,

and (2) this unit must accept any interference

received, including interference that may cause

undesired operation.

FCC CAUTION: Any changes or modications

not expressly approved by the party responsible

for compliance could void the user’s authority to

operate this equipment.

IMPORTANT INSTRUCTIONS

WARNING: This product can expose you to

chemicals including nickel which is known to

the State of California to cause cancer. For more

information, visit www.P65Warnings.ca.gov

Conventions used in this manual:

!NOTE: Procedures and techniques that are

considered important enough to emphasize.

CAUTION: Procedures and techniques which, if

not carefully followed, will result in damage to the

equipment.

WARNING: Procedures and techniques which, if not

carefully followed, will expose the user to the risk of

re, serious injury, or death.

6www.dimplex.com

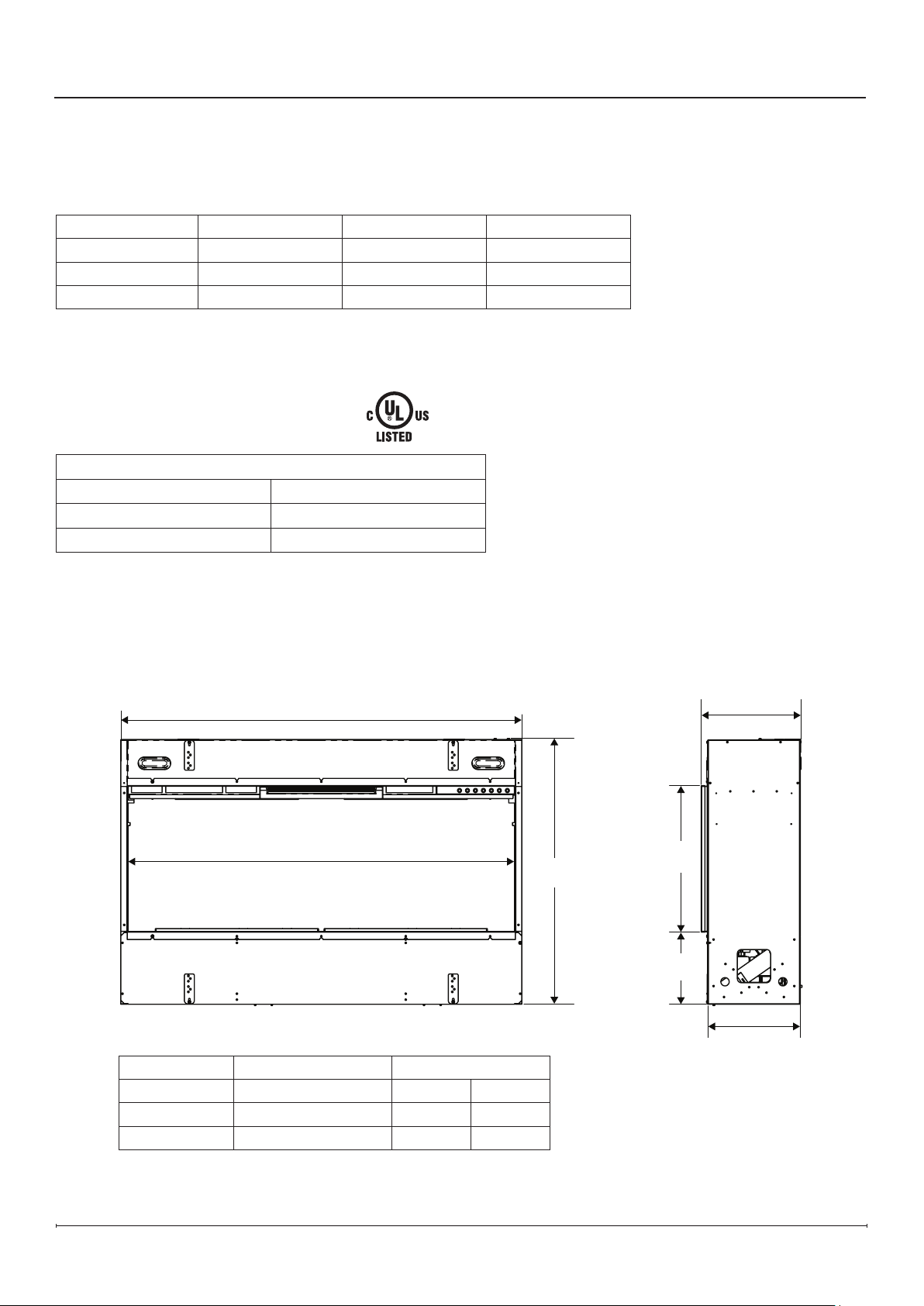

UL Listing

File Number: E71416

Model Reference

OLF46-AM 6911540100

OLF66-AM 6911540200

OLF86-AM 6911540300

Electrical Rating

Voltage: 120 V (3-Wire) or 240 V (4-Wire)

Power:

Model 120 V 240 V No heat (120 V)

OLF46-AM 1220 W 1920 W 520 W

OLF66-AM 1480 W 2180 W 760 W

OLF86-AM 1020 W (see note) 2400 W 1020 W

!NOTE: For OLF86-AM, when connected to 120 V, there will be no heat output, but heat functions will be active

on the controls with only fans operating.

Product Dimensions

Technical Speciﬁcations

Model A B

OLF46-AM 47 ½" 1206 mm 46 1/8"1170 mm

OLF66-AM 67 ½" 1714 mm 66 1/8"1678 mm

OLF86-AM 87 ½" 2222 mm 86 1/8"2186 mm

31 ½"

800 mm

8 ½"

217 mm

11"

280 mm

11 7/8"

300 mm

17 3/8"

441 mm

Figure1

Package Contents

Image Description

Quantity

OLF46-AM OLF66-AM OLF86-AM

Firebox 1 1 1

Front Glass 1 1 1

Bag of Small Acrylic Crystals 2 3 4

Bag of Large Acrylic Crystals 1 1 2

Bag of Extra-Large Acrylic Crystals 111

Driftwood 8 12 15

Spare Transducer

Keep it in a secure location

for future use.

234

Suction Cup

Do not dispose of the suction cup after

installation. Keep it in a secure location

as it will be helpful for maintenance and

service of the unit.

222

8www.dimplex.com

Package Contents

Remote Control

Includes two 3 V batteries 111

User’s and Installation Guide 1 1 1

Breakable Flame Bafes 4 6 8

Slotted Flame Bafes 6 9 12

Bubble Level 1 1 1

1 ½" Wood Screws 4 4 4

*Package contents are subject to change

Description Model Number

OLF46-AM OLF66-AM OLF88-AM

Quantity 2 3 4

Air Intake Grille

Accessory Air Intake Grille for fresh air inlets. X-00275 X-00275 X-00275

*Please contact your local Dimplex dealer for inquiries.

Optional Accessories

Placement

!NOTE: For optimized viewing angle of the ame, it is recommended that

the bottom of the unit be mounted between 5" (13cm) and 50" (127cm)

from the ground. (Figure 2)

Installation in a Bathroom

If this unit is installed in a bathroom, it must be protected by a GFCI

receptacle or circuit. If a receptacle is used, it must be readily accessible.

This electrical appliance is NOT watertight. To prevent electric shock, it

must be installed as to prevent water from entering unit, or installed away

from showers, tubs, etc. Never locate replace where it may fall into a

bathtub or other water container.

Installation Recommendations for Overhanging Objects

For overhanging temperature-sensitive objects, such as a television, a mantel, or artwork, always follow the

recommendations provided by its manufacturer for installation over a heater.

Installation

Figure2

5"-50"for

optimal viewing

10 www.dimplex.com

Installation

Preparing the Firebox for Installation

Figure41. The unit is provided with mounting brackets attached

(Figure 4). Remove the mounting brackets before

installation. They will need to be reinstalled during

installation once the rebox is placed into the framing.

2. If using the plug accessory kit (OLFPLUG, sold

separately), wire it following the instructions for the

plug kit in the Electrical Installation section (page 14).

3. For permanent heat disable only: follow the

instructions for disconnecting the heat function in the

section Heater Hardware Disconnect (page 16).

Fresh Air Inlets

CAUTION: Failure to include a fresh air inlet will result in poor ame performance and damage to the replace.

A fresh air inlet is required. The air inlet must allow for the air path to reach the underside of the unit. This will have to

be accounted for in the framing and drywall installation. See the table below for air inlet requirements for each model.

See Figure 3 for examples on incorporating fresh air inlets in the installation.

If the air inlet is concealed using a grille, the covered area must be compensated for by having a larger opening.

Model Air inlet area required

OLF46-AM 80 in 516 cm

OLF66-AM 120 in 774 cm

OLF86-AM 160 in 1032 cm

Figure3

Recessed Inlet Front Register Side Registers

*For best results in this

conguration include an opening

on each side of the replace

Other manuals for OLF46-AM

This manual suits for next models

Table of contents

Other Dimplex Indoor Fireplace manuals

Dimplex

Dimplex X40003BK User manual

Dimplex

Dimplex Exbury User manual

Dimplex

Dimplex VIVALDI DE LUXE User manual

Dimplex

Dimplex Silverton SVT20 User manual

Dimplex

Dimplex Electric fireplaces User manual

Dimplex

Dimplex Dimplex VALENCIA User manual

Dimplex

Dimplex GDS28L8-1924SK User manual

Dimplex

Dimplex ELECTRALOG DF203A User manual

Dimplex

Dimplex DF2690 User manual

Dimplex

Dimplex Chalbury Fire CHB20BR User manual

Dimplex

Dimplex BELLINI BLN15W User manual

Dimplex

Dimplex MULTIFIRE DF3215 User manual

Dimplex

Dimplex Cavendish CSH20 User manual

Dimplex

Dimplex DFG2562 User manual

Dimplex

Dimplex Revillusion Haydn User manual

Dimplex

Dimplex Silverton SVT20 User manual

Dimplex

Dimplex SP620 User manual

Dimplex

Dimplex OPTIMYST CAS400L User manual

Dimplex

Dimplex Devon User manual

Dimplex

Dimplex Optiflame MiniMozart FGA15E Instruction Manual

Dimplex

Dimplex Juneau Optimyst JUN-RGB-EU Instruction Manual

Dimplex

Dimplex BF33STP/DXP User manual

Dimplex

Dimplex purifire DF3220 Sseries User manual

Dimplex

Dimplex DFP6848 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
