Dimplex BF33ST Quick start guide

PARTS & SERVICE MANUAL

FOR THE BUILT IN FIREPLACE

MODEL NUMBERS:

BF33ST/DX

BF39ST/DX

BF45ST/DX

TABLE OF CONTENTS

OPERATION PAGE 1

VOLTAGE SELECTOR SWITCH LOCATION PAGE 3

PARTS LIST DRAWING PAGE 4

PARTS LIST PAGE 5

WIRING DIAGRAM – LOWER SECTION PAGE 7

WIRING DIAGRAM – UPPER SECTION PAGE 8

WIRING DIAGRAM – SCHEMATIC PAGE 9

LIGHT BULB REPLACEMENT PAGE 10

MAIN ON/OFF SWITCH REPLACEMENT PAGE 11

HEATER ON/OFF SWITCH REPLACEMENT PAGE 12

FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 13

VOLTAGE SELECTOR SWITCH REPLACEMENT

(UNIT IS PERMENANTLY INSTALLED IN WALL)

BF33ST,BF33DX PAGE15

BF39ST, BF39DX, BF45ST, BF45DX PAGE 17

VOLTAGE SELECTOR SWITCH REPLACEMENT PAGE 19

(UNIT CAN BE REMOVED FROM WALL)

HEATING ELEMENTS REPLACEMENT PAGE 20

(UNIT IS PERMENANTLY INSTALLED IN WALL)

HEATING ELEMENTS REPLACEMENT PAGE 21

(UNIT CAN BE REMOVED FROM WALL)

BLOWER MOTOR/BLOWER REPLACEMENT

(UNIT IS PERMENANTLY INSTALLED IN WALL)

BF33ST,BF33DX PAGE22

BF39ST, BF39DX, BF45ST, BF45DX PAGE 24

BLOWER MOTOR/BLOWER REPLACEMENT PAGE 25

(UNIT CAN BE REMOVED FROM WALL)

TEMPERATURE LIMIT SWITCH REPLACEMENT

(UNIT IS PERMENANTLY INSTALLED IN WALL)

BF33ST,BF33DX PAGE26

BF39ST, BF39DX, BF45ST, BF45DX PAGE 28

TEMPERATURE LIMIT SWITCH REPLACEMENT PAGE 30

(UNIT CAN BE REMOVED FROM WALL)

REMOTE CONTROL KIT REPLACEMENT PAGE 31

BF33ST, BF33DX, BF39ST, BF39DX, BF45ST, BF45DX

OPERATION

MANUAL CONTROLS

(WITHOUT REMOTE OPTION)

The fireplace can be controlled by the manual

switches located on the fireplace (FIGURE 1).

Main Power Switch

Main ON/OFF switch, activates the flame effect.

Heater Control Switch

Heater ON/OFF switch, activates heater to the high

level.

MANUAL CONTROLS

(WITH REMOTE OPTION)

The fireplace can also be controlled in a similar

manner to the remote control with the manual

switches located on the fireplace (FIGURE 2).

(refer to initialization instructions on page 2)

Main Power Switch

Main ON/OFF switch supplies power to the circuit

board. When the Main ON/OFF switch is switched to

the ON position the Level 1 indicator light will flash.

On Switch

1. Pressing once on the remote control board “ON

SWITCH” activates the Level 1 function.

Level 1: The flame effect is turned on and the first

red indicator light is activated.

2. Pressing twice on the remote control board “ON

SWITCH” activates the Level 2 function.

Level 2: The flame effect remains on, the heater

is activated to the low heat setting, and

the first and second red indicator lights are

activated.

3. Pressing three times on the remote control board

“ON SWITCH” activates the Level 3 function.

Level 3: The flame effect remains on, the heater

is set to the high heat setting, and all three red

indicator lights are activated.

Off Switch

Pressing this button ONCE will turn the unit OFF.

OFF

SWITCH

LEVEL 1

INDICATOR

LEVEL 2

INDICATOR

LEVEL 3

INDICATOR

FIGURE 2

HEATER CONTROL

SWITCH

FIGURE 1

MAIN POWER

SWITCH

MAIN POWER

SWITCH

Main Power

Switch

BF33ST, BF33DX, BF39ST, BF39DX, BF45ST, BF45DX

REMOTE CONTROL

The remote control has a range of approximately 50ft. (15.25m). It

does not have to be pointed at the fireplace and can pass through

most obstacles (including walls). It is supplied with one of 243

independent frequencies to prevent interference with other units.

The frequency designation is indicated on the back of the

transmitter (FIGURE 3).

Remote Control Initialization

This procedure is required every time there is a loss of power to the

remote control in the fireplace (i.e. power failure, breaker tripped,

main power switch is turned off)

1. Ensure that power is supplied through main service panel.

2. Access the manual controls, (remove glass doors if applicable)

pull the right hand steel curtain to the side of the unit.

(FIGURE 4)

3. Locate manual controls refer to FIGURE 5.

4. Activate main power switch, (“ ” position is “ON”, “ ” position

is “OFF”) red Level 1 indicator light will flash.

5. Press and hold the ON switch marked “ ” for five seconds.

The red Level 2 indicator light will flash.

6. Press the ON button located on the remote control transmitter

(FIGURE 3). This will synchronize the remote control

transmitter and receiver.

Remote Control Usage

The remote control operates the fireplace levels sequentially. The level is increased

every time the ON button on the transmitter is pressed. The fireplace can be turned off

at any point by pressing the OFF button on the remote control transmitter.

Level 1: The flame effect is turned on and the first red indicator light is activated.

Level 2: The flame effect remains on, the heater is activated to the low heat setting,

and the first and second red indicator lights are activated.

Level 3: The flame effect remains on, the heater is set to the high heat setting, and all

three red indicator lights are activated.

FIGURE 3

MANUAL

CONTROLS

Level 1 Indicator

Level 2 Indicator

Level 3 Indicator

On Switch

Off Switch

FIGURE 4

Frequency

Code

FIGURE 5

BF33ST, BF33DX, BF39ST, BF39DX, BF45ST, BF45DX

RESETTING THE TEMPERTURE CUTOUT SWITCH

The heater on this fireplace is protected with a safety device to prevent overheating.

Should the heater overheat, an automatic cut out will turn the heater off and it will not

come back on without being reset. It can be reset by switching the Main Power switch

(FIGURE 1) to OFF and waiting 5 minutes before switching it to ON.

WALL MOUNTED CONTROLS

The fireplace can be installed with wall mounted controls. These controls include wall

switches and thermostats. (see installation guide for details)

A. Wall Mounted Switches

This model may be installed such that a wall mounted switch activates the flame effect

and a wall mounted heater switch activates the heater. A wall mounted switch can also

be installed to operate the heater independent of the flame.

B. Wall Mounted Thermostat

This unit may be installed such that a wall mounted thermostat can adjust the heat

temperature to your individual requirements. Turn the thermostat control clockwise all

the way to turn on the heater. When the room reaches the desired temperature, turn

the thermostat knob counter clockwise until you hear a click. Leave in this position to

maintain the room temperature at this setting. For additional heat, turn the thermostat

clockwise until you hear the click again and the heater will turn on. To turn the heater

off, turn the thermostat counter clockwise all the way, and/or turn the manual heater

switch on the unit to the OFF position.

VOLTAGE SELECTOR SWITCH LOCATION

IMPORTANT:

Ensure that the incoming power supply voltage

matches the setting of the voltage selector

switch.

NOTE:

The voltage selector switch is located

inside the exhaust panel on the top

right hand corner (FIGURE 6).

CAUTION:

When changing the voltage selector

switch from 240 volts to 120 volts

ensure that the power supply is turned

off.

NOTE:

Carefully insert a flat headed screwdriver inside the exhaust panel to change the switch

from 240 volts (230 position) to 120 volts (115 position).

FIGURE 6

BF33ST, BF33DX, BF39ST, BF39DX, BF45ST, BF45DX

BF33ST, BF33DX, BF39ST, BF39DX

REPLACEMENT PARTS

DIMPLEX BUILT IN FIREPLACE

REPLACEMENT PART BF33ST BF33DX

1. LOG SET 0438200300RP 0438200300RP

2. REFLECTOR ROD 5900081000RP 5900081000RP

3. GROMMET 8500000600RP 8500000600RP

4. FLICKER ASSEMBLY 6901811200RP 6901811200RP

5. BLOWER ASSEMBLY 5300110300RP 5300110300RP

6. BLOWER MOTOR 5300110400RP 5300110400RP

7. HEATER ELEMENT 2200510100RP 2200510100RP

8. CUTOUT 2300200400RP 2300200400RP

9. VOLTAGE SELECTOR 2500320100RP 2500320100RP

10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RP

11.HEATER SWITCH 2800070700RP 2800070700RP

12.MIRROR SEMI-SILVERED 5900161000RP 5900161100RP

13.EXTRUSION 0438650200RP 0438650200RP

14.STEEL CURTAIN 8800240403RP 8800240403RP

15.STEEL CURTAIN ROD 8800250300RP 8800250300RP

16.LAMPHOLDER 4200120700RP 4200120700RP

OPTIONAL ACCESSORIES

17. REMOTE CONTROL KIT BFRC-KIT

18. WALL THERMOSTAT TS901/TS901W

REPLACEMENT PART BF39ST BF39DX

1. LOG SET 0438550200RP 0438550200RP

2. REFLECTOR ROD 5900080900RP 5900080900RP

3. GROMMET 8500000600RP 8500000600RP

4. FLICKER ASSEMBLY 6901811200RP 6901811200RP

5. BLOWER ASSEMBLY 5300110300RP 5300110300RP

6. BLOWER MOTOR 5300110400RP 5300110400RP

7. HEATER ELEMENT 2200510100RP 2200510100RP

8. CUTOUT 2300200400RP 2300200400RP

9. VOLTAGE SELECTOR 2500320100RP 2500320100RP

10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RP

11.HEATER SWITCH 2800070700RP 2800070700RP

12.MIRROR SEMI-SILVERED 5900160600RP 5900160700RP

13.EXTRUSION 0438650100RP 0438650100RP

14.STEEL CURTAIN 8800240103RP 8800240103RP

15.STEEL CURTAIN ROD 8800250100RP 8800250200RP

16.LAMPHOLDER 4200120700RP 4200120700RP

OPTIONAL ACCESSORIES

17. REMOTE CONTROL KIT BFRC-KIT

18. WALL THERMOSTAT TS901/TS901W

BF45ST, BF45DX

REPLACEMENT PARTS

DIMPLEX BUILT IN FIREPLACE

REPLACEMENT PART BF45ST BF45DX

1. LOG SET 0438550200RP 0438550200RP

2. REFLECTOR ROD 5900080900RP 5900080900RP

3. GROMMET 8500000600RP 8500000600RP

4. FLICKER ASSEMBLY 6901811200RP 6901811200RP

5. BLOWER ASSEMBLY 5300110300RP 5300110300RP

6. BLOWER MOTOR 5300110400RP 5300110400RP

7. HEATER ELEMENT 2200510100RP 2200510100RP

8. CUTOUT 2300200400RP 2300200400RP

9. VOLTAGE SELECTOR 2500320100RP 2500320100RP

10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RR

11.HEATER SWITCH 2800070700RP 2800070700RP

12.MIRROR SEMI-SILVERED 5900160800RP 5900160400RP

13.EXTRUSION 0438650100RP 0438650100RP

14.STEEL CURTAIN 8800240203RP 8800240203RP

15.STEEL CURTAIN ROD 8800250200RP 8800250200RP

16.LAMPHOLDER 4200120700RP 4200120700RP

OPTIONAL ACCESSORIES

17. REMOTE CONTROL KIT BFRC-KIT

18. WALL THERMOSTAT TS901/TS901W

BF33ST, BF33DX, BF39ST, BF39DX, BF45ST, BF45DX

WIRING DIAGRAM - LOWER SECTION

BLACK

WHITE

BROWN

CITOR BYPASS HARNESS

LOWER HARNESS

WHITE

ORANGE FROM TOP

BROWN FROM TOP

RED FROM TOP

BLUE (3)

MOTOR

FLICKER

TWIST-TIE

RED

RED (L2)

HEATER SWITCH

BLACK (L1)

WHITE (N)

GREEN

WHITE (N)

BLACK

BLUE (4)

RED (1)

MARR

SWITCH

MAIN

BLACK (L1)

4B 5B

1A 2A

RED (2)

CAPA-

BLACK

BLUE

WHITE

RED (L2)

Other manuals for BF33ST

This manual suits for next models

Table of contents

Other Dimplex Indoor Fireplace manuals

Dimplex

Dimplex ELECTRALOG DF203A User manual

Dimplex

Dimplex SP1 Wallfire User manual

Dimplex

Dimplex Mozart CFP3811GB User manual

Dimplex

Dimplex SPF1808L-IR User manual

Dimplex

Dimplex Nicole User manual

Dimplex

Dimplex BLF50 User manual

Dimplex

Dimplex CDFI400RH User manual

Dimplex

Dimplex DWF1146GP User manual

Dimplex

Dimplex Wickson User manual

Dimplex

Dimplex Lee LEE20 User guide

Dimplex

Dimplex DF2024L User manual

Dimplex

Dimplex 6908760100 User manual

Dimplex

Dimplex Revillusion RLG20 EU User manual

Dimplex

Dimplex Albany Optimyst ABN15-RGB-EU Instruction Manual

Dimplex

Dimplex Silverton SVT20 User manual

Dimplex

Dimplex THWG XLF50 User manual

Dimplex

Dimplex OPTIMYST CAS400L Technical manual

Dimplex

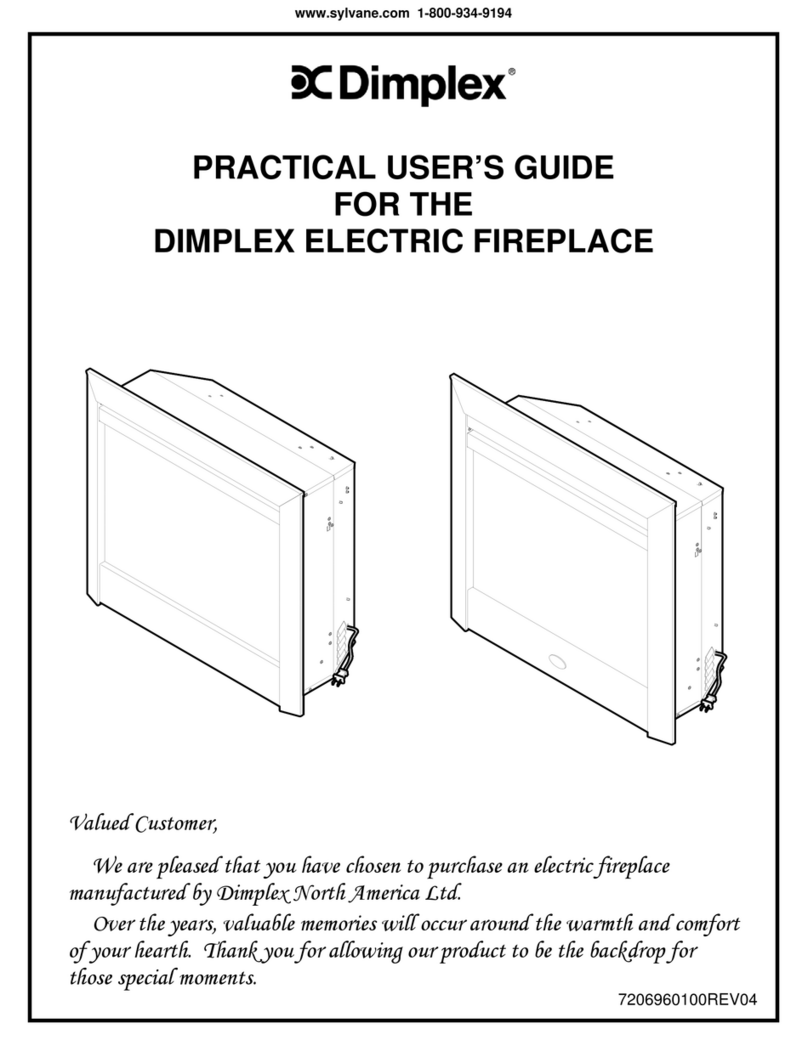

Dimplex DIMPLEX ELECTRIC FIREPLACE User manual

Dimplex

Dimplex CASTILLO CS3540 Quick start guide

Dimplex

Dimplex RLG20BR User manual

Dimplex

Dimplex Wesley Side Control User manual

Dimplex

Dimplex DFG2562 User manual

Dimplex

Dimplex Indoor Fireplace User manual

Dimplex

Dimplex Silverton SVT20 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
