Dimplex 6911540100 User manual

Service Manual

IMPORTANT SAFETY INFORMATION:

Read this manual first before attempting to install or use this electric fireplace. Always comply with the

warnings and safety instructions contained in this manual to prevent personal injury or property damage.

7401160100R00

OLF46-AM 6911540100 X-136786

OLF66-AM 6911540200 X-136793

OLF86-AM 6911540300 X-136809

Models

2www.dimplex.com

Conventions used in this manual:

!NOTE: Procedures and techniques that are considered important enough to emphasize.

CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.

WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re, serious

injury, or death.

Table of Contents

Exploded Parts Diagrams ......................................................3

OLF46-AM Replacement Parts List ................................................3

Exploded Parts Diagrams ......................................................4

OLF66-AM Replacement Parts List ................................................4

Exploded Parts Diagrams ......................................................5

OLF86-AM Replacement Parts List ................................................5

Exploded Parts Diagrams ......................................................6

Module ......................................................................6

Module Replacement Parts List ...................................................6

Wiring Diagrams ..............................................................7

Module ......................................................................7

Wiring Diagrams ..............................................................8

OLF46-AM ...................................................................8

Wiring Diagrams ..............................................................9

OLF66-AM ...................................................................9

Wiring Diagrams .............................................................10

OLF86-AM ..................................................................10

Replacement Part Procedures .................................................11

Preparing for Service ..........................................................11

Heater Assembly Replacement ..................................................12

Extractor Fan Replacement .....................................................13

Main Control Board Replacement ................................................14

LED Driver Board Replacement ..................................................14

Hidden Touch Controls/Housing Replacement ......................................15

Power Adaptor Replacement ....................................................16

Sound Board and Speaker Replacement...........................................17

Top LEDs Replacement ........................................................18

LIN Splitter Board Replacement..................................................18

Module Replacement ..........................................................19

Module Terminal Block Replacement .............................................20

Module Fan Assembly Replacement ..............................................21

Module Fused Wire Harness Replacement .........................................22

Module Water Level Sensor Replacement ..........................................23

Module Main Control Board Replacement..........................................24

Module Heating Element Replacement ............................................25

Module Power Supply Replacement ..............................................26

Module Solenoid Valve Replacement..............................................27

Troubleshooting & Error Codes.................................................28

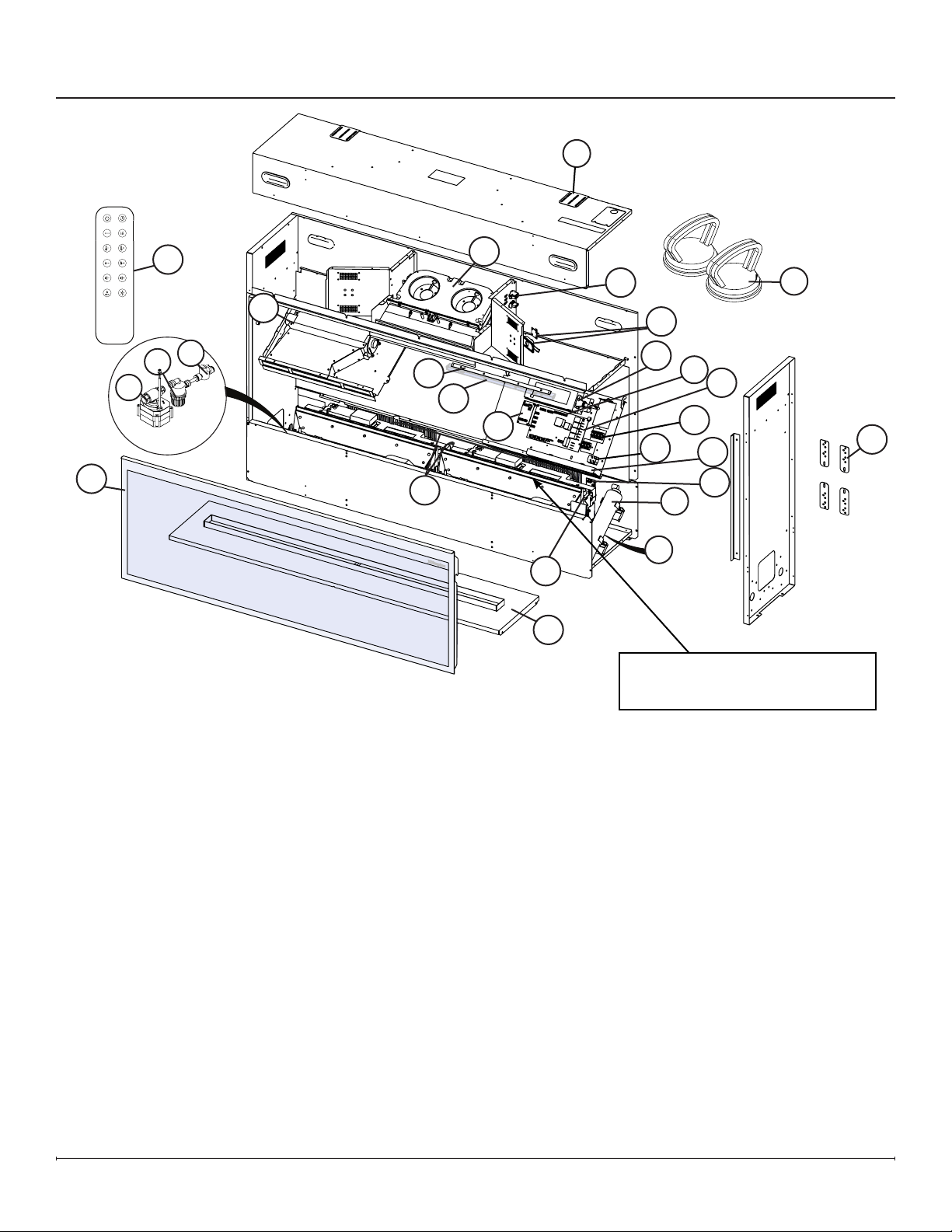

Exploded Parts Diagrams

OLF46-AM Replacement Parts List

1. Remote Control.................X-9602730100RP

2. Heater Assembly. . . . . . . . . . . . . . . . X-9602680100RP

3. Extractor Fan ..................X-9602690100RP

4. Power Adaptor .................X-9602700300RP

5. Main Control Board. . . . . . . . . . . . . . X-9602710100RP

6. Hidden Touch Controls (controls + housing). . . . . . . . .

.............................X-9602720100RP

Hidden Touch Display Housing with Glass (housing

ONLY) .............................500002707

7. LIN Splitter Board . . . . . . . . . . . . . . . X-9602740100RP

8. Soundboard & Speaker. . . . . . . . . . . X-9602750100RP

9. Top LED Driver Board . . . . . . . . . . . . X-9602760100RP

10. Top LED Strip (2) . . . . . . . . . . . . . . . . X-9602770100RP

11. Top LED Strip Holder ............X-9602770200RP

12. Electro-mechanical Valve .........X-9602780100RP

13. Module Wire Harness Set .........X-9602790100RP

14. Temperature Sensor (NTC) .............500002352

15. Front Glass ....................X-9602650100RP

16. Media Plate . . . . . . . . . . . . . . . . . . . . X-9602660100RP

17. Medium Acrylic Crystals (2) .......X-1400150300RP

18. Large Acrylic Crystals (2) .........X-1400130500RP

19. Extra-large Acrylic Crystals. . . . . . . . X-1400170400RP

20. Driftwood .....................X-0478800200RP

21. Upper Wire Harness Set . . . . . . . . . . X-9602900100RP

22. Main Terminal Block .............X-9602830100RP

23. Mounting Brackets ..............X-9602820100RP

24. Suction Cups ..................X-9600820200RP

25. ON/OFF Switch.................X-2800070400RP

26. Mesh Water Filter .............. X-9601370100RP

27. Ball Valve. . . . . . . . . . . . . . . . . . . . . . X-9601360100RP

28. Control Board Jumper Cap. . . . . . . . X-4300520100RP

29. Inline Water Filter ...............X-9602950100RP

Module (2)

Reference page 6 for the module

replacement parts list.

26 27

4www.dimplex.com

OLF66-AM Replacement Parts List

1. Remote Control.................X-9602730100RP

2. Heater Assembly. . . . . . . . . . . . . . . . X-9602680100RP

3. Extractor Fan (2) ................X-9602690100RP

4. Power Adaptor .................X-9602700300RP

5. Main Control Board. . . . . . . . . . . . . . X-9602710100RP

6. Hidden Touch Controls (controls + housing). . . . . . . . .

.............................X-9602720200RP

Hidden Touch Display Housing with Glass (housing

ONLY) .............................500002707

7. LIN Splitter Board . . . . . . . . . . . . . . . X-9602740100RP

8. Soundboard & Speaker. . . . . . . . . . . X-9602750100RP

9. Top LED Driver Board . . . . . . . . . . . . X-9602760100RP

10. Top LED Strip (3) . . . . . . . . . . . . . . . . X-9602770100RP

11. Top LED Strip Holder ............X-9602770200RP

12. Electro-mechanical Valve .........X-9602780100RP

13. Module Wire Harness Set .........X-9602790100RP

14. Temperature Sensor (NTC) .............500002352

15. Front Glass ....................X-9602650200RP

16. Media Plate . . . . . . . . . . . . . . . . . . . . X-9602660200RP

17. Medium Acrylic Crystals (3) .......X-1400150300RP

18. Large Acrylic Crystals (3) .........X-1400130500RP

19. Extra-large Acrylic Crystals (2) .....X-1400170400RP

20. Driftwood ..........................500002649

21. Upper Wire Harness Set . . . . . . . . . . X-9602900100RP

22. Main Terminal Block .............X-9602830100RP

23. Mounting Brackets ..............X-9602820100RP

24. Suction Cups ..................X-9600820200RP

25. ON/OFF Switch.................X-2800070400RP

26. Mesh Water Filter .............. X-9601370100RP

27. Ball Valve. . . . . . . . . . . . . . . . . . . . . . X-9601360100RP

28. Control Board Jumper Cap (permanent heat disable)

............................. X-4300520100RP

29. Inline Water Filter ...............X-9602950100RP

Exploded Parts Diagrams

Module (3)

Reference page 6 for the module

replacement parts list.

OLF86-AM Replacement Parts List

1. Remote Control.................X-9602730100RP

2. Heater Assembly. . . . . . . . . . . . . . . . . X-960268200RP

3. Extractor Fan (2) ................X-9602690100RP

4. Power Adaptor .................X-9602700300RP

5. Main Control Board. . . . . . . . . . . . . . X-9602710100RP

6. Hidden Touch Controls (controls + housing). . . . . . . . .

.............................X-9602720300RP

Hidden Touch Display Housing with Glass (housing

ONLY) .............................500002707

7. LIN Splitter Board . . . . . . . . . . . . . . . X-9602740100RP

8. Soundboard & Speaker. . . . . . . . . . . X-9602750100RP

9. Top LED Driver Board . . . . . . . . . . . . X-9602760100RP

10. Top LED Strip (4) . . . . . . . . . . . . . . . . X-9602770100RP

11. Top LED Strip Holder ............X-9602770200RP

12. Electro-mechanical Valve .........X-9602780100RP

13. Module Wire Harness Set .........X-9602790100RP

14. Temperature Sensor (NTC) .............500002352

15. Front Glass ....................X-9602650300RP

16. Media Plate . . . . . . . . . . . . . . . . . . . . X-9602660300RP

17. Medium Acrylic Crystals (4) .......X-1400150300RP

18. Large Acrylic Crystals (3) .........X-1400130500RP

19. Extra-large Acrylic Crystals (2) .....X-1400170400RP

20. Driftwood ..........................500002650

21. Upper Wire Harness Set . . . . . . . . . . X-9602900100RP

22. Main Terminal Block .............X-9602830100RP

23. Mounting Brackets ..............X-9602820100RP

24. Suction Cups ..................X-9600820200RP

25. ON/OFF Switch.................X-2800070400RP

26. Mesh Water Filter .............. X-9601370100RP

27. Ball Valve. . . . . . . . . . . . . . . . . . . . . . X-9601360100RP

28. Control Board Jumper Cap (permanent heat disable)

............................. X-4300520100RP

29. Inline Water Filter ...............X-9602950100RP

Exploded Parts Diagrams

Module (4)

Reference page 6 for the module

replacement parts list.

6www.dimplex.com

1. Complete Module . . . . . . . . . . . . . . . X-6911550100RP

2. Module Control Board ...........X-9601270400RP

3. Choke ........................X-9601380100RP

4. LED Driver Board ...............X-9602800100RP

5. Fuse Link Wire Harness ..........X-9601340100RP

6. Air Filter. . . . . . . . . . . . . . . . . . . . . . . X-8600300100RP

7. Terminal Block. . . . . . . . . . . . . . . . . . X-9601260100RP

8. Water Level Sensor. . . . . . . . . . . . . . X-9601320100RP

9. Power Supply ..................X-9601300100RP

10. Fan Assembly (Flame effect). . . . . . . X-9602890100RP

11. Heating Element ................X-9601240100RP

12. Fill Cap Assembly . . . . . . . . . . . . . . . X-9601230100RP

13. Top Cover Assembly .............X-9601220100RP

14. Transducer ....................X-9601210100RP

15. Water Reservoir ................X-9601200100RP

16. Bluetooth Harness ..............X-9601080100RP

17. Solenoid Valve .................X-9601330100RP

18. Flame LED Strip ................X-9602810100RP

19. Floats and Stopper Kit ...........X-9602550100RP

Model Number of Modules

OLF46-AM 2

OLF66-AM 3

OLF86-AM 4

Exploded Parts Diagrams

Module

Module Replacement Parts List

Module

Wiring Diagrams

FAN

A secondary transducer is optional.

Only one transducer is needed for

operation.

8www.dimplex.com

Wiring Diagrams

OLF46-AM

WARMUP HEATER

To Module 1

Firebox Wiring Diagram

Plumbing Diagram

To Module

OLF66-AM

WARMUP HEATER

To Module 1

Wiring Diagrams

Firebox Wiring Diagram

Plumbing Diagram

To Module To Module To Module

10 www.dimplex.com

OLF86-AM

WARMUP HEATER

To Module 1

Wiring Diagrams

Firebox Wiring Diagram

Plumbing Diagram

To Module

To Module To Module

This manual suits for next models

Table of contents

Other Dimplex Indoor Fireplace manuals

Dimplex

Dimplex 30" FIREPLACE User manual

Dimplex

Dimplex DF2524L User manual

Dimplex

Dimplex Opti-myst RTOPW20 E User manual

Dimplex

Dimplex BF42ST-230 Operation manual

Dimplex

Dimplex SAHARA FIREPLACE 6903950000 User manual

Dimplex

Dimplex TFA36E User manual

Dimplex

Dimplex Wynford WYN20BR User manual

Dimplex

Dimplex RONDO User manual

Dimplex

Dimplex GDS28L8-1941WE User manual

Dimplex

Dimplex LEE 20RC User manual

Dimplex

Dimplex LKD20-AU User manual

Dimplex

Dimplex DF28L-PRO User manual

Dimplex

Dimplex IN-STUD V1525BT User manual

Dimplex

Dimplex BF362SD User manual

Dimplex

Dimplex DCF44 User manual

Dimplex

Dimplex EF2870 User manual

Dimplex

Dimplex PF3033 User manual

Dimplex

Dimplex Charlotte CRT20AB User manual

Dimplex

Dimplex DWF3651 User manual

Dimplex

Dimplex Nardini NDN20 User manual

Dimplex

Dimplex DF2010-EU User manual

Dimplex

Dimplex DFR2551L User manual

Dimplex

Dimplex LAGUNA LAGFB2 User manual

Dimplex

Dimplex DFOP25 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
