Dell PowerEdge R415 User manual

Dell PowerEdge R415 Systems

Getting Started

With Your System

系统使用入门

Memulai Dengan Sistem Anda

はじめに

시스템 시작 안내서

Dell PowerEdge R415 Systems

Getting Started

With Your System

Regulatory Model E07S Series

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data

if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

AMD®is a registered trademark and AMD Opteron™ is a trademark of Advanced Micro Devices, Inc.

Microsoft®, Windows®, Windows Server®, and Hyper-V™ are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat Enterprise

Linux®and Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or

other countries. Novell®is a registered trademark and SUSE™ is a trademark of Novell Inc. in the

United States and other countries. Citrix®and XenServer®are either registered trademarks or

trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®is a registered

trademark of VMWare, Inc. in the United States or other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model E07S Series

June 2010 P/N JT55R Rev. A00

Getting Started With Your System 3

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Rails and System in a Rack

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

Optional – Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on

the monitor's cable connector.

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

Installing the Power Cord Retention Bracket

Attach the power cord retention bracket on the right bend of the power

supply handle. Bend the system power cable into a loop as shown in the

illustration and attach to the bracket’s cable clasp.

Plug the other end of the power cable(s) into a grounded electrical outlet

or a separate power source such as an uninterrupted power supply (UPS)

or a power distribution unit (PDU).

Turning On the System

Press the power button on the system and the monitor. The power indicators

should light.

6Getting Started With Your System

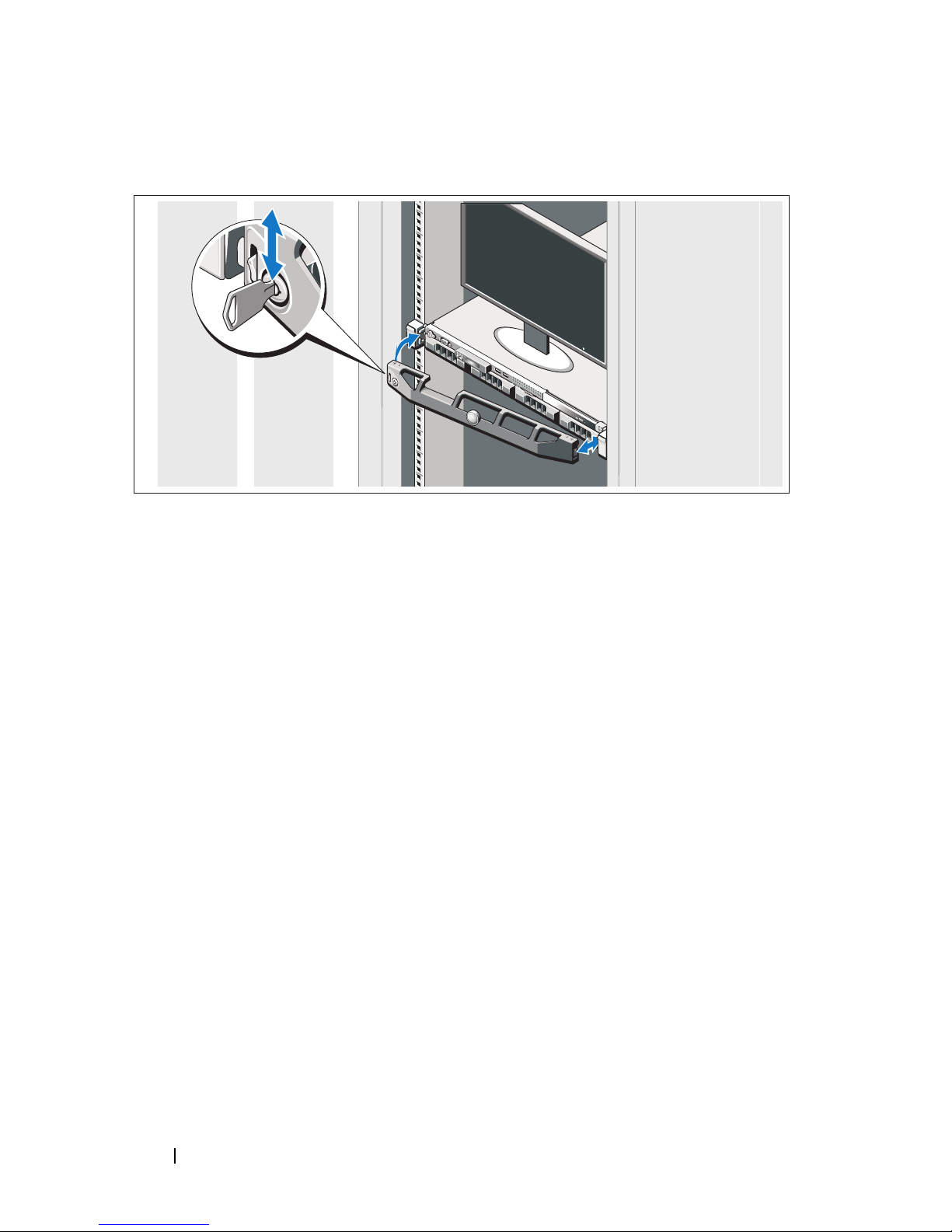

Installing the Optional Bezel

Install the bezel (optional).

Complete the Operating System Setup

If you purchased a preinstalled operating system, see the operating system

documentation that ships with your system. To install an operating system

for the first time, see the installation and configuration documentation for

your operating system. Be sure the operating system is installed before

installing hardware or software not purchased with the system.

Getting Started With Your System 7

Supported Operating Systems

• Microsoft Windows Server 2008 SP2 Web, Standard, and Enterprise (x86)

Editions

• Microsoft Windows Server 2008 SP2 Web, Standard, Enterprise,

and Datacenter (x64) Editions

• Microsoft Windows Server 2008 R2 Web, Standard, Enterprise,

and Datacenter (x64) Editions

• Microsoft Windows Server 2008 R2 HPC (x64) Edition

• Red Hat Enterprise Linux 5.5 Standard (x86_64), Advanced Platform

(x86_64), and HPC Editions

• SUSE Linux Enterprise Server 11 SP1 (x86_64)

• SUSE Linux Enterprise Server 10 SP3 (x86_64)

• VMware ESX 4.0 Update 2 Classic Edition

• VMware ESXi 4.0 Update 2 Installable Edition

• VMware ESX 4.1 Classic Edition

• VMware ESXi 4.1 Installable Edition

• Citrix XenServer 5.6 Enterprise Edition

• Microsoft Hyper-V Windows Server 2008 R2 (stand-alone)

• Microsoft Windows Server 2008 R2 Hyper-V role

NOTE: For the latest information on supported operating systems,

see dell.com/ossupport.

8Getting Started With Your System

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your

system. Warranty information may be included within this document or as a

separate document.

• The rack documentation included with your rack solution describes how to

install your system into a rack.

•The

Hardware Owner’s Manual

provides information about system features

and describes how to troubleshoot the system and install or replace system

components. This document is available online at

support.dell.com/manuals

• Dell systems management application documentation provides

information about installing and using the systems management software.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not

perform as expected, see your Hardware Owner’s Manual. Dell offers

comprehensive hardware training and certification. See dell.com/training for

more information. This service may not be offered in all locations.

Información de la NOM (sólo para México)

La información que se proporciona a continuación aparece en el dispositivo

descrito en este documento, en cumplimiento de los requisitos de la Norma

Oficial Mexicana (NOM):

Importador:

Número de modelo: Series E07S

Voltaje de alimentación 100–240 V CA

Frecuencia: 50/60 Hz

Consumo eléctrico: 7–3,5 A
