Dell PowerEdge C410 Series User manual

Dell PowerEdge C410x

Getting Started

With Your System

Guide de mise en route du système

Primeiros passos com o sistema

Introducción al sistema

Dell PowerEdge C410x

Getting Started

With Your System

Notes, Cautions, and Warnings

READ THIS IMPORTANT SAFETY INFORMATION SECTION. RETAIN THIS MANUAL FOR REFERENCE. READ THIS

SECTION BEFORE SERVICING.

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not

followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly

forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names

other than its own.

Regulatory Model B02S

March 2012 P/N NF0DD Rev. A01

CAUTION: To reduce the risk of electric shock, this system should only be serviced by

qualified service personnel.

Restricted Access Location

The Dell PowerEdge C410X system is intended for installation only in restricted access locations as defined in

Cl. 1.2.7.3 of IEC 60950-1: 2001.

1.2.7.3 RESTRICTED ACCESS LOCATION: A location for equipment where both of the following paragraphs

apply:

Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the

reasons for the restrictions applied to the location and about any precautions that shall be taken.

Access is through the use of a TOOL or lock and key, or other means of security, and is controlled by

the authority responsible for the location.

CAUTION: To prevent the system PSUs from overloading and to ensure the optimum system

performance and stability, always follow the table below for PSU and GPGPU configuration.

Minimum PSU Quantity Maximum GPGPU Quantity

1 4

2 8

316

The fourth PSU is redundant.

Installation and Configuration

WARNING: Before performing the following procedure, review the safety instructions that

came with the system.

Unpack your system

Unpack your system and check that the following items are included.

One Dell PowerEdge C410X system chassis

Dell PowerEdge C410x Getting Started Guide

Safety, Environmental, and Regulatory Information (SERI)

Warranty and Support Information (WSI) or End User License Agreement (EULA)

Contact Dell if some items are missing or appear damaged.

Installing the Rails and System in a Rack

WARNING: Whenever you need to lift the system, get others to assist you. To avoid injury, do

not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted to the rails. To avoid personal injury

or damage to the system, you must adequately support the system rack during installation

and removal.

WARNING: Whenever you need to lift the system, use the handles as shown in the illustration.

CAUTION: Before installing systems in a rack, install front and side stabilizers on stand-alone

(single) racks or the front stabilizers on racks joined with other racks.

Failure to install stabilizers properly before installing systems in a rack could cause the rack

to tip over, potentially resulting in bodily injury under certain circumstances. Therefore,

always install the stabilizers before installing components in the rack.

CAUTION: Many repairs may only be done by a certified service technician. You should only

perform troubleshooting and simple repairs as authorized in your product documentations.

Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read

and follow the safety instructions that came with the product.

CAUTION: After installing system/components in a rack, never pull more than one component

out of the rack on its slide assemblies at one time. The weight of more than one extended

component could cause the rack to tip over and may result in serious injury.

CAUTION: Due to the height and weight of the rack, a minimum of two people should

accomplish this task.

Follow these instructions to install the rails into a rack:

1. Install the sliding rails into the rack.

2. Align the inner rails with the sliding rails of the rack.

3. Push the system into the sliding rails until the locking latch clicks into place.

4. Install the system into the rack.

Connecting iPass Cables

Connecting Power Cables

Connect the system's power cable to the system. Plug the other end of the power cables into a

grounded electrical outlet or a separate power source such as an uninterrupted power supply or a

power distribution unit.

Turning On the System

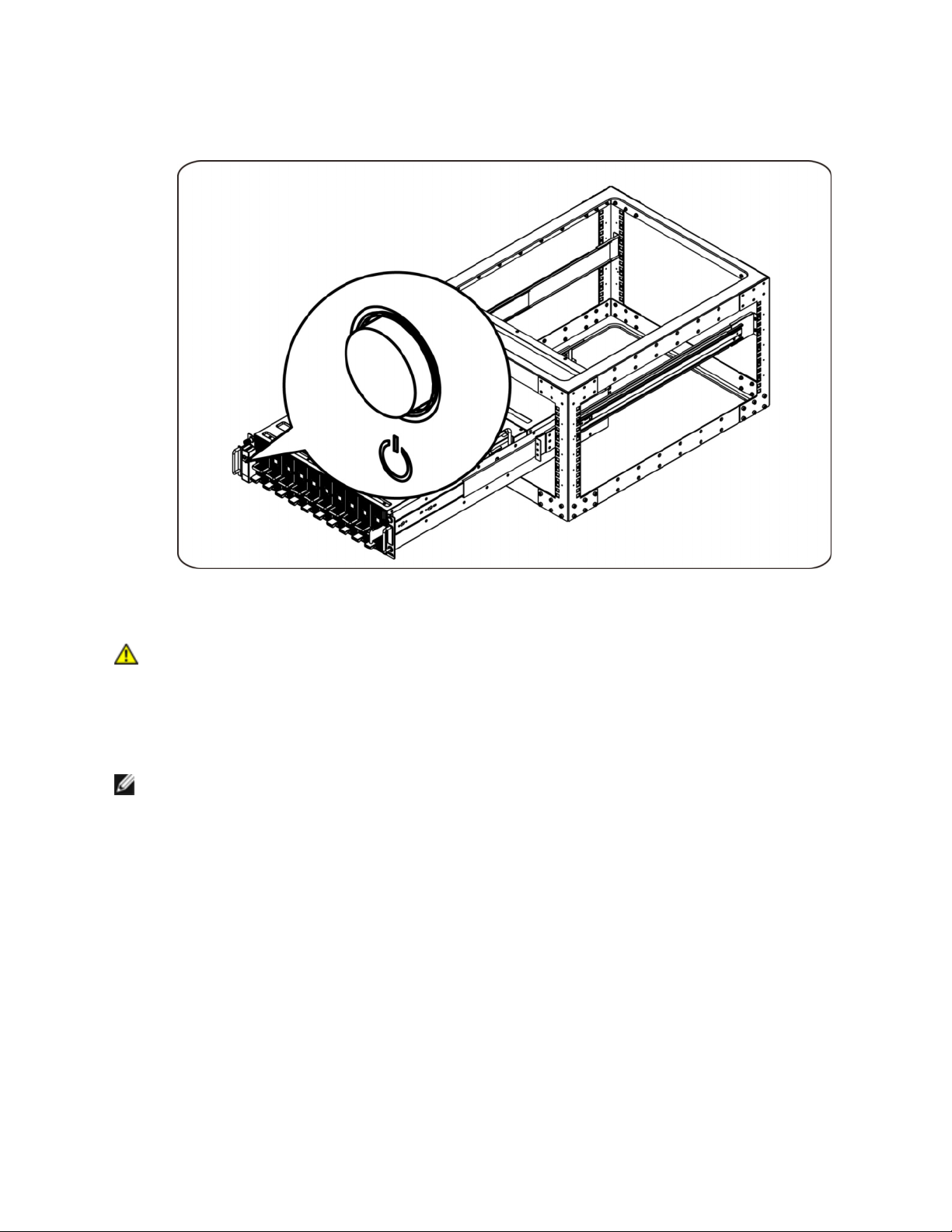

Press the power button on the system. The power indicators should light.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your system. Warranty

information may be included within this document or as a separate document.

The Hardware Owner's Manual provides information about system features and describes how to

troubleshoot the system and install or replace system components. This document is available online at

support.dell.com/manuals.

NOTE: Always check updates on support.dell.com/manuals and read the updates first because they

often supersede information in other documents.

Firmware Updates

When setting up the C410x for the first installation or when upgrading GPGPUs it is highly recommended

that the latest revision of the BMC firmware be used. The latest BMC firmware can be downloaded from

support.dell.com. The download package includes a document with instructions for flashing the BMC

firmware using the C410x WebUI. Additional information about the C410x WebUI and configuration

options is included in the Hardware Owner’s Manual. This document is available online at

support.dell.com/manuals.
