Dell Vostro 270s Owner's manual
Dell Vostro 270S
Setup And Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Front And Back View

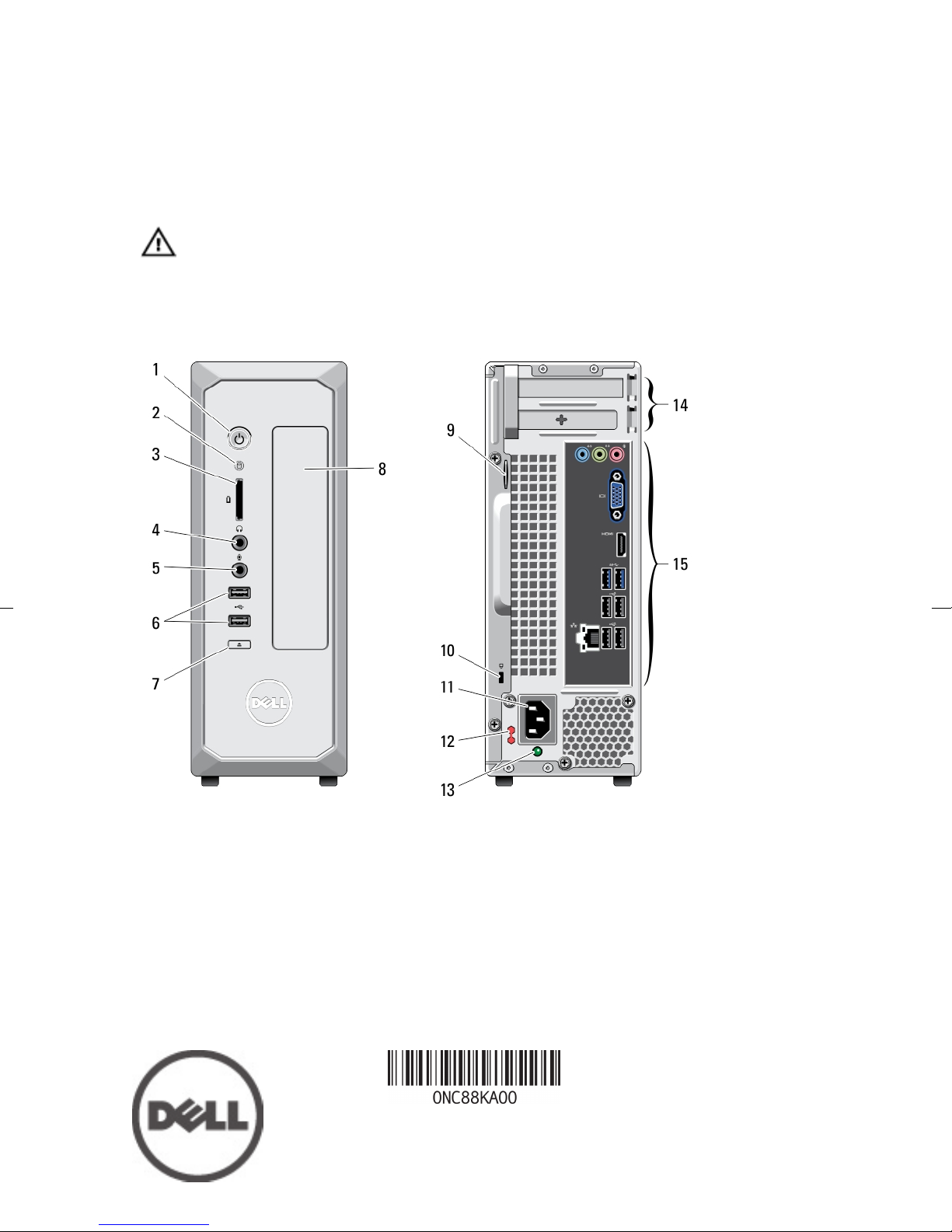

Figure 1. Front And Back View
1. power button
2. hard drive activity light
3. media card reader
4. headphone connector
5. microphone connector
6. USB 2.0 connectors (2)
7. optical drive eject button
8. optical drive
9. padlock ring
10. security cable slot
Regulatory Model: D06S
Regulatory Type: D06S001
2012 - 02
11. power connector
12. voltage selector switch
13. power supply diagnostic light
14. expansion card slots (2)
15. back panel connectors
Back Panel

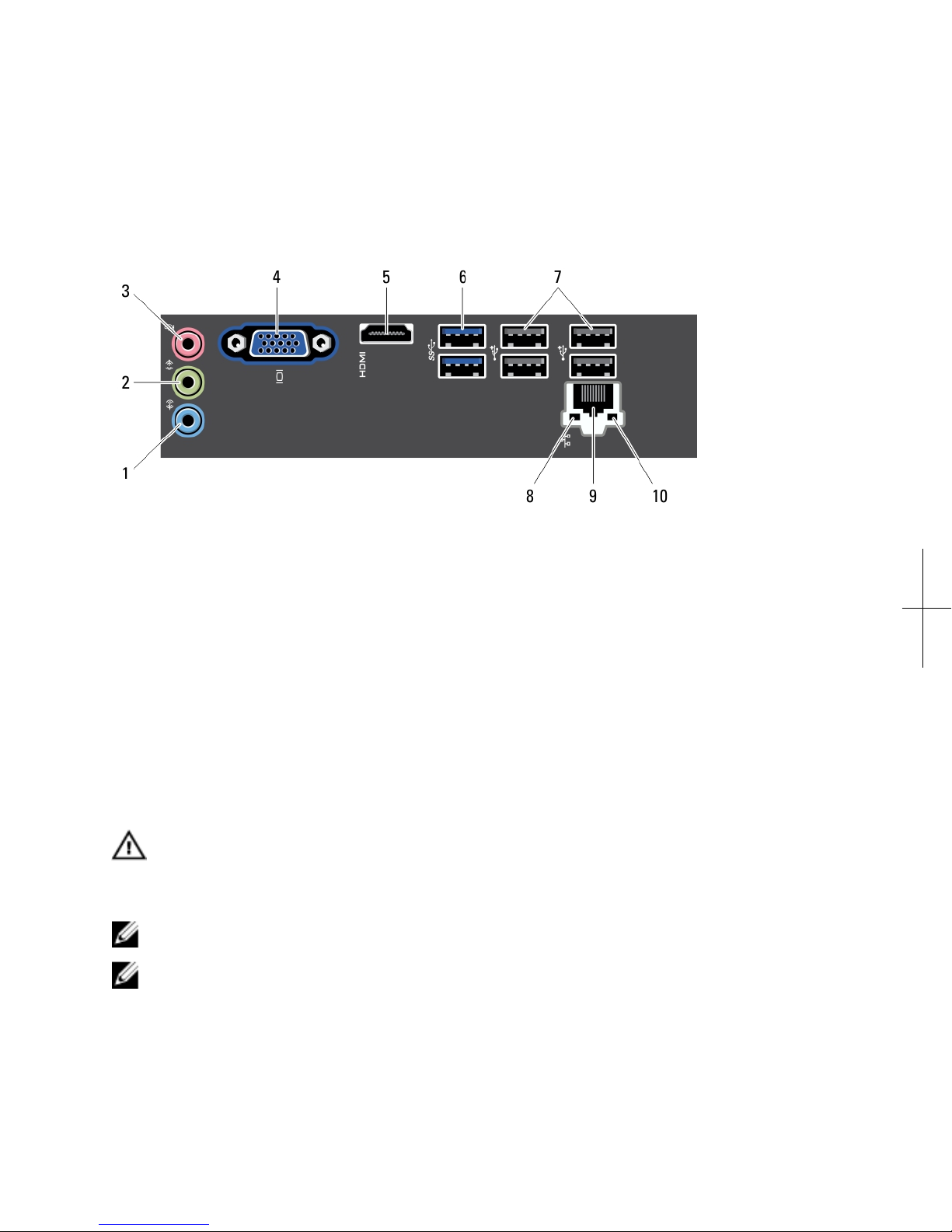

Figure 2. Back Panel
1. line-in connector
2. line-out connector
3. microphone connector
4. VGA connector
5. HDMI connector
6. USB 3.0 connectors (2)
7. USB 2.0 connectors (4)
8. network link integrity light
9. network adapter connector
10. network activity light
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices
information, see www.dell.com/regulatory_compliance
NOTE: Some devices may not be included if you did not order them.
NOTE: Some cables may not be shipped with your computer.
1. Connect the network cable (optional).
2

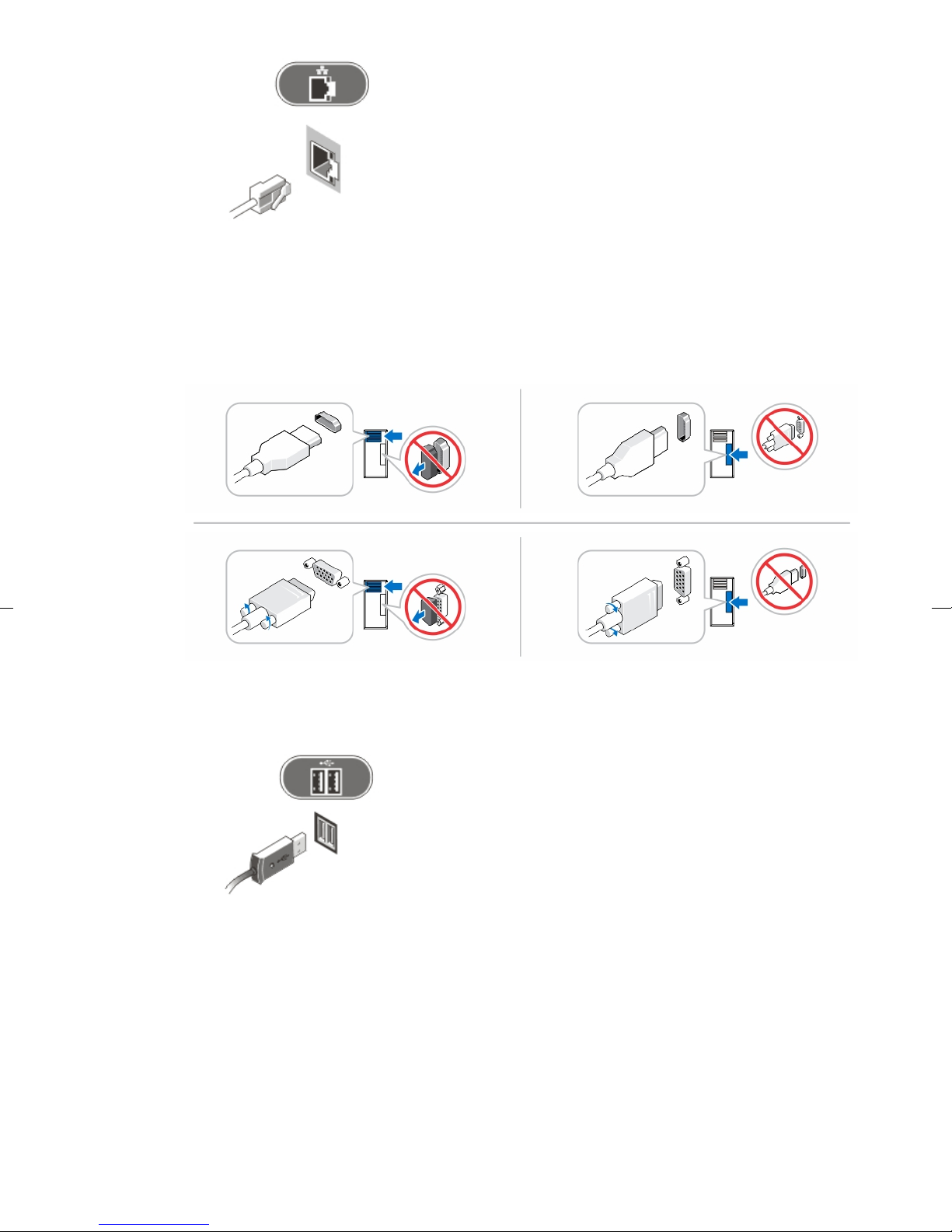

Figure 3. Network Connection
2. If you purchased the optional discrete graphics card, connect the display to the
connector on the discrete graphics card. Otherwise, connect the display using
either the integrated VGA or HDMI connector. Connect the monitor using only one
of the following cables:
Figure 4. VGA Connector And HDMI Connector
3. Connect the USB keyboard or mouse (optional).
Figure 5. USB Connection
4. Connect the power cable(s).
3

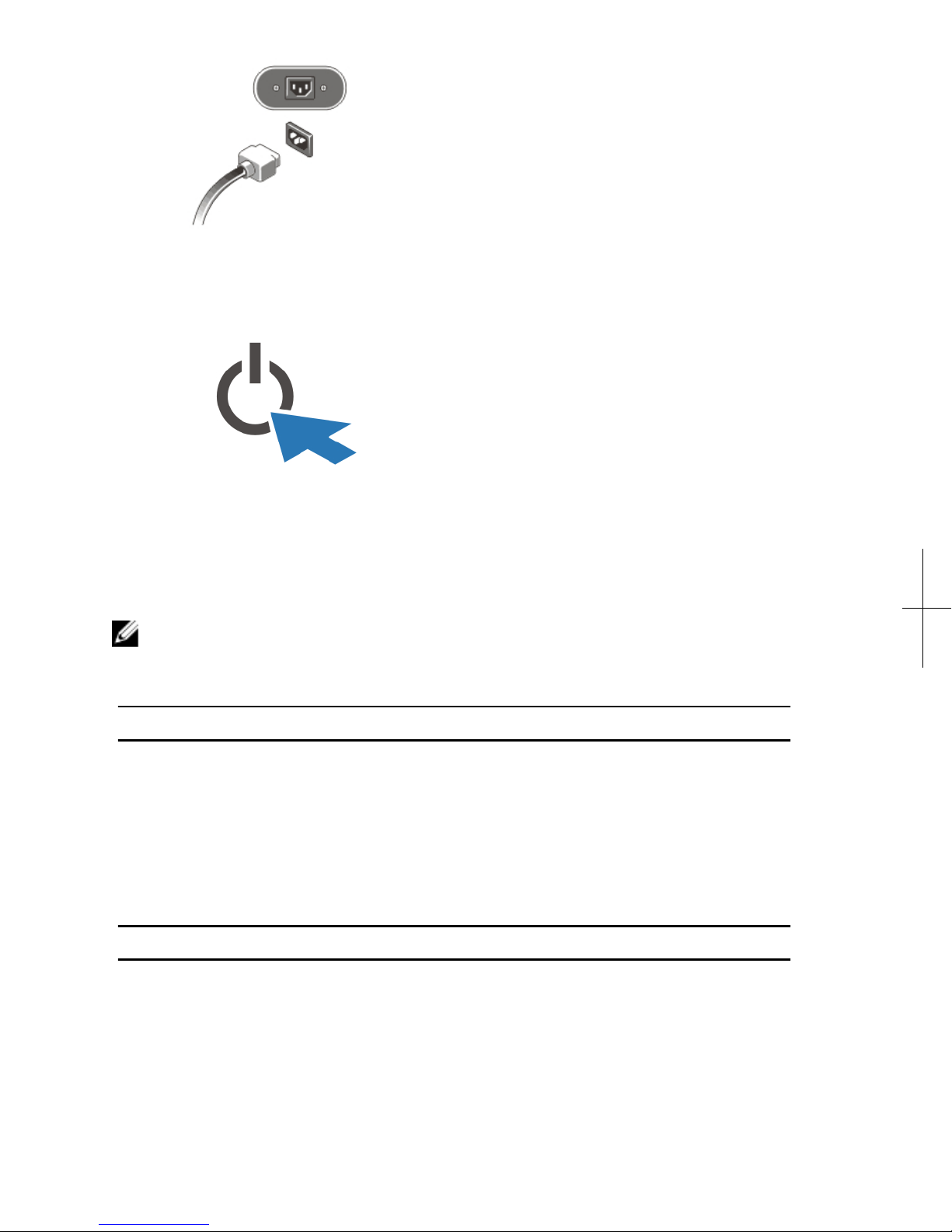

Figure 6. Connecting Power
5. Press the power buttons on the monitor and the computer.
Figure 7. Turning On Power
Specifications
NOTE: The following specifications are only those required by law to ship with your
computer. For a complete and current listing of the specifications for your
computer, go to support.dell.com.
Power
Wattage 220 W
Voltage (see the safety information that
shipped with your computer for important
voltage–setting information)
100 V - 127 V/ 200 V - 240 V
Coin-cell battery 3 V, CR2032 lithium coin cell
Physical
Height 271.00 mm (10.67 inches)
Width 100.00 mm (3.94 inches)
Depth 376.20 mm (14.81 inches)
Weight 5.90 kg (13.01 lb)
4
Environmental
Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer and the
regulatory compliance website at www.dell.com/regulatory_compliance for more
information on:
• Safety best practices
• Regulatory certification
• Ergonomics
See www.dell.com for additional information on:
• Warranty
• Terms and Conditions (U.S. only)
• End User License Agreement
Additional information on your product is available at support.dell.com/manuals.
