Dell Precision T7500 Owner's manual

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Dell Precision™ Workstation T7500/T7500n

Setup and Features Information

Front and Back View

1 optical drive 2 optical drive filler panel

3 flex bay 4 link integrity light

5 headphone connector 6 microphone connector

7 power button, power light 8 diagnostic lights (4)

9 USB 2.0 connectors (2) 10 IEEE 1394 connector

June 2009 Model: DCDO

C388Mam2.fm Page 1 Thursday, June 11, 2009 4:11 PM

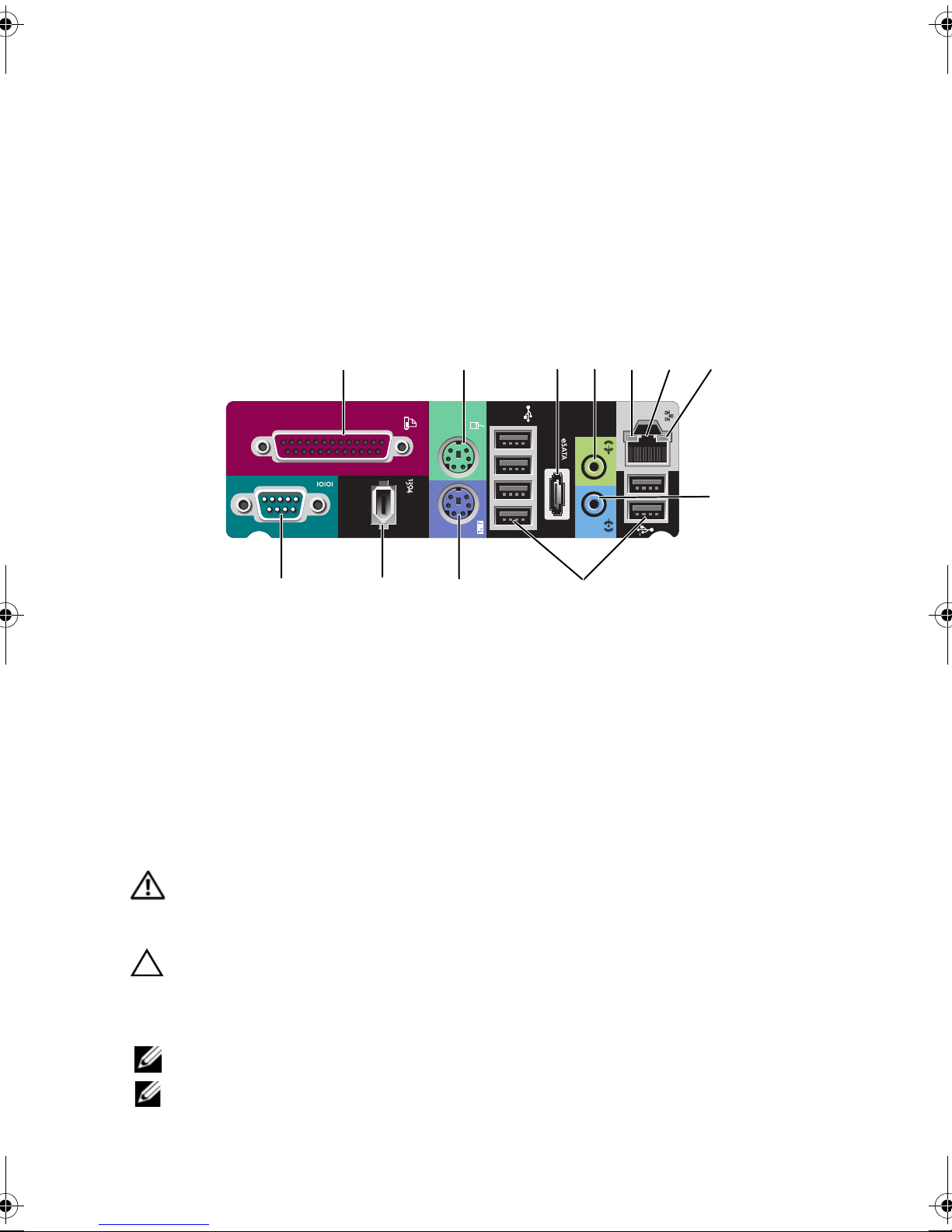

Back Panel Connectors

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information

that shipped with your computer. For additional best practices information see

www.dell.com/regulatory_compliance.

CAUTION: Do not install your computer in an enclosure where there is limited, restricted or no

airflow. Restricting the airflow impacts your computer’s performance, possibly causing it to

overheat. If your computer is installed in a corner on a desk leave at least 5.1 cm (2 in) clearance

from the back of the computer to the wall to permit the airflow required for proper ventilation.

NOTE: Clean dust off the grill at the back of the computer whenever it is dusty.

NOTE: Some devices shown below may not be included if you did not order them.

11 drive activity light 12 optical drive eject button

13 power connector 14 cover-release latch and padlock ring

15 security cable slot 16 back panel connectors

17 expansion card slots (7) 18 power supply diagnostic button

19 power supply diagnostic light

1 parallel connector 2 PS/2 mouse connector

3 eSATA connector 4 line-out connector

5 network activity light 6 network adapter connector

7 link integrity light 8 line-in connector

9 USB 2.0 connectors (6) 10 PS/2 keyboard connector

11 IEEE 1394 connector 12 serial connector

C388Mam2.fm Page 2 Thursday, June 11, 2009 4:11 PM

Connect the monitor using one of the following cables:

The dual monitor Y-adapter cable

The white DVI cable

The blue VGA cable

The blue VGA cable to a DVI adapter

C388Mam2.fm Page 3 Thursday, June 11, 2009 4:11 PM

The DisplayPort cable

The DisplayPort to a DVI adapter

The DisplayPort to a VGA adapter

Connect a USB device, such as a

keyboard or mouse.

C388Mam2.fm Page 4 Thursday, June 11, 2009 4:11 PM

Specifications

NOTE: The following specifications are only those required by law to ship with your computer.

For a complete and current listing of the specifications for your computer, go to support.dell.com.

Connect the network cable.

Connect the modem (if installed).

Connect the power cable(s).

Press the power buttons on the monitor

and the computer.

Processor

Type Dual-Core Intel®Xeon®Processor 5500 series

Quad-Core Intel®Xeon® Processor 5500 series

System Information

System chipset Intel 5500/5520

Data bus width 64 bits

C388Mam2.fm Page 5 Thursday, June 11, 2009 4:11 PM

Video

Type:

Discrete

PCI Express 2.0 x16 (two slots)

NOTE: Support for two full height, full length graphics cards

using the PCIe x16 graphics card slot

Drives

Externally accessible four 5.25 inch drive bays (can support 3.5 inch flex bay)

Internally accessible four 3.5 inch drive bays

Available devices

• up to five 3.5 inch SATA or four SAS hard drives

• up to three of the following 5.25-inch drives: SATA DVD-ROM,

DVD+/-RW super multi drive/Blu-ray™ drive

• one 3.5-inch USB media card reader or

• one 3.5-inch FDD drive

NOTE: Supports a maximum of five hard drives

Controls and Lights

Front of the computer:

Power button

push button

Power light

green light — Blinking green in sleep state; solid green for

power-on state

amber light — A blinking amber light indicates a problem with

the system board. A solid amber light when the computer does

not start indicates that the system board cannot start

initialization but that the power supply is good - in normal

operating state

no light — System is in the off state

Drive activity light

green light — indicates that the computer is reading data from

or writing data to the SATA hard drive or CD/DVD

Link integrity light

green light — A good connection exists between the network

and the computer

off (no light) — The computer is not detecting a physical

connection to the network

C388Mam2.fm Page 6 Thursday, June 11, 2009 4:11 PM

Back of the computer:

Link integrity light (on

integrated network adapter)

green light — A good connection at 10Mbs exists between the

network and the computer

orange light — A good connection at 100Mbs exists between

the network and the computer

yellow light — A good connection at 1000Mbs exists between

the network and the computer

off (no light) — The computer is not detecting a physical

connection to the network

Network activity light (on

integrated network adapter)

yellow blinking light

Power supply diagnostic LED

green light — Indicates the power supply is working properly

off (no light) — Indicates that no power is available for the

power supply

Power

AC power supply:

Voltage (see the safety

information that shipped with

your computer for important

voltage setting information)

100–240 VAC, 50–60 Hz, 12.0 A

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Height 56.50 cm (22.25 inches)

Width 21.60 cm (8.50 inches)

Depth 55.30 cm (21.80 inches)

Weight at least 24.90 kg (55 lbs)

WARNING: Your computer is heavy and can be difficult to maneuver. Seek assistance before

attempting to lift, move, or tilt it. This computer requires a two-man lift. Always lift correctly to

avoid injury. Avoid bending over while lifting.

Controls and Lights (continued)

C388Mam2.fm Page 7 Thursday, June 11, 2009 4:11 PM

Finding More Information and Resources

___________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Dell Precision are trademarks of Dell Inc.;

Intel is a registered trademark of Intel Corporation in the U.S. and other countries; Blu-ray Disc is a

trademark of the Blu-ray Disc Association.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

Environmental

Temperature:

Operating

10° to 35° C (50° to 95° F)

Storage

–40° to 65° C (–40° to 149° F)

Relative humidity 20% to 80% (noncondensing)

Altitude:

Operating

–15.2 to 3048 m (–50 to 10,000 ft)

Storage

–15.2 to 10,668 m (–50 to 35,000 ft)

Airborne contaminant level G2 or lower as defined by ISA-S71.04-1985

If you need to: See:

Find safety best practices information for your

computer, review Warranty information, Terms

and Conditions(U.S only), Safety instructions,

Regulatory information, Ergonomics

information, and End User License Agreement.

The safety and regulatory documents that

shipped with your computer and the Regulatory

Compliance Homepage at

www.dell.com/regulatory_compliance.

C388Mam2.fm Page 8 Thursday, June 11, 2009 4:11 PM
