Dell Precision T1600 Owner's manual

Dell Precision T1600

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front And Back View

Figure 1. Front And Back View

1. optical-drive bay

2. headphone connector

3. microphone connector

4. hard-drive activity light

5. optical drive (optional)

6. optical drive eject button

7. diagnostic lights (4)

8. USB 2.0 connectors (4)

9. power button, power light

10. power-supply diagnostic light

Regulatory Model: : D09M

Regulatory Type: : D09M001

2011 – 06

11. power-supply diagnostic button

12. power connector

13. back panel connectors

14. expansion card slots (4)

15. security cable slot

16. padlock ring

Back Panel

Figure 2. Back Panel View

1. mouse connector

2. link integrity light

3. network connector

4. network activity light

5. serial connector

6. line-out connector

7. keyboard connector

8. USB connectors (6)

9. DisplayPort connector

10. VGA connector

11. line-in/microphone connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

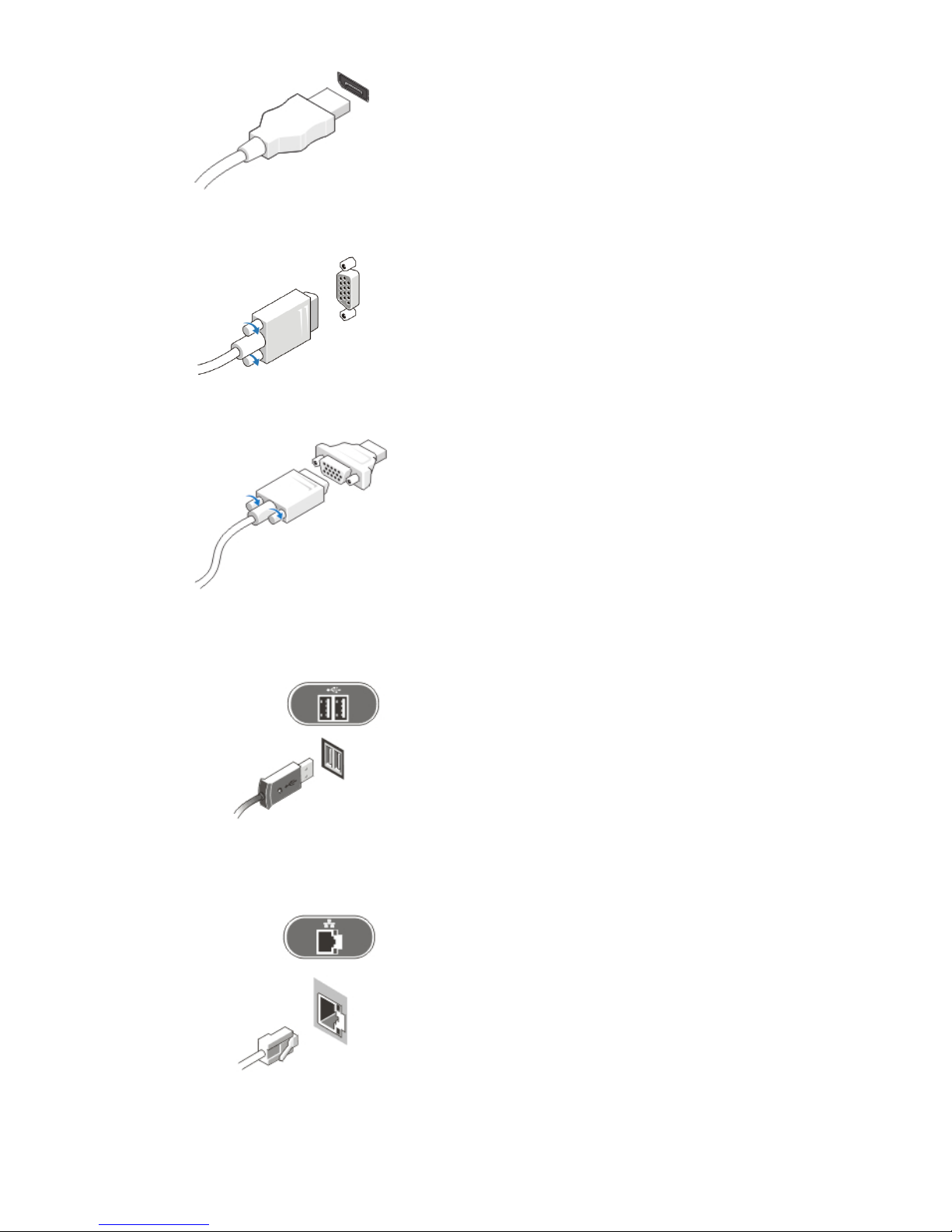

1. Connect the monitor using only one of the following cables:

Figure 3. DisplayPort Cable

Figure 4. VGA Adapter

Figure 5. VGA To DisplayPort Adapter

2. Connect the USB keyboard or mouse (optional).

Figure 6. USB Connection

3. Connect the network cable (optional).

Figure 7. Network Connection

4. Connect the modem (optional).

Figure 8. Modem Connection

5. Connect the power cable(s).

Figure 9. Connecting Power

6. Press the power buttons on the monitor and the computer.

Figure 10. Turning On Power

Specifications

NOTE: The following specifications are only those required by law to ship with your

computer. For a complete and current listing of the specifications for your

computer, go to support.dell.com.

System Information

Chipset Intel C206 chipset

Processor

Processor • Intel Core i-series

• Intel Xeon E3–1200 series

Video

Video type:

Integrated Intel HD Graphics 2000/3000

Discrete PCI Express x16 graphics card

Integrated video memory Up to 1.7 GB shared video memory

(Microsoft Windows Vista and Windows

Memory

Memory module connector: four DIMM slots

Memory module capacity 1 GB, 2 GB, and 4 GB

Type ECC/Non–ECC DDR3, 1333 MHz

Minimum memory 1 GB

Maximum memory 32 GB

Drives

Externally accessible:

5.25 inch drive bays two

Internally accessible:

3.5 inch SATA drive bays two

2.5 inch SATA drive bays four

Control Lights And Diagnostic Lights

power button light blue light — solid blue light indicates

power-on state; blinking blue light

indicates sleep state of the computer.

amber light — solid amber light when the

computer does not start indicates a

problem with the system board or power

supply. Blinking amber light indicates a

problem with the system board.

drive activity light blue light — blinking blue light indicates

that the computer is reading data from, or

writing data to the hard drive.

diagnostic lights four lights located on the front panel of the

computer. For more information on the

diagnostic lights, see the

Service Manual

available on the Dell Support website at

support.dell.com/manuals.

Power

Coin-cell battery 3 V CR2032 lithium coin cell

Voltage 100 VAC–240 VAC, 50 Hz–60 Hz, 5.0 A

Wattage 265 W/320 W

Maximum heat dissipation 1390 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

Height 360 mm (14.17 inches)

Width 175 mm (6.89 inches)

Depth 431.5 mm (16.99 inches)

Weight (Minimum) 8.30 kg (18.30 lb)

Environmental

Temperature:

Operating 10 °C to 35 °C (50 °F to 95 °F)

Storage –40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity 20 % to 80 % (noncondensing)

Altitude:

Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level G2 or lower as defined by ISA-S71.04–

1985

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
