Dell OptiPlex 9010 AIO Owner's manual

Dell Optiplex 9010

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Front View

Figure 1. Front View

1. microphones (2)

2. camera (optional)

3. camera privacy cover slider

4. camera LED

5. display

6. optical drive (optional)

7. optical drive eject button

8. on screen display keys

9. hard-drive activity light

10. power button

11. stand

Regulatory Model: W04C

Regulatory Type: W04C001

2012 – 03

Back View

Figure 2. Back View

1. back panel connectors

2. security cable slot

3. VESA cover

4. memory card reader

5. USB 3.0 connectors (2)

6. microphone connector

7. headphone connector

Back Panel View

Figure 3. Back Panel View

1. power supply diagnostic light

2. power supply diagnostic button

3. VGA-out connector

4. line-out connector

5. HDMI connector

6. USB 2.0 connectors (2)

7. USB 3.0 connector

8. mouse connector

9. power connector

10. network connector

11. USB 2.0 connectors (2)

12. USB 3.0 connector

13. keyboard connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with

your computer. For additional best practices information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order.

1. Connect the USB keyboard or mouse. To connect a wireless keyboard and mouse, see

Setting Up Your Dell

Cordless Mouse, Keyboard, and USB Receiver

tech sheet that shipped with your wireless keyboard and mouse.

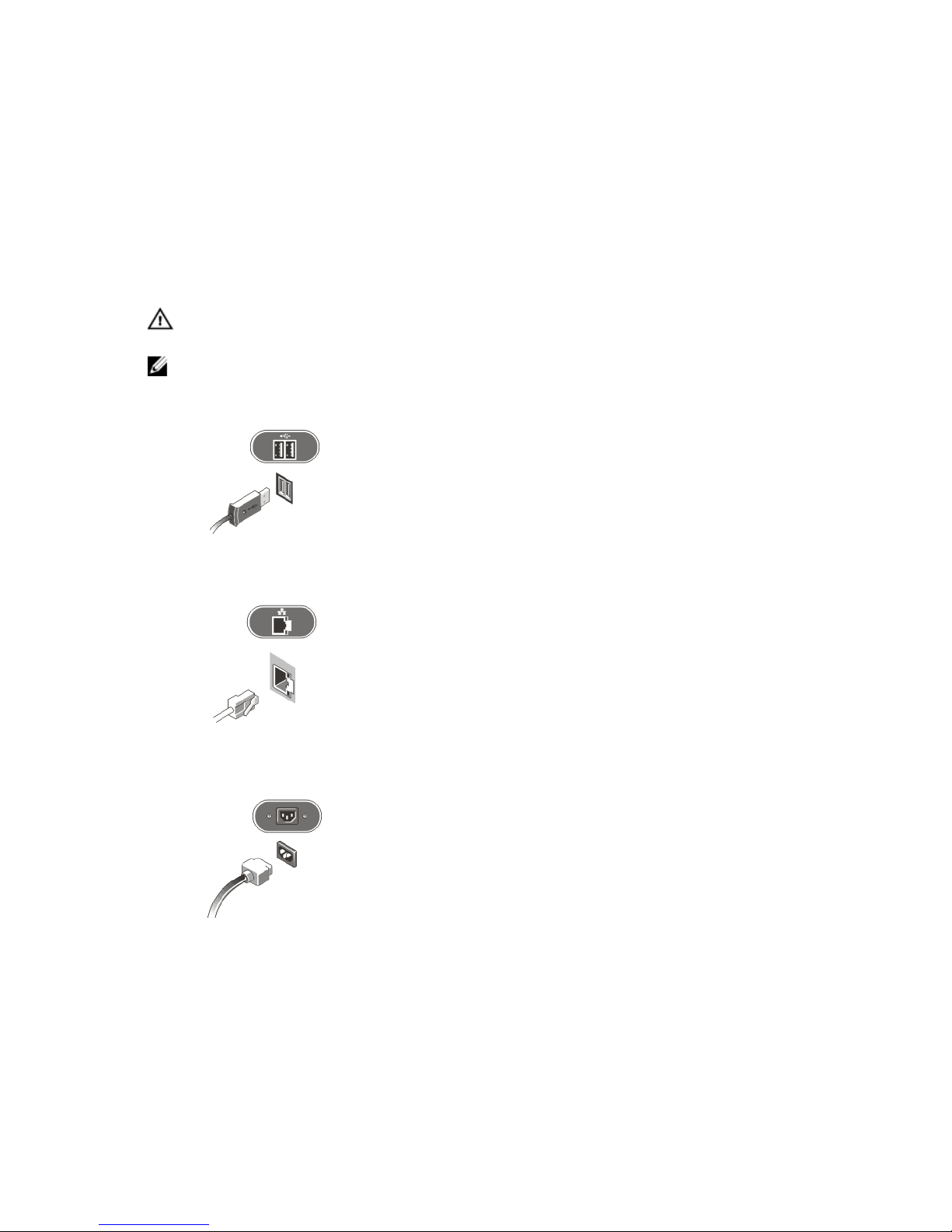

Figure 4. USB Connection

2. Connect the network cable (optional).

Figure 5. Network Connection

3. Connect the power cable(s).

Figure 6. Connecting Power

4. Press the power button on the computer.

Figure 7. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your

computer. For more information regarding the configuration of your computer, click Start → Help and Support and

select the option to view information about your computer.

Power

Coin-cell battery 3 V CR2032 lithium coin cell

Voltage 100 VAC to 240 VAC

Wattage 200 W

Maximum heat dissipation 4774 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

Width 574.00 mm (22.60 inches)

Height 440.40 mm (17.34 inches)

Depth:

Without stand 68.00 mm (2.68 inches)

With stand 220.00 mm (8.66 inches)

Weight:

Without stand 7.34 kg – 9.00 kg (16.18 lb – 19.84 lb)

With stand 9.34 kg – 11.20 kg (20.59 lb – 24.69 lb)

Environmental

Operating Temperature 10 °C to 35 °C (50 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in compliance with the requirements of

the official Mexican standards (NOM).

Voltaje de alimentación 100 VAC – 240 VAC

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico 2.9 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.
