Decon wheel Helium User manual

2021-02-02

Assembly instructions for Helium and Nitrum

With 0° Camber

MEM6137P and MEM6138P

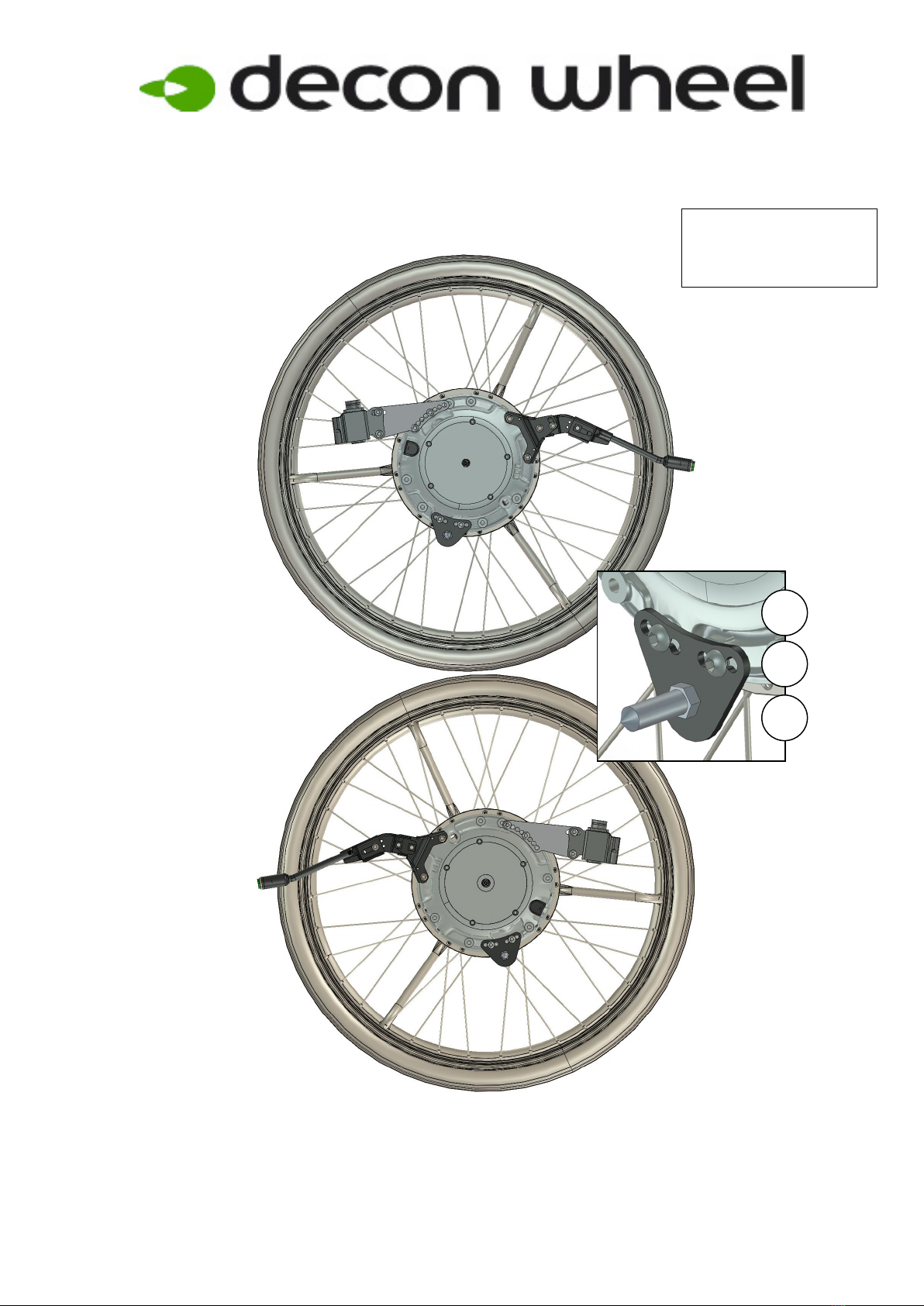

1. Remove wheels and sleeves.

2. Check the correct placement for the eMove and assemble with

axle Ø12,7-46 with part number: X0E-2530E-00.

Stop pins are assembled with Part Numbers: 290000, 300001 and XSM8ML.

5

6

7

Only STD rear axle.

Not PRO rear axle or

short COG rear axle.

2021-02-02

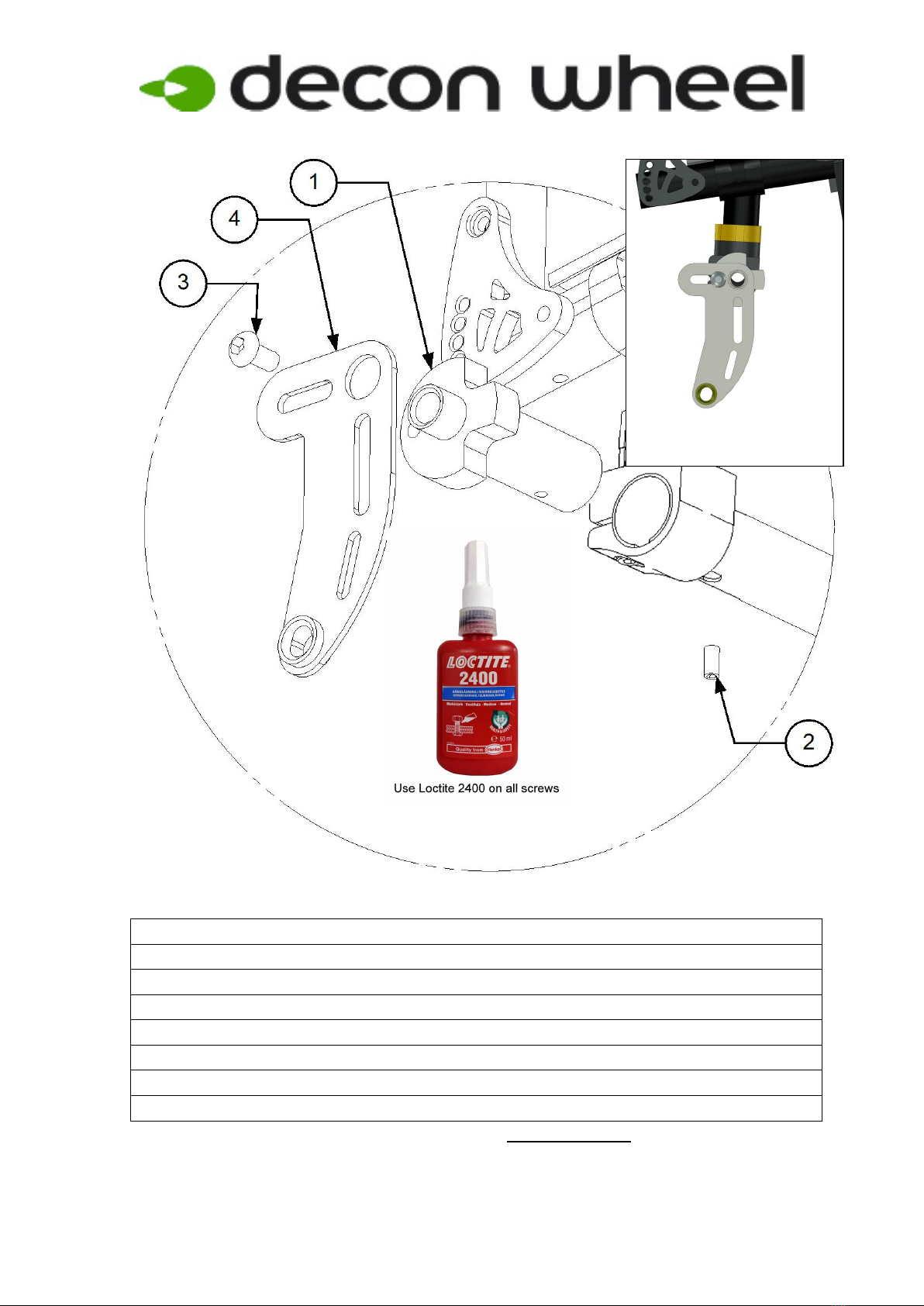

3. Assemble the plate (right side) according to picture.

Parts for right side mounting:

Item No. Part Number Qty Description

1 HW072 1 Hub sleeve

2 XSTM6X12 1 Stop Screw M6 x 12

3 XSM8X16 1 Screw : Round - M8 x 16

4 310031 1 Bracket

5 290000 1 Bracket

6 300001 1 Pin

7 XSM8ML 1 Lock nut M8

Note! If you only order the mounting set, the axle it’s not included, for replacement see

the service manual.

2021-02-02

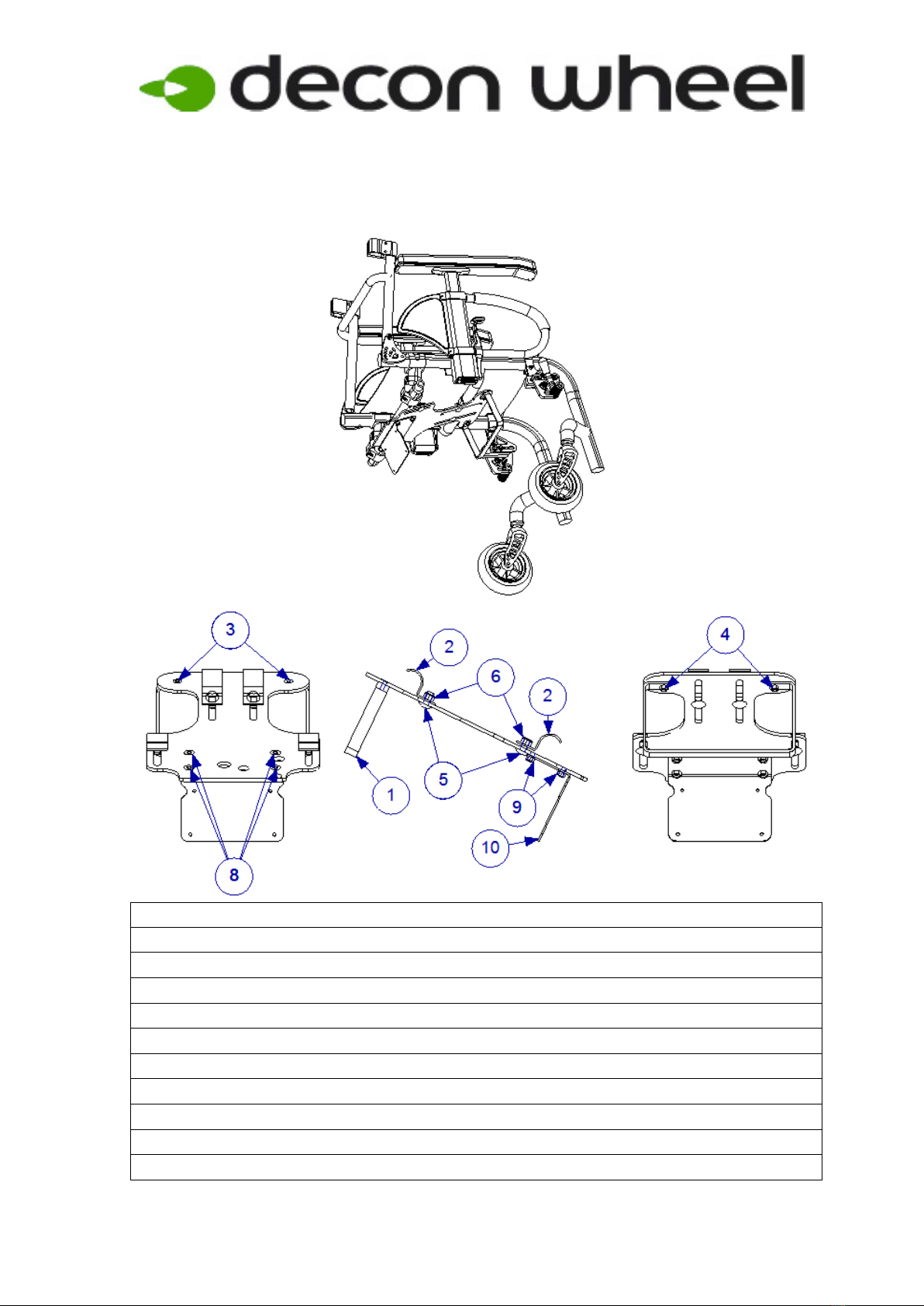

4. Assemble the under placed battery bag or if have order a Lithium battery place the

battery holder as the picture bellow.

Assembly of Battery bracket

MEM5015

Item No. Part Number Qty Description

1 MEM5002 1 Hoop

2 MEM5003 4 Clamp

3 XSFM5X12 2 Screw Countersunk M5 x12

4 XSM5ML 2 Nut Self-Locking M5

5 XSSM8X16 4 Bolt Round-Square M8 x16

6 XSM8ML 4 Nut Self-Locking M8

7 MED5001 Rev3 1 Battery plate eDrive/ eMove

8 XSFM6X16 4 Screw Countersunk M6 x16

9 XSM6ML 4 Nut Self-Locking M6

10 MEM5011 1 Bracket

2021-02-02

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M3

1,2 Nm

M4

3 Nm

M5

6 Nm

M6

10 Nm

M8

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Hubsleever.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M16x1

30 Nm

M18x1

40 Nm
