Danby Premiere DPAC 9009 Assembly instructions

Owner’s Use and Care Guide

Guide de soin d’utiliser-et

Guía a utilizar y a cuidar

Model • Modèle

DPAC 9009

CAUTION: Read and follow all safety rules and operating instructions before first use

of this product.

MISE EN GARDE : Veuillez lire attentivement les consignes de sécurité et les directives

d'utilisation avant l'utilisation initiale de ce produit.

PORTABLE AIR CONDITIONER

Table of contents . . . . . . . . . . . . . . . . . . . . . . 1

CLIMATISEUR PORTATIF

Table des matières . . . . . . . . . . . . . . . . . . . . 13

Danby Products Ltd, PO Box 1778, Guelph, Ontario Canada N1H 6Z9

Danby Products Inc, PO Box 669, Findlay, Ohio USA 45839-0669

Version 1.10.08 JF

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: If the Dehumidifier changes

ownership, be sure this manual accompanies the unit.

CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE: En cas de revente

du déshumidificateur, ce manuel doit être inclus avec l’appareil.

TABLE OF CONTENTS

UNIT SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PART IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFETY INFORMATION

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Window Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

OPERATION

Features of the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Dehumidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Auto Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Control Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 10

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

WELCOME

Thank you for choosing a Danby appliance to provide you and your family with

all of the “Home Comfort” requirements of your home, cottage, or office. This

Owner’s Use and Care Guide will provide you with valuable information

necessary for the proper care and maintenance of your new appliance. If

properly maintained, your Danby appliance will give you many years of trouble

free operation. Please take a few moments to read the instructions thoroughly

and familiarize yourself with all of the operational aspects of this appliance.

Your Danby Portable Air-Conditioner is a multi-functional room air-exchanging,

air-processing appliance, designed to offer you the functions of; Air

Conditioning, Dehumidifying, and Independent Fan. Each individual mode is

featured with “oscillating” air swing capabilities. This unit can be conveniently

moved from room to room within your home and set up in just minutes. Imagine

the convenience of 4 Season Home Comfort at your fingertips, anywhere,

anytime.

For easy reference, may we suggest you attach a copy of your sales slip/receipt

to this page, along with the following information, located on the manufacturers

nameplate on the rear panel of the unit.

Model Number:

Serial Number:

Date of Purchase:

This information will be necessary if your unit requires servicing and/or for

general inquiries. To contact a Customer Service Representative, call Danby

TOLL FREE: 1-800-26-

(1-800-263-2629)

Model Number DPAC9009

Voltage/Frequency 115V-60Hz

Noise Level 48.5 dB

Fan Speeds 3

Cooling Capacity 9000BTU

Refrigerant R410A

Unit Weight 27.2 kg (60lbs)

Airflow CFM High/Med./Low 342 / 318 / 288

Dimensions (W) x (D) x (H)(inches) 17.2”x 15.3”x 30.5”

Dimensions (W) x (D) x (H) (mm) 475 / 460 / 870

Remote Control Yes

Time of Day Clock No

Auto-Timer Yes

UNIT SPECIFICATIONS

NOTE: Continuing research results in steady improvement. Therefore, this information

and these specifications are subject to change without notice.

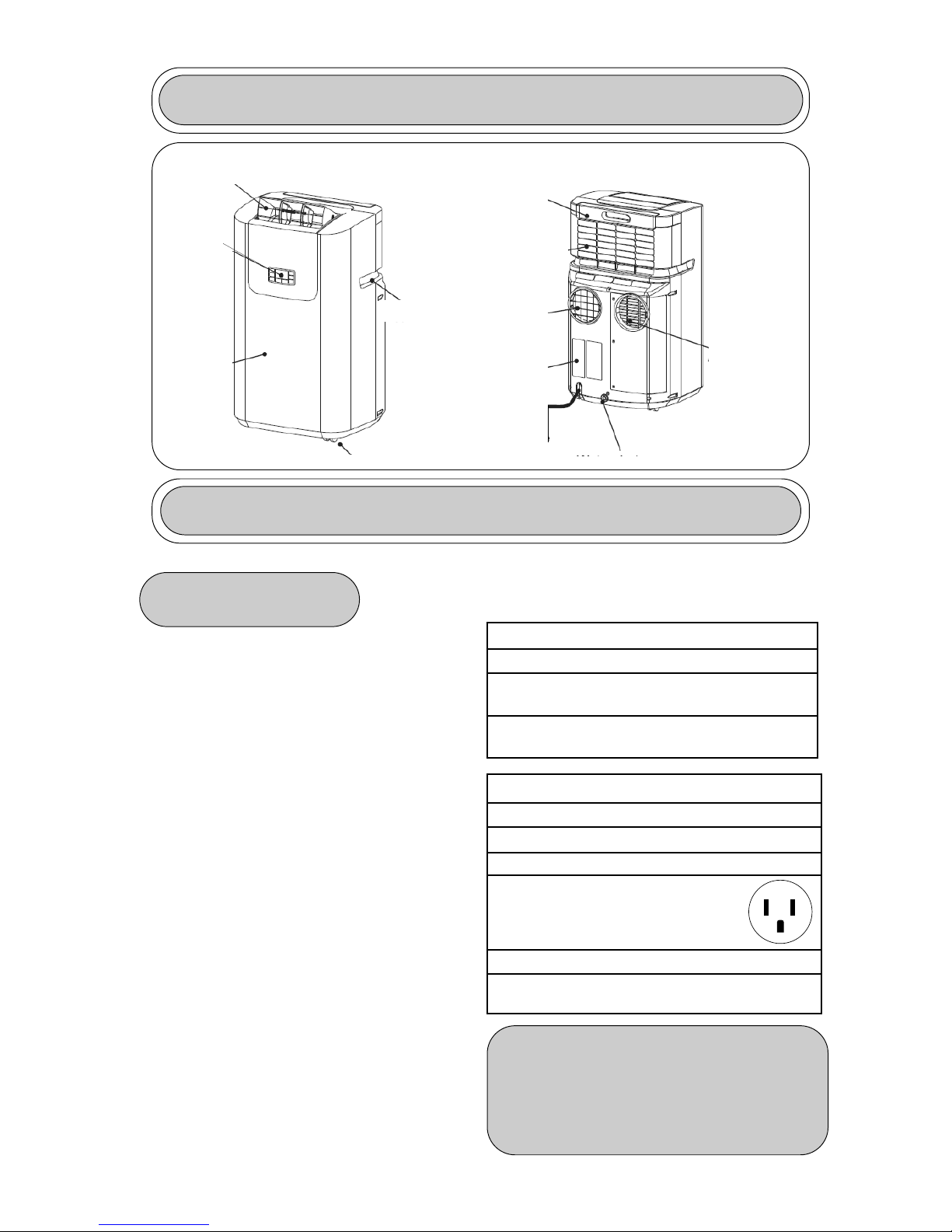

PART IDENTIFICATION

IMPORTANT SAFETY INFORMATION

READ ALL SAFETY INFORMATION BEFORE USING

1) Check available power supply and

resolve any wiring problems BEFORE

installation and operation of this unit. All

wiring must comply with local and national

electrical codes and be installed by a

qualified electrician. If you have any

questions regarding the following

instructions, contact a qualified electrician.

2) This appliance draws 10 nameplate amps

under Cooling Mode and may be used in

any properly wired, general purpose 13 amp

household grounded receptacle.

3) For your safety and protection, this unit is

grounded through the power cord plug when

plugged into a matching wall outlet. If you

are not sure whether the wall outlets in your

home are properly grounded, please consult

a qualified electrician.

WARNING: Improper connection of the

grounding plug can result in risk of Fire,

Electric Shock, and/or injury to Persons

associated with the appliance. Check with a

qualified service representative if in doubt

that the appliance is proplery grounded.

4) DO NOT USE PLUG ADAPTERS OR

EXTENSION CORDS WITH THIS UNIT. If it

is necessary to use an extension cord with

this unit, use an approved “air conditioner”

extension cord only (available at most local

hardware stores).

5) To avoid the possibility of personal injury,

always disconnect the power supply to the

unit before installing and/or servicing.

ELECTRICAL

SPECIFICATIONS

TABLE 1

Suggested Individual Branch Circuit

Nameplate Amps *AWG Wire Size

10 16

AWG- American Wire Gauge

*Based on copper wire at 105°C temperature rating.

TABLE 2

Receptacle and Fuse Types

Rated Volts 125

Amps 13

Wall Outlet

Fuse Size 15

Time Delay Fuse Plug Type

(or Circuit Breaker)

CAUTION: Do not leave this unit

unattended in a space where people or

animals cannot react to a failed unit are

located. A failed unit can cause extreme

overheating or death in such an

enclosed, unattended space.

Air Exhaust

LCD

Display

Front

Panel

Handles

Wheels

Air Filter

Air inlet

Air outlet

Cover

Electricity

cable Water drain

Air inlet

POWER SUPPLY

CORD

The power cord supplied with this air conditioner contains a

device that senses damage to the power cord. To test if your

power cord is working properly, you must do the following:

IMPORTANT SAFETY INFORMATION

ENERGY-

SAVING TIPS

Your Danby appliance is designed to be highly efficient in energy

savings. Follow these recommendations for greater efficiency.

1) Select a thermostat setting that suits your

comfort needs and leave at that chosen

setting.

2) The air filter is very efficient in removing

airborne particles. Keep the air filter clean

at all times.

3) Use drapes, curtains or shades to keep

direct sunlight from penetrating and heating

room, but do not allow drapes or curtains to

obstruct the air flow around the unit.

4) Start your air conditioner before the

outdoor air becomes hot and

uncomfortable, to avoid an initial period of

discomfort while the unit is cooling off the

room. Use of the automatic start/stop

programmable TIMER feature can be a

major asset in this regard if utilized to the

fullest extent.

5) When outdoor temperatures are cool

enough, turn the air conditioner off and use

the FAN MODE. This circulates indoor air,

providing some cooling comfort while

utilizing less electricity.

NOTE: The power cord supplied with this

air conditioner contains a current leakage

detection device designed to reduce the

risk of fire. In the event the power supply

cord is damaged, it cannot be repaired

and must be replaced with a new cord

from the product manufacturer.

• Under no circumstances should this

device be used to turn the unit on or off.

• The “RESET” button must always be

pushed in (engaged) for correct operation.

• The power supply cord must be replaced

if it fails to reset when the “TEST” button

is pushed in.

1) Connect the power supply cord to an

electrical outlet.

2) The power supply cord has two buttons

located on the head of the plug. One

button is marked “TEST”, and the other is

marked “RESET”. Press the “TEST”

button; you will hear a click as the

“RESET” button pops out.

3) Press the “RESET” button; you will

hear a click as the button engages.

4) The power supply cord is now

energized and supplying electricity to the

air conditioner (on some products this is

also indicated by a light on the plug

head).

INSTALLATION

WINDOW KIT

Air Conditioning Mode ONLY

Your window kit has been designed to fit most standard “vertical”/”horizontal” windows up to

a maximum height of 80” (203cm). For vertical window applications, multi lock positions are

provided on the edge of each slider section to secure each sliding section together.

1) Select a suitable location, making sure you have access to an electrical outlet.

2) Install the flexible hose to the rear side of the unit. Insert the hose collar on top of the

exhaust opening and twist to lock into position.

3) Install the adjustable Window Slider Kit as required (see Fig. 3a & 3b).

4) Install the opposite end of the flexible exhaust hose into the window exhaust adapter.

5) Install the window exhaust adapter into the opening in the slider section, making sure

the window slider sections are secure.

6) Plug the unit into a 115V/60Hz grounded electrical outlet.

Window Slider Kit:

Min.: 28 1/3” (67.5cm)

Max.: 80” (203cm)

Window Slider Kit:

Min.: 28 1/3” (72cm)

Max.: 80” (203cm)

Horizontal Window

Vertical

Window

Fig. 1 INSTALLATION ACCESSORIES

There should be at least 11.8” (30cm) clearance

between the unit and any other objects or

building structures, and should be installed on a

level surface. The unit does not have to be

vented outside during Dehumidifying or Fan

Only mode operation.

Flexible Exhaust Hose

Exhaust Nozzle

Connector

Fixture

Adjustable Window Slider Kit:

28 1/3” (72cm)- 80” (203cm)

INSTALLATION

Flexible Exhaust Hose (13cm) & Exhaust

nozzle connector (2 pcs)... from 17 7/10” (45cm)

up to 53 1/6” (135cm)

Flexible Exhaust Hose (11cm) & Exhaust

nozzle connector (2pcs)...from 15 3/4” (40cm) up

to 51 1/5” (130cm)

Ajustable window door slider kit (3 pcs).....

from 28 1/3”(72cm) up to 80” (203cm)

Fixture..... (2 pcs)

Screws......(12 pcs)

NOTE: The exhaust/window kit must be installed

at all times when the unit is operating under AIR

CONDITIONING mode. Screws

ELECTRIC SHOCK HAZARD: To avoid the possibility of personal

injury, disconnect power to the unit before installing or servicing.

Back of Window Pane

Tube Adapters

Fig. 2

Instructions for Assembling the Window

Adapter Kit- Fig. 2

1) Insert tube adapters through the back of the

window panel.

2) Secure each tube adapter with four screws

through the front of the window panel.

3) Insert window panel extensions into window

panel. Lightly tighten the screws in the window

panel to hold the extensions in place.

Fig. 3a Fig. 3b

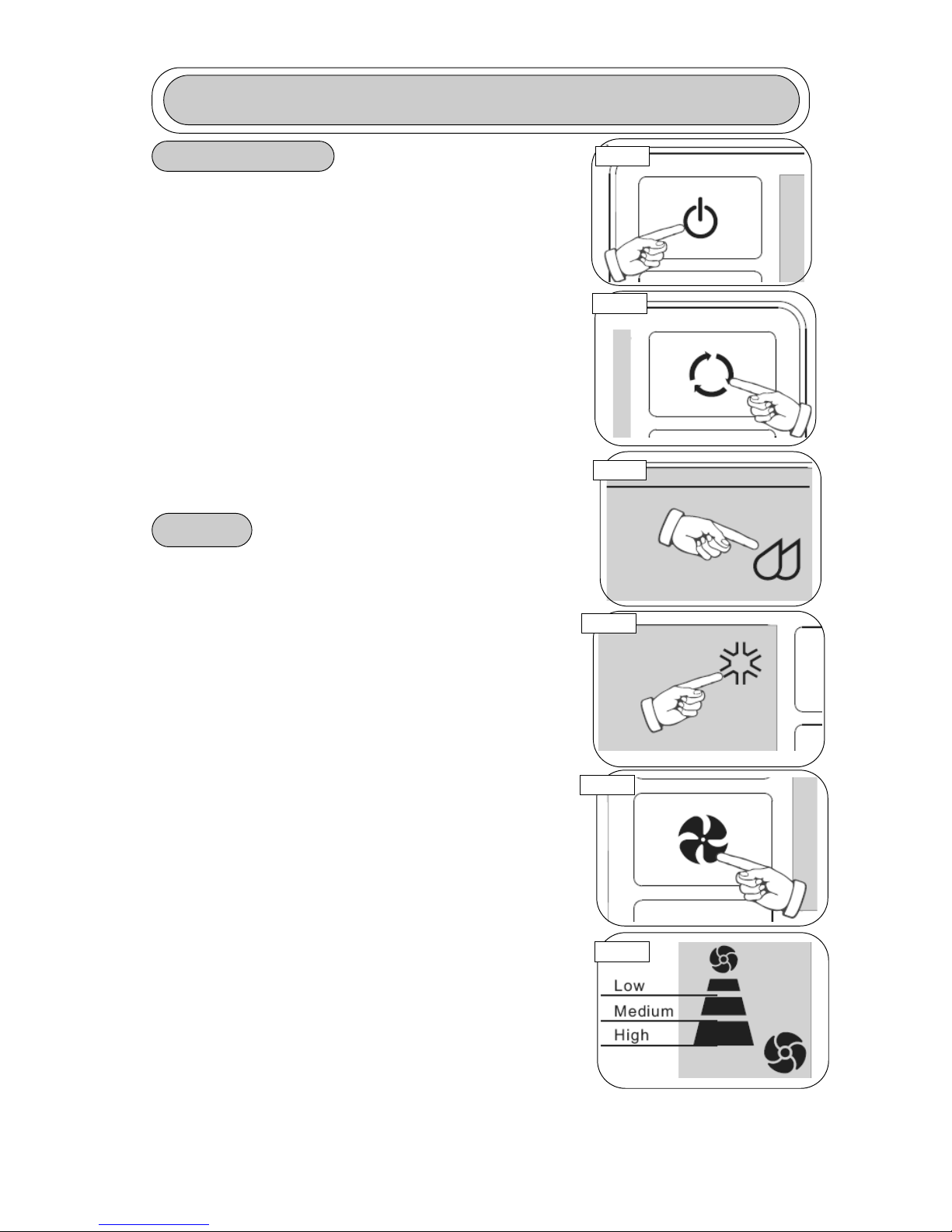

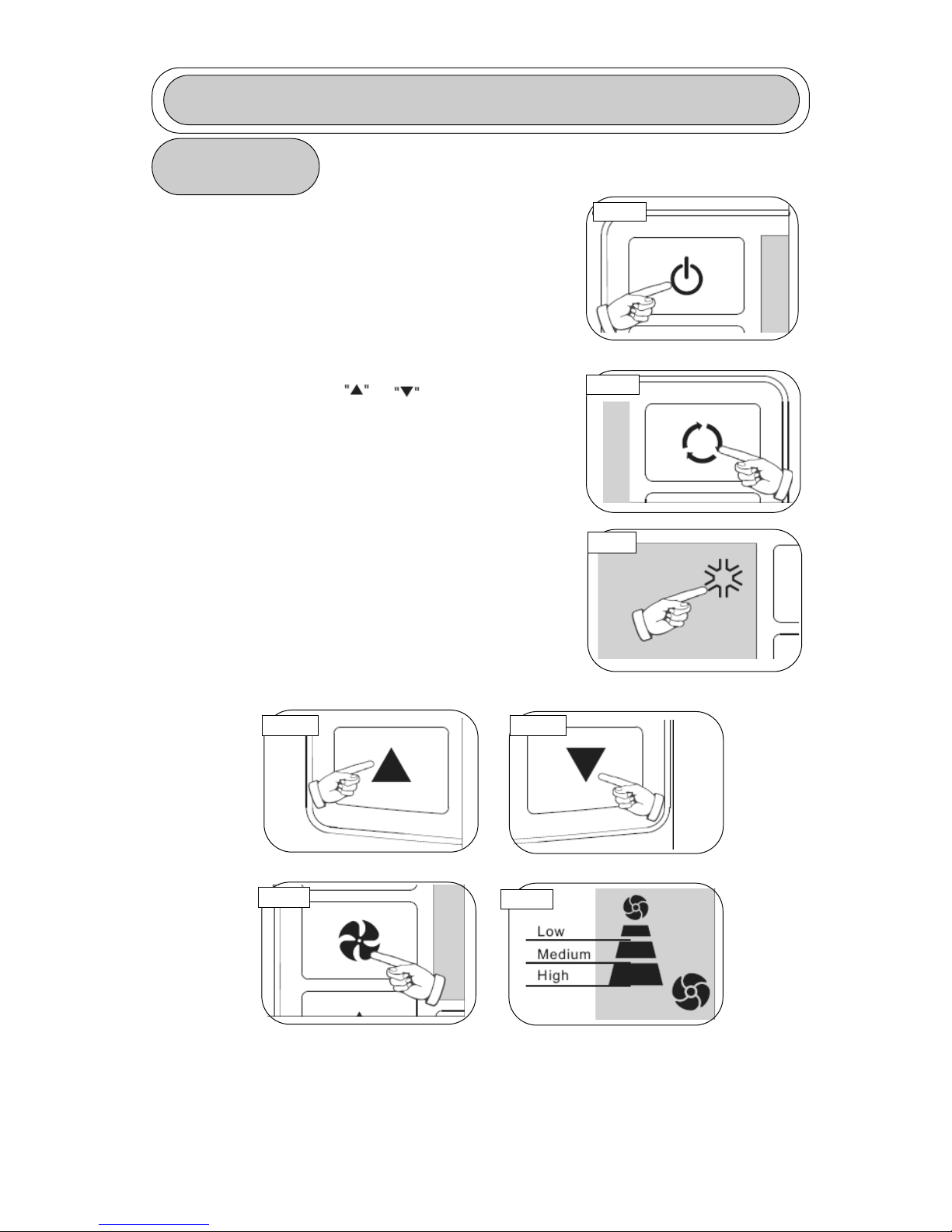

OPERATION- Features of the Control Panel

Warning Light Receiving Sensor

KEY PAD FUNCTIONS

POWER SWITCH:Turns unit ON/OFF

MODE: Allows you to scroll through and

select desired operating mode.

FAN: Select from three different fan

settings; High, Medium, and Low.

AUTO-TIMER

AUTO-TIMER Adjust:

Auto off- With machine in running mode, press

timer button to set timer control. Press

buttons to select number of hours you

would like the unit to run before it automatically

shuts off.

Auto on- With machine in stand by mode,

press timer button to set timer control. Press

buttons to select number of hours before

the unit automatically starts running in air

conditionning mode.

NOTE: The time is adjustable between 1-24

hours.

TEMPERATURE Adjust:

• Used for adjusting the thermostat.

• The default display is room temperature.

• In cooling mode, when

button is pressed, the set temperature is

displayed and may be adjusted. After 15 seconds

the display will revert back to room temperature.

Temperature is only adjustable in cool mode.

Warning Light

Condensed water may accumulate in

the unit. If the internal tank becomes

full, the Warning signal in the LCD

Display will light up and the unit will not

operate until it has been drained.

LCD Display

Cooling Mode

Dehumidify Mode

Fan Only Mode

High Fan Speed

Medium Fan Speed

Low Fan Speed

Display Set Temperature

Display Timer Setting of Auto

Switch ON / OFF

Warning Light (the machine will

stop running)

NOTE: By pressing both

buttons at the same time for more

than 3 seconds, the display will

toggle between Celsius and

Fahrenheit.

OPERATING INSTRUCTIONS

AIR

CONDITIONING

IMPORTANT: The exhaust hose must be properly vented

(outdoors) during air conditioning mode.

1) Press the POWER SWITCH key (Fig. A) to switch

on the unit, and the previous set temperature will

be shown in the temperature display area of the

control panel.

2) Press the MODE key (Fig. B) until the COOL

indicator light illuminates on the control panel

(Fig.C). Each depression of the MODE key will

advance to a different mode setting

(Cool-Dehumidifier-Fan-Heat-Auto)

3) Press the appropriate or buttons (Fig. D1

& D2) to select a suitable operating temperature

setting. Temperature settings are adjustable

between 16°C (61°F) to 32°C (89°F).

4) Press the FAN key (Fig. E) to select the desired

fan speed setting (Auto-High-Med.-Low). Your

selection will appear on the control panel (each

depression of the fan key will advance to a different

setting).

• Cooling stops automatically when the set

temperature is achieved. Cooling resumes when the

room temp. rises above the “set” temperature level.

Fig. A

Fig. B

Fig. C

Fig. D1 Fig. D2

Fig. E Fig. F

OPERATING INSTRUCTIONS (cont’d)

DEHUMIDIFIER

Note: During dehumidifier mode, the exhaust hose

does not have to be vented outdoors.

1) Press the ON/OFF key pad to switch the unit on

(Fig. G)

2) Press the MODE key (Fig. H) until the DRY

indicator illuminates on the control panel (Fig.I).Each

press of the MODE key will advance to a different

mode setting (Cool-Dehumidifier-Fan-Heat-Auto).

IMPORTANT: There is no fan speed or temperature

adjustment during dehumidifier mode. The fan speed

is factory set for Low and the dehumidifier operates

continuously (non-stop) regardless of ambient

humidity level or set temperature.

FAN NOTE: During Fan Mode, the exhaust hose

does not have to be vented outdoors.

1) Press the ON/OFF key pad to switch the unit on

(Fig. G).

2) Press the MODE key (Fig. H) until the FAN

indicator illuminates on the control panel (Fig. J).

Each press of the MODE key will advance to a

different mode setting (Cool-Dehumidifier-Fan-Heat-

Auto).

3) Press the FAN Key (Fig. K) to select the desired

FAN SPEED setting. Your selection will appear on

the control panel. Each press of the fan key will

advance to a different fan speed (High- Med- Low)

as shown in Fig. L.

Fig. J

Fig. H

Fig. G

Fig. I

Fig. K

Fig. L

OPERATING INSTRUCTIONS (cont’d)

AUTO-TIMER The AUTO-TIMER feature offers a unique selection of multiple

choice, fully automatic on and/or off (start/stop) programs between

1-24 hours under any one mode of your Home Comfort unit.

The programs are as follows:

a) Auto-Off: Pre-select a time that will turn off the unit automatically (between 1-12hrs).

b) Auto-On: Pre-select a time that will turn on the unit automatically (between 1-12hrs).

c) Auto-On & Auto Off: Pre-select a time that will turn the unit ON / OFF automatically

at specified times (between 1-12hrs).

Note: These functions must be performed daily, as the program is automatically

canceled/erased after the program has ended.

REMOTE CONTROL

FEATURES

Control Buttons:

1) Power Switch

2) Mode

3) Fan Speed

4) On / Off Timer

5) Time / Temperature Set

• Used for adjusting the timer and

temperature.

• The default display on control panel is

room temperature.

• When key is pressed in

cool mode, the set temperature is

displayed and may be adjusted. After 10

seconds the display will revert back to

room temperature.

• Timer setting is available from 1-24

hours by pressing the key

To operate the hand held remote control

you will require two “AAA” Alkaline

batteries (included).

Batteries should be replaced when:

a) No signal (beep) is heard when attempting to program the main unit.

b) The main unit does not respond to a command issued by the remote control.

Battery replacement:

1) Slide the rear cover on the remote in the direction of the arrow. Continue pulling (gently)

until the cover separates completely from the unit.

2) Insert (2) batteries (AAA) following the same orientation (polarity) depicted inside the

battery chamber (+ / -).

3) Re-install rear cover.

4) If the remote control will not be used for extended periods of time (vacations, etc.),

batteries should be removed.

The remote operates within a range of 8 meters (26 ft.) from the receiver located inside

the main unit. Any obstruction between the receiver and remote may cause signal

interference, limiting the ability to program the unit.

Notes:

1) Do not drop the remote control.

2) Do not place the remote control in a location exposed to direct sunlight.

3) The remote control should be placed about 1 meter or more away from TV, or any

electrical appliances.

This Class B digital apparatus complies with canadian ICES-003.

Table of contents

Languages:

Other Danby Air Conditioner manuals

Danby

Danby DAC5130 User manual

Danby

Danby DAC10011E Assembly instructions

Danby

Danby DDR556RH User manual

Danby

Danby DAC150EB2WDB User manual

Danby

Danby DPAC9008 User manual

Danby

Danby DPA100HE5WDB-6 User manual

Danby

Danby DPA060B1WDB User manual

Danby

Danby DDR5588RHE User manual

Danby

Danby Premiere DAC8075EE User manual

Danby

Danby DPAC5009 Assembly instructions

Danby

Danby DAC080EB7WDB-RF User manual

Danby

Danby DAC080ECB3GDB Assembly instructions

Danby

Danby DPAC8511 Assembly instructions

Danby

Danby DAC080EE2WDB User manual

Danby

Danby DAC120EB3WDB User manual

Danby

Danby DPA120B8WDB-6 User manual

Danby

Danby DPA058B6WDB-RF User manual

Danby

Danby DPA085B1GB Assembly instructions

Danby

Danby DAC145EB6WDB-6 User manual

Danby

Danby Simplicity SPAC8499 User manual

Danby

Danby DAC180EB2WDB User manual

Danby

Danby DPA080E3WDB-RF User manual

Danby

Danby Premiere DPAC 11010 Assembly instructions

Danby

Danby DAC6020 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
