Danby Premiere DPAC 11010 Assembly instructions

Owner’s Use and Care Guide

Guide d’utilisation et soins de

Propriètaire

Model • Modèle

DPAC 11010

Danby Products Ltd, PO Box 1778, Guelph, Ontario Canada N1H 6Z9

Danby Products Inc, PO Box 669, Findlay, Ohio USA 45839-0669

Version 2.1.09 JF

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: If the unit changes ownership, be sure this manual

accompanies the unit.

CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE: En cas de revente du l’appareil, ce manuel

doit être inclus avec l’appareil.

CAUTION: Read and

follow all safety rules

and operating

instructions before first

use of this product.

MISE EN GARDE:

Veuillez lire

attentivement les

consignes de sécurité et

les directives

d’utilisation avant

l’utilisation de ce

produit.

PORTABLE AIR CONDITIONER

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

CLIMATISEUR PORTATIF

Table des Matières . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

UNIT SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PART IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFETY INFORMATION

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Window Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

OPERATION

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Dehumidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Auto Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

TABLE OF CONTENTS

Thank you for choosing a Danby appliance to provide you and your family with all of the “Home

Comfort” requirements of your home, cottage, or office. This Owner’s Use and Care Guide will

provide you with valuable information necessary for the proper care and maintenance of your new

appliance. If properly maintained, your Danby appliance will give you many years of trouble free

operation. Please take a few moments to read the instructions thoroughly and familiarize yourself

with all of the operational aspects of this appliance.

Your Danby Portable Air-Conditioner is a multi-functional room air-exchanging, air-processing

appliance, designed to offer you the functions of; Air Conditioning, Dehumidifying, and Independent

Fan. Each individual mode is featured with “oscillating” air swing capabilities. This unit can be

conveniently moved from room to room within your home and set up in just minutes. Imagine the

convenience of 4 Season Home Comfort at your fingertips, anywhere,

anytime.

For easy reference, may we suggest you attach a copy of your sales slip/receipt to this page, along

with the following information, located on the manufacturers nameplate on the rear panel of the unit.

Model Number:

Serial Number:

Date of Purchase:

This information will be necessary if your unit requires servicing and/or for

general inquiries. To contact a Customer Service Representative, call Danby TOLL FREE:

Tel: 1-800-26-

(1-800-263-2629)

Model Number DPAC11010

Cooling Capacity 12000Btu/h

Noise Level 52.4dB

Fan Speeds 3

Airflow CFM High/Medium/Low 486 / 426 / 366

Power Source 115 V - 60 Hz

Refrigerant R410A

Unit Weight 35kg (77 lb.)

Unit Dimensions (inches) W x D x H 197/10 x 161/3x 323/4

Unit Dimensions (mm) W x D x H 500 x 415 x 830

Remote Control Yes

Time of Day Clock No

Auto-Timer Yes

NOTE: Continuing research results in steady improvement. Therefore, this information and these

specifications are subject to change without notice.

WELCOME

UNIT SPECIFICATIONS

READ ALL SAFETY INFORMATION BEFORE USING

1) All wiring must comply with local and national electrical

codes and be installed by a qualified electrician. If you have

any questions regarding the following instructions, contact a

qualified electrician.

2) Check available power supply and resolve any wiring

problems BEFORE installation and operation of this unit.

3) This appliance draws 10.8 nameplate amps under Cooling

Mode and may be used in any properly wired, general purpose

15 amp household grounded receptacle.

4) For your safety and protection, this unit is grounded

through the power cord plug when plugged into a matching

wall outlet. If you are not sure whether the wall outlets in your

home are properly grounded, please consult a qualified

electrician. DO NOT USE PLUG ADAPTERS OR

EXTENSION CORDS WITH THIS UNIT. If it is necessary to

use an extension cord with this unit, use an approved “air

conditioner” extension cord only (available at most local

hardware stores).

5) The manufacturers nameplate is located on the rear panel of

the unit, and contains electrical and other technical data

specific to this unit.

6) To avoid the possibility of personal injury, always

disconnect the power supply to the unit before installing

and/or servicing.

TABLE 1

Suggested Individual Branch Circuit

Nameplate Amps *AWG Wire Size

10.8 16

AWG- American Wire Gauge

*Based on copper wire at 105°C temperature rating.

TABLE 2

Receptacle and Fuse Types

Rated Volts 125

Amps 15

Wall Outlet

Fuse Size 15

Time Delay Fuse Plug Type

(or Circuit Breaker)

Control Panel

Handle

Hole

Castor

Signal

receptor

Air outlet Air intake

(evaporator)

Air outlet

hose

Power supply cord

Water outlet drain

Air intake

hose

ELECTRICAL

SPECIFICATIONS

CAUTION: Do not leave this unit

unattended in a space where people or

animals cannot react to a failed unit are

located. A failed unit can cause extreme

overheating or death in such an enclosed,

unattended space.

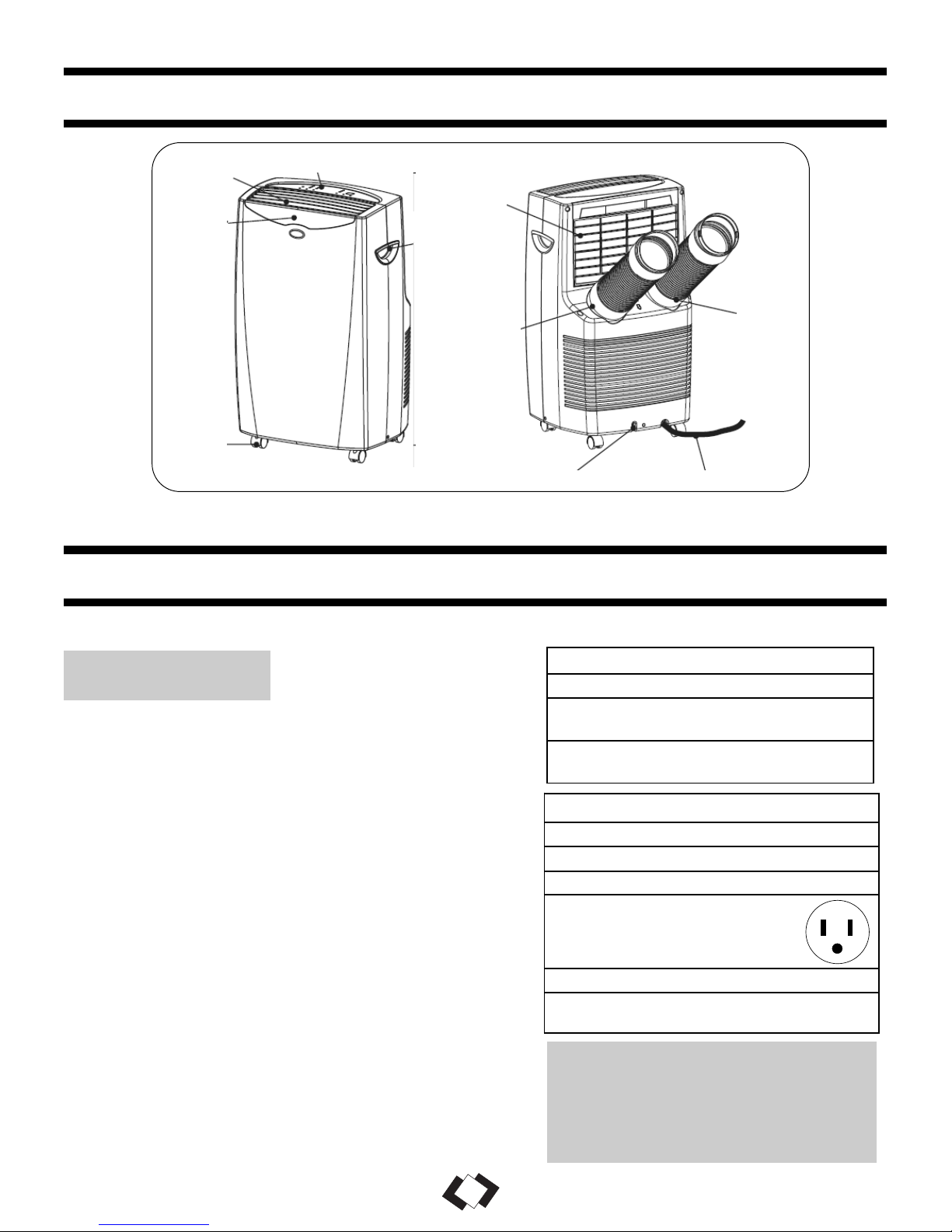

UNIT PARTS IDENTIFIED

IMPORTANT SAFETY INFORMATION

The power cord supplied with this air conditioner contains a device that senses damage to

the power cord. To test if your power cord is working properly, you must do the following:

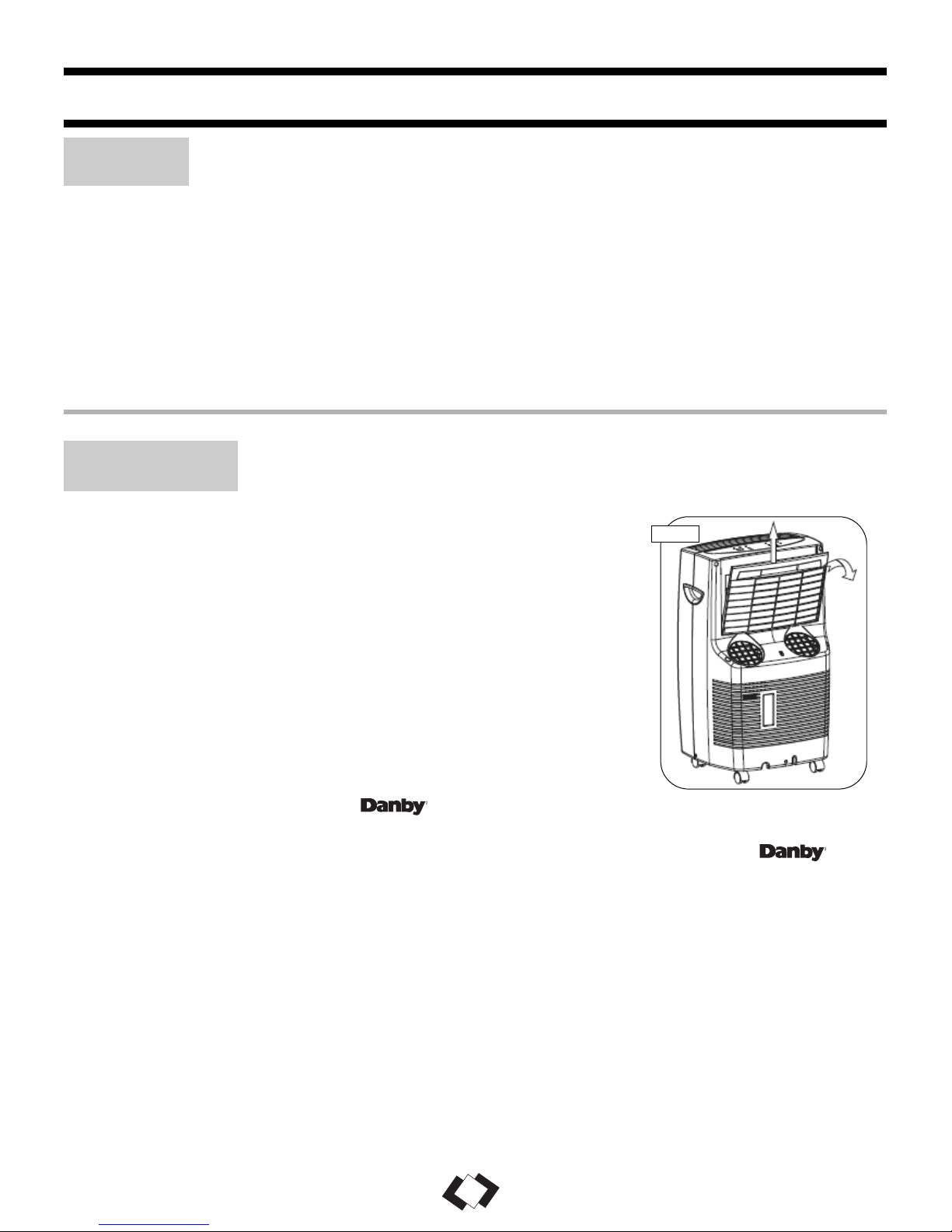

Your Danby appliance is designed to be highly efficient in energy savings. Follow

these recommendations for greater efficiency.

1) Select a thermostat setting that suits your comfort

needs and leave at that chosen setting.

2) The air filter is very efficient in removing airborne

particles. Keep the air filter clean at all times.

3) Use drapes, curtains or shades to keep direct

sunlight from penetrating and heating room, but do not

allow drapes or curtains to obstruct the air flow around

the unit.

4) Start your air conditioner before the outdoor air

becomes hot and uncomfortable, to avoid an initial

period of discomfort while the unit is cooling off the

room. Use of the automatic start/stop programmable

TIMER feature can be a major asset in this regard if

utilized to the fullest extent.

5) When outdoor temperatures are cool enough, turn

the air conditioner off and use the FAN MODE on

HIGH, MED, or LOW. This circulates indoor air,

providing some cooking comfort while utilizing less

electricity.

NOTE: The power cord supplied with this air

conditioner contains a current leakage detection

device designed to reduce the risk of fire. In the event

the power supply cord is damaged, it cannot be

repaired and must be replaced with a new cord from

the product manufacturer.

• Under no circumstances should this device be used

to turn the unit on or off.

• The “RESET” button must always be pushed in

(engaged) for correct operation.

• The power supply cord must be replaced if it fails to

reset when the “TEST” button is pushed in.

1) Connect the power supply cord to an electrical outlet.

2) The power supply cord has two buttons located on

the head of the plug. One button is marked “TEST”,

and the other is marked “RESET”. Press the “TEST”

button; you will hear a click as the “RESET” button

pops out.

3) Press the “RESET” button; you will hear a click as

the button engages.

4) The power supply cord is now energized and

supplying electricity to the air conditioner (on some

products this is also indicated by a light on the plug

head).

POWER

SUPPLY CORD

ENERGY-

SAVING TIPS

IMPORTANT SAFETY INFORMATION

ELECTRIC SHOCK HAZARD: To avoid

the possibility of personal injury, disconnect

power to the unit before installing or servicing.

Fig. 1

INSTALLATION ACCESSORIES (FIG. 1)

Flexible Exhaust Hose (13cm) & Exhaust nozzle

connector (2 pcs)... from 17 7/10 (45cm) up to 53 1/6”(135cm)

Adjustable window door slider kit (3 pcs)..... from 28

1/3”(72cm) up to 80” (203cm)

Fixture..... (2 pcs)

Screws...(8 pcs)

NOTE: The exhaust/window kit must be installed at all

times when the unit is operating under AIR

CONDITIONING mode.

INSTALLATION ACCESSORIES

Fig. 2

There should be at least 11.8” (30cm) clearance between the unit and any other objects or building structures,

and should be installed on a level surface. The unit does not have to be vented outside during Dehumidifying

or Fan Only mode operation.

Flexible Exhaust Hose

Exhaust Nozzle

Connector

Fixture

Screws

Adjustable Window Slider Kit:

28 1/3” (72cm)- 80” (203cm)

Back of

Window Panel

Tube Adapters

INSTRUCTIONS FOR ASSEMBLING THE WINDOW

ADAPTER KIT (FIG. 2).

a) Insert tube adapters through the back of the window panel.

b) Secure each tube adapter with four screws through the

front of the window panel.

c) Insert window panel extensions into the window panel.

Lightly tighten the screws in the window panel to hold the

extensions in place.

IMPORTANT

INSTALLATION

WARNING

1) Select a suitable location, making sure you

have access to an electrical outlet.

2) Install the flexible hose to the rear side of the

unit. Insert the hose collar on top of the exhaust

opening and twist to lock into position.

3) Install the adjustable Window Slider Kit as

required (see Fig. 3a & 3b).

4) Install the opposite end of the flexible exhaust

hose into the window exhaust adapter.

5) Install the window exhaust adapter into the

opening in the slider section, making sure the

window slider sections are secure.

6) Plug the unit into a 115V/60Hz grounded

electrical outlet.

WINDOW KIT

INSTALLATION

HORIZONTAL

Window Slider Kit:

Min.: 26 5/8” (67.5cm)

Max.: 80” (203cm)

VERTICAL

Window Slider Kit:

Min.: 26 5/8” (67.5cm)

Max.: 80” (203cm)

Fig. 3a Fig. 3b

Your window kit has been designed to fit most standard “vertical”/”horizontal” windows up to

a maximum height of 80” (203cm).For vertical window applications, multi lock positions are

provided on the edge of each slider section to secure each sliding section together.

KEY PAD FUNCTIONS

POWER SWITCH:Turns unit ON/OFF

MODE: Allows you to scroll through and select

desired operating mode.

FAN: Select from three different fan settings;

High, Medium, and Low.

AUTO-TIMER

AUTO-TIMER Adjust:

Auto off- With machine in running mode, press timer

button to set timer control. Press or buttons to

select number of hours you would like the unit to run

before it automatically shuts off.

Auto on- With machine in stand by mode, press timer

button to set timer control. Press or buttons to

select number of hours before the unit automatically

starts running in air conditionning mode.

NOTE: The time is adjustable between 1-24 hours.

TEMPERATURE Adjust:

• Used for adjusting the thermostat.

• The default display is room temperature.

• In cooling mode, when button is pressed,

the set temperature is displayed and may be adjusted.

After 15 seconds the display will revert back to room

temperature. Temperature is only adjustable in cool

mode.

Timer & Temp. Display

Room Temp.

Temp. Set

Timer Set

MODE INDICATOR LIGHTS

Cooling Mode

When cool mode is selected, the indicator light will

shine GREEN. During the cooling mode, the air is

cooled and hot air is exhausted outside through the

exhaust tube. Adjust fan speed to suit your desired

comfort level.

Note: The air exchange h ose must vent outside the

room when using cool mode.

Dehumidify Mode

When dehumidify mode is selected, the indicator

light will shine ORANGE. Air is dehumidified as it

passes through the unit, without being in full

cooling mode. The fan will operate on med. speed.

If room temperature is >25°C (77°F), fan speed can

be adjusted; otherwise fan speed is fixed to “low”.

Note: The warm air exchange hose must vent inside

the room when using Dehumidify Mode, not outside

as it does when cooling. If the unit is vented outside,

some cooling will occur.

Fan Mode

When fan mode is selected, the indicator will shine

YELLOW. Air is circulated throughout the room

with no cooling.

Note: The unit does not need to be vented in Fan

mode.

• During Fan/Dehumidifier mode, the temperature

cannot be set.

FAN SPEED INDICATOR LIGHTS

High Fan

Medium Fan

Low Fan

NOTE: By pressing both buttons at the

same time for more than 3 seconds, the display will

toggle between Celsius and Fahrenheit.

STATUS DISPLAY

Warning Light

Condensed water may accumulate in the unit. If the

internal tank becomes full, the Warning signal in the

LCD Display will light up and the unit will not operate

until the unit has been drained.

NOTE: AFTER SWITCHING THE AIR CONDITIONER OFF, YOU MUST WAIT 3 MINUTES

BEFORE SWITCHING IT BACK ON AGAIN.

OPERATING INSTRUCTIONS

FEATURES

OF THE

CONTROL

PANEL

IMPORTANT: The exhaust hose must be properly

vented (outdoors) during air conditioning mode.

1) Press the POWER SWITCH key (Fig. A) to switch on the unit, and the previous

set temperature will be shown in the temperature display area of the control panel.

2) Press the MODE key (Fig. B) until the COOL indicator light illuminates on the

control panel (Fig.C). Each depression of the MODE key will advance to a different

mode setting (Cool-Dehumidifier-Fan-Heat-Auto)

3) Press the appropriate increase or decrease buttons (Fig. D) to select a

suitable operating temperature setting. Temperature settings are adjustable between

16°C (61°F) to 32°C (89°F).

4) Press the FAN key (Fig. E) to select the desired fan speed setting (Auto-High-

Med.-Low). Your selection will appear on the control panel (each depression of the

fan key will advance to a different setting).

• Cooling stops automatically when the set temperature is achieved. Cooling resumes

when the room temp. rises above the “set” temperature level.

Note: During dehumidifier mode, the exhaust hose does not

have to be vented outdoors.

1) Press the ON/OFF key pad to switch the unit on (Fig. A)

2) Press the MODE key (Fig. B) until the DRY indicator illuminates on the

control panel (Fig.G). Each press of the MODE key will advance to a different

mode setting (Cool-Dehumidifier-Fan-Heat-Auto).

3) If room temperature is >25°C (77°F), fan speed can be adjusted. Press the

FAN key (Fig. E) to select the desired FAN SPEED setting. Your selection will

appear on the control. Each depression of the fan key will advance to a

different fan speed as shown in Fig. F. Otherwise fan speed is fixed to “low”.

NOTE: The warm air exchange hoses must vent inside the room when using

Dehumidify Mode, not outside as in Cooling Mode.

DEHUMIDIFIER

OPERATING INSTRUCTIONS (cont’d)

AIR CONDITIONING Fig. A

Fig. B

Fig. C Green

Fig. F

Fig. D Fig. E High

Medium

Low

Fig. G

Orange

Fig. H

Fig. I

Fig. J

Yellow

Fig. K Fig. L

Medium

High

Low

FAN NOTE: During Fan Mode, the exhaust hose does not have to be

vented outdoors.

1) Press the POWER SWITCH key to turn the unit on (Fig. H).

2) Press the MODE key (Fig. I) until the FAN indicator illuminates on the

control panel (Fig. J). Each press of the MODE key will advance to a different

mode setting (Cool-Dehumidifier-Fan-Heat-Auto).

3) Press the FAN Key (Fig. K) to select the desired FAN SPEED setting. Your

selection will appear on the control panel. Each press of the fan key will

advance to a different fan speed (High- Med- Low) as shown in Fig. L.

Control Buttons:

1) Power Switch

2) Mode

3) Fan Speed

4) On / Off Timer

5) Time / Temperature Set

• Used for adjusting the timer and temperature.

• The default display on control panel is room temperature.

• When key is pressed in cool mode, the set

temperature is displayed and may be adjusted. After 10 seconds the

display will revert back to room temperature.

• Timer setting is available from 1-24 hours by pressing the

key

To operate the hand held remote control you will require two “AAA”

Alkaline batteries (included).

Batteries should be replaced when:

a) No signal (beep) is heard when attempting to program the main unit.

b) The main unit does not respond to a command issued by the remote

control.

Battery replacement:

1) Slide the rear cover on the remote in the direction of the arrow.

Continue pulling (gently) until the cover separates completely from the

unit.

Notes:

1) Do not drop the remote control.

2) Do not place the remote control in a location exposed to direct sunlight.

3) The remote control should be placed about 1 meter or more away from TV, or any electrical appliances.

This Class B digital apparatus complies with canadian ICES-003.

The functions work the same as your dehumidifier’s touch controls.

Batteries: Remove the cover on the back of the remote control and insert the batteries with the (+) and (-)

poles pointing in the proper direction.

CAUTION: Use only AAA or IEC R03 1.5 V batteries.

• Remove the batteries if the remote control is not used for a month or longer.

• Do not attempt to recharge the supplied batteries.

• All batteries should be replaced at the same time.

• Do not dispose of batteries in a fire as they may explode.

PLACING BATTERIES

IN REMOTE COTROL

REMOTE CONTROL FEATURES

2) Insert (2) batteries (AAA) following the same orientation (polarity) depicted inside the battery chamber (+ / -).

3) Re-install rear cover.

4) If the remote control will not be used for extended periods of time (vacations, etc.),

batteries should be removed.

The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main unit. Any

obstruction between the receiver and remote may cause signal interference, limiting the ability to program the

unit.

CAUTION: Before cleaning or servicing this unit, disconnect from any electrical supply outlet.

1) DO NOT use gasoline, benzene, thinner, or any other chemicals to clean this unit, as these substances may

cause damage to the finish and deformation of plastic parts.

2) Never attempt to clean the unit by pouring water directly over any of the surface areas, as this will cause

deterioration of electrical components and wiring insulation.

3) Unplug the unit.

4) Clean the unit by wiping off any dirt/dust with a soft damp cloth or vacuum cleaner, then wipe dry with a

dry soft cloth.

5) Clean the air intake grill and replace.

CAUTION: Always store the unit in vertical position. DO NOT put heavy objects on top of the unit.

If the air filter becomes clogged with dust/dirt, air flow is restricted, which

reduces cooling efficiency. The air filter should be cleaned every two (2)

weeks. More frequent cleaning may be necessary depending on indoor air

quality.

NOTE: The air filter is located at the upper rear side of the unit.

1) To remove the air filter: Pull the air filter cover upward in the direction of

the arrow (Fig.4) and remove the air filter.

2) Dust/dirt clogged in the filter can be removed by vacuum cleaning the

soiled areas.

3) The filter can also be washed in lukewarm, soapy water while rubbing it

lightly with a brush. A mild detergent (diswashing liquid) is recommended.

4) Rinse the filter well using clean water. Allow time to dry before

reinstalling into the unit.

5) Replace the air filter and cover.

6) Replacement air filter information is available by contacting the Customer

Service Department at:

1-800-26-

1-800-263-2629

CAUTION: Never operate this unit without the air filter in place, as this may result

in damage to the unit.

Fig. 4

CLEANING

THE UNIT

CLEANING THE

AIR FILTER

CARE AND MAINTENANCE

Table of contents

Languages:

Other Danby Air Conditioner manuals

Danby

Danby dac060eb3gdb Assembly instructions

Danby

Danby DTAC100B1WDB User manual

Danby

Danby DAC080EB6WDB User manual

Danby

Danby Premiere DPA100A1GP Assembly instructions

Danby

Danby Designer DAC6003D User manual

Danby

Danby DESIGNER DPAC10011BL Assembly instructions

Danby

Danby DAC6007EE User manual

Danby

Danby DPAC10030 User manual

Danby

Danby DAC150EB1GDB Assembly instructions

Danby

Danby Diplomat DAC5040 User manual

Danby

Danby Designer DPAC11012 Assembly instructions

Danby

Danby DPAC5009 Assembly instructions

Danby

Danby Premiere DPAC9009 User manual

Danby

Danby DPAC11012BL Assembly instructions

Danby

Danby DAS090BAHWDB User manual

Danby

Danby DPAC7008 User manual

Danby

Danby DPA080BAUWDB User manual

Danby

Danby Premiere DPAC13012H Assembly instructions

Danby

Danby DPA080E3WDB-6 User manual

Danby

Danby DAC8007EE Assembly instructions

Danby

Danby DAC150EB2WDB User manual

Danby

Danby DAC080EB3GDB Assembly instructions

Danby

Danby DPAC5009 Assembly instructions

Danby

Danby DPAC9006 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
