Daewoo DWB-123CH User manual

Please observe the following instructions.

1. Operate the Selector Switch to run or stop the unit.

- Do not use Main Power Switch or Auxiliary Power Switch to operate unit.

2. Do not stick anything into the air outlet or inlet.

- It is dangerous and it can cause injury or damage.

3. Avoid exposing your body directly to a continuous cool air - flow for long periods.

- It is not good for your health.

4. Do not pour water on the unit to clean it.

- It is dangerous and it can cause injury or damage.

Never use solvents or harsh chemicals when cleaning the unit.

When the air inlet grill and cabinet are dirty, wipe with luke - warm water (below 40°C or 104°F)

5. Avoid placing any obstacles near the inlet or outlet.

- If the inlet or outlet is blocked with any obstacle, it may cause damage to the unit.

6. Do not run or stop the unit frequently.

- If you run or stop the unit more then 4-5 times an hour, it can cause damage to the unit.

7. Wait at least 3 minutes before restarting the unit or in the case of power failure.

- If you turn on the unit within 3 minutes after power off, this can cause damage to the unit.

8. If the air conditioner is operated without an air filter, dust is not removed from the air, and resultant

accumulation in the unit may lead to a failure.

- Do not forget to install the air filter.

9. The air filter should be cleaned at least once every two weeks.

10. When the unit is cleaned, set the Selector Switch at off position.

- And then unplug the power plug.

11. Never store gasoline or other flammable liquid near the air conditioner.

- It is very dangerous.

12. Do not force the controls on the front panel too much.

- It can cause damage the controls and the unit.

13. Set a comfortable temperature.

- Very low temperature setting considerably increase power consumption.

14. Be careful to keep room temperature comfortable.

- Avoid continuous direct air flow on you or a sick person while sleeping.

15. Do not remove the plug by pulling the power cord.

- Damage to the cord and may cause shock hazard.

16. The appliance is not intended for use by young children or infirm persons without supervision.

17. Young children should be supervised to ensure that they do not play with the appliance.

PRECAUTIONS FOR PROPER USE OF AIR CONDITIONER

1. GENERAL SPECIFICATIONS ..................................................2

2. INSTALLATION INSTRUCTIONS.............................................3~7

• LOCATION OF INSTALLATION

• BEFORE INSTALLATION

• HOW TO ATTACH THE CABINET DRAIN

• WINDOW INSTALLATION

3. NAMES OF MAJOR COMPONENTS ...........................................8

4. OPERATION INSTRUCTIONS ..................................................9

• FAN & COOLING CONTROL

• TEMPERATURE CONTROL

• HEATER LAMP

5. GENERAL INFORMATION ....................................................10

• CHANGING AIR FLOW DIRECTION

• AIR FLOW AROUND UNIT

• DRAIN HOLE AND WATER DRIPPING OUTSIDE

• DOOR VENT

6. CARE AND MAINTENANCE ..................................................11

• AIR FILTER

• CLEANING THE AIR CONDITIONER

7. ELECTRICAL REQUIREMENTS...............................................12

• ELECTRICAL GROUNDING INSTRUCTIONS.

• USE OF EXTENSION CORDS

• REPLACE MENT OF SUPPLY FLEXIBLE CORD

8. BEFORE CALLING FOR SERVICE............................................13

TABLE OF CONTENTS

GENERAL SPECIFICATIONS

MODEL

ITEM

POWER SOURCE

DIMENSIONS

WEIGHT (NET)

DWB-123CH

AC 240V, 50Hz SINGLE PHASE

600(W) x 380(H) x 535(D) mm

23.6(W) x 14.9(H) x 21.0(D) inch

40Kg (88.2 lbs) - Approx

INSTALLATION INSTRUCTIONS

• LOCATION OF INSTALLATION

1. Install the unit at a place having sufficient strength to support the unit securely.

2. Do not install the unit at a place where leakage of combustible gas is suspected.

3. If the air conditioner is operated in an atmosphere containing oils (including machine oil), salt near a

coastal area, etc, such substances may lead to failure of the unit.

4. Provide sufficient clearance or space around the air inlet and air outlet so that air flow will not be

obstructed (See following figures).

• BEFORE INSTALLATION

Test Run Unit : Plug unit into proper power supply outlet.

Refer to operating instructions in this manual for comfortable living. Check all controls for correct

operation, then unplug unit.

Determine Correct Mounting procedure-Refer to Window Installation or Through the Wall Installation.

WARNING :

• Moving parts can cause personal injury. Be careful when test-running unit. Do not operate

unit with front grille removed .

• Be sure to use an exclusive power source.

• Contact service man for replacement of power cord.

;;

;;;;

;

;;

minimum

60cm

OUTLET

INLET

Wall or

Fence

North or East

45˚

Indoor Indoor

;;

minimum30cm minimum30cm

maximum23cm

Indoor Outdoor

;;

Indoor Outdoor

Outdoor Outdoor

minimum

CAUTION

•The air conditioner shall be installed in accordance with the national wiring regulation.

1. Install an exclusive main power switch (main circuit breaker) or GFI (Ground Fault Interrupted) Switch.

2. Be sure to use grounded power source.

3. Power source for DWB-123CH is 240V.

4. Consumer must pay charges for wiring and installation.

• HOW TO ATTACH THE CABINET DRAIN

1. Pull the Air-filter out of the Front Grille.

2. Loosen screw which fasten Front Grille with

driver.

3. Pull knobs out of the control.

(when the knobs are too tight to release, leave

them.)

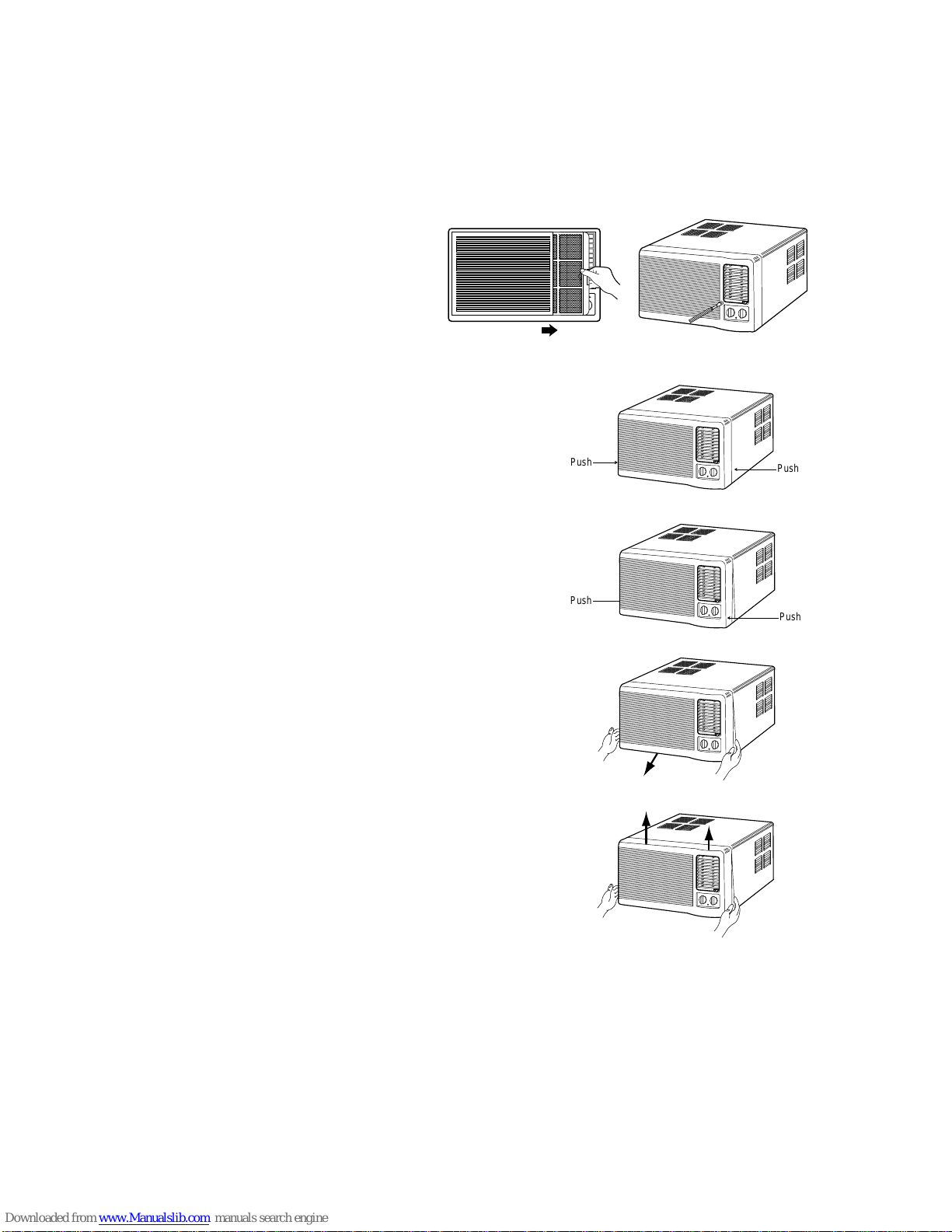

4. Disassemble Front Grille from Chassis.

–Front Grille and chassis are fixed with snap-fit.

1) Release right-lower snap-fit.

–Push the right lower side of chassis to the left, with pushing left side of

Front Grille to the right until the snap-fit is released.

2) Release left-lower snap-fit.

–Push the left-lower side of chassis to the right, with pushing right

side of Front Grille to the right until the snap-fit is released.

3) Pull lower side of the Front Grille until it is separated from the chassis.

(when knobs remain, pull Front Grille until knobs are released from

control)

4) Push base side of the Front Grille to upper side until it is separated

from the chassis.

;;;;;

;

;;;

;

;;;

;

;;;

;

;;;;;

;

;;;

;

;;;

;

;;;;;

;

;;;

;

;;;

;

;;;;;

;;;;

;

;;

;

;;

;

;;

;

;;;;

;

;;

;

;;

;

;;;;

;

;;

;

;;

;

;;;;

Push

Push Push

5. Find “the Cabinet Drain”

1) Remove “the Grille Front”from the unit.

2) Find “the Cabinet Drain”which is attached on rear side of “the Grille Front”.

- If you don’t remove it. the unit cannot be operated normally.

Inside of Grille Front

Remove the Cabinet Drain

6. Attach the Cabinet Drain

1) After front grille is removed, remove two screws located in both side of chassis.

2) Grip the handle of base pan and pull out the unit from chassis.

3) The air conditioner employs a proper drain method

whereby the condensed water (moisture removed from the air) is drained to the outside.

In very humid weather, excessive condensate water removed from the air may cause some water to

collect. To remove this excess water you can install the cabinet drain as detailed below.

1Install the cabinet drain to the left corner of the cabinet with 3 screws.

2Connect the drain hose to the outlet located at the bottom of the cabinet drain.

You can purchase the drain hose or tubing locally to satisfy your particular needs.

(Drain hose is not supplied)

CABINET

SCREW

CABINET

DRAIN

DRAIN HOSE

3 Screws

(M4x8)

7. HOW TO INSTALL THE DRAIN CAP

Install the drain cap like Fig. of the right side.

There are two kinds of method to install the drain cap.

The first method is that the shape of hole like

It is good for the household.

The second method is that the shape of hole is like

It is good for the shop.

8. Remain or Remove the ‘CAP BASE’

Iocated on the bottom of BASE as follows.

9. Reinstall the unit, side screws, front grille.

The rear side of the unit

Drain Cap

SEAL DRAIN

M4x8 SCREW: Use Screw(M4x8) only.

CAUTION

•When the front grille is reinstalled, the DOOR VENT should be in position first so that it would not

be bent by grille.

Door Vent

General

Using mode

CAP BASE

Cooling &

heating

Remove

Cooling

only

Attach

Heating

Remove

CAUTION : You must remove the ‘CAP BASE’when you operate in heating mode.

•WINDOW INSTALLATION

1. Determine Window Location.

Determine a suitable location.

The window where the Air Conditioner is to be installed should have enough strength to bear the weight

of the Air Conditioner.

2. Measure unit’s dimensions

3. Install the Mounting Angle at the Proper Location.

Install the Air Conditioner using the Mounting Angle or other Hardware to be installed as shown in Fig.1

For proper drainage, Rear side of the unit should be inclined about 5mm lower.

4. Insert unit in window.

With 2 people, lift unit and insert it into the window opening.

5. Finish opening

Close up the gap between unit and window using the sponge or tape for insulation as shown in Fig. 1

* If through the wall installation is required, you may choose to consult an independent servicing Dealer.

CAUTION : Two people must work together to avoid personal injury.

Close up the gap Mounting Angle

unit

wall

5mm

Fig. 1 Mounting Angle Installation.

NAMES OF MAJOR COMPONENTS

NO PART NAME

1 AIR FILTER

2 GRILLE FRONT

3 CABINET

4 BLADE VERTICAL

5 KNOB THERMOSTAT

6 KNOB SELECTOR

NO PART NAME

7 BLADE HORIZONTAL

8 AIR VENT

9 AIR INTAKE

10 AIR DISCHARGE

11 HEATER LAMP

OPERATING INSTRUCTIONS

•FAN & COOLING CONTROL

The Fan Control Selector Switch has six positions.

Choose one of the speed settings by rotating the fan control Selector Switch to the appropriate position.

OFF Select this setting for stop all operation of air conditioner

FAN Select this setting for low speed air circulation without

cooling and heating.

LOW COOL Select this setting for cooling operation with LOW FAN.

HIGH COOL Select this setting for cooling operation with HIGH FAN.

LOW HEAT Select this setting for Heating operation with LOW FAN.

HIGH HEAT Select this setting for Heation operation with HIGH FAN.

•TEMPERATURE CONTROL

Choose a temperature settings by rotating the knob of thermostat to the appropriate position

•The Thermostat automatically starts and stops cooling operation in order to

keep the room temperature at a proper level, and this results in efficient use of

power and economical cooling.

•Turn clockwise for a cooler room temperature.

•Turn counter-clockwise for a warmer room temperature.

•HEATER LAMP

When the unit sets heating operation condition, the red lamp is lighted.

When the frost settles on the heat exchanger of the outside, defrosting is made automatically and the red

lamp is turned off.

The unit may give a hiss and the fan motor stops for 1 to 10 minutes.

This should not be regarded as a problem.

After defrosting, the heating operation begins again.

NOTE

•FOR MOST ECONOMICAL USE

1. Properly control the room temperature.

2. Avoid the unit being exposed to direct sunlight. Keep direct sunlight from the room.

3. Do not leave doors and windows open.

NOTE

Setting the control at the coldest extreme of the temperature range will not cool the room any

faster. Usually the midpoint is a good starting position. If the room temperature is not satisfactory

after a reasonable period of time, adjust the temperature control to a lower or higher setting.

WARMER COOLER

HIGH

COOL

LOW

COOL

HIGH

HEAT

LOW

HEAT

FANFAN OFF

SELECTOR

WARMER COOLER

THERMOSTAT

CAUTION

When the air conditioner has been performing its cooling operation and is turned “OFF”or set to

the ‘FAN”position, wait at least 3 minutes before resetting to the cooling operation.

•CHANGING AIR FLOW DIRECTION

Air flow deflectors divert air from center flow to left or right and up or down.

Adjust deflectors for desired air flow pattern.

•AIR FLOW AROUND UNIT

Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The

outdoor coil should be checked and periodically cleaned for debris that may collect and block unit air flow. If air

flow is obstructed or deflected back into unit, the compressor may cycle on and off rapidly, causing early

compressor failure.

•DRAIN HOLE AND WATER DRIPPING OUTSIDE

Locate drain hole at the rear or on the bottom of unit. Water in base pan is picked up by the fan blade and

thrown onto the warm outdoor coil where it evaporates. The air conditioner must be installed level or tilted

slightly to the outside for proper water disposal. On exceptionally hot and humid days the air conditioner may

permit excess water to pass thru rear drain hole or overflow. This should be considered normal.

•DOOR VENT

The door vent for the room air ventilation is lever type.

If the door vent lever moves to the left, then close the

vent and moves to the rght, then open the vent.

GENERAL INFORMATION

Close Vent → Open

→

Door Vent

Table of contents

Other Daewoo Air Conditioner manuals

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
