Da-Lite DUAL MASKING ELECTROL User manual
DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: [email protected]
Instruction Book for
DUAL MASKING ELECTROL®
The Da-Lite Difference.
1
IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rat-
ing at least equal to that of the appliance should be used.
Cords rated for less amperage than the appliance may over-
heat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of fire, electric shock, or
injury to persons.
SAVE THESE INSTRUCTIONS
2
PRE-INSTALLATION
1. Carefully unpack screen.
2. Make sure to recheck measurements of screen location before installation.
3. Remove center support brackets (on 8' and wider screens only), reverse brackets and reinstall flush with the top of the
box.
INSTALLATION
1. Install screen by raising unit into position between joists at one end only. Install one lag screw in each mounting
bracket.
2. Level unit lengthwise with a carpenter’s level and plumb level. Secure opposite end.
CAUTION! Do not seal in until screen has been secured in position and properly tested for satisfactory operation.
3. Detach access panel by removing screws, see figure 1.
4. Remove junction box cover plate.
5. Install electrical hook up that applies to your unit. Make sure to review your electrical installation checklist and wir-
ing diagrams (included) for either 120 volt switch, 220/240 volt switch or DRC low voltage control.
NOTE: Must be installed in accordance with the requirements of the Local Building Codes, the Canadian Electrical Code (CEC),
CAN/CSA C22.1 and the National Electric Code (NEC), NFPA 70.
CAUTION! DO NOT CUT TAPE ON FABRIC WITH KNIFE OR ANY SHARP TOOL. PULL ORANGE STRING.
6. Carefully remove wood boards securing mask surface to case.
7. Carefully remove tape strips securing picture surface around roller. Slats should move freely (Fig. 2).
8. Test installation by carefully running picture and mask surfaces up and down several times. Be prepared to stop
screen. Standard Duty Cycle: 1 MIN. ON / 3 MIN. OFF.
9. Run the picture surface upward. When the picture surface is fully up the limit switch (in the motor) is tripped and
the motor shuts off.
10. Test the mask surface the same as testing the picture surface. The mask will start down off the front of the roller,
travel completely down past the bottom of the viewing surface, then “step back” against the viewing surface to
eliminate shadowing by rolling up the back side of the roller. Do not adjust the limits to change this feature.
11. Check for satisfactory condition by operating screen a few times. Reinstall access panel.
s
!
s
!

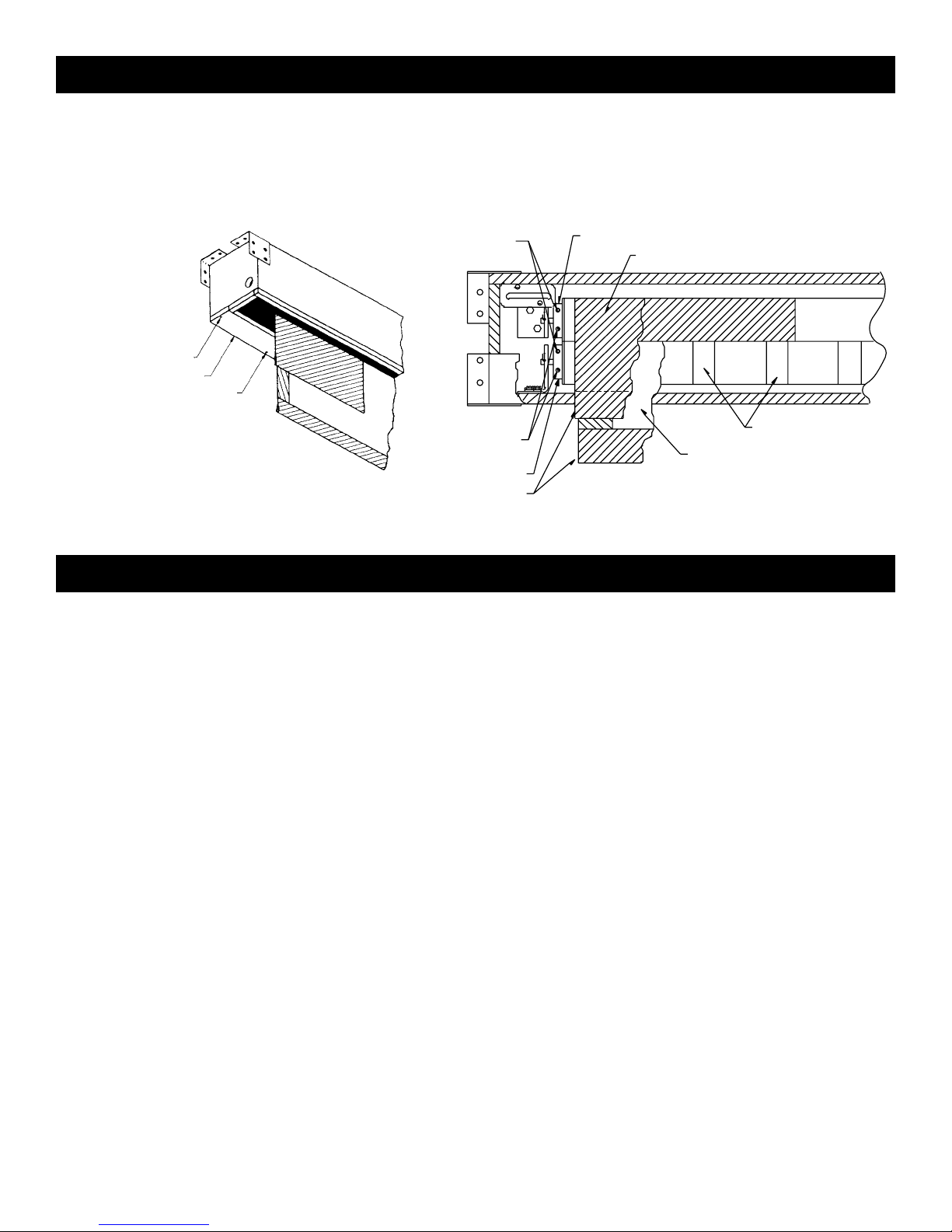

FIGURE 1 FIGURE 2
DRYWALL SCREW
ACCESS PANEL
ADJUSTMENT
KNOB “UP”
TAPE STRIPS
MACHINE SCREW
PICTURE SURFACE
SLATS
MASK SURFACE
ADJUSTMENT
KNOB “DOWN” MASK MOTOR
SCREEN MOTOR
3
SCREEN ADJUSTMENT FOR 120V SCREENS
CAUTION! THE MASK SHOULD NOT BE FIELD ADjUSTED FOR MORE OR LESS DROP.
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly ad-
justed at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:
NOTE: Use a screw driver or allen wrench to make adjustments.
MORE SCREEN DROP
1. Remove access panel (Fig. 1).
2. Place operating switch in “down” position.
3. When the screen stops, turn the “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by
raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is
attained.
NOTE: Must leave 1-1/2 wraps of fabric on roller!
4. Replace access panel.
LESS SCREEN DROP
1. Remove access panel. (Fig. 1).
2. Raise picture surface approximately two feet above desired level.
3. Place operating switch in “off” position.
4. Turn the “down” limit knob (Fig. 2) one-quarter turn clockwise. Test by raising picture surface approximately two
feet, then lower again. Repeat until desired picture surface position is attained.
5. Replace access panel.
DUAL MASkINg ELECTROL® INSTRUCTIONS
DOWN
BLACK
UP
DOWN
COMMON WHITE
COMMON
GROUND GREENGROUND
MASK SCREEN
UP
DOWN
MASK MOTOR
4 – WIRE
MASK MOTOR
UP
OFF
DOWN
4 – WIRE
SCREEN MOTOR
SCREEN MOTOR
120 V. AC 60 CYCLE
BLACK (HOT)
BLACK
RED
WHITE
WHITE (COMMON)
GREEN
GROUND WIRE
RED
UP

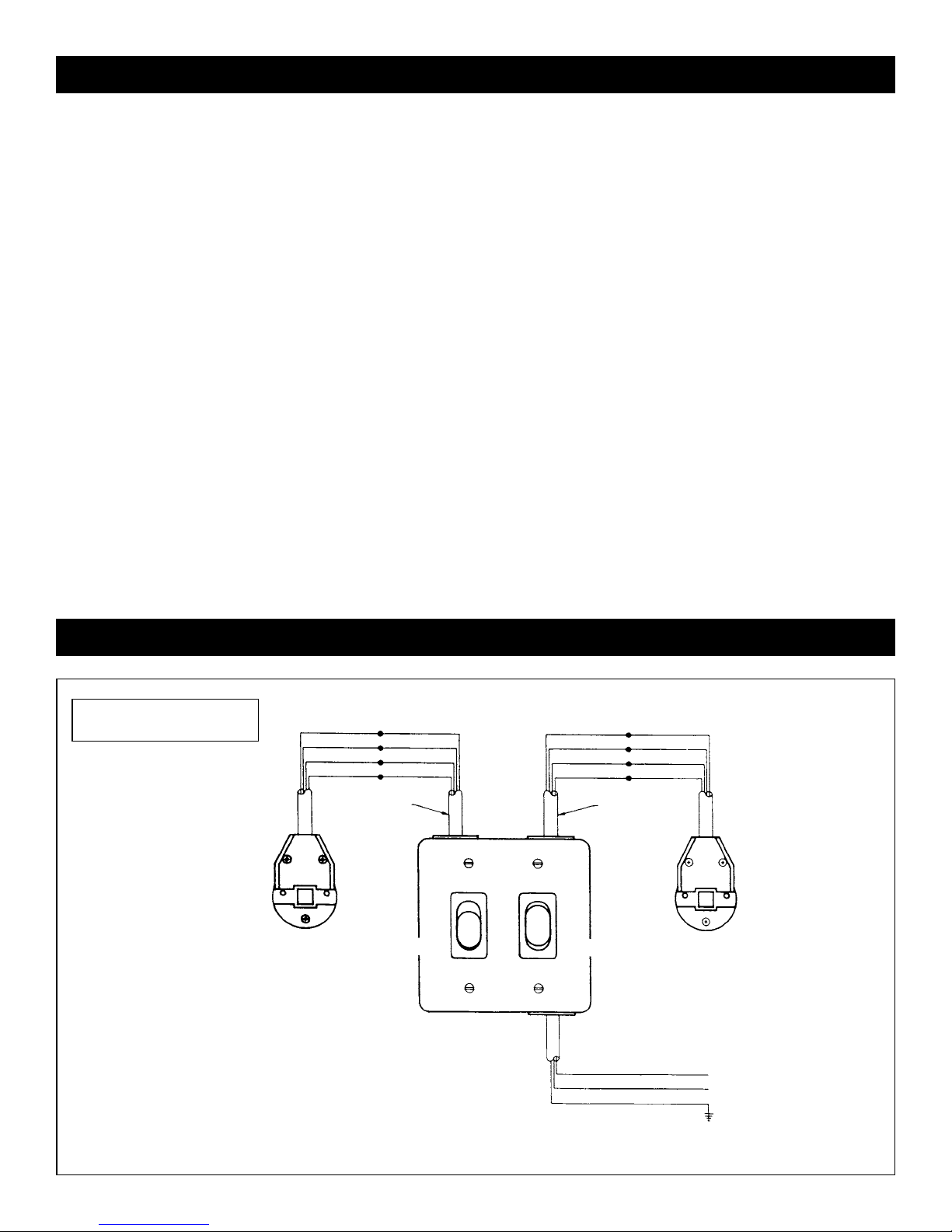

120V WIRING DIAGRAM
4
DUAL MASkINg ELECTROL® INSTRUCTIONS
UP BROWN
DOWN
COMMON
BLACK
BLUE
UP
GREEN
4 – WIRE
MASK MOTOR
GROUND
MASK MOTOR
MASK SCREEN
UP
UP
OFF
DOWN
DOWN
BROWN
DOWN
BLACK
COMMON BLUE
GROUND
GREEN
4 – WIRE
SCREEN MOTOR
SCREEN MOTOR
220/240 V. AC 50 CYCLE
BROWN (HOT)
BLUE (COMMON)
GROUND WIRE
220 / 240V
WIRING DIAGRAM
SCREEN ADJUSTMENT FOR 220/240V SCREENS
CAUTION! THE MASK SHOULD NOT BE FIELD ADjUSTED FOR MORE OR LESS DROP.
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly ad-
justed at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:
NOTE: Use a screw driver or allen wrench to make adjustments.
MORE SCREEN DROP
1. Remove access panel (Fig. 1).
2. Place operating switch in “down” position.
3. When the screen stops, turn the “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by
raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is
attained.
NOTE: Must leave 1-1/2 wraps of fabric on roller!
4. Replace access panel.
LESS SCREEN DROP
1. Remove access panel. (Fig. 1).
2. Raise picture surface approximately two feet above desired level.
3. Place operating switch in “off” position.
4. Turn the “down” limit knob (Fig. 2) one-quarter turn clockwise. Test by raising picture surface approximately two
feet, then lower again. Repeat until desired picture surface position is attained.
5. Replace access panel.
5
METHOD C METHOD D
METHOD A METHOD B
SUggESTED METHODS OF INSTALLATION
Offset mounting, recessed above ceiling. For plaster, dry
wall, tile or paneling. Bottom of case painted same finish
as ceiling.
Offset mounting, recessed above ceiling. May be
adapted for 3/4" ceiling, but cut to 1/4" thick under
screen case and panel.
NOTE:
MUST MARK HOLE LOCATION OF SCREWS IN 3-1/2" PANEL
FOR REMOVAL, IF COVERING WITH TILE.
Offset mounting, recessed above ceiling. May be
adapted for 1/4" paneling for ceiling.
Flush mounting, recessed above ceiling. For use with
dropped ceiling. May also be adapted for use with
acoustical or other ceiling 3/4" thick but cut to 1/4" thick
under screen case and panel.
DUAL MASkINg ELECTROL® INSTRUCTIONS
CASE LENGTH = SCREEN FABRIC WIDTH
+ 13-1/2", ALL SIzES
1-1/2"
MOUNTING BRACKET
MOTOR END
9"
ELECTRICAL
OUTLET
6-3/4"
6-3/4"
8-11/16"
8' AND WIDER SCREENS ONLY
6
TROUBLESHOOTINg
SYMPTOM
1. Screen will not operate.
Motor does not hum.
2. Incorrect stopping position in
downward direction.
3. Incorrect stopping position in
upward direction.
4. Noise.
NOTE: Screen will operate with a
low pitched hum.
5. Coasting.
CAUSE
(a) Incorrect line voltage.
(b) Blown fuse.
(c) Tripped circuit breaker.
(d) No power to operating switch
or junction.
Power at junction box
(e) Thermal overload tripped.
(f) Broken wire in the “down” or “up”
position.
(g) Defective motor, limit switch or
capacitor.
(h) Capacitor burned out.
(a) Lost roller wrap.
(b) “Down” limit switch out of
adjustment
(a) Lost roller wrap.
(b) “Up” limit switch out of
adjustment
(a) Gear Noise.
(a) Defective brake.
RESTORING LOST ROLLER WRAP
1. Tape a strap to the bottom of the
screen surface.
2. Push strap over back of roller.
3. Feed fabric as you pull strap to
draw fabric over top of roller.
4. Remove tape and strap.
SOLUTION
(a) Verify 115-125V (or 220-240V). If
insufficient voltage, rewire incom-
ing electric line.
(b) Replace fuse.
(c) Reset circuit breaker.
(d) Check above. Tighten all loose
wire connections. Correct any
improper connections.
“Down” Position
Check for power across black
and white leads.
“Up” Position
Check for power across red
and white leads.
(e) Let motor cool down for 15
minutes. Try again.
(f) Check for continuity. Cut off old
splice and reconnect.
(g) Replace motor assembly.
NOTE: Motor is a sealed assembly.
(h) Replace motor assembly.
(a) See instructions below.
(b) See installation instructions.
(a) See instructions below.
(b) Adjust “up” limit switch. See
installation instructions
(a) Replace motor assembly.
(a) Replace motor assembly.
7Printed in U.S.A. 77607 Rev. 12/09
LIMITED ONE YEAR WARRANTY
ON DA-LITE PRESENTATION PRODUCTS
Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from
defects in materials and workmanship for a period of one (1) year from the date of purchase by
the original purchaser provided they are properly operated according to Da-Lite’s instructions and
are not damaged due to improper handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental
damage, or which has been tampered with or repaired by a person other than authorized Da-Lite
personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option)
the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer.
If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses
to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in
shipment. To protect yourself against damage or loss in transit, insure the product and prepay all
transportation expenses.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied
warranties of fitness for use, or merchantability, that may be mandated by statute or rule of law
are limited to the one (1) year warranty period. This warranty gives you specific legal rights, and
you may also have other rights, which vary from state-to-state. NO LIABILITY IS ASSUMED
FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF
EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY
NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may
contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE
BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN
ACCORDANCE WITH DA-LITE’S WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
Table of contents
Other Da-Lite Projection Screen manuals
Da-Lite
Da-Lite Tensioned Advantage Deluxe Electrol User manual
Da-Lite
Da-Lite DESIGNER CONTOUR ELECTROL Series User manual
Da-Lite
Da-Lite ADVANTAGE DELUXE ELECTROL User manual
Da-Lite
Da-Lite TENSIONED ADVANTAGE ELECTROL User manual
Da-Lite
Da-Lite C User manual
Da-Lite
Da-Lite MULTI-MASK IMAGER User manual
Da-Lite
Da-Lite Advantage Manual With CSR User manual
Da-Lite
Da-Lite DESIGNER MANUAL SCREEN User manual
Da-Lite
Da-Lite EXECUTIVE ELECTROL User manual
Da-Lite
Da-Lite Large Dual Masking Electrol User manual
Da-Lite
Da-Lite BG User manual
Da-Lite
Da-Lite TENSIONED LARGE ADVANTAGE ELECTROL User manual
Da-Lite
Da-Lite FullVision User manual
Da-Lite
Da-Lite SLIMLINE ELECTROL User manual
Da-Lite
Da-Lite ADVANTAGE DELUXE ELECTROL User manual
Da-Lite
Da-Lite ASCENDER ELECTROL User manual
Da-Lite
Da-Lite ADVANTAGE ELECTROL User manual
Da-Lite
Da-Lite senIor electrol User manual
Da-Lite
Da-Lite Curved Multi Format Imager User manual
Da-Lite
Da-Lite ADVANTAGE ELECTROL User manual
Popular Projection Screen manuals by other brands
FART PRODUKT
FART PRODUKT Standard SCREEN Installation instruction
Draper
Draper E Series Installation & operating instructions
Elite Screens
Elite Screens Elite Tripod Series user guide
Laarhoven
Laarhoven Companion II General assembly instructions
Renogy
Renogy RMS-LFPS-US manual
Samsung
Samsung S*H65* user manual
