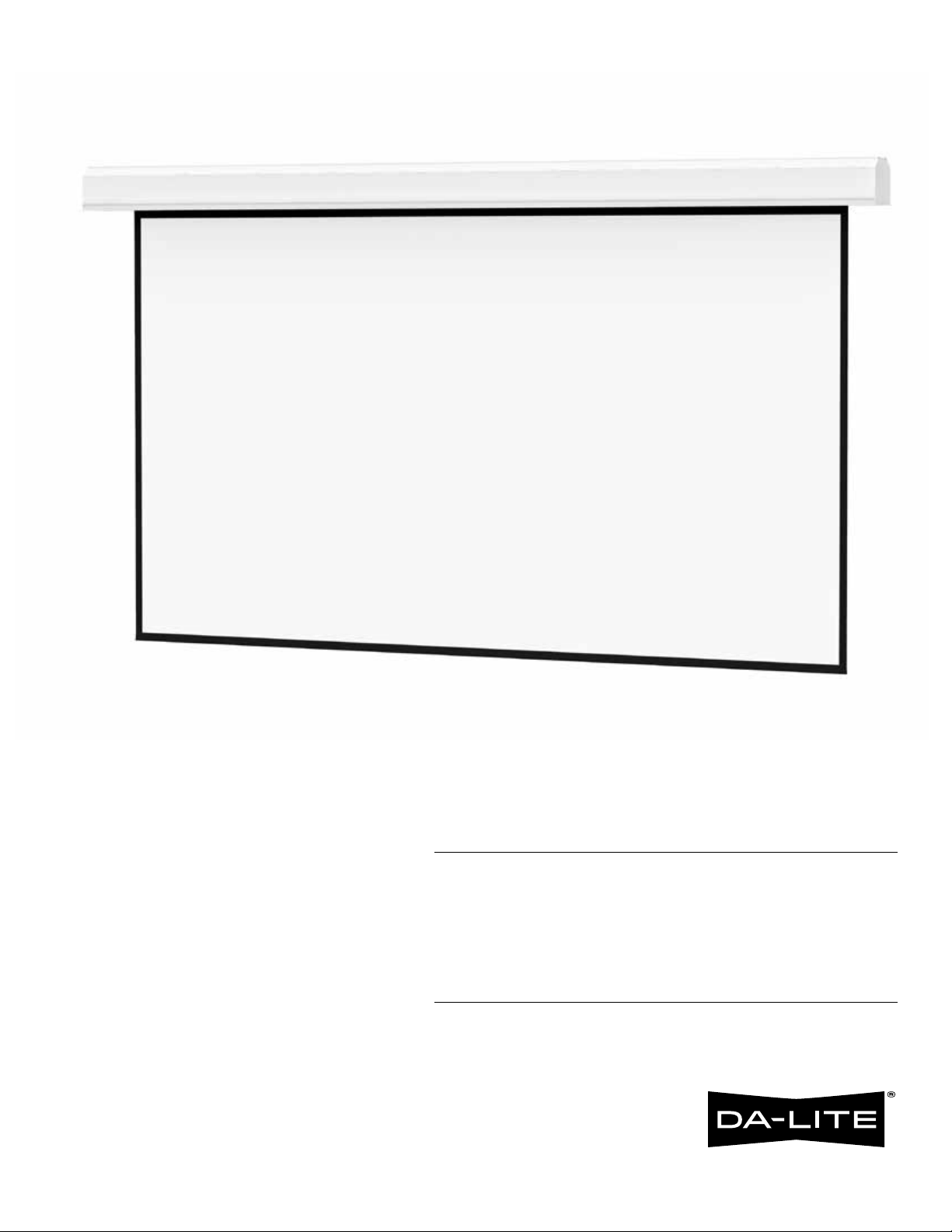

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL User manual

INSTRUCTION BOOK FOR

Large Advantage®

Deluxe Electrol®

1. The case provides multiple attachment points for bolts, cables,

or threaded rod. Page 6 shows threaded rod installed. The

variable position-mounting bracket may be located anywhere

along the length of the case. It is recommended to keep the

brackets spaced evenly enough to distribute the weight of the

screen.

One mounting bracket is required for every 4' of case length.

The case has a self-trimming lange around the bottom. Ceiling

tiles or drywall may be placed on top of this lange to provide a

inished appearance.

2. After securing the case in the ceiling check that the case is level

and plumb.

3. Install electrical connections that apply to your unit. Review the

wiring diagrams on page 5 for proper installation.

Case Installation

Important Safety Instructions

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. Close supervision is necessary when any appliance is used

by or near children. Do not leave appliance unattended while

in use.

3. Do not operate appliance with a damaged cord or if the

appliance has been dropped or damaged – until it has been

examined by a qualiied serviceman.

4. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

5. If an extension cord is necessary, a cord with a current rating

at least equal to that of the appliance should be used. Cords

rated for less amperage than the appliance may overheat.

6. To reduce the risk of electric shock, do not immerse this

appliance in water or other liquids.

7. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric

shock when the appliance is used subsequently.

8. The use of an accessory attachment not recommended by

the manufacturer may cause a risk of ire, electric shock, or

injury to persons.

Pre-Installation

1. Carefully unpack screen and remove outer wrapping from case.

2. Make sure to recheck measurements of screen location before

installation.

PLEASE NOTE: Motor Operator Projection Screen Models LADT,

LADDT, LAD and LADD must be installed in accordance with the

requirements of the Local Building Codes, the Canadian Electrical

Code (CEC), CAN/CSA C22.1 and the National Electric Code (NEC),

NFPA 70. An appropriate disconnect device shall be provided as

part of the building installation.

Figure 1

Door Support Screws

(Not All Sizes)

Access

Door

Bolts

Screen And Roller Assembly Installation

If your screen was shipped with the motor and roller already installed proceed to step 7.

1. Remove four bolts from ends of door assembly (2 bolts on

each end) (Fig. 1). This will allow the door assembly to drop

open for access to case. For larger sizes, you will also need

to remove the door support screws.

2. Carefully unpack screen and roller assembly. Leave packing

paper on the roller.

3. Remove the square peg bracket from the motor end of the

roller assembly.

4. Remove the safety clip from the motor attachement bracket

located in the motor end of the screen housing.

5. Place the roller assembly into the case with the motor on the

left side. The limit switches should be facing down. Line up

the head of the motor with the motor attachment bracket.

6. Loosen four bolts that secure pin end mounting bracket into

housing. Lift pin end of roller into position and slide the

bracket into the roller pin. Tighten all four bolts.

7. Complete electrical hook-up by snapping motor 1/3 wire

connectors into case connectors.

8. Return to motor end and insert safety clip over casting

bracket to secure motor end.

CAUTION! Do not cut tape on fabric with a knife or any

sharp tool. Remove by hand.

9. Carefully remove tape strips securing picture surface around

roller. Slat should move freely (Fig. 2). (Only if the roller

assembly is pre installed.)

10. Test installation by operating the screen several times. Be

prepared to stop the screen. The door assembly will not

close until the wall switch is placed in the up position and

when the screen motor stops at its limit switch in the up

direction.

NOTE: Unit duty cycle is 1 minute on, 3 minutes of.

NOTE: Excessive continuous operation may cause the motor

to overheat. If this happens the motor will shut of until it

cools to a normal operating temperature.

11. Close door assembly and replace four bolts at ends of door

(2 bolts on each end) (Fig. 1).

Figure 2

Dual Motor LVC

Control Box

Screen Motor

Limit Switches

Screen Motor

Door Motor

Limit Switches

Door Motor

Access Door

Assembly

Screen Adjustment

Recalibration

The screen controller is factory calibrated to control the screen and door sequence timing. If the line voltage varies 10% or more from

the factory setting, the door will not close properly and the unit will need to be recalibrated. The steps are:

1. The screen surface must be all the way up

2. Press and hold the stop button for 10 seconds

The screen will then run through a whole cycle and be

recalibrated upon completion. Press "up" button to close door

after recalibration.

If the screen limit switch setting is changed in the up direction,

the unit must be recalibrated. Surface travel is stopped

automatically in the fully opened and closed positions by limit

switches that are factory set at Da-Lite. Should it be necessary to

adjust for more or less drop of picture, proceed in the following

manner:

Surface travel is stopped automatically in the fully opened and

closed positions by limit switches that are properly adjusted at

Da-Lite. Should it be necessary to adjust for more or less drop of

picture, proceed in the following manner:

NOTE: Use a screw driver or 5/32" Allen wrench to make

adjustments.

More Screen Drop

1. Place operating switch in “down” position.

2. When the screen stops, turn the white “down” limit knob

(Fig. 2) one-quarter turn counterclockwise. Test by raising

picture surface approximately two feet, then lower again.

Repeat until desired picture surface position is attained.

CAUTION: Do not adjust for more drop than what was

ordered. At least 11/2 wraps of fabric must remain on the

roller. This screen comes standard with 0" or 2" black at

the top. See the speciication data sheet for details.

3. Recalibrate according to above instructions. Press "up" button

to close door after recalibration.

Less Screen Drop

1. Raise picture surface approximately two feet above

desired level.

2. Place operating switch in “of” position.

3. Turn the white “down” limit switch (Fig. 2) one-quarter turn

clockwise. Test by raising picture surface approximately two

feet, then lower again. Repeat until desired picture surface

position is attained.

4. Recalibrate according to above instructions. Press "up" button

to close door after recalibration.

Contact Da-Lite at 8006223737 if door motor needs

adjustment.

Large Advantage Deluxe®Electrol®Instructions

Power Input

120VAC / 60HZ

120V Wiring Diagram

DOWN

STOP

NOTE: Do not use 3-position high voltage

rocker switch with this unit! This will

damage the dual motor control board.

NOTE: Do not use 3-position high voltage

rocker switch with this unit! This will

damage the dual motor control board.

NOTE: 2024AWG WIRE RECOMMENDED

FOR CONNECTING WALL SWITCH TO

DUAL MOTOR CONTROLLER.

NOTE: 2024AWG WIRE RECOMMENDED

FOR CONNECTING WALL SWITCH TO

DUAL MOTOR CONTROLLER.

White

(Common)

White

(Common)

White (Common)

Blue (Common)

Black

(Down)

Red

(Up)

Screen

Motor

Red

(Up)

White

(Common)

Black

(Down)

Front of

Wall

Switch

Front of

Wall

Switch

Back of

Wall

Switch

Back of

Wall

Switch

Green

(Ground)

Black

(Down)

Red

(Up)

Green

(Ground)

Door

Motor

Dual Motor Control Board

White

(Common)

Black (Down)

Brown (Down)

Red (Up)

Black (Up)

Green (Ground)

Green / Yellow (Ground)

"Eye" Port

Plug "IR" or "RF"

Remote Here

Power Input

240VAC / 50HZ

240V Wiring Diagram

DOWN

STOP

Brown

(Hot)

White

(Common)

Blue

(Common)

Brown

(Down)

Black

(Up)

Green / Yellow

Ground)

Screen

Motor

Red

(Up)

Black

(Down)

Not Used

Door

Motor

Dual Motor Control Board

Blue

(Common)

Green / Yellow

Ground)

Blue

(Common)

Brown

(Down)

Black

(Up)

Green / Yellow

Ground)

Green

(Ground)

Black

(Hot)

Not Used

"Eye" Port

Plug "IR" or "RF"

Remote Here

Large Advantage Deluxe®Electrol®Installation

(Suggested) ½"

Threaded Rod (Not

Included) Attached

To Mounting

Bracket

Finished

Ceiling

Self-Trimming

Flange

9 ⅛"

13 ⅛"

12 ⁄"

11 ⁄"

11"

Door Roller

Screen

Roller

Closing Door

Access Door

Audience

Side

Self-Trimming

Flange

2 ⁄" 10 ⁄"

Variable

Position

Mounting

Brackets

Electrical

Junction

Box

8 ½"

11 ½"

Case Length

11"

Troubleshooting

Visit www.da-lite.com/products/product_videos.php to ind

installation and troubleshooting videos and tutorials. You will

also ind a link to Live Chat for interactive support and you

can contact us by e-mail at info@da-lite.com or by phone

at (800) 6223737 or (574) 2678101 with any troubleshooting

questions.

Symptom Cause Solution

Screen will not operate or will

not go “down”.

Motor does not hum.

Motor hums.

Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage,

rewire incoming electric line.

Blown facility fuse. Replace facility fuse.

Tripped facility circuit breaker. Reset facility circuit breaker.

No power to operating switch

or junction box.

Check above. Tighten all loose wire connections.

Recheck wiring. See installation instructions.

Low voltage board has no power or

blown transformer.

Replace low voltage board.

"Down" Position

Check for power across black and white leads.

Power at junction box.

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” position. Check for continuity.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Screen will not move upward.

Motor does not hum.

Motor hums.

Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage,

rewire incoming electric line.

Blown facility fuse. Replace facility fuse.

Tripped facility circuit breaker. Reset facility circuit breaker.

No power to operating switch or junction box. Check above. Tighten all loose wire connections. See above.

Low voltage board has no power or

blown transformer.

Replace low voltage board.

"Up" Position

Check for power across red and white leads.

Open door limit switch. Replace switch.

Power at junction box.

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “up” position. Check for continuity.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Troubleshooting

Symptom Cause Solution

Door will not open.

Spring has an obstruction not

allowing door to open..

Check installation to free door. Clear any foreign

substance from spring.

No power. See above.

Door does not close.

Mis-adjusted door motor limit. Adjust door motor limit. Call Da-Lite for instruction.

Low voltage board has no power or a blown

transformer. Replace low voltage board.

Unit not calibrated Recalibrate per instructions on page 3

“Down” limit switch incorrect.. “Down” limit switch out of adjustment. See installation instructions.

Noise.

NOTE: Screen will operate with

a low-pitched hum.

Buzzing noise. Adjust door limit switch (too far down).

Gear noise Replace motor assembly.

Coasting. Defective brake. Replace motor assembly.

Roller displaced from

mounting bracket. Pin end slipped out of nylon bearing Realign pin end bracket.

Fabric hangs crooked.

Screen not installed properly. Check for level and plumb.

Fabric is damaged. Replace fabric.

Door closes before screen is all

the way up. Screen “up” limit out of adjustment. Adjust “up” limit (call factory for instructions).

Door opens but screen does not

operate. Loose wire. Check all wiring and connections..

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in

materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly

operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the

factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered

with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.

Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,

transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.

To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,

or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives

you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION

OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,

Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS

WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

35895

A Milestone AV Technologies Brand

3100 North Detroit Street

Warsaw, Indiana 46582

P: 574.267.8101 or 800.622.3737

F: 574.267.7804 or 877.325.4832

E: info@da-lite.com

www.da-lite.com

DL–0171 11.13

Other manuals for LARGE ADVANTAGE DELUXE ELECTROL

Table of contents

Other Da-Lite Projection Screen manuals

Da-Lite

Da-Lite C with CSR User manual

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL User manual

Da-Lite

Da-Lite AdvantageManual With CSR User manual

Da-Lite

Da-Lite Large Dual Masking Electrol User manual

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL User manual

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL User manual

Da-Lite

Da-Lite EXECUTIVE ELECTROL User manual

Da-Lite

Da-Lite Large advantage electrol User manual

Da-Lite

Da-Lite DELUXE MODEL B User manual

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol User manual

Da-Lite

Da-Lite Model C User manual

Da-Lite

Da-Lite C with CSR User manual

Da-Lite

Da-Lite Multi vision imager User manual

Da-Lite

Da-Lite Presenter P-50 User manual

Da-Lite

Da-Lite Cosmopolitan Electrol User manual

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol User manual

Da-Lite

Da-Lite PROFESSIONAL ELECTROL User manual

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL User manual

Da-Lite

Da-Lite Cosmopolitan Electrol User manual

Da-Lite

Da-Lite Tensioned large advantage deluxe electrol User manual

Da-Lite

Da-Lite 79982 User manual

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL User manual

Da-Lite

Da-Lite Tensioned Professional Electrol User manual

Da-Lite

Da-Lite DESIGNER CONTOUR ELECTROL Series User manual

Popular Projection Screen manuals by other brands

FART PRODUKT

FART PRODUKT Standard SCREEN Installation instruction

Draper

Draper E Series Installation & operating instructions

Elite Screens

Elite Screens Elite Tripod Series user guide

Laarhoven

Laarhoven Companion II General assembly instructions

Renogy

Renogy RMS-LFPS-US manual

Samsung

Samsung S*H65* user manual

FONESTAR

FONESTAR PPTR-43100-FA quick start guide

Slide Clear

Slide Clear Varro XL installation instructions

Elite Screens

Elite Screens M85XWS1-SRM manual

OS РХ-090Н user manual

Niko

Niko 10-845 Product information

Speaka Professional

Speaka Professional 2357532 Important information

Sima

Sima XL-72 instruction manual

Jasic

Jasic EVO 2.0 ET-200P Fitting instructions

Elite Screens

Elite Screens Starling 2 Series user guide

InFocus

InFocus SC-WALL GRY-92H Instruction guide

Barco

Barco OverView MVL-615 Brochure & specs

Draper

Draper Envoy Installation & operating instructions
