D-Link DHP W310AVB1 User manual
Quick Installation Guide
DHP-W310AV
PowerLine AV500 Wireless N
Mini Extender
Version 2.00 | August 29, 2014
Краткое руководство по установке
Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat
DHP-W310AV
2
ENGLISH
Package Contents
Wi-Fi Conguration Note Wi-Fi Conguration Card
CAT5 Ethernet Cable
PowerLine AV500 Wireless N Mini Extender
Installation CD-ROM
Hardware Installation
1. Plug the DHP-W310AV Powerline AV500 Wireless N Mini Extender into a wall
outlet in a place you want to extend your network.
ROOM C
DHP-W310AV
iPad
Notebook
3
DHP-W310AV
ENGLISH
Hardware Installation
2. Connect the included Ethernet cable to your DHP-W310AV and computer.
You may also connect to the DHP-W310AV over Wi-Fi with the information
on the Wireless Conguration Card.
3. Your computer and DHP-W310AV are now connected. Please refer to“First-
time Conguration” on the next page to connect your DHP-W310AV with
your existing Powerline network.
The device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)The device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that
may cause undesired operation.

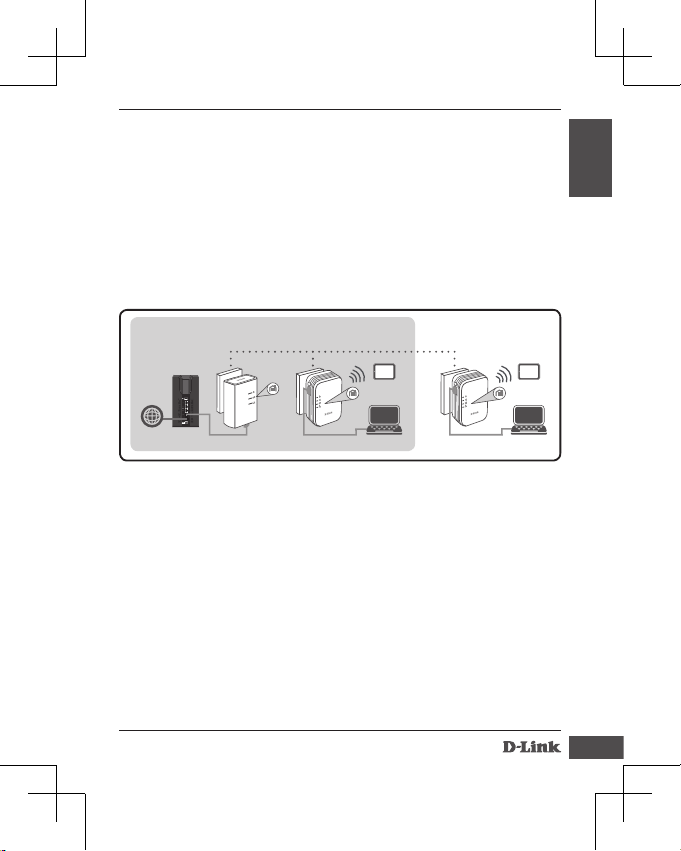

ROOM A ROOM B ROOM C
DHP-W310AV DHP-W310AV
DHP-308AV
RouterInternet Notebook Notebook
iPad iPad
DHP-W310AV
4
ENGLISH
First-time Conguration
1. Use your web browser to go to:
Windows: http://dlinkapWXYZ or http://dlinkap
Mac OS: http://dlinkapWXYZ.local. or http://dlinkap.local.
Where WXYZ is the last 4 digits of the MAC address. The full address is available
on the included Wireless Conguration Card.
2. Select ADMIN for the User Name and leave the Password blank.
3. From the landing page, start the Setup Wizard for Powerline Connection.
4. When prompted, press the Common Connect Button for 2 seconds on your
existing device to connect it to the DHP-W310AV.
Note: If you have not previously secured your existing Powerline network, you
will need to set up security for all of your existing Powerline devices. Perform
the following steps for each device: press the Common Connect Button on
the DHP-W310AV, then press the Simple Connect Button on your existing
Powerline device within 2 minutes.
5. Follow the wizard’s steps to set up your Powerline network. For more detailed
support, please refer to the User Manual.
5
DHP-W310AV
ENGLISH
Frequently Asked Questions
Q: Why can’t my DHP-W310AV nd my Powerline network?
• Be sure you are plugging directly into a wall outlet. Plugging into anything
else may slow or stop the connection.
• The electrical wiring must have a direct connection. For example, Powerline
connections may not be available across a street or to dierent units in an
apartment building.
Q: My connection is erratic and sometimes cuts out or is slow, why?
• Try to keep nearby outlets free of other devices, especially chargers and hair
dryers, to minimize electrical interference.
Q: How do I nd my wireless network? Why does it have such a weird
name? Can I change it?
• You can nd the Wi-Fi name (SSID) and password on the Wireless Congura-
tion Card. Common names and passwords like dlink or password are avoided
for security purposes.
• You can change your wireless settings by navigating a web browser to
http://dlinkapWXYZ.local. then Setup then Wireless Settings. WXYZ is an
example, the real address is on your conguration card.
Q: Can I use only the DHP-W310AV to get online?
• At least two Powerline devices work together to create a network.They com-
municate over your electrical wiring, but you still need an Internet connec-
tion from a router and/or modem.
Q: Can I use more than one DHP-W310AV device at a time?
• Yes you can! D-Link oers a host of Powerline devices that include adapters,
extenders, and routers.
DHP-W310AV
6
ENGLISH
Technical Support
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Australia:
Tel: 1300-766-868
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: +91-832-2856000
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : +82-2-2028-1810
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
New Zealand:
Tel: 0800-900-900
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: +27 12 661 2025
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South AfricaTime
Web: http://www.d-link.co.za
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: +971-4-8809022
Fax: +971-4-8809066 / 8809069
Technical Support: +971-4-8809033
Egypt
1, Makram Ebeid Street - City Lights Building
Nasrcity - Cairo, Egypt
Floor 6, oce C2
Tel.: +2 02 26718375 - +2 02 26717280
Technical Support: +2 02 26738470
Kingdom of Saudi Arabia
Oce # 84 ,
Al Khaleej Building ( Mujamathu Al-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: +966 1121 70008
Technical Support:
+966 1121 70009
General Inquiries: info.sa@ dlinkmea.com
Tech Support: support.sa@ dlinkmea.com
Pakistan
Islamabad Oce:
61-A, Jinnah Avenue, Blue Area,
Suite # 11, EBC, Saudi PakTower,
Islamabad - Pakistan
Tel.: +92-51-2800397, 2800398
Fax: +92-51-2800399
7
DHP-W310AV
ENGLISH
Technical Support
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Karachi Oce:
D-147/1, KDA Scheme # 1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: +92-21-34548158, 34326649
Fax: +92-21-4375727
Technical Support: +92-21-34548310, 34305069
Iran
Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest St. ,
Argentine Sq. ,
Tehran IRAN
Postal Code : 1513833817
Tel: +98-21-88880918,19
+98-21-88706653,54
Morocco
M.I.T.C
Route de Nouaceur angle RS et CT 1029 Bureau N° 312
ET 337
Casablanca , Maroc
Phone : +212 663 72 73 24
Lebanon RMA center
Dbayeh/Lebanon
PO Box:901589
Tel: +961 4 54 49 71 Ext:14
Fax: +961 4 54 49 71 Ext:12
Email: [email protected]
Bahrain
Technical Support: +973 1 3332904
Kuwait:
Technical Support: + 965 22453939 / +965 22453949
Türkiye
Büyükdere Cad. Ferro Plaza No:155
D: 1 K: 1 Zincirlikuyu / Istanbul
Tel: +90 (212) 289-56-59
Email: [email protected]
DHP-W310AV
8
РУССКИЙ
Комплект поставки
Wi-Fi Conguration Note Карта с настройками беспроводной сети
Ethernet-кабель кат.5
PowerLine AV500 адаптер с беспроводной точкой доступа
Установочный CD-диск
Установка устройства
1. Подключите DHP-W310AV к розетке питания в месте, где необходимо
увеличить радиус действия сети.
ПОМЕЩЕНИЕ В
DHP-W310AV
iPad
Ноутбук
9
DHP-W310AV
РУССКИЙ
Установка устройства
2. Подключите входящий в комплект поставки Ethernet-кабель к DHP-
W310AV и к компьютеру. Также можно подключиться к DHP-W310AV
по Wi-Fi, используя информацию, указанную на Карте с настройками
беспроводной сети.
3. Компьютер и DHP-W310AV подключены. Пожалуйста, перейдите к
разделу «Первоначальная настройка» на следующей странице, чтобы
выполнить подключение DHP-W310AV к существующей сети Powerline.
ПОМЕЩЕНИЕ A ПОМЕЩЕНИЕ Б ПОМЕЩЕНИЕ В
DHP-W310AV DHP-W310AV
DHP-308AV
МаршрутизаторИнтернет
Ноутбук Ноутбук
iPad iPad
DHP-W310AV
10
РУССКИЙ
Первоначальная настройка
1. Введите в Web-браузере:
Windows: http://dlinkapWXYZ или http://dlinkap
Mac ОS: http://dlinkapWXYZ.local. или http://dlinkap.local.
где WXYZ - последние 4 цифры MAC-адреса. Полный MAC-адрес указан
на входящей в комплект поставки карте с настройками беспроводной
сети.
2. В качестве имени пользователя выберите ADMIN, поле пароля оставьте
пустым.
3. Запустите на исходной странице Мастер установки соединения
Powerline.
4. После появления запроса нажмите кнопку на действующем устройстве
для подключения к DHP-W310AV.
Примечание: Если Ваша сеть Powerline не защищена, необходимо
установить защиту на всех Ваших устройствах Powerline. Выполните
следующие шаги для каждого устройства: нажмите кнопку Common
Connect Button на DHP-W310AV, затем в течение 2 минут нажмите
кнопку для подключения на Вашем устройстве Powerline.
